Nobsound 5654 Vacuum Tube Phono Stage Preamp for Home Turntables Headphone Amp w/VU Meter Stereo Audio Preamp for TV/MP3/Phone bluetooth receiver for amplifier Audio Amplifier Boards

Nobsound 5654 Vacuum Tube Phono Stage Preamp for Home Turntables Headphone Amp w/VU Meter Stereo Audio Preamp for TV/MP3/Phone bluetooth receiver for amplifier Audio Amplifier Boards

Name: Nobsound 5654 Vacuum Tube Phono Stage Preamp for Home Turntables Headphone Amp w/VU Meter Stereo Audio Preamp for TV/MP3/Phone bluetooth receiver for amplifier
Brand: MMO Dropship
SKU: 1005003594011280
Price: 150.99 VND
Availability: InStock
Rating: 4.9 (77 reviews)

Code: TD-1005003594011280 10 orders

Free Shipping

$ 150.99 $ 219.99

Other people want this. 28 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Nobsound
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Package:	Yes
Certification:	CE
Model Number:	T4 PLUS
Channels:	2 (2.0)
Type:	Tube Preamp

Nobsound Latest Mini 100W Subwoofer / Full Frequency Power Amplifier Mono Channel Audio TPA3116D2 Amp

USD 25.99-34.44/piece

Nobsound T3 Plus Mini Vacuum Tube Preamp MM / MC Phono Stage for Turntables Pre-Amplifier Desktop Headphone Amp

USD 58.49/piece

2021 Nobsound Mini TPA3116 Bluetooth 5.0 HiFi Power Amplifiers Stereo Home Audio Digital Sound Amplifier With Treble Bass

USD 37.04-48.09/piece

Nobsound Bluetooth 5.0 Power Amplifier 320W Stereo 2.0 Channel Subwoofer Amp Treble Bass Adjust USB Lossless Music Player

USD 66.94/piece

Nobsound Mini Bluetooth 5.0 TPA3116 Digital Audio Amplifier HiFi Class D Stereo Power Amp 100W*2 for Home Speakers

USD 47.44-58.49/piece

Nobsound Hi-Fi G2 /G2 pro Subwoofer / Full-Frequency Mono Channel Digital Power Amplifier 100W or 300W

USD 45.49-66.94/piece

Nobsound HiFi Bluetooth 5.0 JAN 5654 Valve Tube Preamp Bass Preamplifier Stereo Audio Headphone Amplifier USB DAC APTX

USD 90.99/piece

Nobsound Mini Bluetooth 5.0 TPA3116 Digital Amplifier Hifi Stereo Audio Receiver Power Amp 50W+50W Car Sound Amplifiers

USD 19.49-29.89/piece

Features

T4 PLUS tube preamp meets more HiFi audio needs:

MM /MC phono input, support multiple input impedance switch (1KΩ/470Ω/220Ω/100Ω/47Ω/22Ω/10Ω), converts phono signal to line level signal, low-noise integrated circuits and high-quality components to ensure clear sound.

3.5mm AUX input, amplify the low level audio signal from your phone, tablet, PC, MP3 etc., easier to drive amplifier or active speaker and greatly improve the sound quality.

Unique and amazing combination in the appearance: integrated T4 PLUS preamp with retro tubes and VU meter into a whole, the pointer dancing in the warm light with strong vintage feelings when enjoy HiFi music, dynamically decorates the audio system and give you a different acoustic enjoyment with large dynamic and sweet tube sound even in limited space.

Imported JAN5654 tubes and vintage warm sound: default comes with JAN5654 tubes, improves everything associated with your music such as detail, transparency, immediacy, richness, dynamic, tone etc., much better than 6J1 series especially in human voice. Pluggable tube socket for tube rolling and sound-shaping, easy to pick from and alter the sound signature to one's preference.

3.5mm headphone output and perfect circuit design: T4 PLUS also with built-in classic headphone amp circuit (2*NE5532), easily to drive 32-300 ohm headphones. Reasonable and advanced architecture, TI TPS5430+7205MOS for power management, TL071+JRC2068 phono preamp circuit etc., enjoy HiFi analog sound and first-class design with an unbeatable low cost.

Mini size and excellent performance: all designs full of details, such as solid aluminum alloy knob, gold-plated terminals, grey integrated moulding aluminum alloy shell decorates with built-in VU meter, looks vintage and elegant. Not only a MM/MC phono preamp, but also a stereo audio preamp and headphone amplifier, especially designed for the audiophiles who pursue HiFi sound.

Warm tips:

1. 3.5mm AUX input with priority, please make sure the AUX cable has been pulled out if want to use MM/MC phono input.

2. Stereo RCA and 3.5mm headphone jack can output at the same time, and the knob also controls the volume of two outputs simultaneously.

Parameters

Brand: Douk Audio

Model: T4 PLUS

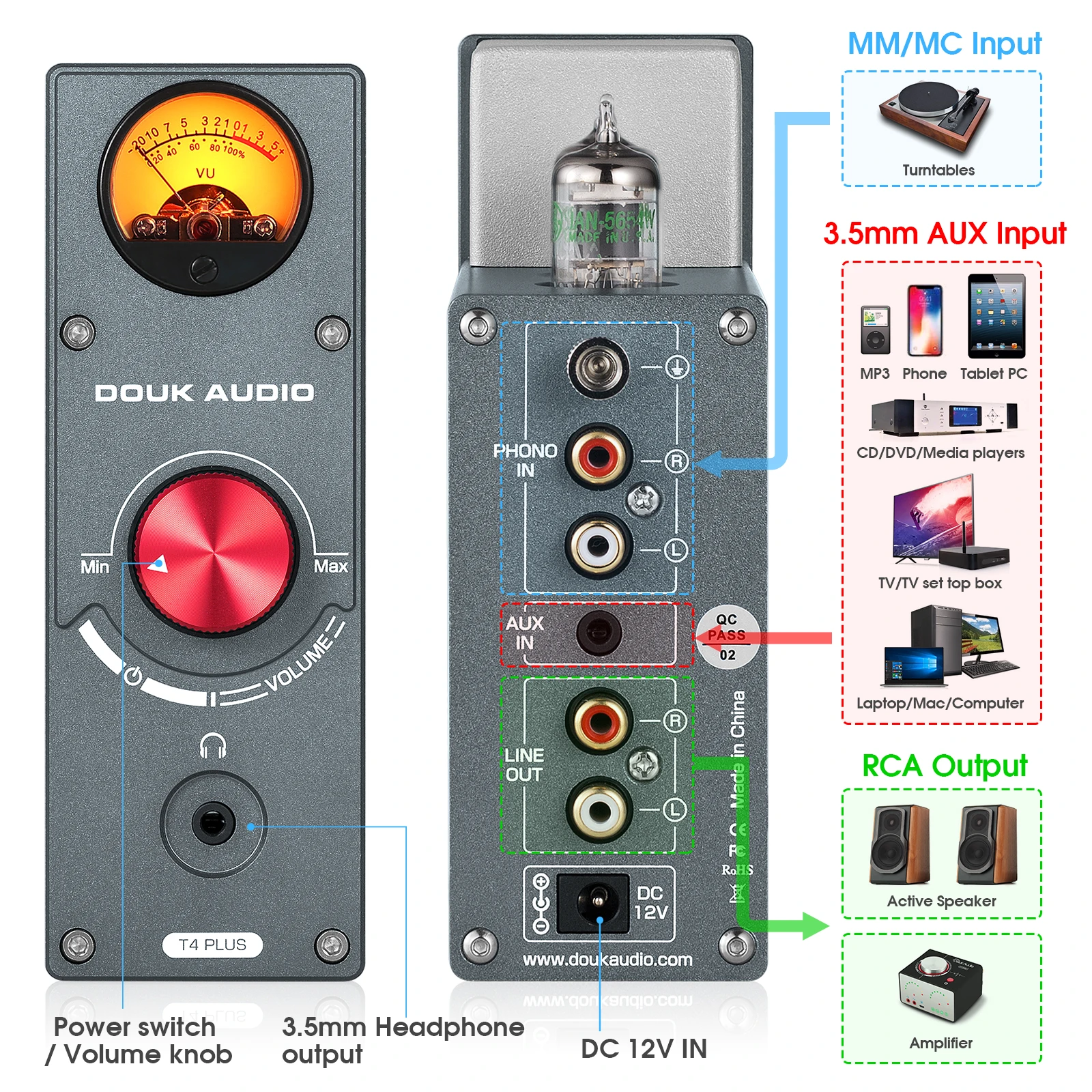

Audio input: MM phono/turntable / 3.5mm AUX

Audio output: stereo L/R RCA / 3.5mm headphone jack

Max output power of headphone jack: 150mW@32Ω

Matched headphone impedance: 32-300Ω

AUX IN

AUX input level: 0.775V

RCA max output level: 1.5V

Frequency response: 20Hz-20KHz (±0.3dB)

S/N ratio: ≥110dB

THD: 0.2%

Phono IN

Phono input level: 0.005V

RCA max output level: 300mV (MM) / 3V (MC)

Frequency response: conforms to RIAA characteristics (±3dB)

S/N ratio: 71dB

THD: 0.8%

Working voltage: DC 12V

Dimensions(W*D*H): 50*137*146mm / 1.97*5.39*5.75in

Package dimensions(W*D*H): 300*230*65mm / 11.81*9.06*2.56in

Net weight: 640g / 1.41lb

Package weight: 1000g / 2.20lb

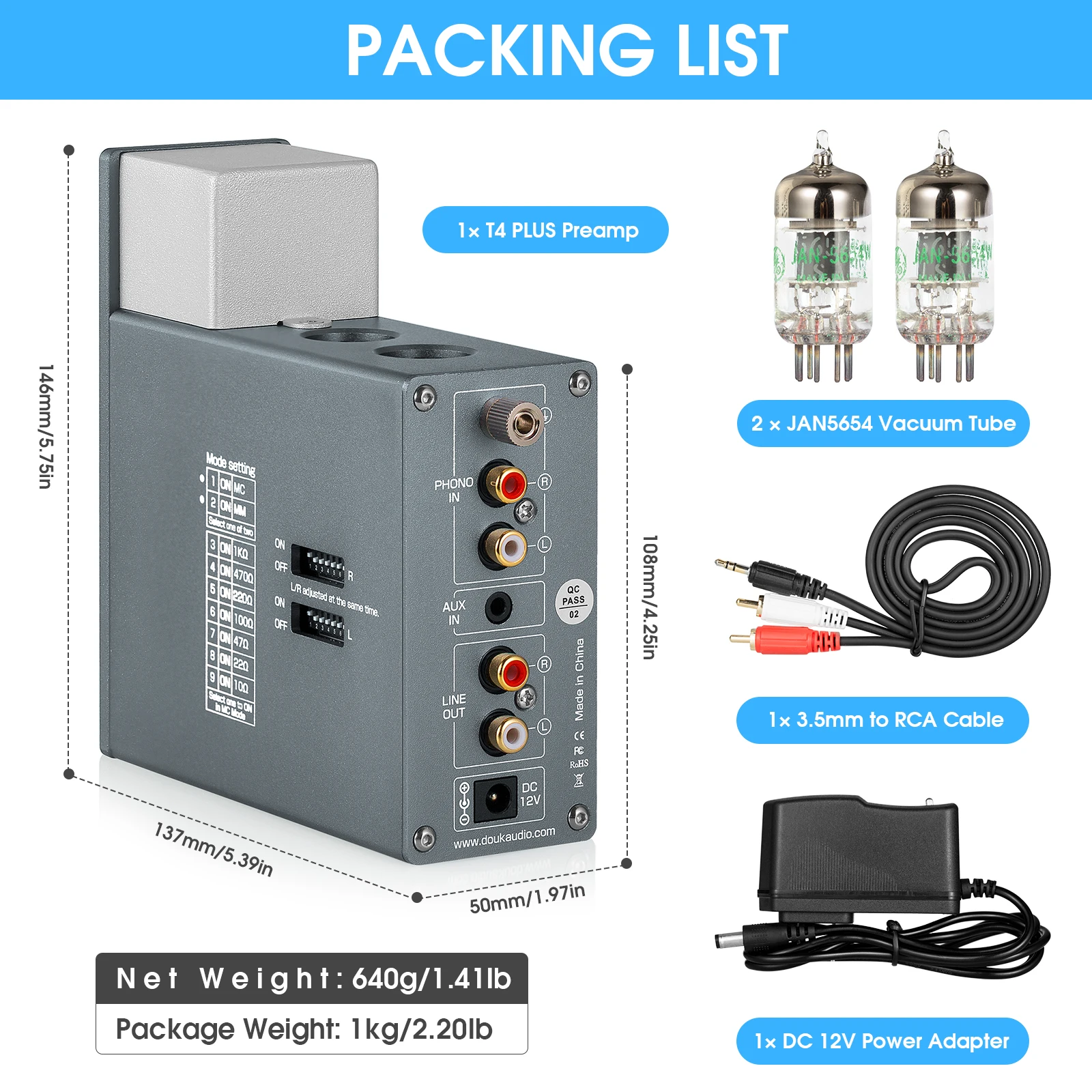

Packing List

1*T4 PLUS Preamp

2*JAN5654 Vacuum Tube

1*DC 12V Power Adapter

1*3.5mm to RCA Cable
