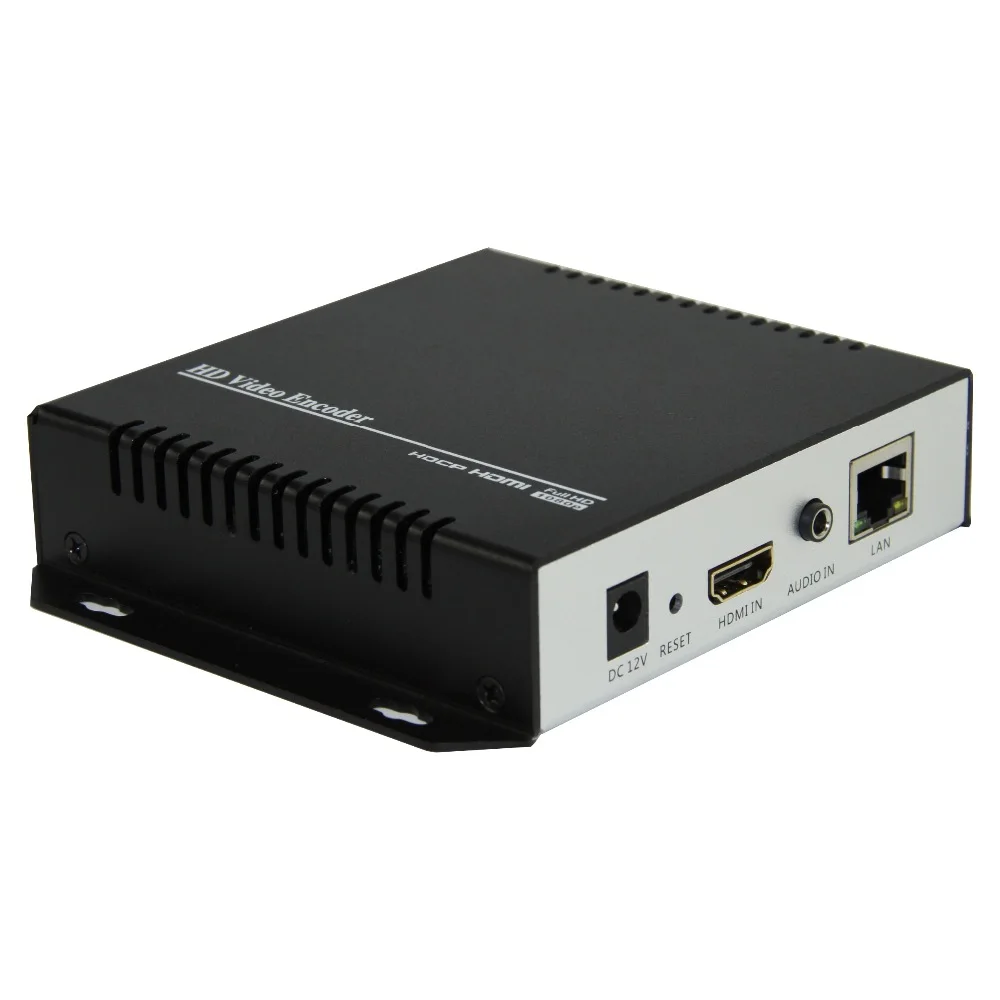

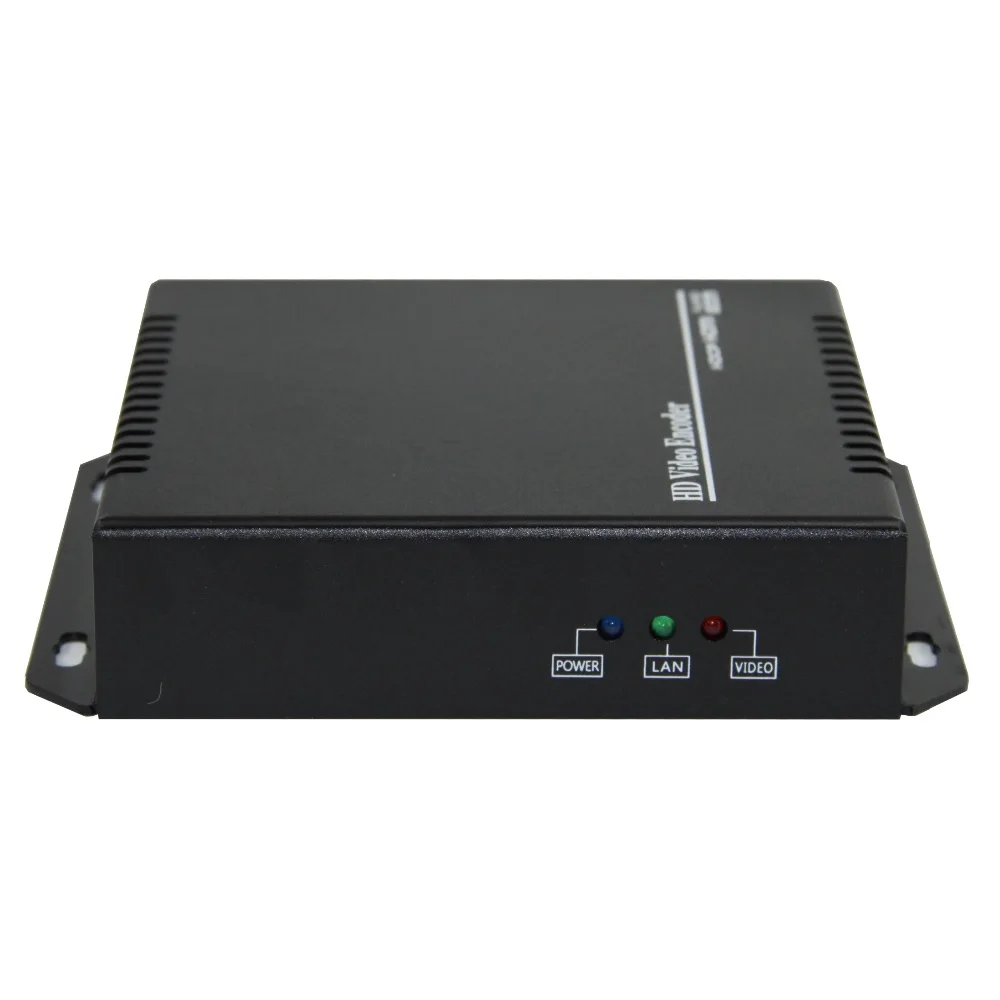

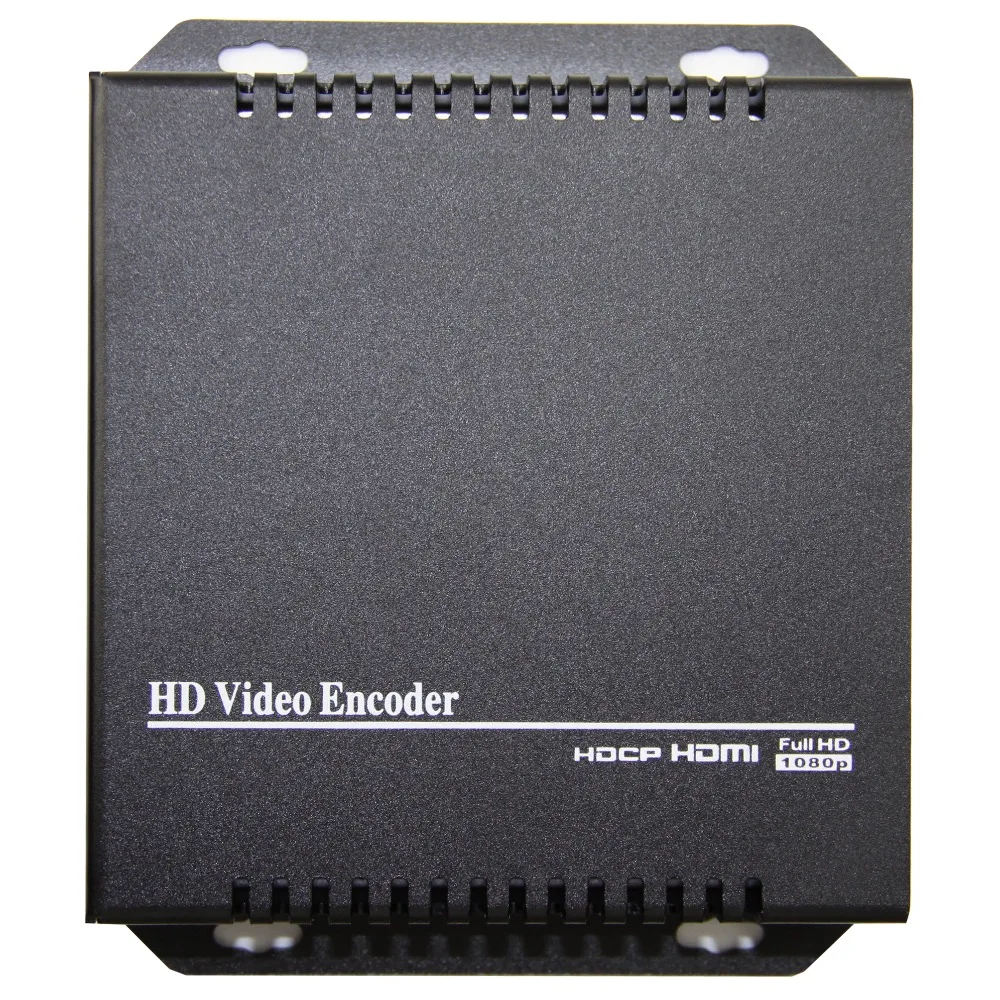

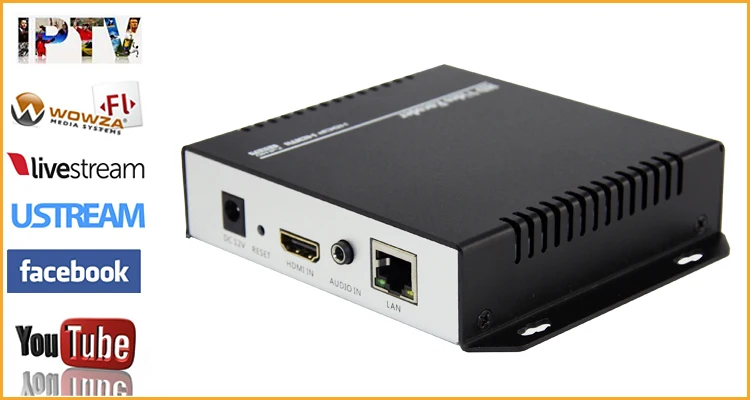

MPEG4 HDMI To IP Live Streaming Video Encoder H.264 RTMP Encoder HDMI Encoder IPTV H264 With HLS HTTP RTSP UDP

Brand Name:	Sure Video
Voltage:	12V
Package:	Yes
Model Number:	BM3100HDMI
Input:	1x HDMI( 1.4) HDCP
Resolution:	1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i
Encoding:	H.264/AVC Baseline/Main/High Profile Level 4.2
Latency Time:	300ms
Audio Input:	1xHDMI,1x3.5mm
Ethernet:	100 Base-T Ethernet interface
Protocol:	HTTP RTSP RTMP HLS FLV UDP unicast/multicast
Power:	12V DC 1A
Dimension:	105x108(129)x28mm
Net Weight:	0.2kg



http://bit.ly/2Dch5PP

https://youtu.be/-ia6PHmG5rk

HEVC /H.265 HDMI To IP Video Streaming Encoder with battery, 1080P RTSP /RTMP /UDP HD Video Encoder Encoder HDMI Transmitter

USD 179.10-254.70/piece

MPEG4 HDMI To IP Live Streaming Video Encoder H.264 RTMP Encoder HDMI Encoder IPTV H264 With HLS HTTP RTSP UDP

USD 112.50/piece

HD H.264 SDI iptv streaming encoder for Live Broadcast to Youtube Wowza Facebook Ustream

USD 207.00/piece

New Reliable RTMP Encoder Quality Pro HD SDI WIFI Encoder H.265/HEVC H.264/AVC Encoding For IPTV Solutionn And Vieo Live Stream

USD 236.69/piece

•

•   Support MPEG-4 /H.264 AVC baseline /main /high profile encoding

•   From 32Kbit/s to 32Mbit/s by CBR /VBR code rate controlling

•   Support HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF streaming protocol

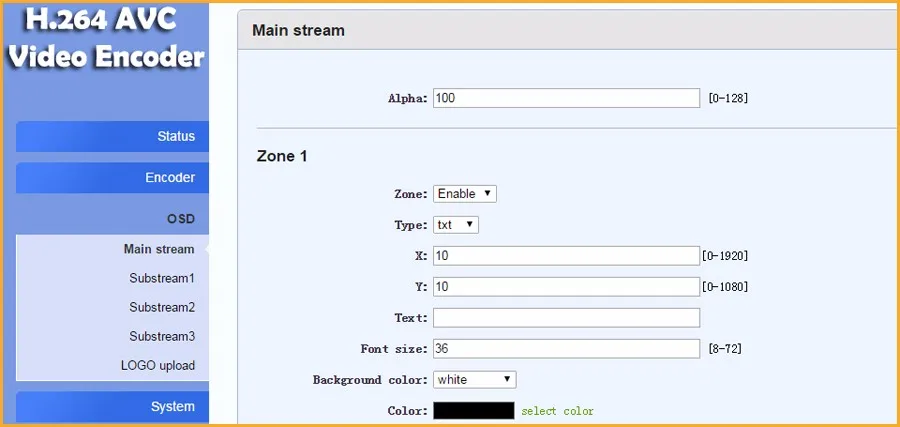

•   Support image, logo, text parameter settings on the output video streaming

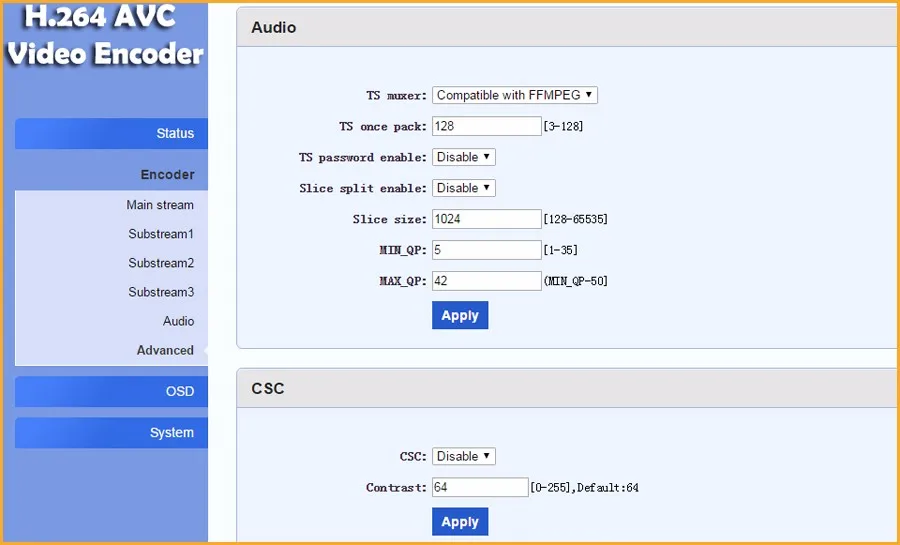

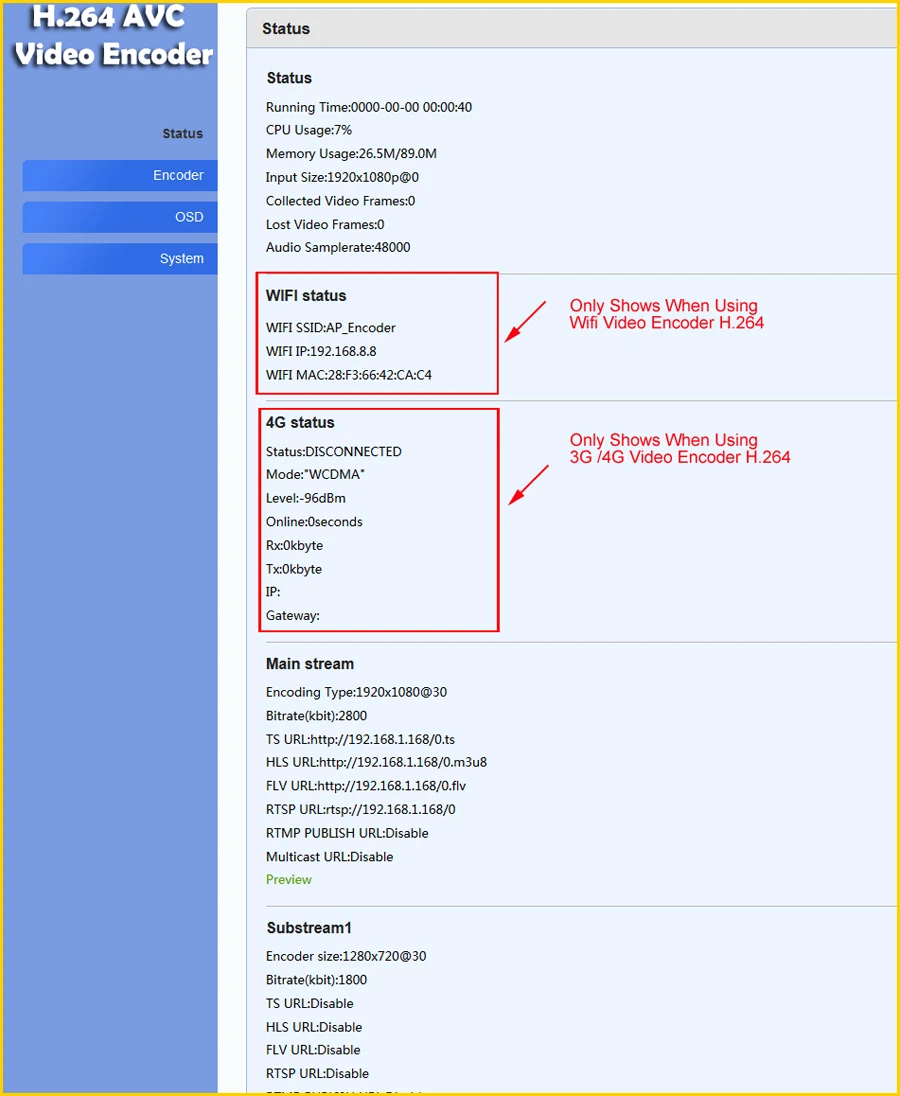

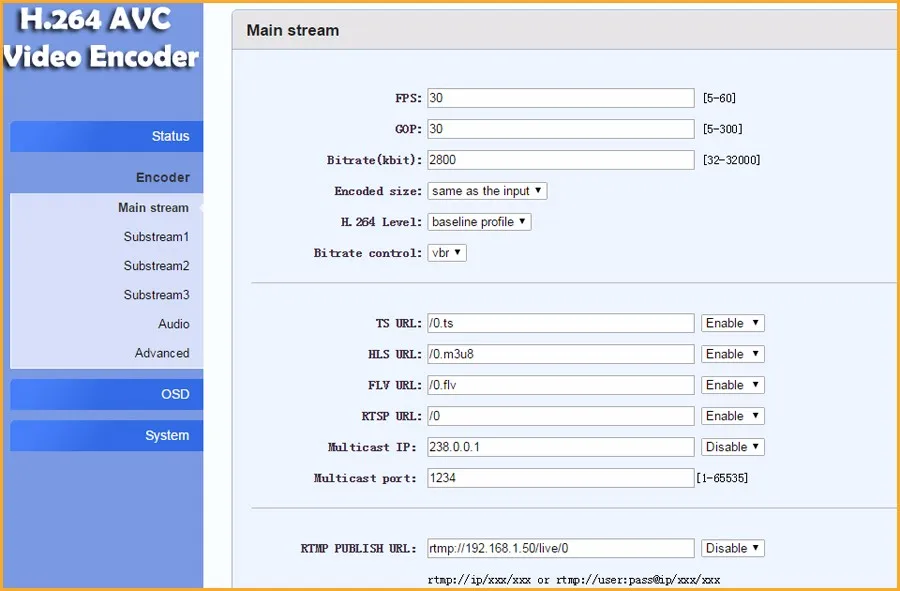

•   Support English WEB operating interface and language customizable

•   Support output video streams resolution setting(Up to 1920 * 1080P /60fps)

•   Support up to 4 streamings output Simultaneously

•

•   Provide SDK & API for secondary development

•   Support GOP frame rate settings

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

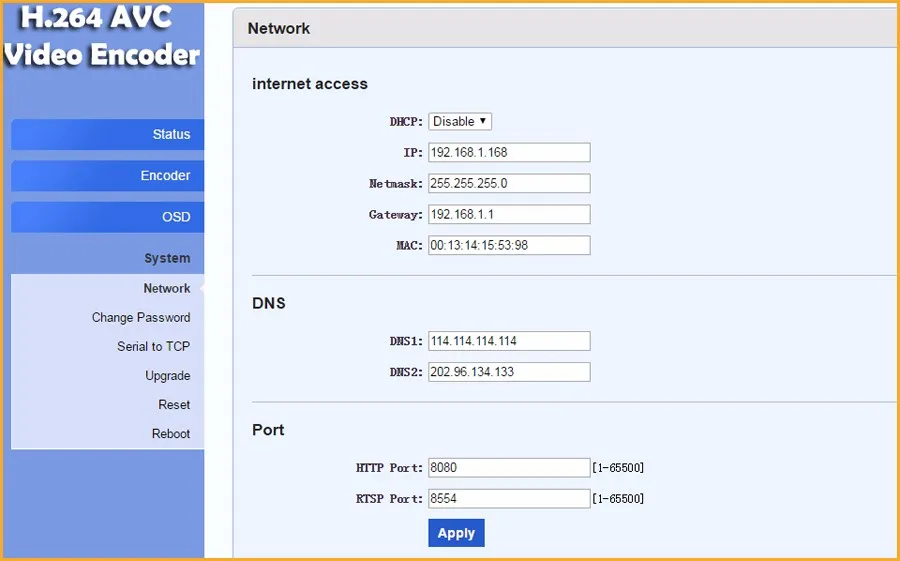

•   A wide area network remote management (Web control panel)

•   Support different protocol transmission for the 4 output streamings

•   Support MP3 and AAC and AAC+ and AAC++ audio coding format selection

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed

Video

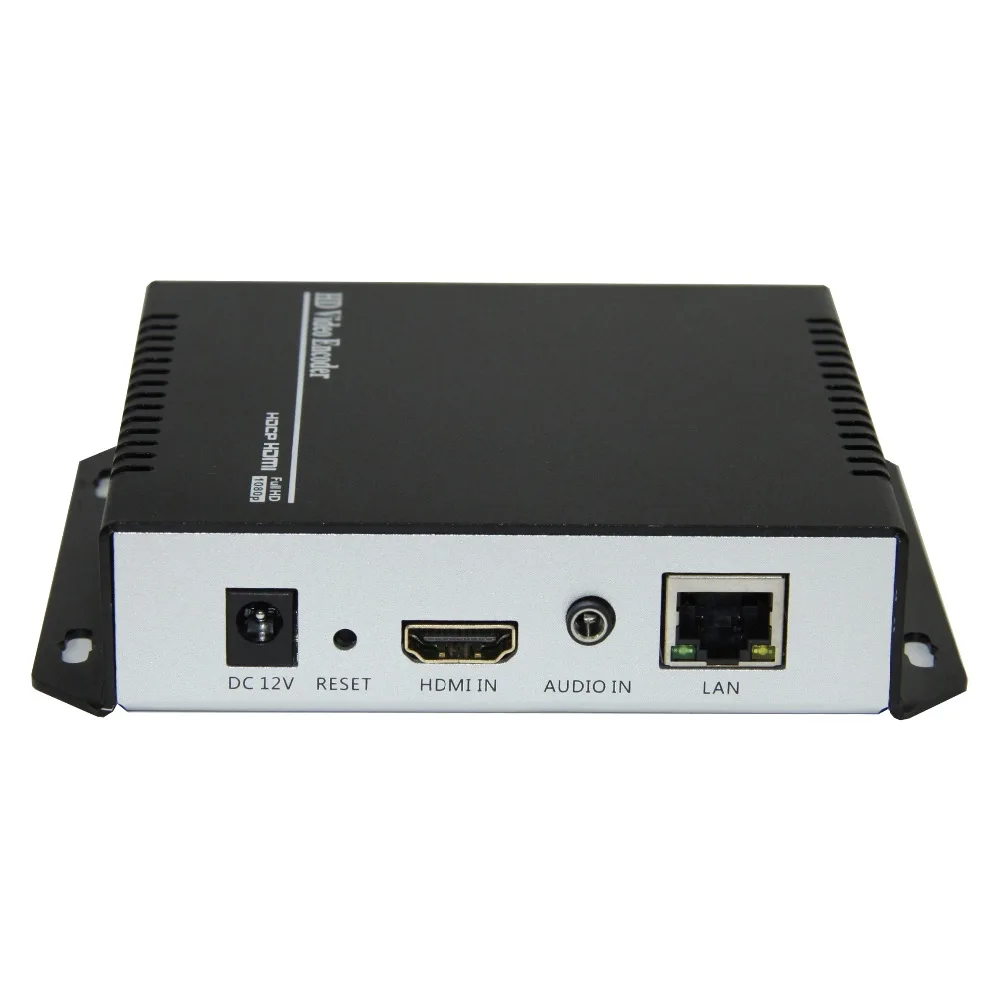

Input Interface

1 * HDMI + 1 * Stereo Audio (3.5mm)

Support Resolution

Max Support 1920 x 1080P@60fps

Output Interface

1 * Ethernet Port (RJ45)

Video Encoding

MPEG-4 H.264 /AVC

Code Rate Control

From 32Kbps to 32Mbps

Code Rate

CBR /VBR

GOP Structure

IBBP

Video Pre-processing

De-interlacing, Noise Reducing & Sharpening

Audio

Audio Encoding

AAC, AAC+, AAC++, MP3

Sampling Rate

Auto

Bit-rate Option

32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K, 384K

Sampling Accuracy

24 Bit

Audio Data-rate

64Kb /S to 384Kb /S

Network

RJ45

1000M Interface

Program Streaming

HTTP, UDP, RTSP, RTMP, HLS, FLV, ONVIF, RTP

Control Panel

WEB Panel (Language Customizable)

Firmware Update

Enable by Uploading Files To Dashboard

General

Dimension (W* L* H)

129 * 105 * 28 /mm

Gross Weight

0.3KG

Temperature

0 to 45(For working),  -20 to 80(For storing)

Input Voltage

12V /DC

Power Consumption

5W

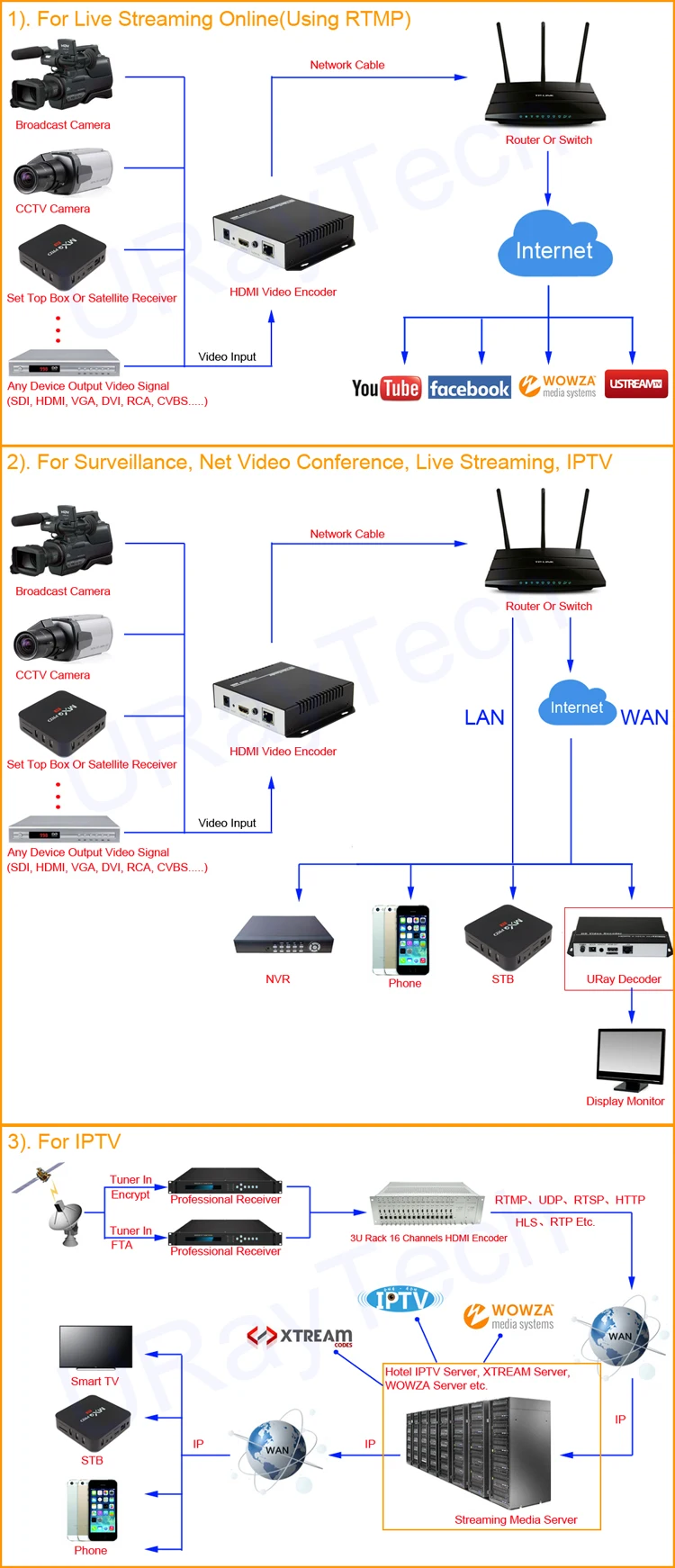

Video signal transmission products such as high-definition HDMI, DVI, SDI, VGA that developed and produced by the company utilize cables, network and optical fiber as transmission mediums, providing long distance transmission solution of high-quality media signals for the majority of customers. Now these products have widely used in many fields such as track traffic, security monitoring, big screen(splicing screen)display, multimedia teaching, LCD and industrial control.

At the same time, HDMI, DVI, SDI, VGA high-definition video codec that lately developed by Mita has provided a stable, clear, reliable front-end acquisition device for IPTV, video conference, live telecast, recording and playing and monitoring. Today Mita electron will continue to adhere to service purpose and philosophy of “the technology centering on the needs of people” .

Q1 How fast can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.

Q2 Can I get a sample to check the quality of product?

A: Yes. We can send you samples to check the quality within 3-5days.

Q3 Do you offer guarantee for the products?

A: We offer 1 year guarantee for the goods. Same Q'ty good encoders compensation against same Q'ty bad ones.

Q4 What is your terms of delivery?

A: We accept EXW, FOB, L/C, etc. You can choose the one which is the most convenient or cost effective for you.

Q5 When is your lead time?

A: 3-7 days after for production comfirmation of order

Q6 Are you accept Paypal?

A: Yes, we are.

Q7 Can we do OEM project?

A: Yes, no problem. Custom logo and custom packing will be no problem for us.

Additional Information

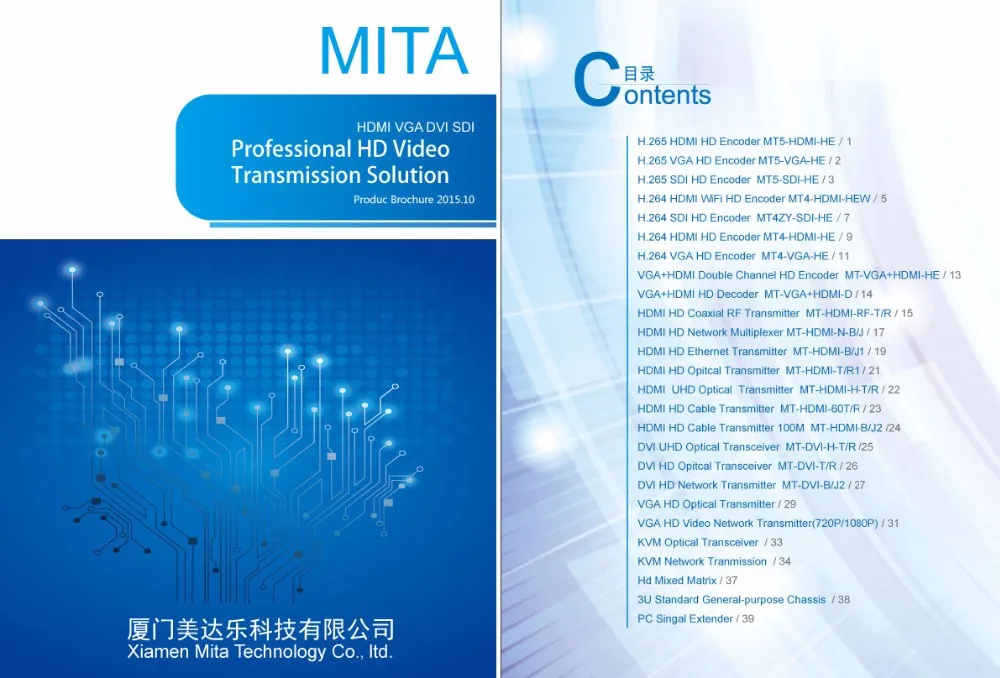

Our factory provide product brochure on paper for free. You also don't need to pay for the shipping fee. If you are interested in it, please write these information for us:
