Name: MPEG4 H 264 HDMI + MIC To IP Live Streaming Video Encoder H.264 RTMP Encoder HDMI Encoder IPTV H264 With HLS HTTP RTSP UDP
Brand: MMO Dropship
SKU: 2251832826551335
Price: 201.5 VND
Availability: InStock
Rating: 4.9 (92 reviews)

Code: TD-2251832826551335 3 orders

Free Shipping

$ 201.5 $ 215

Quantity:

Other people want this. 29 people have this in their carts right now.

Description
Shipping & Returns

Model Number:	UHE264-1S
Package:	Yes
Voltage:	12V
Brand Name:	Sure Video
Input:	HDMI(audio bulid-in)+Stereo Audio(3.5mm jack)
Output:	Ethernet Port(RJ45)
Stream Protocol:	HTTP, RTSP, RTMP, RTMPS, UDP, RTP, ONVIF, HLS(M3U8), Multicast, etc
Video Encoding:	MPEG-4 /H.264 AVC Or MJPEG
Audio Encoding:	AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Video Stream:	Up To 4 Video Streams Output Simultaneously
Bitrate:	32kbit /s to 32mbit /s Adjustable
Firmware:	Firmware Upgradeable
Service:	Provide SDK And API And CGI For Secondary Development
OSD:	Support Insert Logo And Text On The Output Displayed Video
Video Resolution:	Max 1920x1080P /60fps Input And Output
Customization:	Support Logo Or Language Or Function Customization

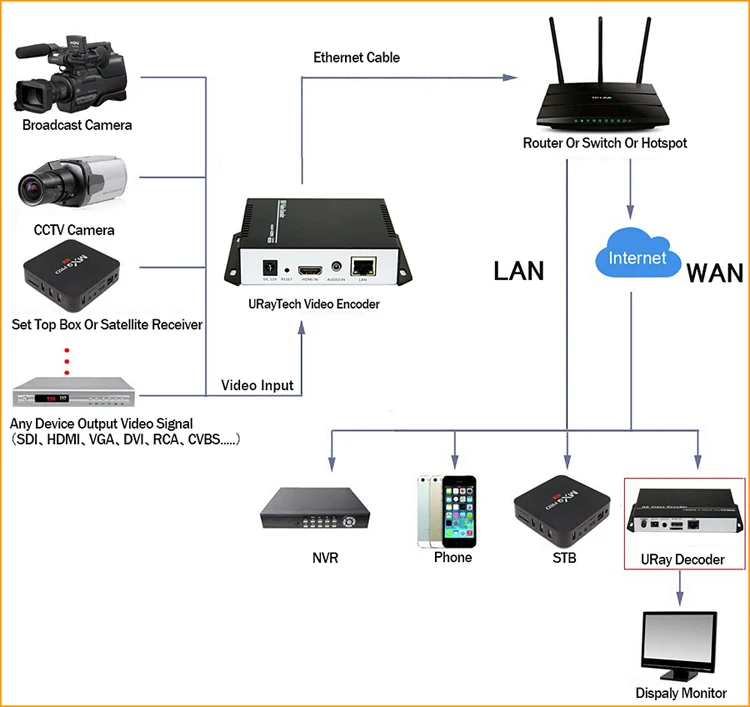

Typical Connection

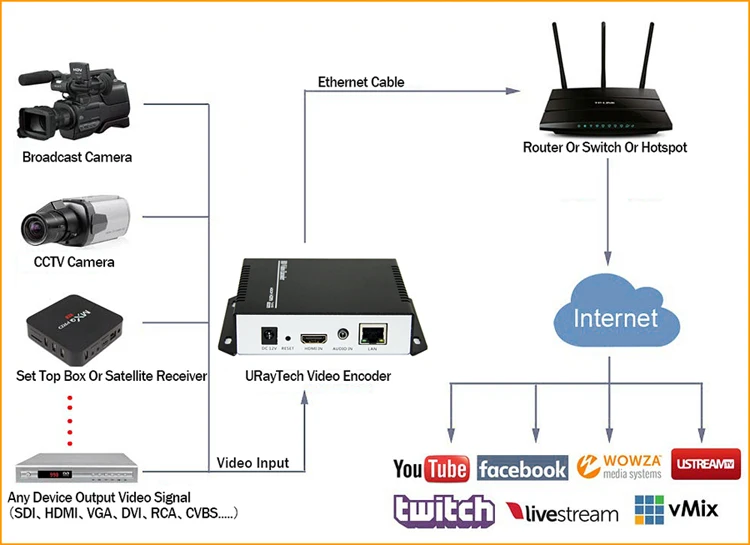

1). For Live Broadcast Online

Connection

2). For Multi-purpose Connection

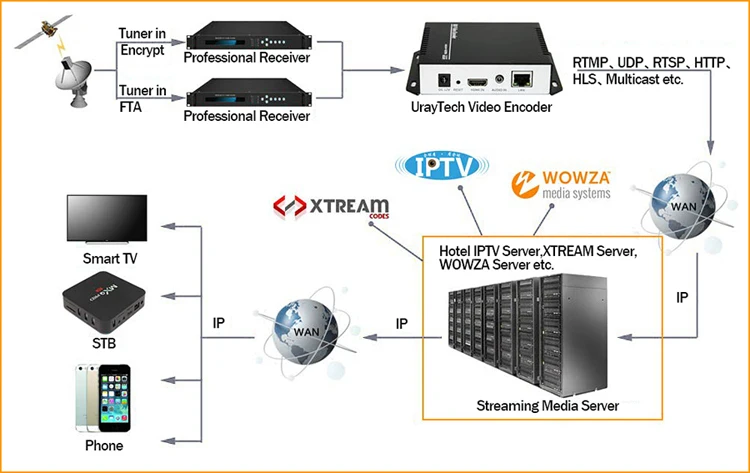

3). For IPTV Project

Connection

The Feature

• Embedded HiLinux system, stable and effective

• Friendly webpage configuration UI(IP address can be setted)

• Support MPEG-4 /H.264 AVC or MJPEG video encoding

• Support AAC, AAC+, AAC++,

MP3, MP2, AC3, G.711 audio encoding

• The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)

• Support HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

• Support insert image, logo, text, roll text on the output video stream

• Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

• Support different protocol transmission for the 4 output video streams

choose HDMI embedded audio or external audio as output audio

• Firmware is upgradeable

• Support configure the encoder by using APP or webpage UI

• Provide SDK and API also CGI for secondary development

• Support brightness, contrast, hue, saturation setting on output displayed video

• Network interface full-duplex mode with 1000M speed

• Support HDCP and HD blue-ray

• A wide area network remote management(via port forwarding)

• English webpage operating interface, language is customizable

• A click to restore the default configuration

• Stable and effective, support 7 x 24h working time

• Support 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

• Provide many kinds of customization(logo print, language

customization,

firmware or function

customization etc

)

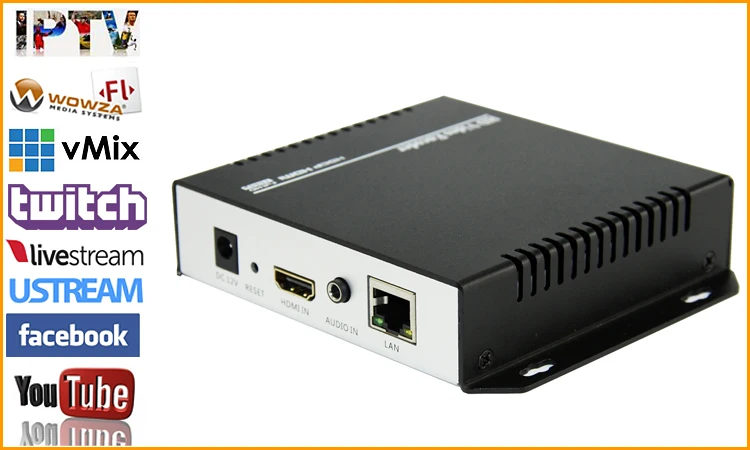

• Multi platforms live broadcast

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes.

It supports multi-stream output, up to 4 video streams output simultaneously.

You can push multi video stream to multi-platform at the same time.

The Specification

Model No.

UHE264-1S

Video

Input

HDMI(Support HDCP)

Input Resolution

1080P /1080i /720P and below, 50Hz /60Hz and below

Encoding Type

MPEG-4 /H.264 AVC Or MJPEG

Encoding Levels

H.264 high /main /baseline profile

Video Bitrate

Adjustable From 32kbit /s to 32mbit /s

Bitrate Control

CBR or VBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing and sharpening

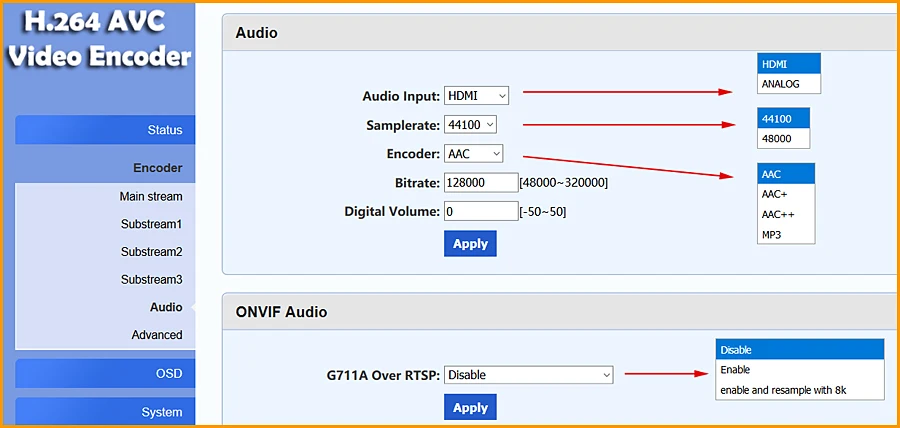

Audio

Input

HDMI embedded audio or external stereo audio(3.5mm)

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~320000

Sampling Accuracy

24bit

ONVIF

G.711

Network

Interface

1000M Ethernet port(RJ45)

Streaming Protocol

HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc

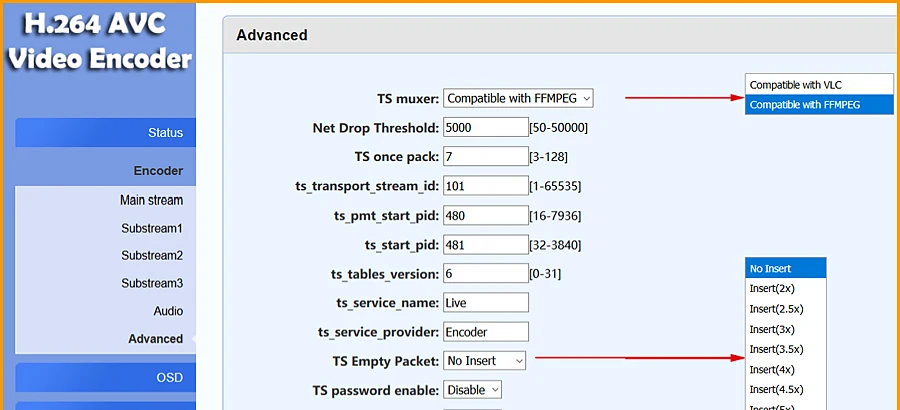

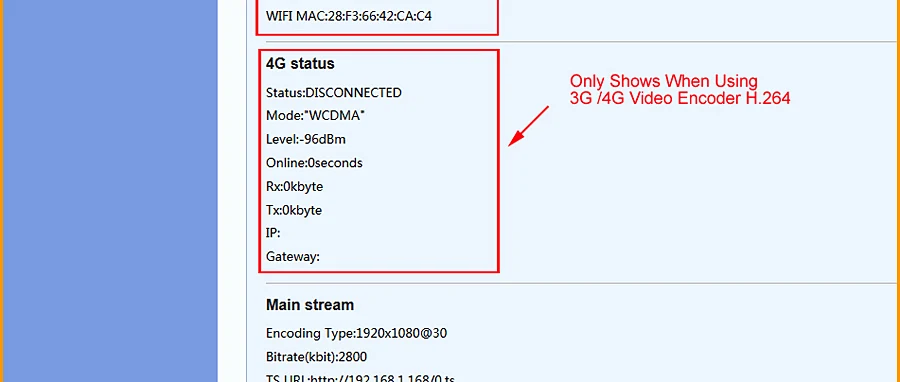

Control Panel

Webpage UI(language customizable) Or APP

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

130 x 105 x 30 /mm

Net Weight

0.3kg

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /1A

Power Consumption

Control Panel

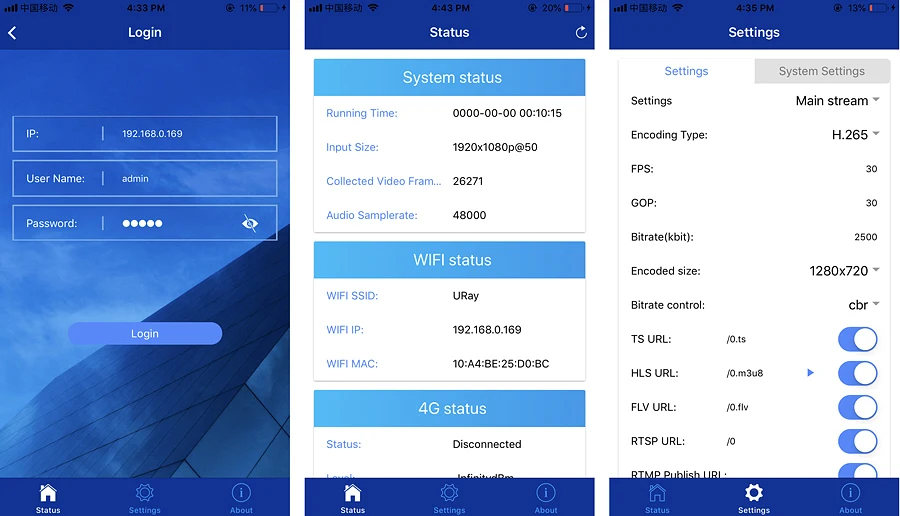

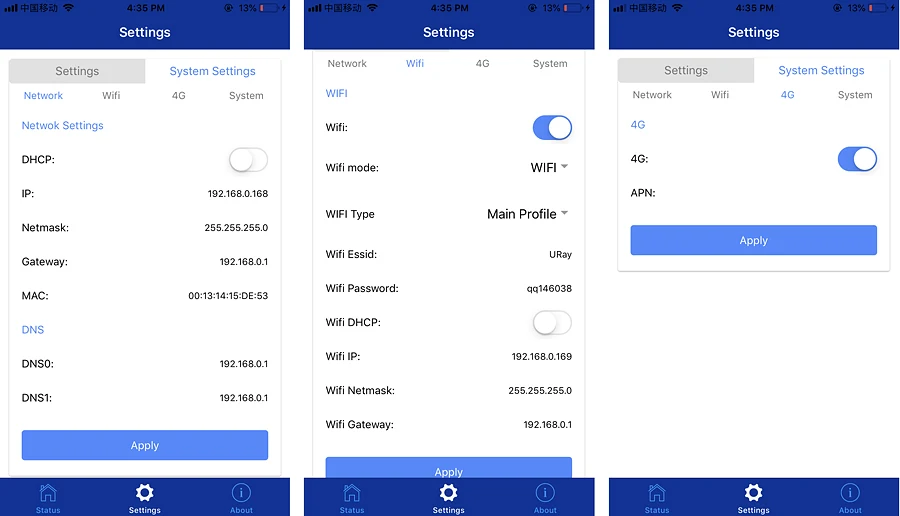

APP Control

•

If you have problem of making payment

, please contact us.

• If you are worried about customhouse charge, please contact us.

• If you need to print your logo on the device, please contact us.

•

If you require any files regarding to the product(user manual, new firmware etc), please contact us.

• If you require discount for bulk order(>5pcs), please contact us.

• If you have questions before buying, please contact us.

• If you meet the technical problems after buying, please contact us.

• If you want to test this device before buying, please contact us.
