Cloned Duet 2 WIFI V1.04 3D Printer Motherboard 32 Bit Controller Board With 4.3" PanelDue Touch Screen For CNC MachineDuet 2 Wifi LINK：

Cloned Duet 2 WIFI V1.04 3D Printer Motherboard 32 Bit Controller Board With 4.3" PanelDue Touch Screen For CNC MachineDuet 2 Wifi LINK：

Name: Cloned Duet 2 WIFI V1.04 3D Printer Motherboard 32 Bit Controller Board With 4.3" PanelDue Touch Screen For CNC MachineDuet 2 Wifi LINK：
Brand: MMO Dropship
SKU: 2251832836491422
Price: 188.16 VND
Availability: InStock
Rating: 4.9 (89 reviews)

Code: TD-2251832836491422 152 orders

Free Shipping

$ 188.16 $ 253.71

Size:

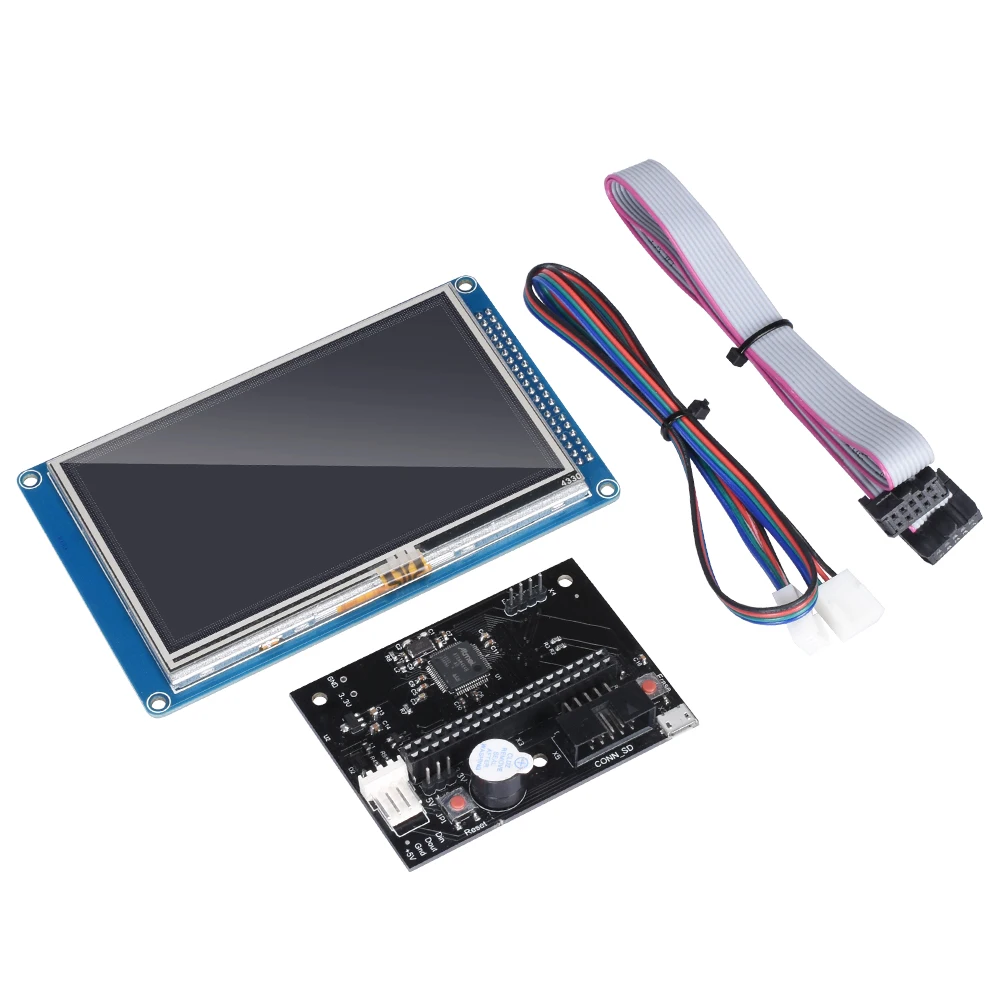

Only PanelDue

Duet 2 WIFI only

4.3 inch All Kits

5 inch All kits

7 inch All kits

4.3 LCD and PanelDue

5 LCD and PanelDue

7 LCD and PanelDue

Note

Quantity:

Other people want this. 9 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	BIGTREETECH
Item Type:	Motherboard
Origin:	CN(Origin)
Model Number:	Duet 2 WIFI V1.04

Duet 2 Wifi LINK：

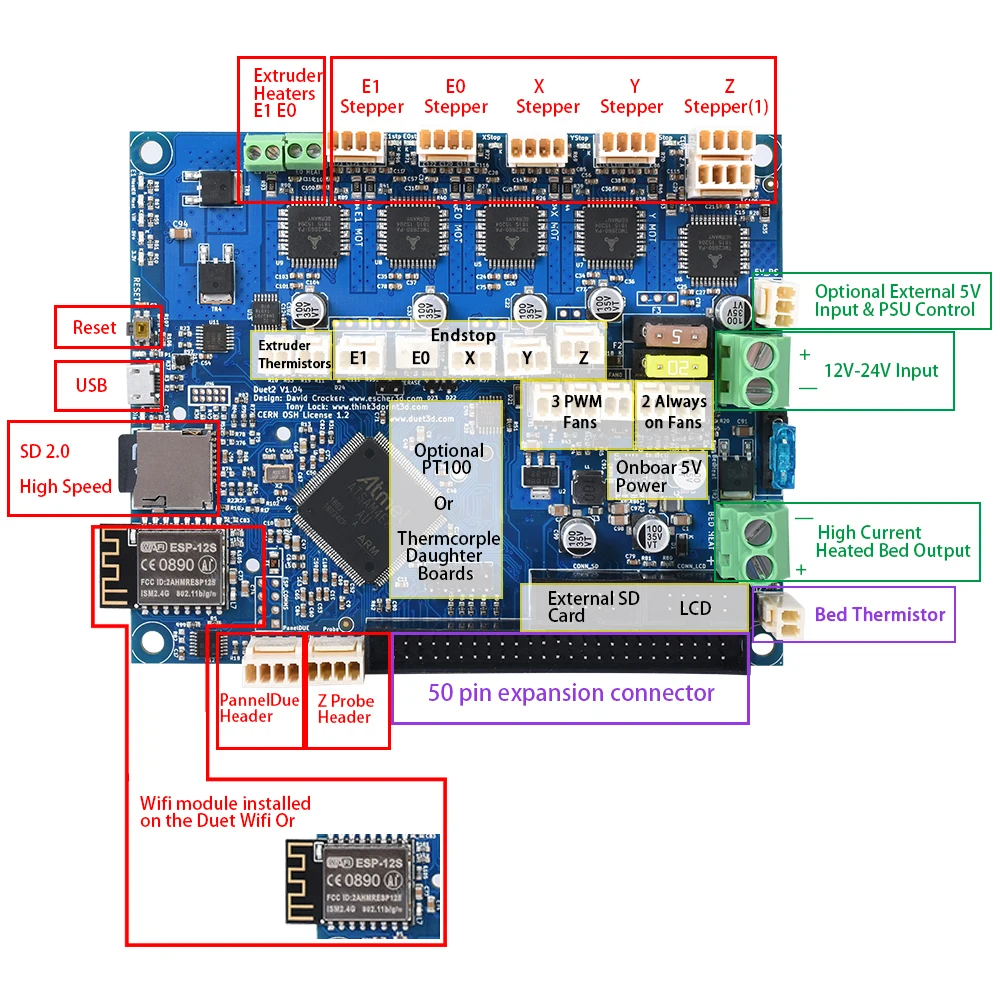

Advantage

1.Powerful 32-bit processor: Atmel SAM4E8E: 120MHz main frequency, ARM Cortex-M4 core.

2..Super silent TMC2660 stepping driver: SPI mode control, up to 256 subdivision, 16 times interpolation can be selected when using 16 subdivision (as TMC2100, TMC2130, internal refinement of the chip is 16*16=256 subdivision). Hardware supports variable subdivision and current (through SPI settings) to achieve optimal speed and power efficiency

3.There are two extruders .The max can expand five more via the expansion board.

4.High rated power: up to 2.8A motor current per TMC2660, but currently the firmware limit is 2.4A. Hot Bed Channel Designed for High Current (18A)

5.Connect to the Duet Web Control Web interface through a PC, tablet or smartphone in the same LAN. Without installing the application program, you can control the printer directly through the browser, upload files and start printing.

6.On-board high-speed SD card, support the second SD external card if necessary.

7.It can be connected through USB or serial port

Parameters:

Input voltage DC12-24V

Fan total current fuse 1A

Two heating rods and motor total current fuse7.5A

Hot bed total current fuse 15A, replacement fuse up to 18A. (Note that there is no 18A fuse, so you can replace the 20A fuse, but you must make sure that the current can not exceed 18A.)

Five TMC2660 stepper motors are driven, three of which are used for X, Y and Z axes, and the remaining two are used for extruders. The max current of each motor can be set to 2.4A.

Using a modified version of Open Source RepRapFirmware, Firmware Official Website

https://github.com/dc42/RepRapFirmware

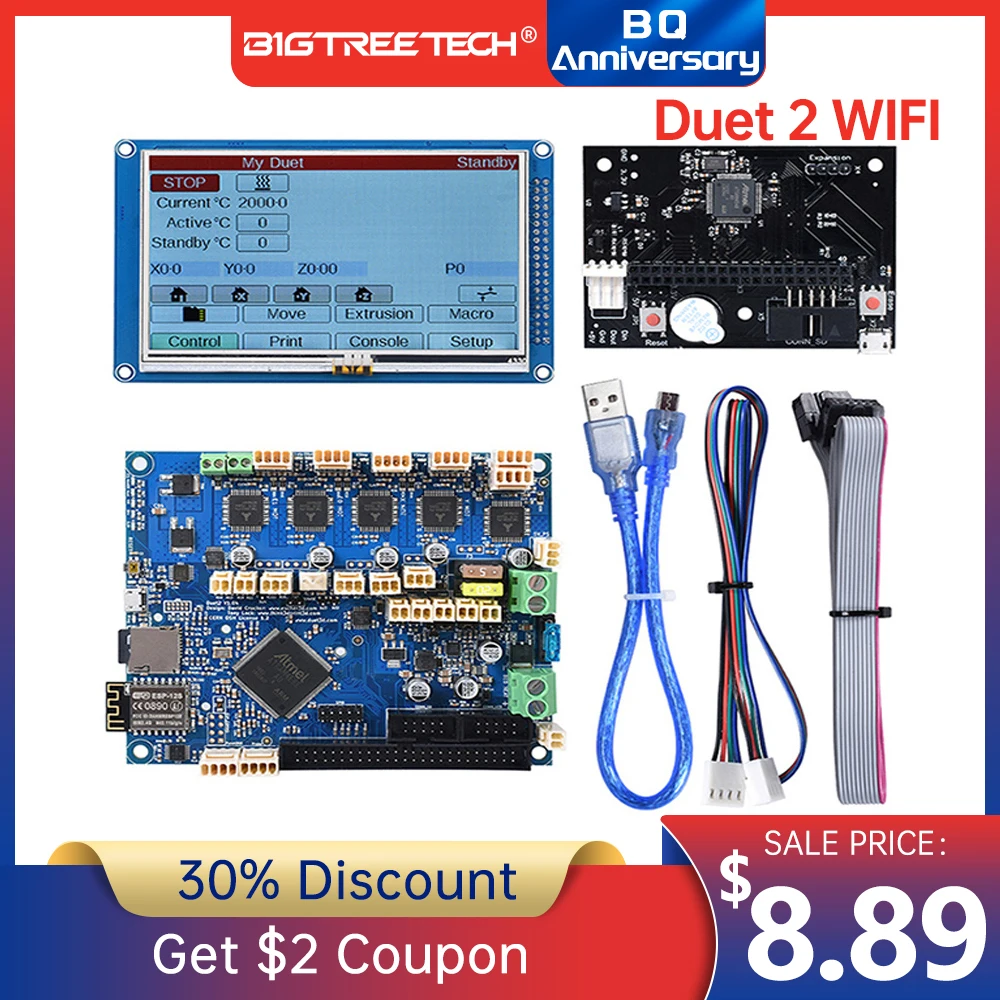

Type 1:

Duet 2 Wifi V1.04 board only

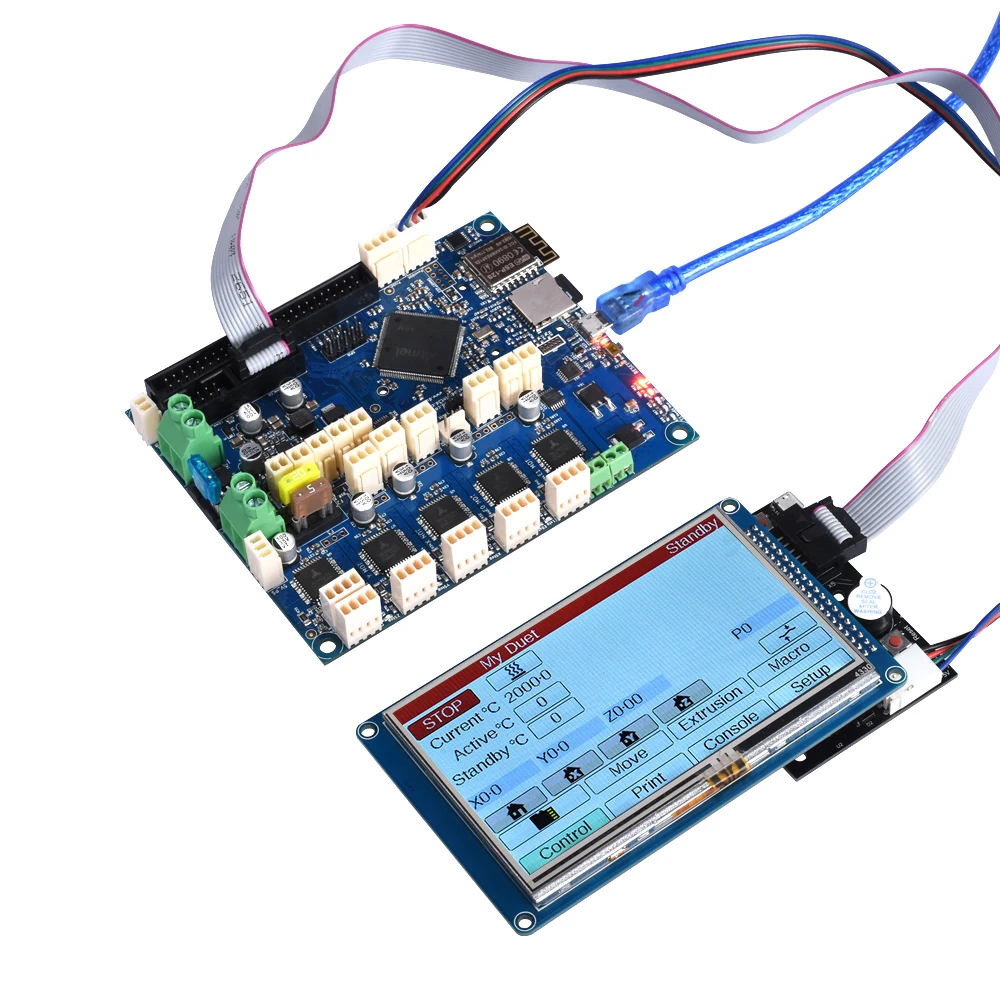

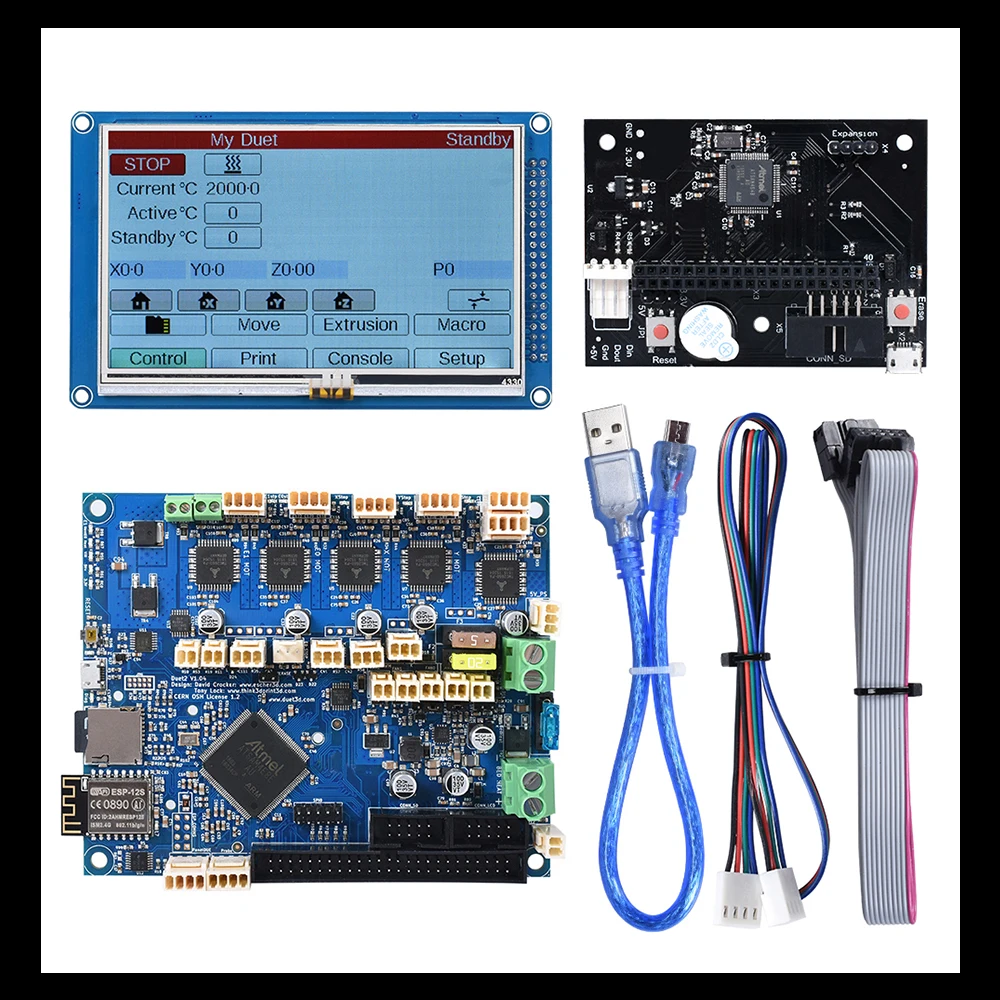

Type 2::4.3 inch kits

1PC * Duet 2 Wifi (With USB)

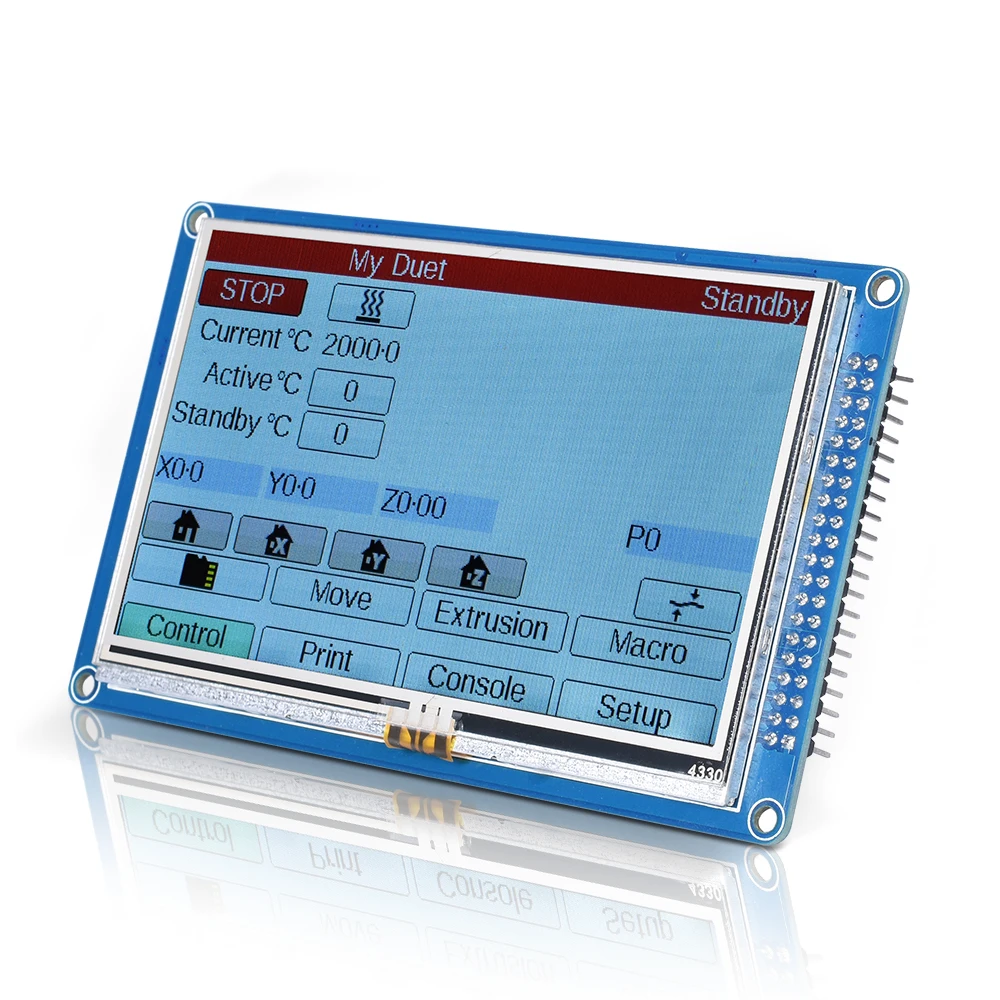

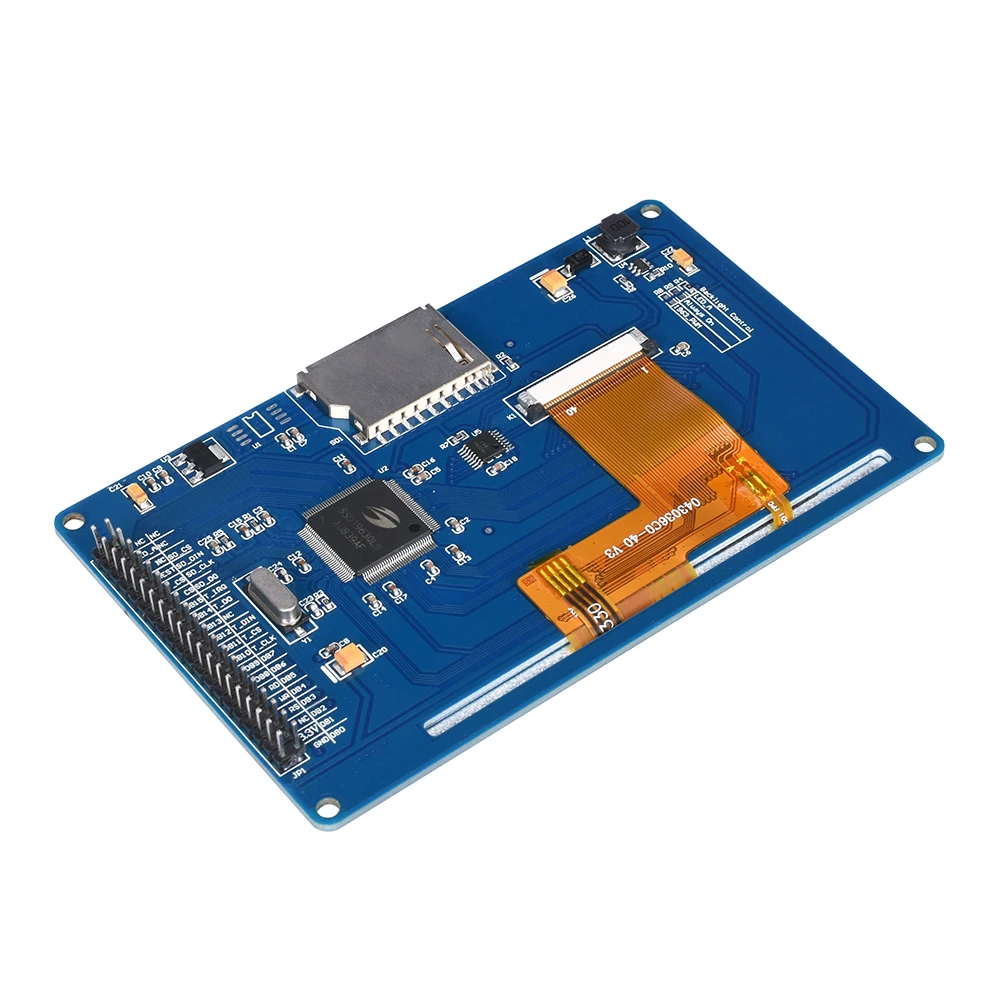

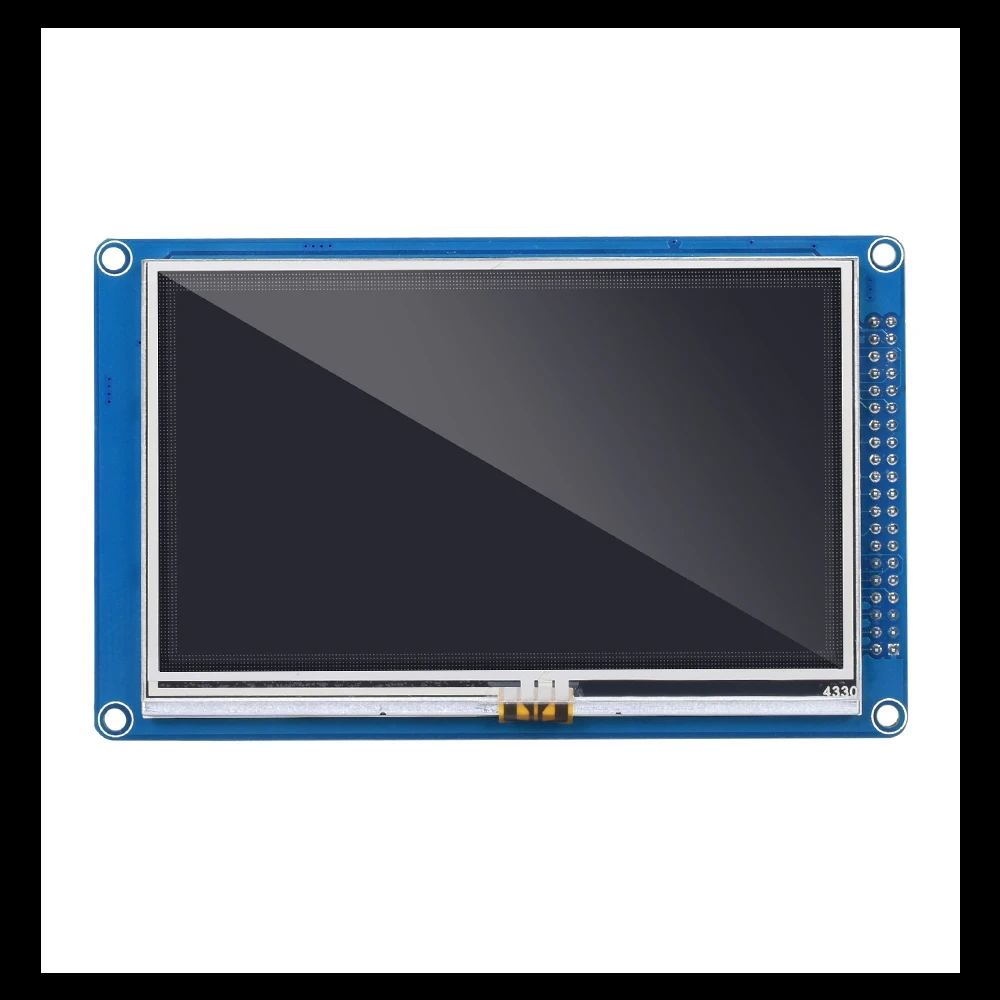

1PC *4.3'' Touch Screen(With Cables)

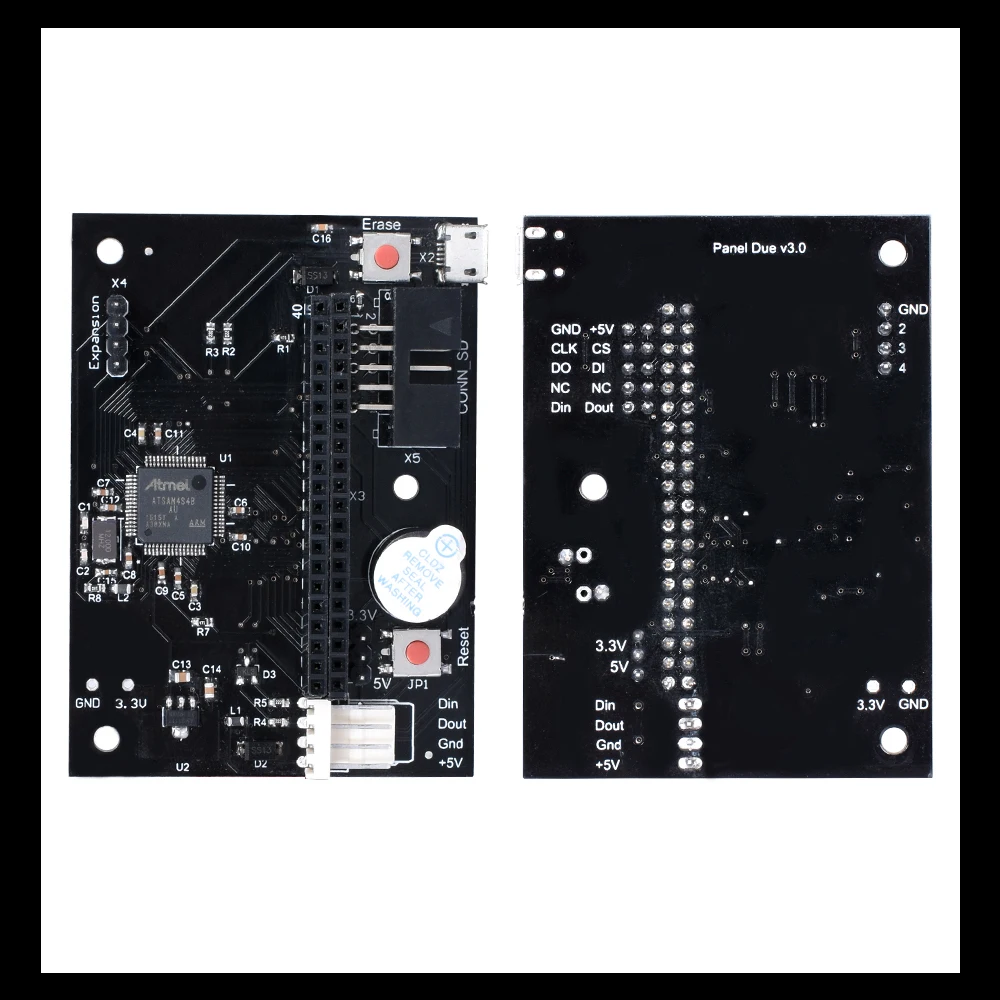

1PC* Panel Due(With Cable)

Type 3::5.0 inch kits

1PC * Duet 2 Wifi (With USB)

1PC *5.0'' Touch Screen(With Cables)

1PC* Panel Due(With Cable)

Type 4::7.0 inch kits

1PC * Duet 2 Wifi (With USB)

1PC *7.0'' Touch Screen(With Cables)

1PC* Panel Due(With Cable)
