laser scanner DS3578 Series Industrial Barcode Scanner DS3578-SR Series Rugged Cordless 1D/2D Imager Scanner with usb cable and base desktop scanner Scanners

laser scanner DS3578 Series Industrial Barcode Scanner DS3578-SR Series Rugged Cordless 1D/2D Imager Scanner with usb cable and base desktop scanner Scanners

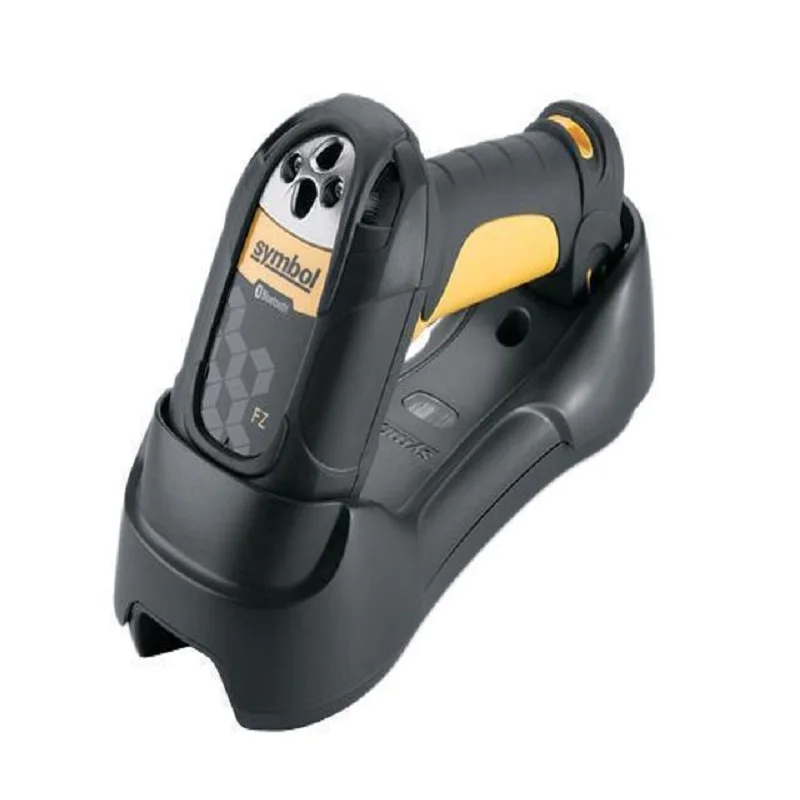

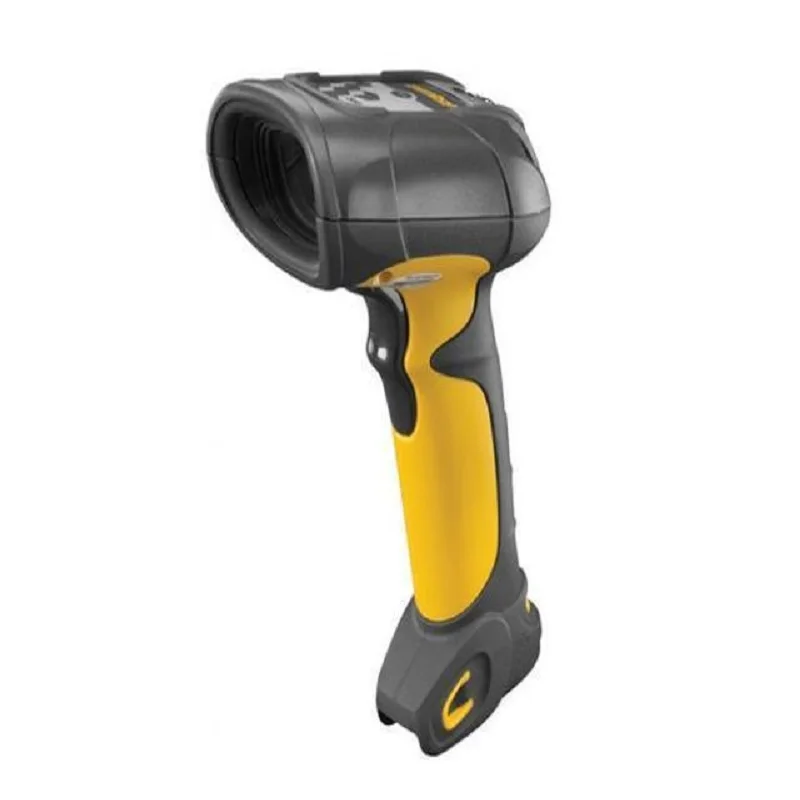

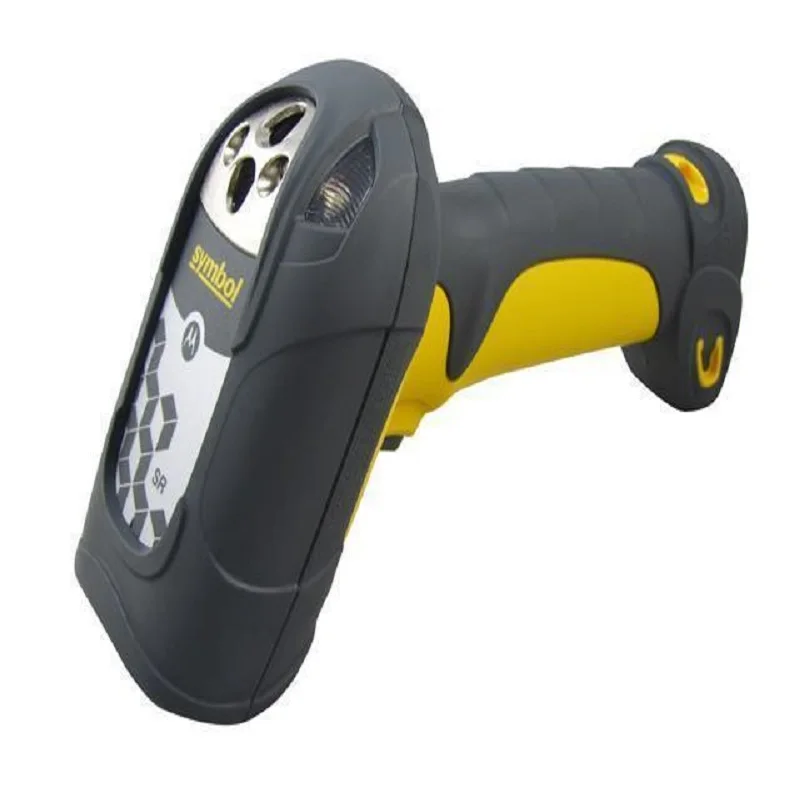

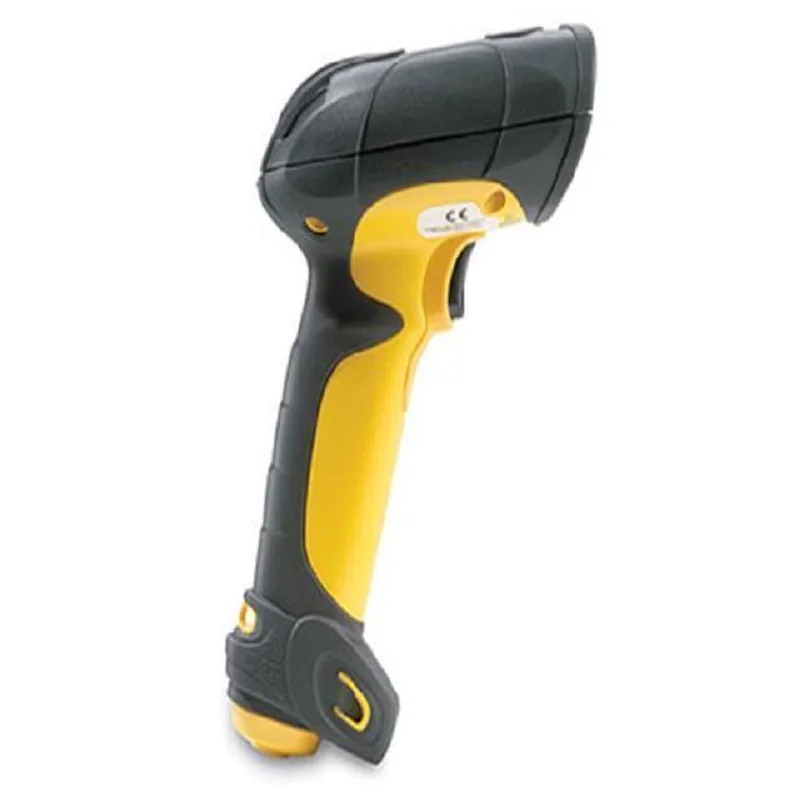

Name: laser scanner DS3578 Series Industrial Barcode Scanner DS3578-SR Series Rugged Cordless 1D/2D Imager Scanner with usb cable and base desktop scanner
Brand: MMO Dropship
SKU: 1005001682119339
Price: 820 VND
Availability: InStock
Rating: 4.9 (94 reviews)

Code: TD-1005001682119339

Free Shipping

$ 820

Quantity:

Other people want this. 26 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	LIYIYANG
Type:	Barcode Scanner
Optical Resolution:	/
Scan Element Type:	/
Certification:	NONE
Scan Breadth:	/
Scan Speed:	/
Interface Type:	USB
Origin:	CN(Origin)
Model Number:	DS3578 sr kit

PHYSICAL CHARACTERISTICS

Dimensions (H x W x D) 7.34 x 4.82 x 2.93 in.

(18.65 x 12.25 x 7.43cm)

Weight 14.6oz (414gm)

Battery 2200mAh Lithium Ion Battery

Battery Charge Time Fully charged (100%) within 4.5 hours using an external power supply and up to ten hours using a USB cable

Color Twilight Black/Yellow

PERFORMANCE CHARACTERISTICS

Light Source Aiming pattern: 650nm visible laser diode Illumination: 630nm LED

Imager Field of View Standard Range Focus: 39.6 Degrees Horizontal x 25.7 Degrees Vertical

High Density Focus: 38.4 Degrees Horizontal x 24.9 Degrees Vertical

Roll / Pitch / Yaw 360 Degrees, ± 65 Degrees, ± 60 Degrees

Motion Tolerance Up to 60 in./sec. (1.52m/sec.) for 100% 13 mil UPC. Motion tolerance will vary depending on code type, scan distance and print quality.

SYMBOLOGY DECODE CAPABILITY

1D Codes UPC/EA N and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, GS1 DataBar Variants, GS1-128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EA N, Code 32

PDF417 (and Variants) PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-A, CC-B, CC-C)

2D Codes TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)

Postal U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Dutch Postal, 4 State Postal

DPM Marks (DPM unit only) Datamatrix marks applied by dot-peening. All supported barcode types listed above marked by laser etching, chemical etching, ink marking, molding, stamping or casting methods on surfaces such as including metal, plastic, rubber or glass

IUID Support Supports IUID parsing. The ability to read and separate IUID fields per application requirements

Nominal Working Range See chart on back

USER ENVIRONMENT

Operating Temp. (-20 - 50°C) -4 - 122°F

Storage Temp. (-40 - 70°C) -40 - 158°F

Humidity 5% to 95% relative humidity, non-condensing

Sealing Sealed to IP65 specifications

Drop Specifications Unit functions normally after repeated 6.5-foot (2m) drops to concrete

Cradle Insertions 250,000+ insertions

Ambient Light Immunity Indoor: 450 Ft Candles (4,842 Lux)

Outdoor: 8,000 Ft Candles (86,080 Lux)

Electrostatic discharge (ESD): 15kV Air discharge

8kV Contact discharge

RADIO SPECIFICATIONS

Radio Bluetooth Class II Version 2.1, Serial Port and HID Profiles

Frequency 2.402 to 2.480GHz Adaptive Frequency hopping and co-existence with 802.11 wireless networks

Data Rate Basic Data Rate is 720Kbps Enhanced Data Rate (EDR) for image transfer

Radio Range Radio Range: Up to 300 feet (100m) direct line of sight in open air. Typical indoor cordless range is 100 ft. (33m), but range will vary depending upon environment; see Bluetooth Radio Performance Technical Brief for more information

INTERFACES

Interfaces Supported USB, RS-232, RS-485 (IBM 46xx Protocols) and Keyboard Wedge
