Name: GM77 1D 2D USB UART Barcode Scanner Qr Code Scanner Module Reader Passport Code Readable wifi scanner
Brand: MMO Dropship
SKU: 1005003171158156
Price: 54.07 VND
Availability: InStock
Rating: 4.9 (96 reviews)

Code: TD-1005003171158156 3 orders

Free Shipping

$ 54.07 $ 70.31

Quantity:

Other people want this. 16 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	grow
Type:	Barcode Scanner
Optical Resolution:	640*480
Scan Element Type:	CMOS
Certification:	CE
Scan Breadth:	A4
Scan Speed:	15m/min
Interface Type:	USB, RS232
Origin:	CN(Origin)
Model Number:	GM77
Product Type:	Bar Code Scanner
Scanning Light Source:	Natural Light+LED
Dimension:	27.5(W)48.5(D)14(H)mm
Operating Voltage:	5V
Accuracy of Reading:	≥4mil
Lighting:	White LED
Collimate:	Red LED

GM77 Features:

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8. Superior reading performance utilizing advanced decoding algorithms

9. Scan Speed:15m/min

10. Can Read Long PDF417 Passport Code

GM77 Parameter:

Scanning Performance

Scan Mode

640*480 CMOS

Lighting

White LED

Collimate

Red

LED

Read

Code

Type

QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417

EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,

Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey

GS1 Databar ,Code 11,Industrial 25,

Standard 25,Plessey, Matrix 2 of 5

Accuracy of

reading

≥4mil

Depth of

Field

EAN-13

50mm-220mm (13mil)

Code 39

40mm-90mm (5mil 10 byte)

QR Code

25mm-200mm (20mil 16 byte)

Data Marix

50mm-90mm (10mil 20 byte)

PDF417

30mm-130mm (6.67mil 7 byte)

Contrast

≥25%

Scanning angle

Intersection angle 360°,Elevation ± 55°

Deflection angle ± 55°

Viewing Angle

Horizontal:47°Vertical:36°

Mechanical/

Electrical Parameters

Interface

TTL-232 , USB (HID-KBW, Virtual serial port)

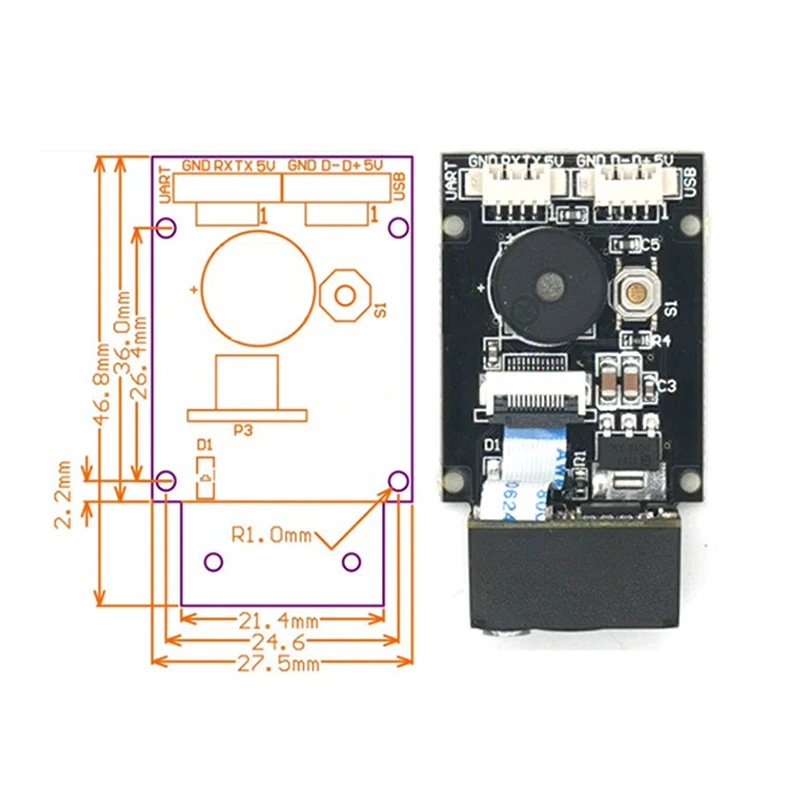

Dimension

27.5(W)*48.5(D)*14(H)mm

Operating Voltage

DC 5 V

Operating Current

180mA

Standby Current

USB:50mA; TTL:10mA

Environmental Parameters

Operating

Temperature

-20℃~+50℃

Storage

Temperature

-40℃~+70℃

Operating Humidity

5%~95%（Non-Condensing）

Environmental

Light

0~100000LUX

You can dowload GM77 user manual from the following website:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

GM67 Operation Video on Youtube:

https://youtu.be/nlZAcnFSypo

GM65 Operation Video on Youtube:

https://youtu.be/8S2HvjtlIe4

GM77 Operation Video on Youtube:

https://youtu.be/A_rfWIvI0do

GM69 Operation Video on Youtube:

https://youtu.be/4nBmMXdSk1A

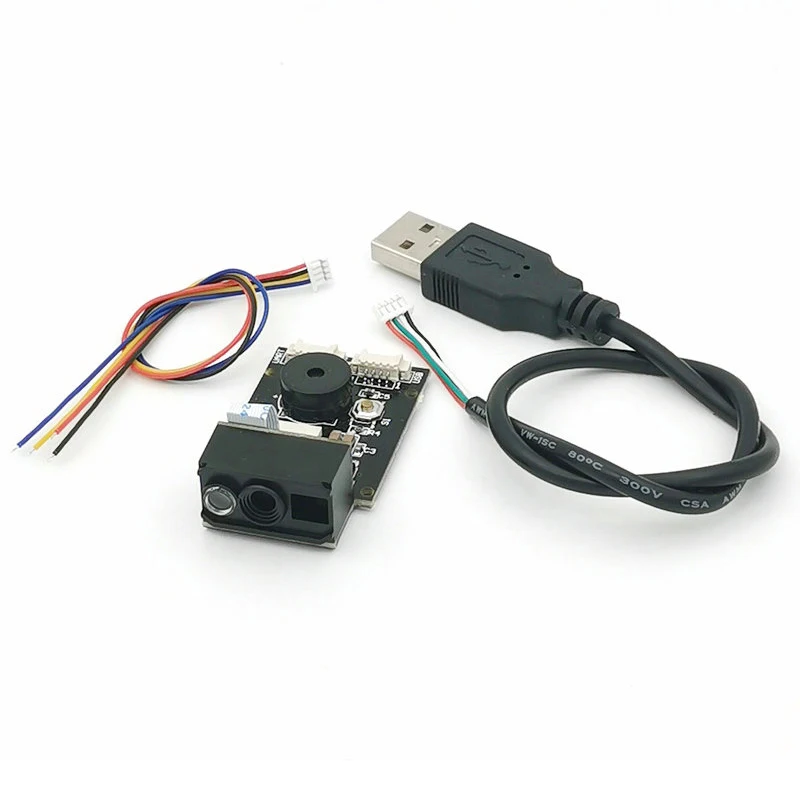

For shipment list, please see the following photo:

GM77 1D 2D USB UART Barcode Scanner Qr Code Scanner Module Reader Passport Code Readable wifi scanner
