1902GHD 1902GHD-2USB-5 Barcode Scanner Black USB KIT,1D and 2D,HD FOCUS,, CH RG and COMM BASE,STRAIT USB CB 1902G large format scanner Scanners

1902GHD 1902GHD-2USB-5 Barcode Scanner Black USB KIT,1D and 2D,HD FOCUS,, CH RG and COMM BASE,STRAIT USB CB 1902G large format scanner Scanners

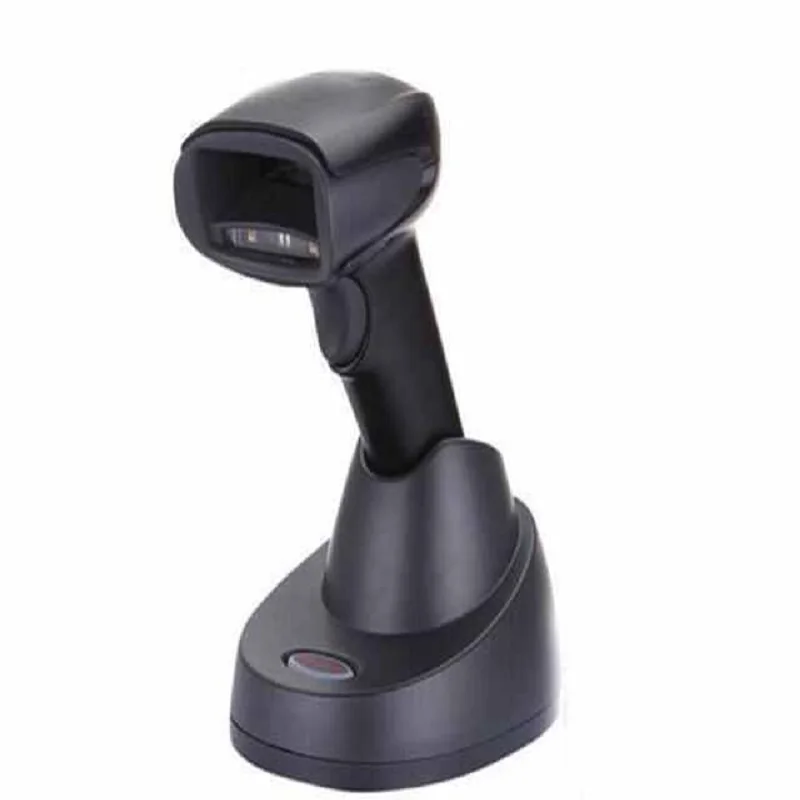

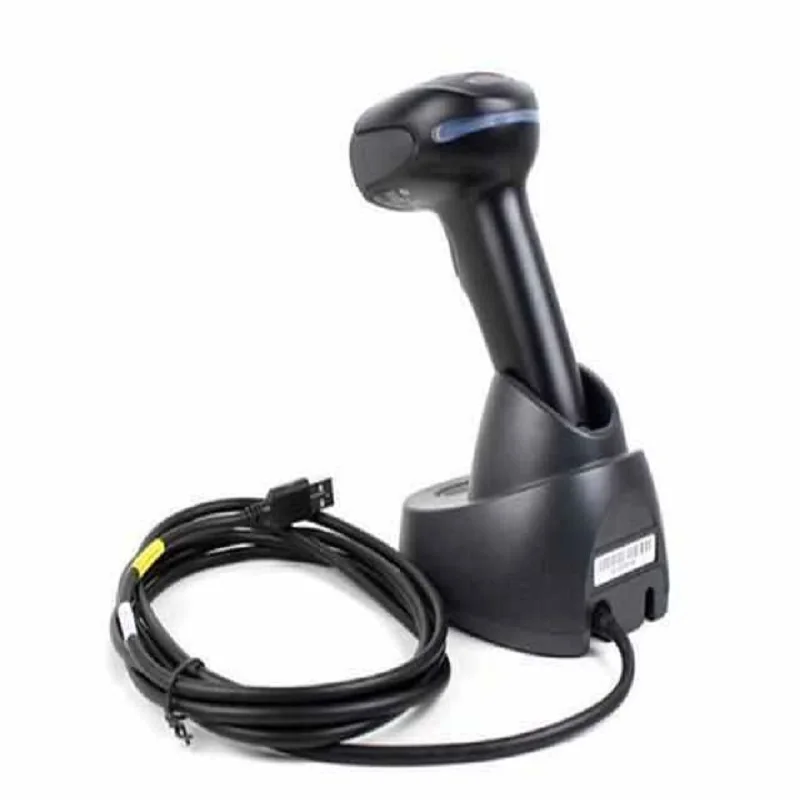

Name: 1902GHD 1902GHD-2USB-5 Barcode Scanner Black USB KIT ✅ 1D and 2D ✅ HD FOCUS ✅ ✅ CH RG and COMM BASE ✅ STRAIT USB CB 1902G large format scanner
Brand: MMO Dropship
SKU: 1005001689361326
Price: 510 VND
Availability: InStock
Rating: 4.9 (73 reviews)

Code: TD-1005001689361326

Free Shipping

$ 510

Quantity:

Other people want this. 24 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	LIYIYANG
Type:	Barcode Scanner
Optical Resolution:	/
Scan Breadth:	/
Scan Speed:	/
Interface Type:	USB
Scan Element Type:	/
Origin:	CN(Origin)
Model Number:	1902GHD-2USB-5-A
Certification:	NONE

Features and advantages

1) special sensors specially designed for barcode scanning improve the scanning sensitivity, and the stable supply of the original device can protect investors' interests

2) select three types of scanning focus (high density, standard, long distance) by visual application, which can help improve productivity

3) the built-in image processing software has advanced image editing functions - cutting, lighting, rotation, sharpening, etc., which can output high-precision digital images

4) TotalFreedom ™ 2.0 software secondary development function, can be connected directly to load or a variety of applications to the scanner, with auxiliary, decoding image processing or data format, without additional modify the main system

5) Remote joint ™ scanner management software to make IT managers can be convenient to manage the multiple scanner Remote monitoring

6) the optional medical disinfection shell structure is strong, resistant to chemical erosion and protection of investors' interests

3 product parameters

The performance parameters

Scanning mode: 2d image (838 X 640 pixels)

Anti-jitter: the best focus is the 13 mil UPC barcode can reach 610 cm/s (240 inches/SEC)

41.4 ° scan Angle: high density HD: level;Vertical: 32.2 °

42.4 ° SR: standard distance level:;33 ° vertically:

Long ER: level: 31.6 °;Vertical: 24.4 °

Identifiable reflection contrast: a minimum of 20% of the reflected difference

45 ° Angle:

Partial degrees: 65 °

Scanning distance general performance: high density (HD) standard distance (SR) distance (ER)

Minimum width of barcode:

5mil Code 39 yards 8mm ~ 76mm 30mm ~ 89mm 107mm ~ 135mm

13mil UPC code 15mm ~ 124mm 13mm ~ 323mm ~ 442mm

20mil Code39 code 15mm ~ 173mm 15mm ~ 411mm 30mm ~ 561mm

6.7 mil PDF417 code 0mm ~ 86mm 18mm ~ 140mm 84mm ~ 206mm

10mil Datamatrix code 0mm ~ 84mm 18mm ~ 140mm 86mm ~ 208mm

20mil QR code 0mm ~ 140mm ~ 262mm 5mm ~ 394mm

Resolution:

One dimension: Code 39 Code 3mil (0.076mm) 5mil (0.127 mm) 5mil (0.127 mm)

Two dimensions: DataMatrix 5mil (0.127 mm) 6.7 mil (0.170 mm) 7.5 mil (0.191 mm)

Electrical parameters

Input voltage: 4VDC to 5.5 VDC

Working power: 2.3 W (450 mA @ 5 VDC)

Standby power: 0.45 w (90 mA @ 5VDC)

Interface: USB interface, keyboard port, rs-232, IBM 46XX (RS485)

Environmental parameters

Working temperature: 0

℃

to 50

℃

Storage temperature: - 40

℃

~ 70

℃

Humidity: 0% ~ 95% relative humidity, no condensation

IP protection class IP41

Light level: 0 ~ 100,000 LUX (9290 feet candle)

Ratchet wheel rotation: the ratchet bracket can support 10,000 rotation (once the scanner completes the whole movement up and down the scanner), and it can ensure that the scanner is in the ratchet position at any time

Shock resistance: repeated fall (to concrete floor) of 50 times 1.8 meters (6 ')

Ratchet bracket: can withstand up to 50 times 1.2 m (4 ') on each side (to concrete floor)

Decoding ability: can read standard one-dimensional, stack, 2d barcode and zip code and specific OCR characters
