emergency alarm button Awaywar WIFI GSM home Security Burglar smart Alarm System kit 4.3 inch touch screen Tuya APP Remote Control RFID Arm Disarm ring alarm pad Alarms & Sensors

Brand Name:	awaywar
Smart home platform:	Tuya
Origin:	CN(Origin)
Certification:	CE
Certification:	FCC
Certification:	RoHS
Kit Configuration:	Door/Window Sensor
Power:	AC110-240V & DC 5V
Output Number:	*
Video Interface:	No
Display:	Yes
Alarm Type:	The Alarm
Alarm Type:	SMS
Alarm Type:	PSTN
Alarm Type:	Apps Control
Size:	160 x 100 x 18 mm
Model Number:	106
Password Keyboard:	Yes
Arming Type:	APP
Connection Type:	wireless
Zone Number:	*
Display:	4.3 inch touch screen
Support network:	GSM / WIFI
Input Voltage:	DC5V(micro USB standard connector supply)
Operating current:	screen off<120mA, screen on<200mA
Standby current:	<80uA
Siren output:	<500mA
Wireless Frequency:	433MHz
Wireless code:	eV1527
GSM system:	850/900/1800/1900MHz
WIFI system:	IEEE802.11b/g/n wireless standard (2.4G)
Spare battery:	3.7V/500mAh Li battery
Operating temperature:	0~55℃
Relative humidity:	<80%(no condensation)
Product size:	160 x 100 x 18 mm
Product type:	Burglar Alarm System
Product type 2:	Security alarm
Feature1:	humanized menu
Feature2:	Easy to use and install
Feature3:	anti-tamper
Feature4:	4.3 inch touch screen
Feature5:	Ultra-slim Process Design
Feature6:	Home Security Protection Alarm System
Feature7:	Support Mobile phone app
Feature8:	Contains RFID tag
Feature9:	Host has SOS button

NEW Upgrate WIFI GSM Alarm System

This is a very Good to use home security alarm system, it is different from the old models. It is a touch screen (4.3" TFT color model), which is very convenient to operate. It is small in size and takes up very little space.

Support downloading the

Tuya APP

to control the host.It there are 10 built-in languages that can be set. a regular SIM card supporting 2G/GSM, and a Wi-Fi 802.11 b/g/n(2.4GHz) network connection.

This host support several alarm types, when alarm occurs, will send the SMS messages which include the detector name and the alarm number to the mobile phone users , push the alarm information to mobile app, send the alarm SMS to network alarm center, and dial the phone number at the same time, user can do field monitoring and remote control after connected.

Product advantages:

1.

4.3”TFT color full touching screen, used the simple style human computer interface Main interface status, State magnetic paste, date and time display, main interface clearly.

2.

Wifi/GSM networking alarm system

3.

Support connection to

Tuya APP

.

 you can deploy and disarm at any time on the mobile app,And other settings

4.

When alarm occurred, the hub sends push notifications to your phone. After that, the hub will also make phone calls to each pre-set phone number.Support 5 groups alarm phone number setting.

6.

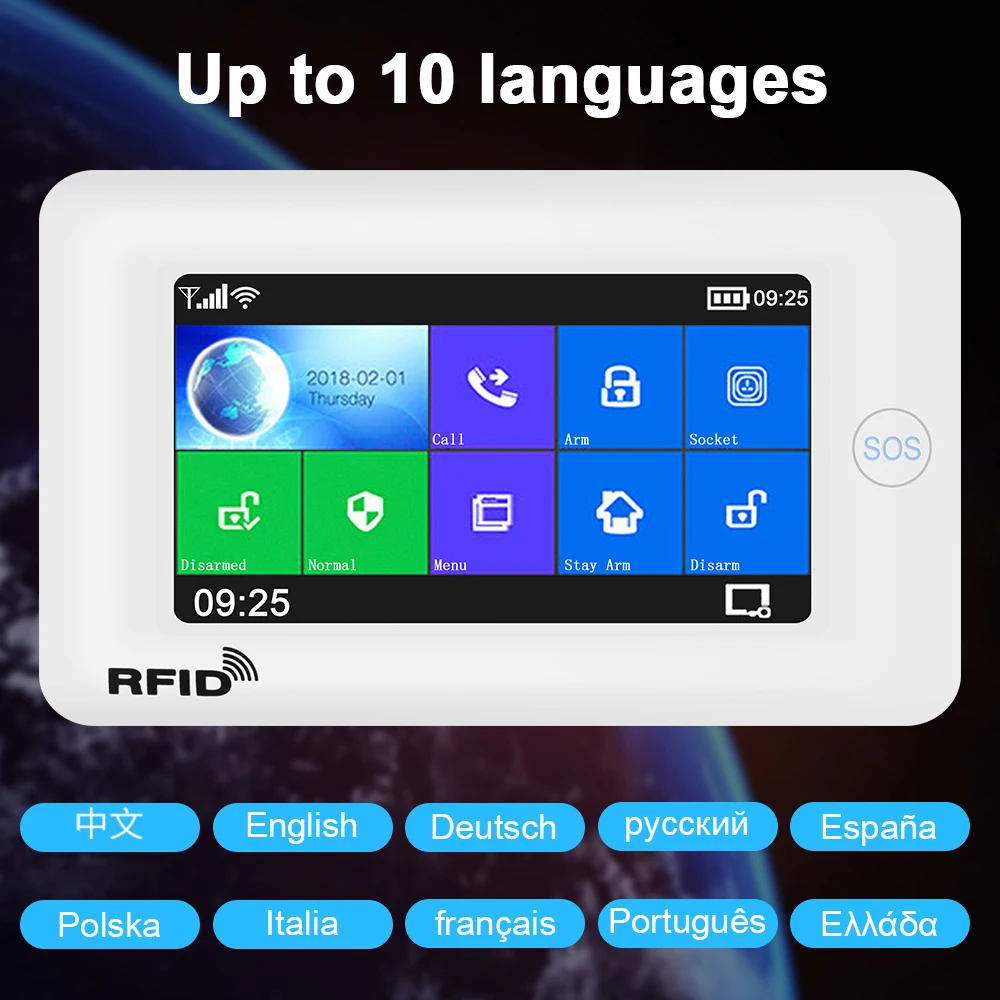

Built in 10 languages can be set,Can set the language:Chinese, English, Russian, German, Spanish, Polish, Greek, Italian, French, Portuguese.

7.

Contains RFID tag，RFID tags are easy to carry,Easy to use,Tap RFID tag reader zone to arm and disarm.

8.

Host has SOS button

9.

Timed arm/disarm function.

10.

With two-way calling (PHONE FUNCTION)

11.

Small size, only takes up very little space.

Accurate Alerts & Remote alarm notification

If thieves invade, When alarm occurred, the hub sends push notifications to your phone. After that, the hub will also make phone calls to each pre-set phone number. You will receive the notification at the first time.

Door switch status detection

When your door opens or closes, the app will receive push messages

Expand Your Security System Any Time

This security systems are capable of supporting multiple wireless accessories to suit your needs precisely

A comprehensive smart home security alarm system ensures the safety of every user's life and property. The smart home alarm system consists of an host and various front-end detectors/sensor. Front-end detectors can be divided into door sensor,PIR motion sensor, smoke detector,Gas leak detector,Alarm Siren and other equipment.

You can click on the picture to buy accessories

SOS button

Host has SOS button,Use in case of emergency.After clicking,The alarm sounds and sends an alert notification to registered users.

Users can operate alarm host by any ways as below:

Remote controller ,Touch screen , RFID cards , APP.

Time arm/disarm

User can use their time table, to set the time auto arm and time auto disarm, avoid to repeat daily or forgot the operation.

Tamper switch  & Built-in backup battery

The tamper switch (lever underneath the bracket) will trigger an alarm notification if an attempt is made to remove the hub from its installed location. And the alarm sounds.Push illegally disassembled warning messages to the phone.

Built-in backup battery, it can stand by for 8 hours if the external power is off，and it can still work about 8 hours.(built-in siren.)

TECHNICAL PARAMETER

Display: 4.3”TFT color full touching screen

Input Voltage: DC5V(micro USB standard connector supply)

Operating current: screen off<120mA, screen on<200mA

Standby current：<80uA

Siren output：<500mA

Wireless Frequency：433Mhz

Wireless code：eV1527

GSM system：850/900/1800/1900MHz

WIFI system：IEEE802.11b/g/n wireless standard (2.4G)

Spare battery：3.7V/500mAh Li battery

Operating temperature：0~55℃

Relative humidity：<80%（no condensation）

Product size：160 x 100 x 18 mm（Length x Height x thickness)

  Products real show

Package includePackage include

 Set A

1 * Alarm panel

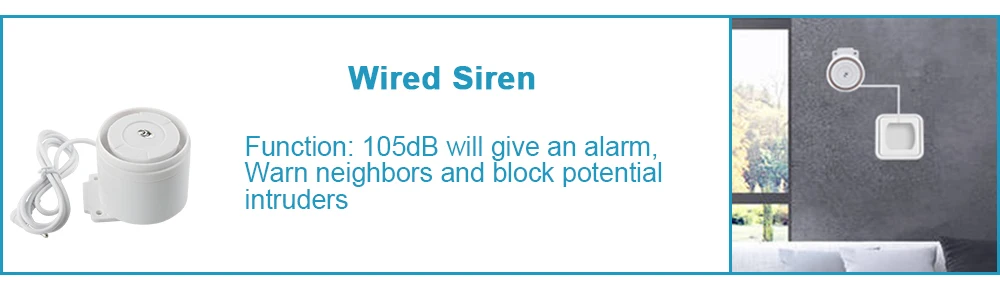

1 * Wired Siren

1 * PIR Motion Detector

1 * Door/ Window Detector

2 * Remote Control

2 * RFID tag

1 * AC Adapter

1 * User manual

You are free to choose the accessories you need to buy.

If there is no configuration you want in the Set, please contact us and we can customize it for you.

Customers of custom accessories please select "customize Set"。After submitting the order, please wait for us to modify the corresponding price before you pay!
