Brand Name:	GODIAG
Origin:	CN(Origin)
External Testing Certification:	ce
Hardware Version:	GT105
Item Length:	29cm
Special Features:	NO
Software Version:	CABLE
Item Width:	25cm
Model Name:	HKSO627
Item Height:	11cm
Power:	W
Item Type:	Electrical Testers & Test Leads
Item Weight:	1kg
Voltage:	V
Material Type:	NA
Guarantee:	1 year
Version:	Newest
Quality:	Strong and Steady
Shipping:	Fast
Peformance:	Excellent
Place of Origin:	Guangdong, China (Mainland)
Package:	Standard

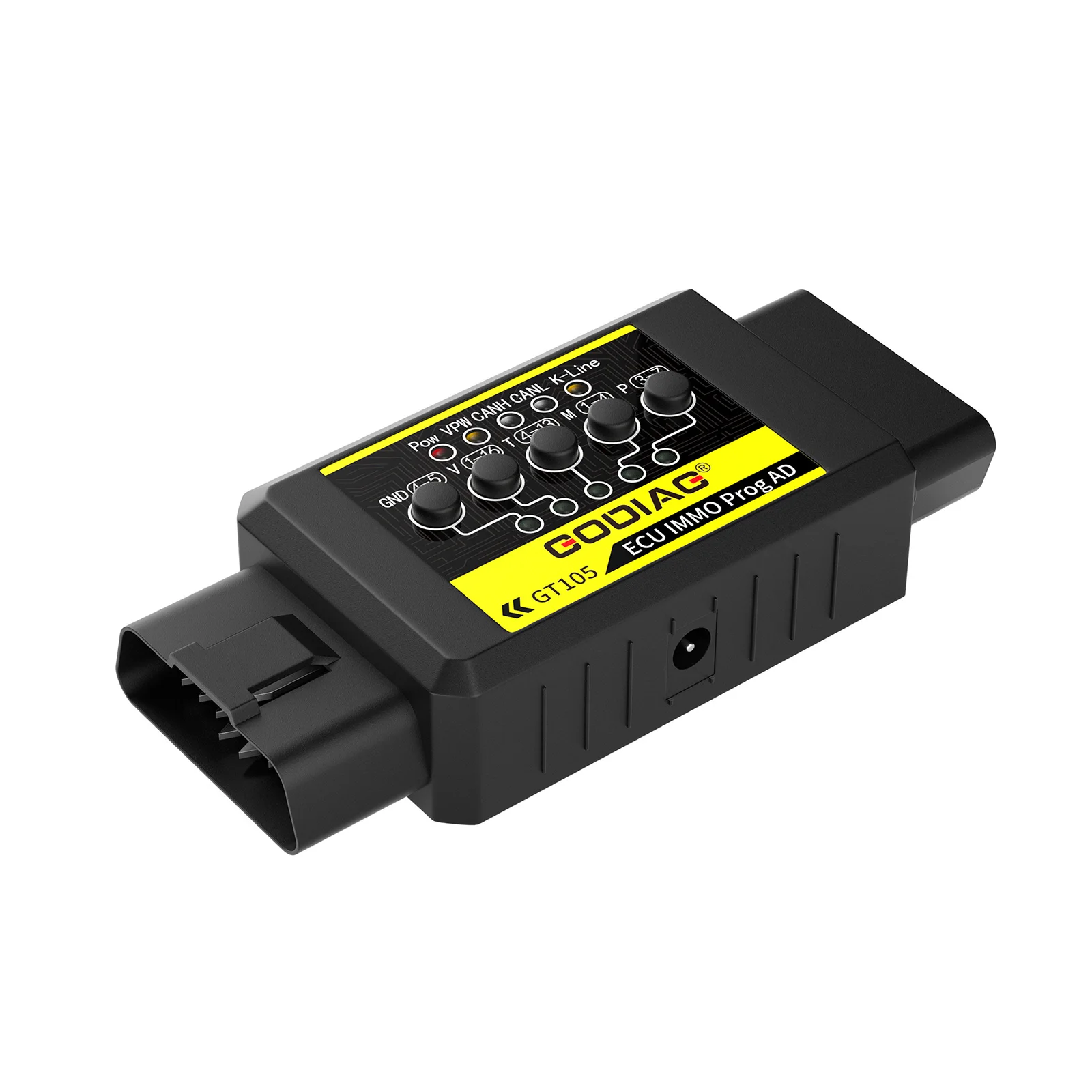

What is GODIAG GT105?

GODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, anti-theft matching technicians, ECU programming engineers, etc. Since the power source of the product can be converted from a battery to a DC12V power supply, it can also be used to charge some tablets or supply power for independent diagnostic equipment.

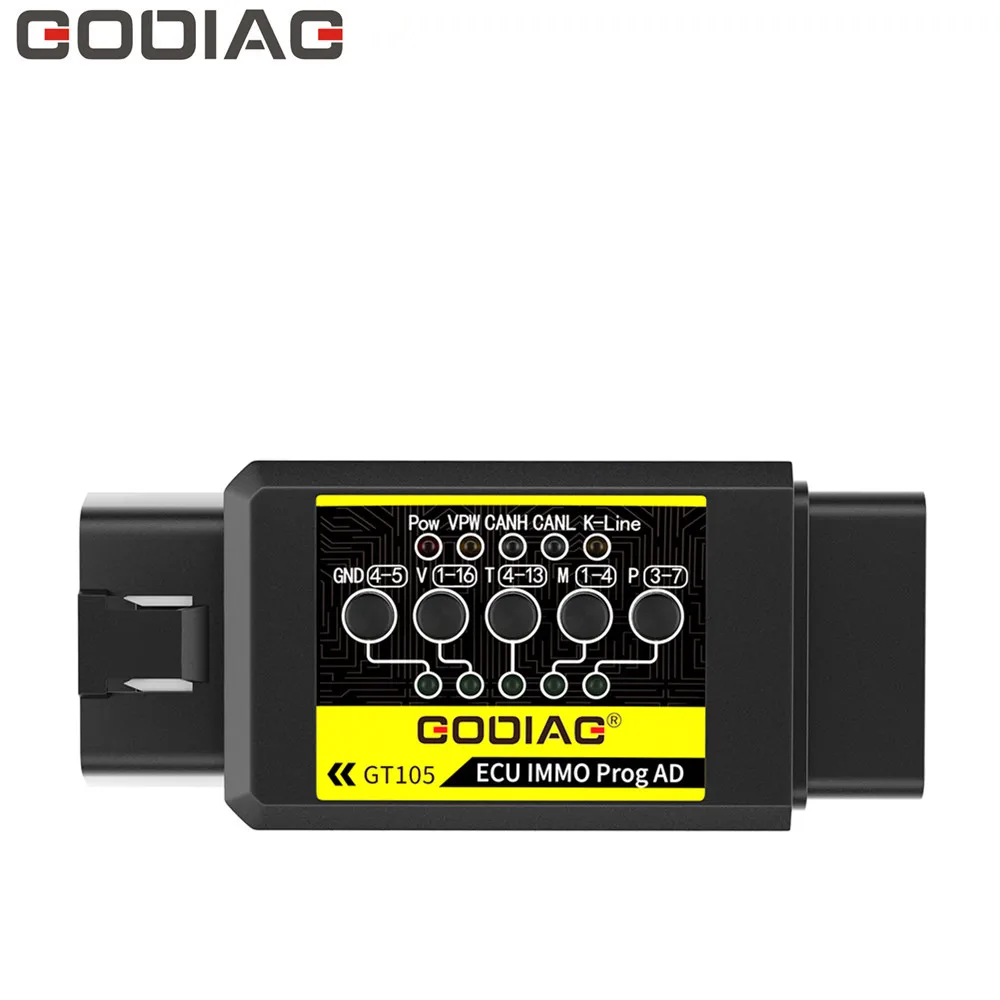

GODIAG GT105 is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate.

GODIAG GT105 is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.

Product Introduction:

GODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, anti-theft matching technicians, ECU programming engineers, etc. Since the power source of the product can be converted from a battery to a DC12V power supply, it can also be used to charge some tablets or supply power for independent diagnostic equipment.

The product is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate.

Product Highlights：

A full-protocol ECU connection line for ECU programming power adjustment

OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.

Standard OBD2 independent PIN4, PIN5.

Pure copper female seat supports repeated insertion and removal, and has a long service life.

Battery clip treated with environmentally friendly salt spray, with a thickness of 0.5mm.

DC line adopts 0.75 square millimeters 2-core sheathed line.

The DC connector has a resettable 7A fuse.

Product Functions:

All car keys lost matching---wake up the meter or the anti-theft ECU

A. for Porsche and for VW 4th generation smart, 5th generation card key (model examples: new A6L, for Touareg, A4, Q5, A7) Press the V1-16 switch to short-circuit PIN 16----PIN 1, after lighting the meter, the key matching tool is connected to carry out data collection. Some vehicle meters do not light up, but data collection can also be performed, such as: A6L,Q7.

B. for Toyota needs to short-circuit PIN13-PIN4 to replace the engine ECU or do key matching when all keys are lost for some key matching equipment.

C.for Mitsubishi needs to short-circuit PIN1-PIN4 to do key matching or remote control key setting when all keys are lost.

D. for Porsche needs to short-circuit PIN3-PIN7 to do anti-theft wake-up.

 Package Includes:

 1pc x GT105 host

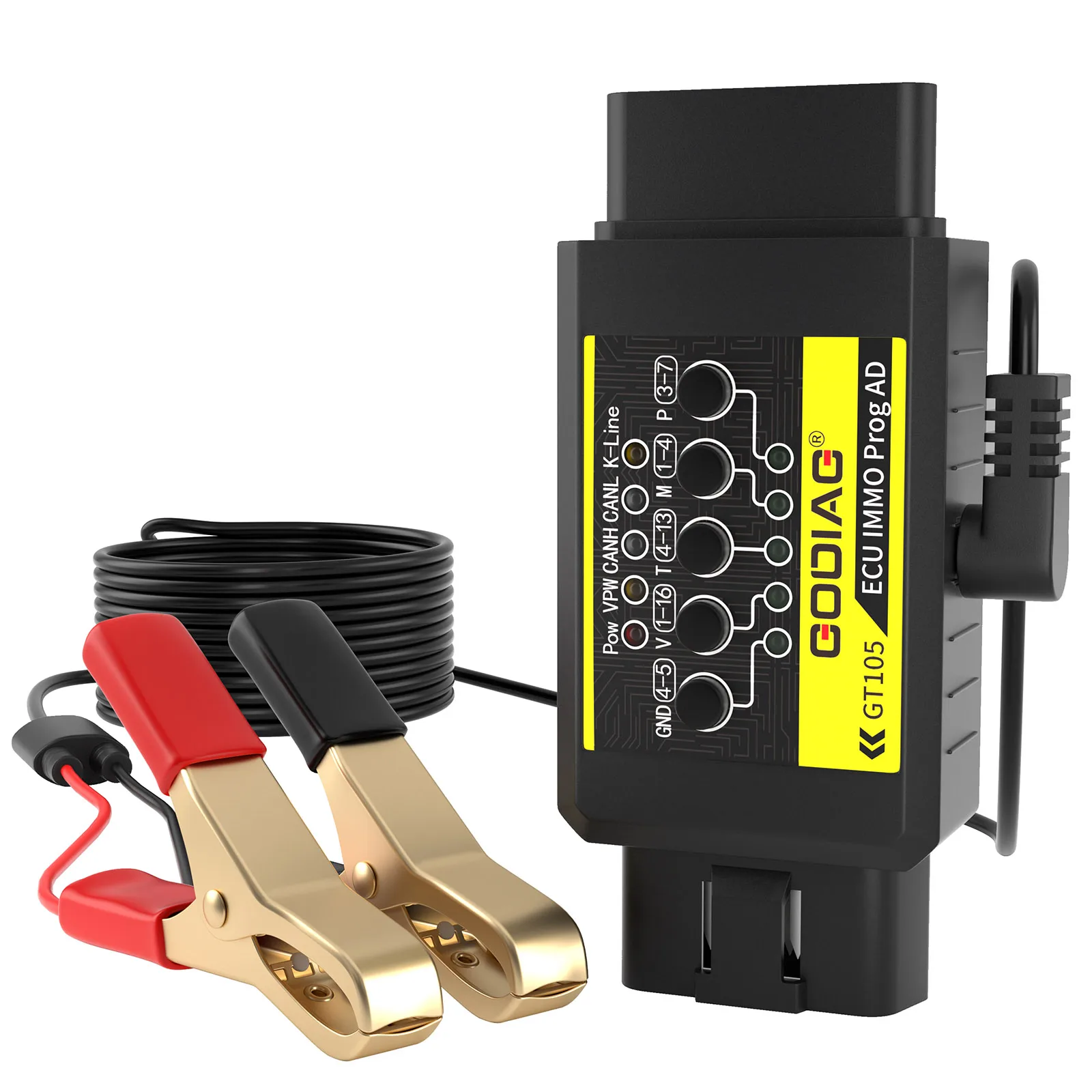

 1pc x Power cord with battery clip

1pc x Full protocol standard OBD2 cable
