PWM mode brightness adjustment controller (with timing shutdown function)
use:
    The power adjustment of lamps, such as the brightness adjustment of LED lights.
    Speed ​​adjustment of DC motor
    Power adjustment of heating resistance wire

Supply voltage: DC 5V to 24V.
The female connector of the sun terminal is connected to the power supply (positive inside and negative outside) (the length of the female connector is 30cm+-3mm).
The male end of the moon is output connected to the load (positive inside and negative outside) (the length of the male head is 30cm+-3mm)

Load power: 35W/70W/150W optional
The power is 35W, and the load that can be connected is less than or equal to 35W, and it cannot be greater than, otherwise it will be broken.
The power is 70W, the load that can be connected is less than or equal to 70W, and it cannot be greater than, otherwise it will be broken.
The power is 150W, and the load that can be connected is less than or equal to 150W, not more than, otherwise it will be broken.
Take the lamp as an example, the function introduction (other uses, the same usage, can refer to):
   1. Stepless brightness adjustment, no flicker during the adjustment process. Delicate and smooth.
   2. The lights can be turned off regularly (short press the middle button to turn off the lights, long press to enter the timing turn off settings)
   3. When the light is turned on, it becomes brighter, and the lamp gradually lights up. (It can reduce the stimulation of the bright light to the human eyes, and can also extend the life of the load because there is no cold impulse current)
   4. When the light is turned off, it is gradually extinguished, and the lamp is gradually extinguished. (It can eliminate the dark situation before turning off the light)
   5. Brightness can be memorized. After power off, call again, turn on, and use the last adjusted brightness level.
   6. Press any key to turn on the light.

The time setting method of timing light off:

Long press the middle button, the 5 small LED lights will light up in turn and then go out. At this time, it means that it has entered the timing time setting state.
Each time you short press the middle button, the small LED will light up. After 3 seconds, it will automatically confirm, and the countdown will start, and the LED will light up.
One LED lights up to indicate that the lights will be turned off for 1 hour. The maximum time can be 5 hours.

Fade and fade smoothness setting method:

Gradually brighter and darker means that when the light is turned on, the light is not the brightest, but slowly lights up until the set brightness.
When turning off the light, the light does not go out immediately, but slowly dims from the current brightness until it goes out, from completely off,
The duration of the process to full brightness can be customized by the user. The longer the duration, the greater the change process.
Delicate and smooth, the shorter the duration, the slightly rougher the change process. This circuit has 6 levels of smoothness for users
Self-setting options, gear 0 to gear 5, gear 0 has no fade function, gear 1 has the shortest duration, and gear 5 is the longest.
There is LED indication when adjusting. Enter the setting method: press and hold the middle button, then power on, when the LED lights up,
Let go, then short press the middle button to select the smoothness, one gear corresponds to 1 LED, and 5 gears correspond to 5
The LED is on. After setting, disconnect the power and re-power on, it has been memorized.

This product contains internal circuits, housing, and power cords.
The female connector of the sun terminal is connected to the power supply (the female connector length is 30cm+-3mm).
The male end of the moon is output connected to the load (the length of the male connector is 30cm+-3mm).

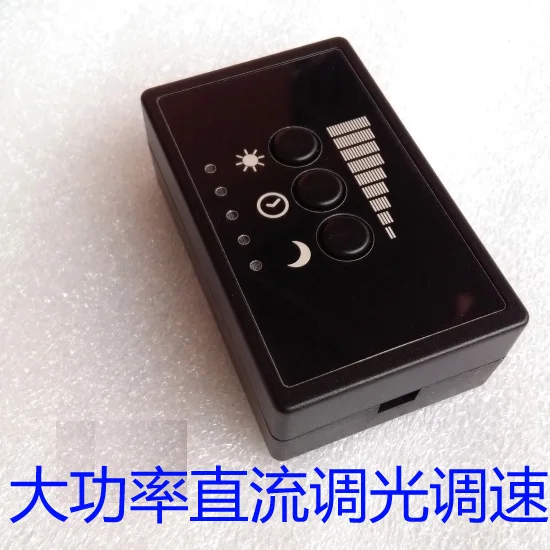

The box is 59mm long, 36mm wide, 22mm high
