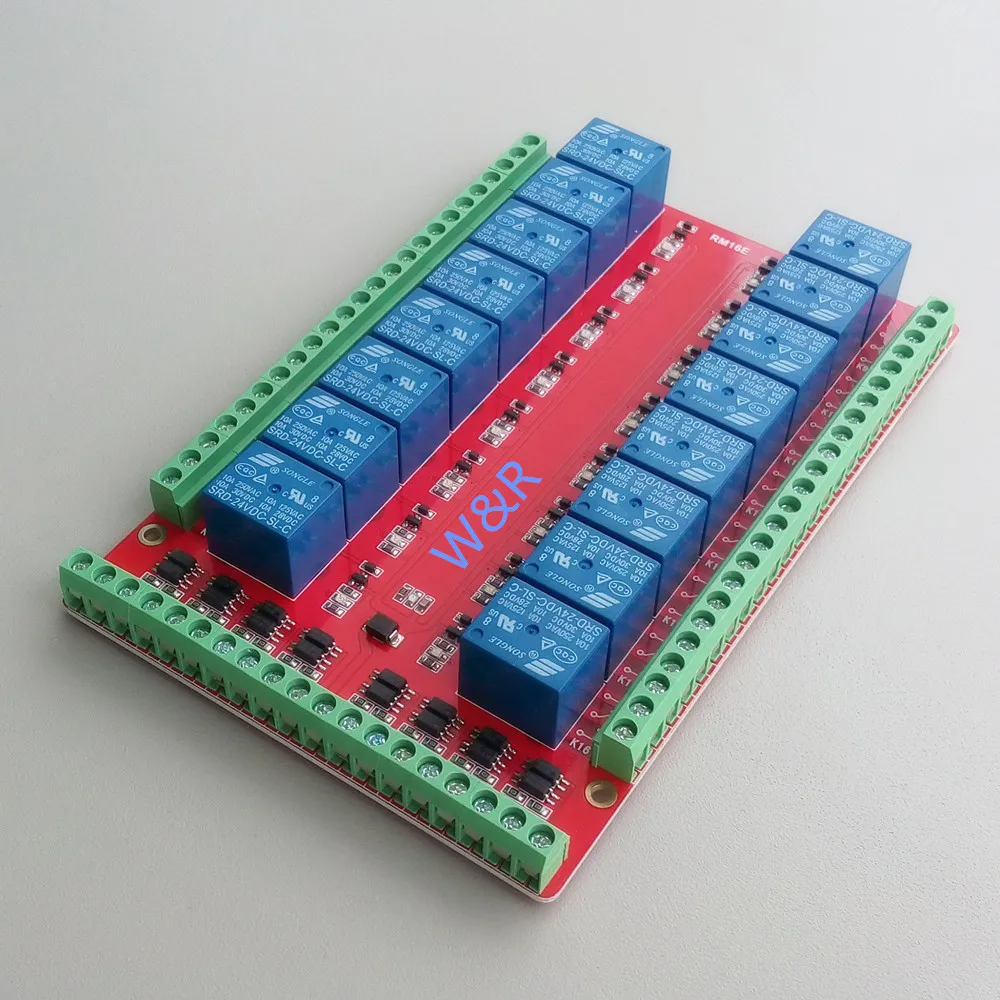

Name: 16-way Relay Control Module/isolated Expansion Module/high/low Level Trigger/5V/12V/24V bathroom furniture
Brand: MMO Dropship
SKU: 3256803330290964
Price: 48.14 VND
Availability: InStock
Rating: 4.9 (78 reviews)

Code: TD-3256803330290964

Free Shipping

$ 48.14

Quantity:

Other people want this. 28 people have this in their carts right now.

Description
Shipping & Returns

Origin:	Mainland China

Isolated type

Circuit relay control module

，

can

choice

High level

perhaps

Low level

Signal trigger，

Just

mAelectric current

The drive control capability is

0ARelay pull in，Module mining

Use genuine high-quality power relay，

Small package Optocoupler，

High power high voltage triode，red、Blue signal indicator，Military grade double-sidedPCBboard，The layout shall be considered comprehensively，Stable performance，It can be widely used in various power control occasions。

one Module description

、

Add anti reverse connection function of power supply，The wrong power supply will not damage the module；

Fault tolerant design，Control line broken，The relay will not operate；

、The module adopts genuine high-quality relay，Normally open interface load：communication250V/10A，direct30V/10A;

、Adopt high quality

Small bidirectional isolation Optocoupler

，Strong anti-interference ability，Stable performance；The trigger current only needs

mA；

、Module operating voltage yes5V、12V、24VOptional；have other

road、

Two way modules are available；

、

User selectable

relay

Control level of，It can be high-level pull in，It can also be low-level pull in；

modular

built-in

Finite current resistance，

You can directly use the positive and negative control of the power supply

，it's fine too

use

singlechip

I/Omouth

control

；

、Power indicator（gules），

Circuit relay status indicator（blue）

、Humanization of interface design，All interfaces can be led out directly through wiring terminals，Very convenient

、Module size：

15.2

cm *

10c

m *

2.0

cm（long*wide*high)

，

、Set4individual

3mm

Fixing bolt hole，Convenient installation

two Module interface

Module control terminal：

have

Line interface，All interfaces are

With terminal block，Convenient user wiring

1、DC+ ：

External DC power supply cathode（have5V、12Vand24VModules are available）

2、DC- ： Negative pole of external DC power supply

3、

： Photoelectric isolation

Chip common end

If high level control is used：This signal should be connected to the negative pole of the power supply of the user control panel

If low level control is used：This signal should be connected to the positive pole of the power supply of the user control panel

4、

：Relay control interface，

Connected to negative pole of power supply：High level of this port(Relative and

)Switch on the corresponding relay when

Connected to positive pole of power supply：This port is low(Relative and

)Switch on the corresponding relay when

be careful：The isolated relay module is designed to adapt to the occasions with bad electromagnetic environment or high signal requirements，If you want to achieve complete isolation，Then the power supply of the user control board（Namely connectionXMReference power supply for）Power supply for and relay module（DC+/DC-）Should be distinguished。

Relay output：

have

Line interface，All interfaces are

With terminal block，Convenient user wiring

1、NO1--NO

： Relay normally open interface，Suspension before relay closing，After suction andCOMShort circuit

2、COM1--COM

：Relay common interface

3、NC1--NC

： Relay normally closed interface，Before and after the relay is pulled inCOMShort circuit，Suspended after suction
