wood cnc machine 1.75mm Filament Material Run Out Detection Module Sensor For 3D Printer Parts Filament Detection Module cnc wood router Woodworking Machinery

Code: TD-3256803241477343 1 order
Free Shipping
$ 31.24 $ 31.71
Color:
Transparent
Blcak
White
Note

Quantity:
Other people want this. 14 people have this in their carts right now.
Origin:  CN(Origin)
Certification:  CE
Material:  Plastic
Applicable filament diameter:  1.75mm
Cable Length:  1m (Approx.)
Type1:  Suitable for testing 1.75mm filament
Type2:  The wear-resistant copper sleeve is added, which can effectively extend the service life of the product

Upgraded Adjustable Z-axis Screw Mount for Ender-3 V2/3Pro 3D Printer Part 3D Printer Accessories

USD 3.12/piece

200mW 650nm Red Dot Modulating Laser Module Laser Receiver for Secret Room

USD 10.94-15.72/piece

Automatic Roller Engraving Module For Laser Master Engraving Cylindrical Objects Cans Models Rotary Roller Adjustable Width

USD 42.33/piece

PLA ABS Bracket Filament Spool Holder for 3D Printer Fixture Consumables Support Wire Material Rack Material Tray Support Frame

USD 2.50-5.66/piece

GT2 Synchronous Timing Belt Wide 6mm 2GT-6mm 1m for 3D Printer RepRap Mendel 2GT Belts Pulley Accessories

USD 3.11-4.77/piece

Geekcreit CNC Shield UNO-R3 Board 4xA4988 Driver Kit With Heat Sink For Engraver 3D Printer

USD 16.45/piece

Cross Line Acrylic Laser Lens With Metal Cap For 12mm Laser Module

USD 7.98/piece

High Quality Red Line Laser Module 5mW 650nm Focus Adjustable Laser Head 5V Industrial Grade P0.05

USD 6.41-6.42/piece

Specifications:

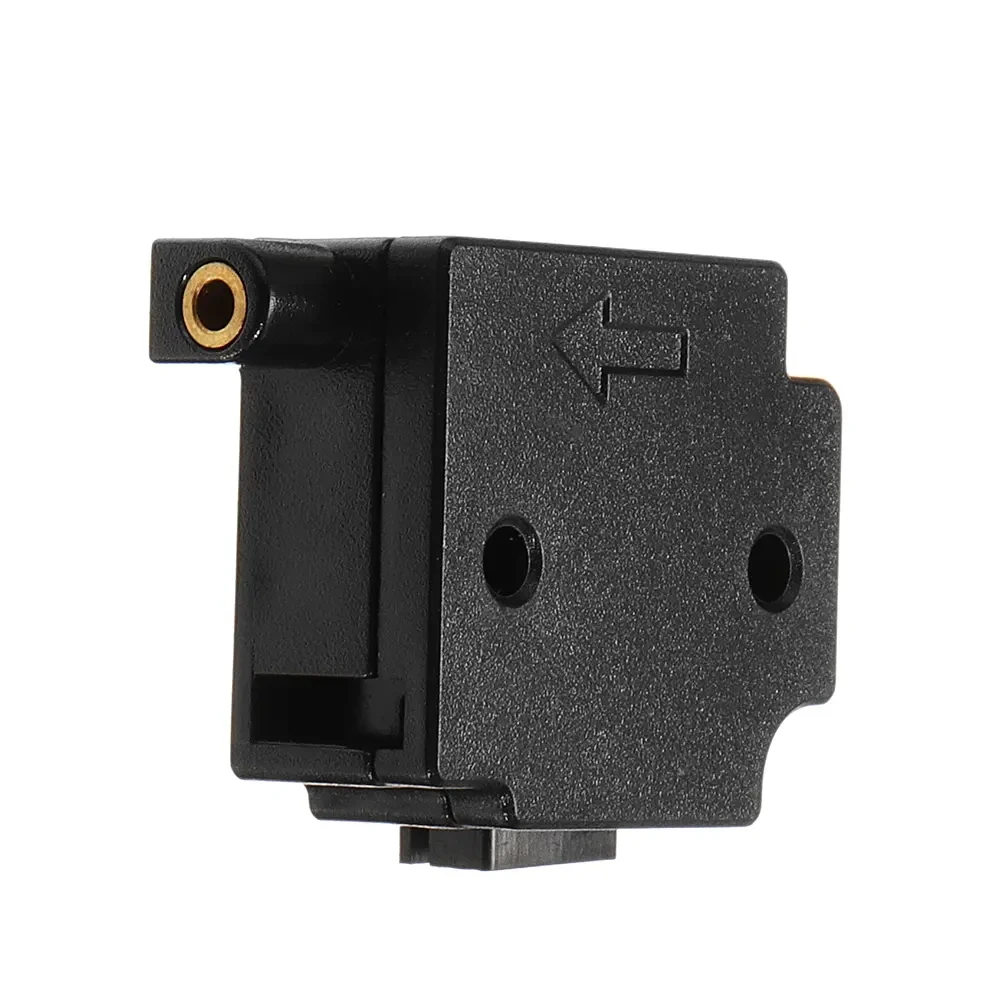

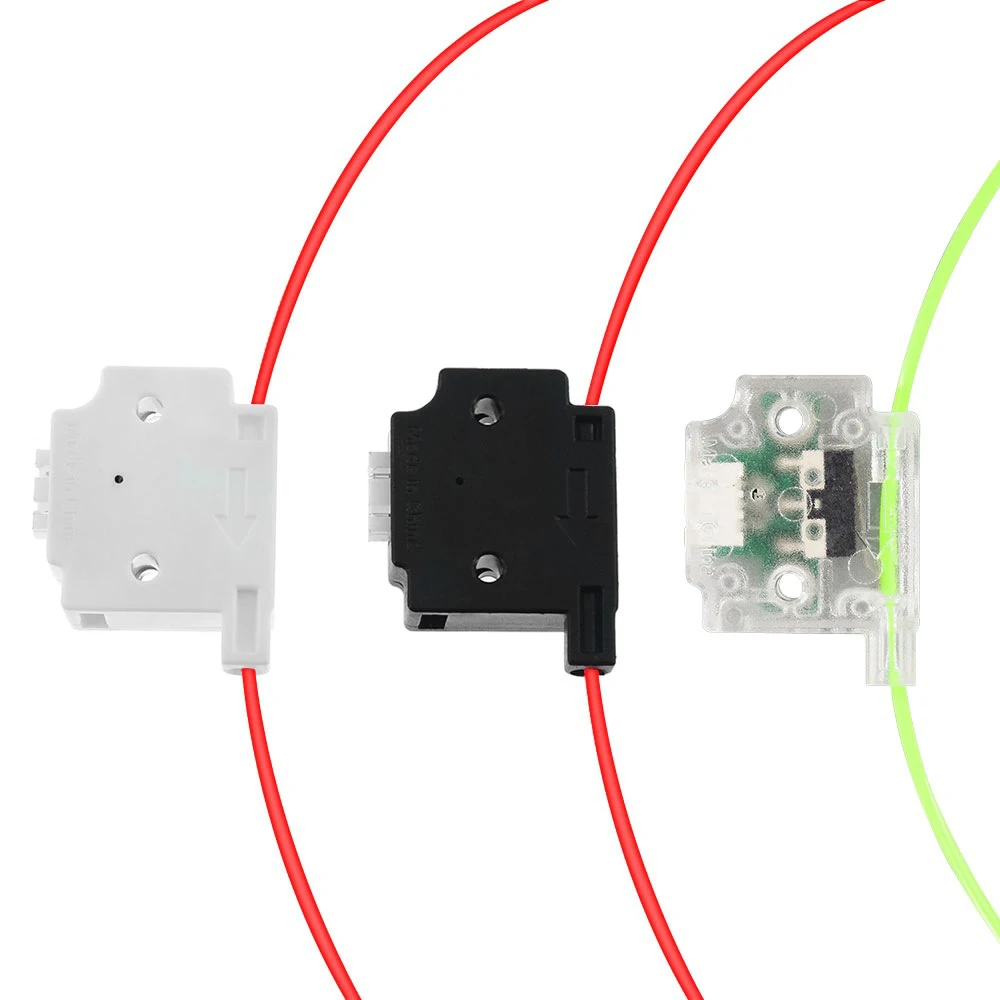

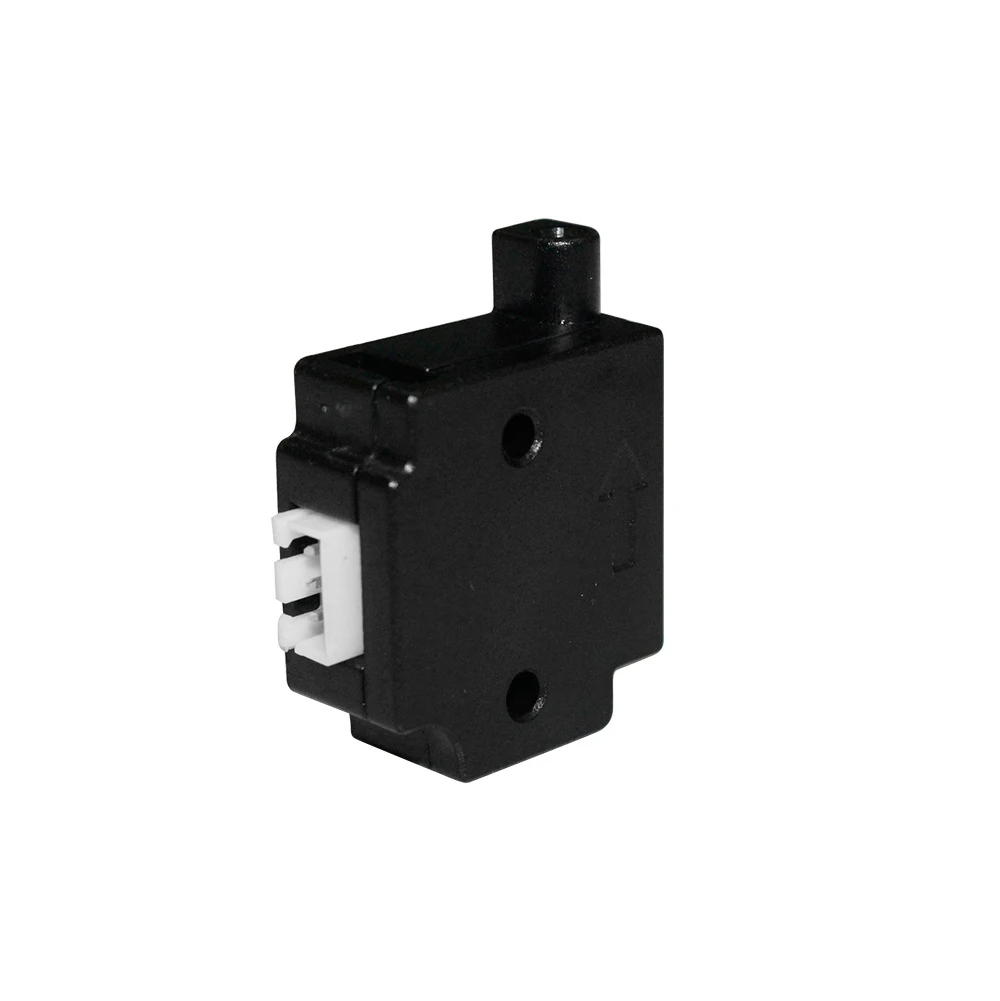

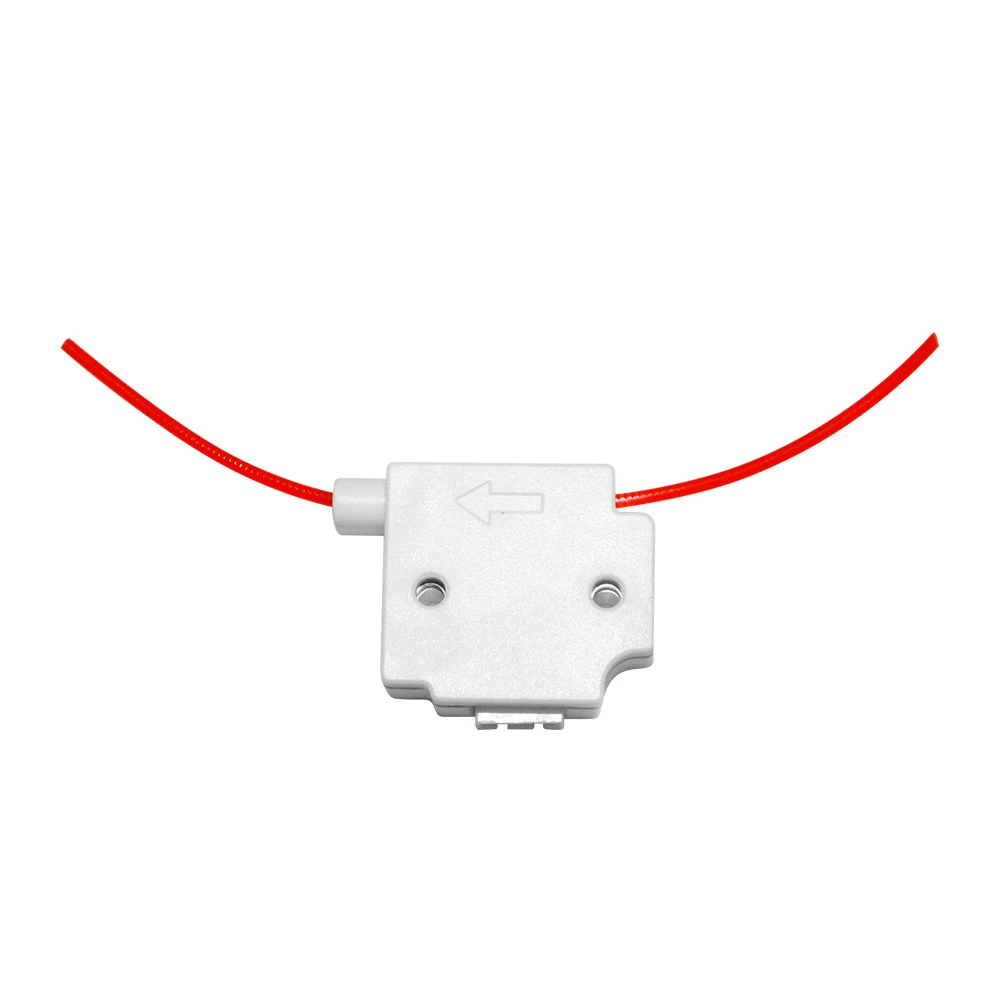

- Product name: Filament Detection Module

- Material: Plastic

- Applicable filament diameter: 1.75mm

- Total Size: (L×W×H) 37.6×30.2×13mm(Approx.)

- Cable Length: 1m (Approx.)

Features:

1. Suitable for testing 1.75mm filament

2. The wear-resistant copper sleeve is added, which can effectively extend the service life of the product

Package Included:

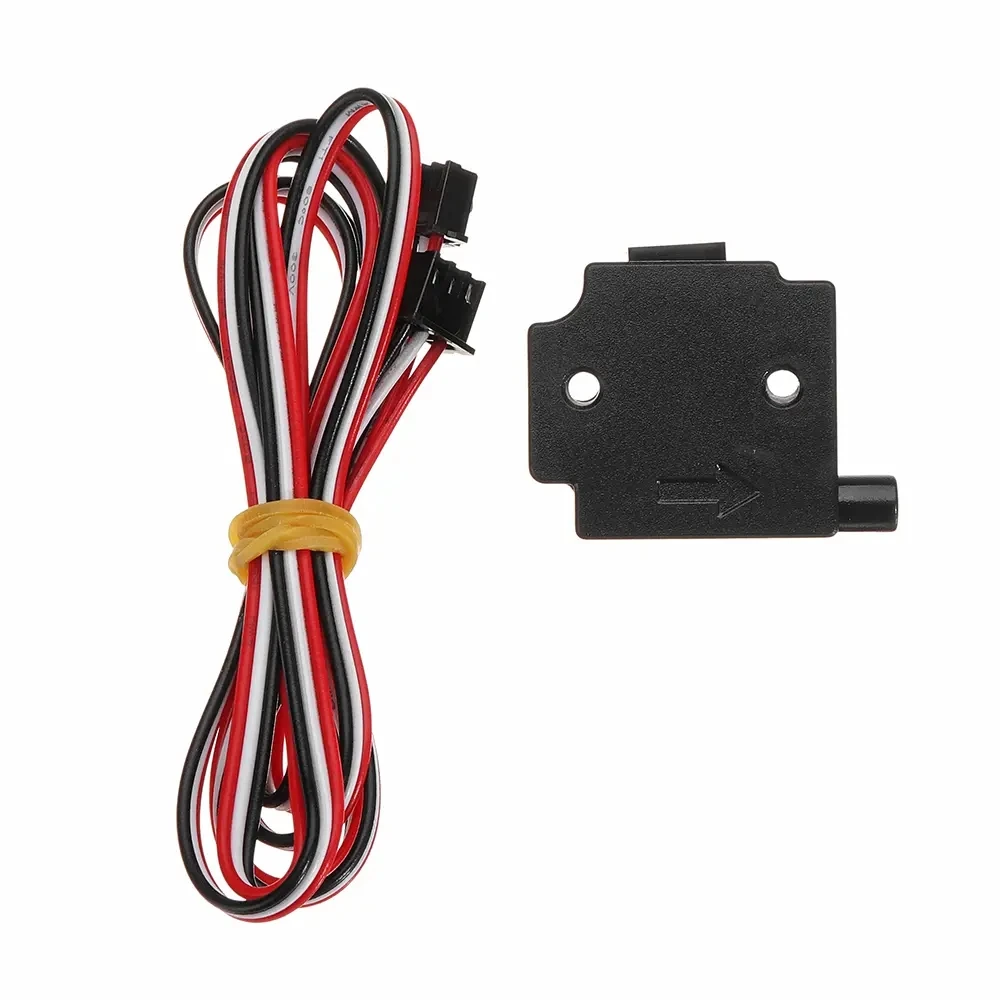

1x 1.75mm Filament Detection Module

1x Connetion Cable

Used with Lerdge board:

When there is filament in, the green light in the module keeps lighting. And when the filament is exhausted, the green light goes off, then the motherboard executes the pause command operation, after the replacement of the filament can continue to print.

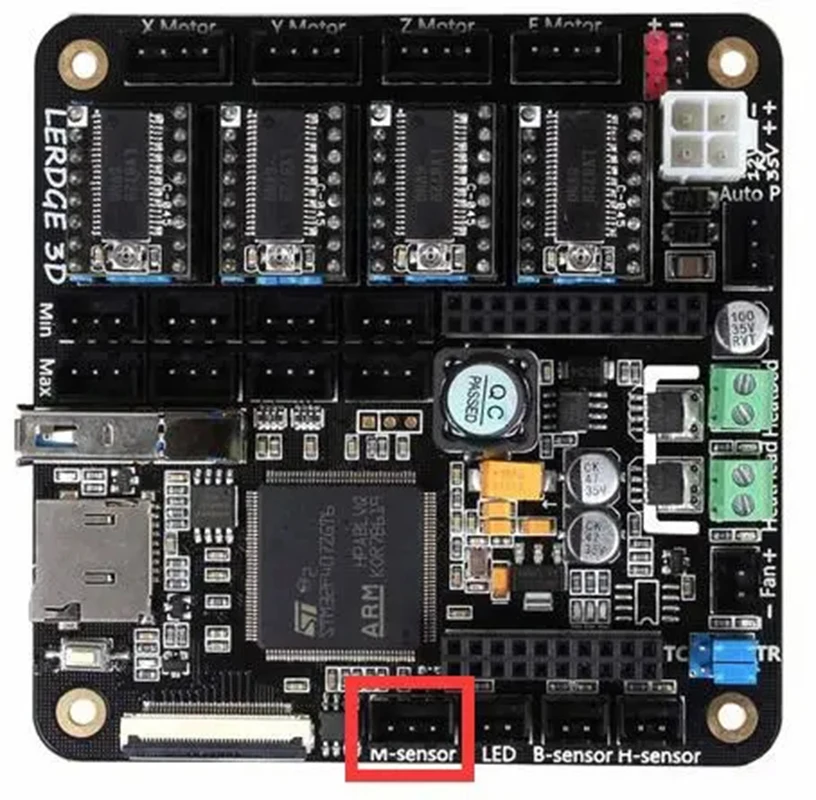

Wiring: Connect the module to the M-sensor port on the motherboard.



Used with other motherboards:

The filament detection module uses the level transition detection method. When with filament in, the detection level signal should be high, and when no filament, the filament port level signal goes low. When the system detects a determined transition from high to low level, it will regard it as the filament exhausted, then the board executes the pause command operation, and after the replacement of the filament, it will continue to print.
