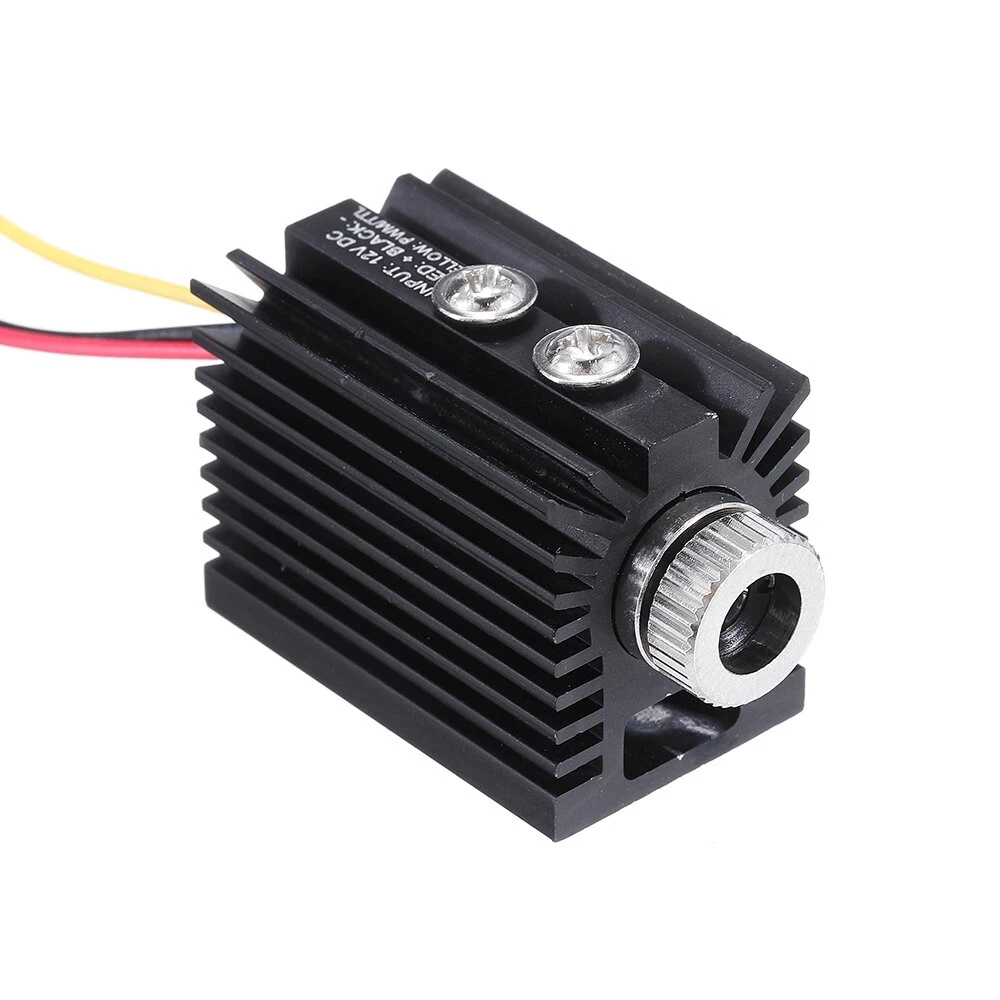

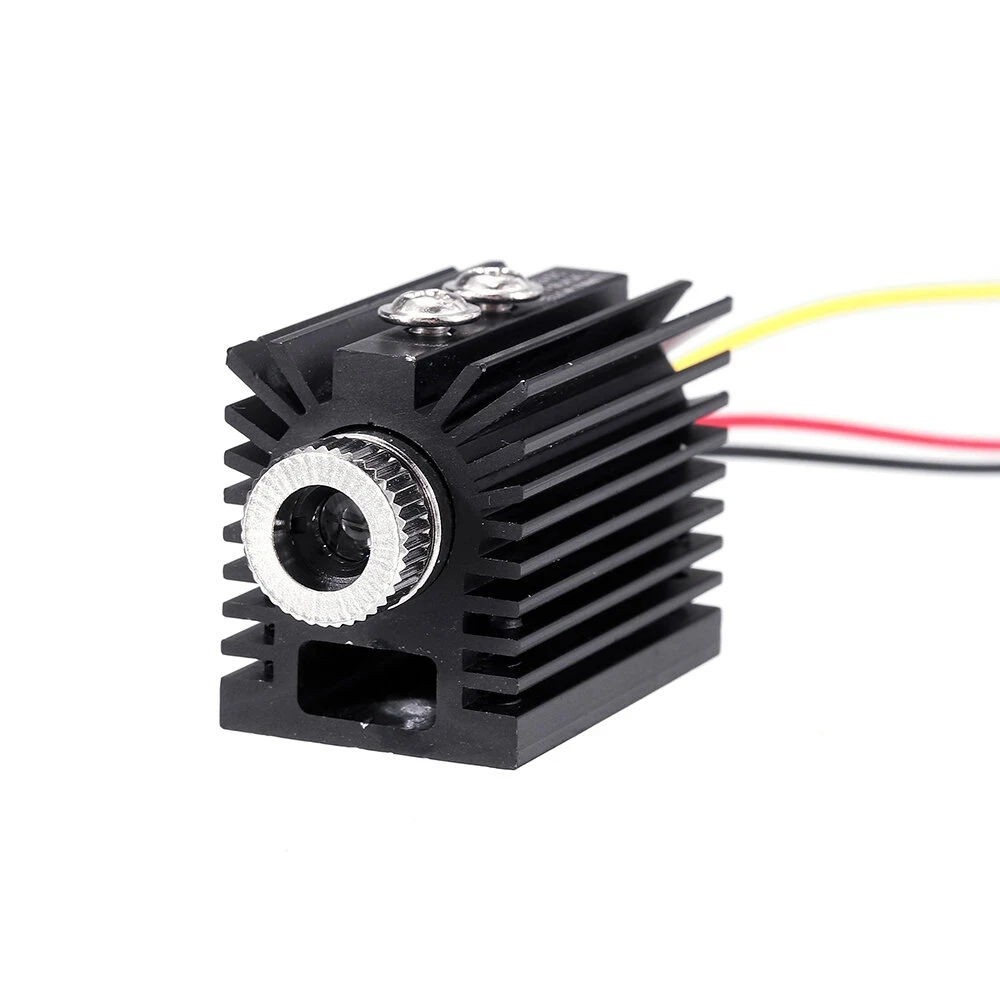

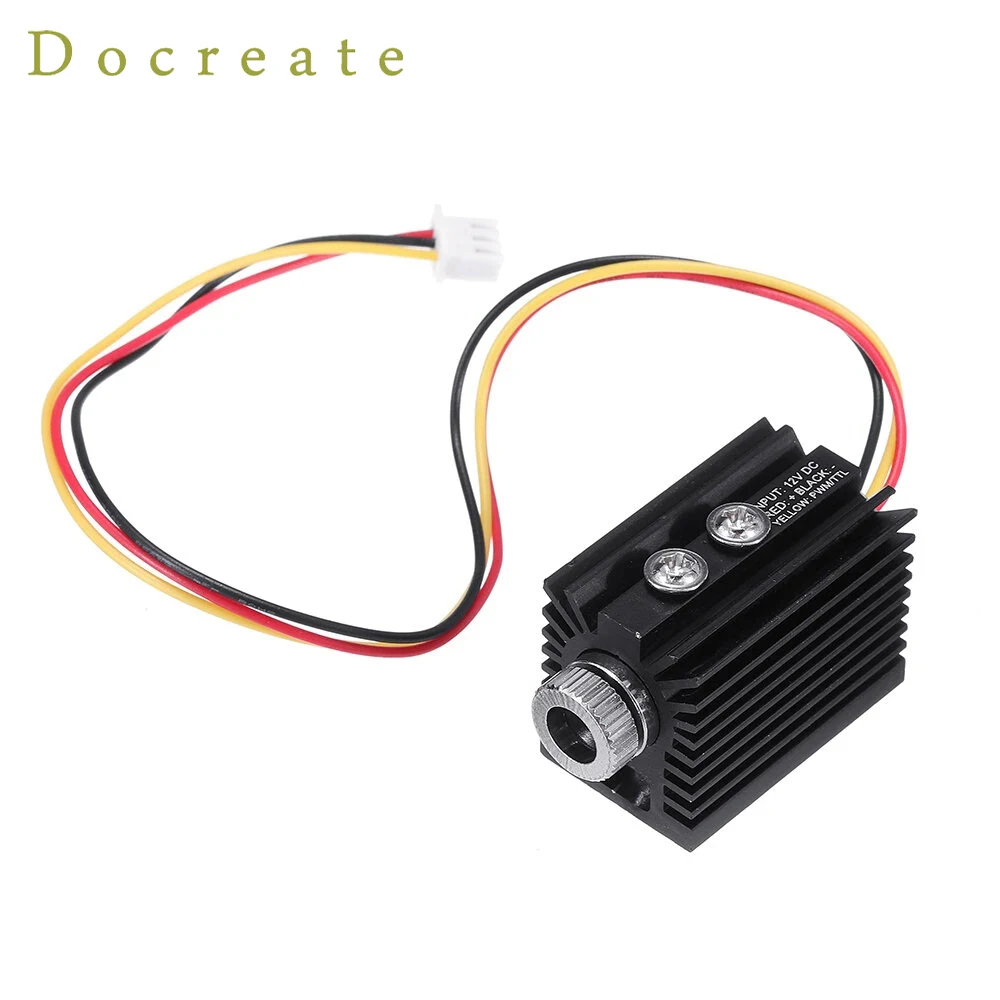

Laser Module Blue Violet Dot 405nm 100/180/300mW 2.54-3P Variable Focus TTL/PWM Modulation w/ Heat Sink for DIY Laser Engraver cnc wood router Woodworking Machinery

Code: TD-3256803100141713 13 orders
Free Shipping
$ 72.72 $ 91.15
Color:
100mW
180mW
300mW
500mW
Note

Quantity:
Other people want this. 13 people have this in their carts right now.
Origin:  CN(Origin)
Certification:  CE
Condition:  New
Model Number:  Laser Module
Material:  Aluminum + Brass
100mW Laser Module:  PMA Lens (Acrylic)
180mW Laser Module:  PMA Lens ( Acrylic)
300mW Laser Module:  Glass Coated with High Permeability Film
Laser Wavelength:  405nm (Blue Violet0
Bead Shape:  Dot (Variable Focus)
Working Voltage:  12VDC (8-15V)
TTL/PWM Modulation:  YES
Input Interface:  XH2.54-3P
Type:  3 Pins plug, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.

FA02-500~5500mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver for EleksMaker

USD 27.75-82.95/piece

FB03-500~5500mW 445nm Blue Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver for EleksMaker

USD 28.06-83.62/piece

FB04-500-5500mW 500mW 405nm-445nm Blue Violet Laser Module 2*2.54-2P TTL/PWM Modulation for EleksMaker Engraver

USD 28.06-85.58/piece

Red Dot Focusable 200mW-250mW 650nm Laser Module Laser Generator Diode Replacement Mini DIY Engraver Power Tools Accessories Set

USD 7.41/piece

Laser Module Blue Violet Dot 405nm 100/180/300mW 2.54-3P Variable Focus TTL/PWM Modulation w/ Heat Sink for DIY Laser Engraver

USD 12.03-27.65/piece

23HS5628 2.8A Two Phase Stepper Motor With TB6600 Stepper Motor Driver For CNC Part Motor Driver Controller for 4A 9~40

USD 26.12/piece

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver

USD 117.41/piece

17HS4401S 4-Lead Nema17 42 Motor 42BYGH 1.5A 38mm Stepper Motor For CNC Part 3D Pirnter

USD 6.99/piece

Feature:


1. Made of high quality hard aluminum and brass material, the surface is by anodized and sandblasting, not easy rust, very durable.
2. With heat dissipation fan, make it with longer service life.
3. Output optical power is stable, suitable for industrial equipment usage.
4. 3 Pins plug, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
This module can be compatible with TTL or PWM modulation, (But it can just select either function at a time.) while TTL can control the switch on/off and PWM can control the adjustment of laser power.
5. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper
6. Can Not Engrave: Anodized Aluminum/Ceramics/Stone/Stainless steel/Metal/Glass/PCB/Reflective Material/Transparent Material

Note:


1. This laser module has high output power, please wear goggles when testing or using.
2. Do not touch the laser light directly in cases that hurt the body and skin.
3. Keep children and pets away from the laser module when it working.

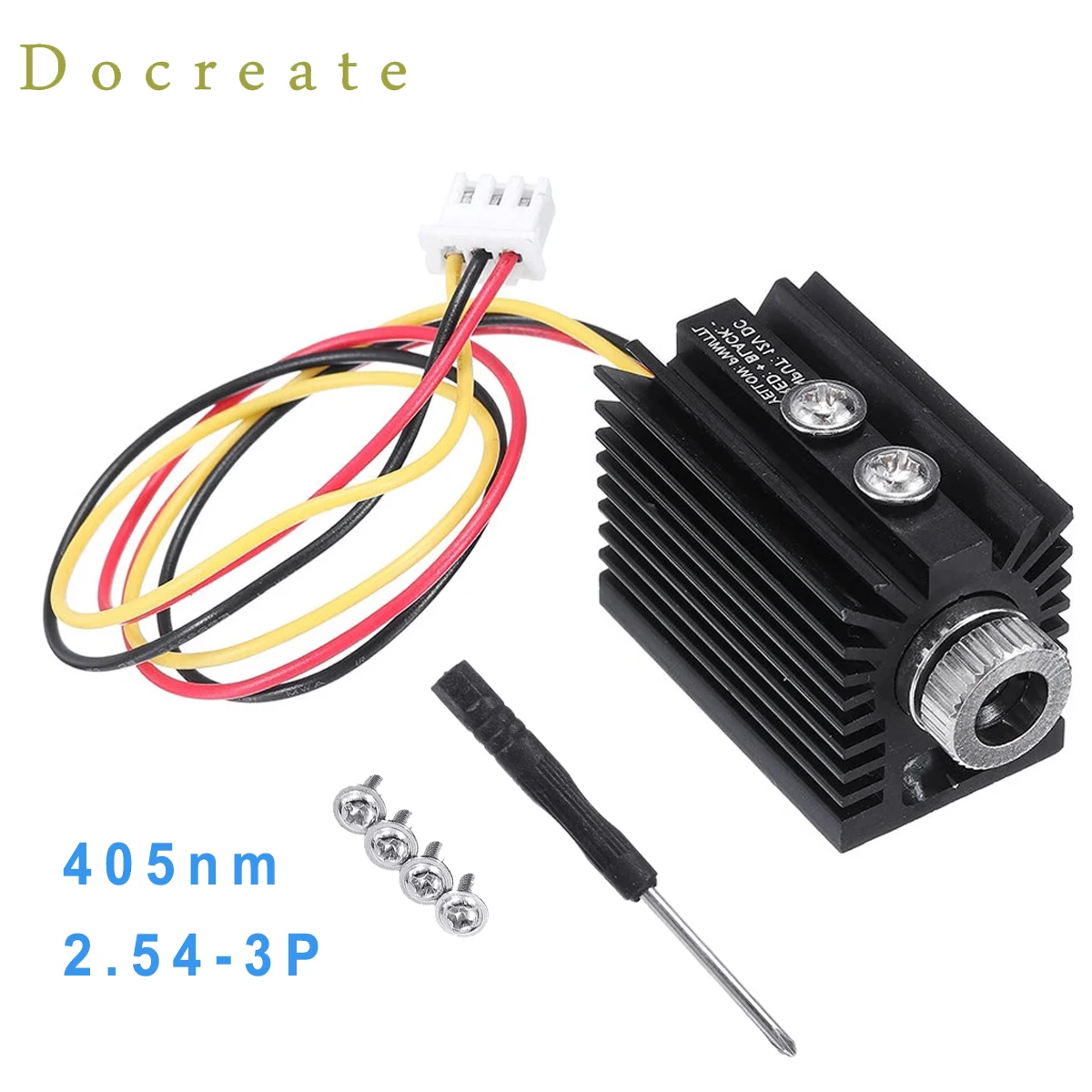

Package Included:


1 x Laser Module

More Details:



Optical Power

Working Current

Rated Power

100mW

80mA

0.96W

180mW

125mA

2.16W

300mW

300mA

2.4W

Specification:


Material: Aluminum + Brass
Laser Lens Material:
100mW Laser Module: PMA Lens (Acrylic)
180mW Laser Module: PMA Lens ( Acrylic)
300mW Laser Module: Glass Coated with High Permeability Film
Laser Wavelength: 405nm (Blue Violet0
Bead Shape: Dot (Variable Focus)
Working Voltage: 12VDC (8-15V)
Optical Power: 100mW, 180mW, 300mW
TTL/PWM Modulation: YES
Input Interface: XH2.54-3P
Cooling Method: Natural Convection
