video intercom system Tuya Smart Life Wifi Video Intercom Touch Screen Video Door Phone With 1080P Video Doorbell Camera Motion Sensor Home Intercom intercom screen Door Intercom Systems

Brand Name:	TVR
Connection Method:	Wired
Certification:	CE
Certification:	FCC
Certification:	RoHS
Smart home platform:	Tuya
Origin:	CN(Origin)
Answering Mode:	Hands-free
Camera Sensor type:	CMOS
Display Size:	7
Display Screen Type:	Color Touch Screen
Material:	Acrylic
Viewing Angle (°):	160
Size:	185*127*20mm
Plug Type:	EU plug
Plug Type:	US plug
Plug Type:	AU Plug
Plug Type:	UK plug
Power:	12V/2A
Model Number:	95703H
IP Camera Interface:	No
Zone Input:	None
Samrt Home Interface:	Yes
Kit Configuration:	One to One video doorphone
Installation:	Wall Mounting
Resolution:	1024X600
Doorbell:	Yes
Access Control:	None
Sensor Size(Inch):	1/3
Technology:	ANALOG
Camera:	color
Type:	Intercom System
Power:	220v
Connection Type:	wireless
Waterproof:	Yes

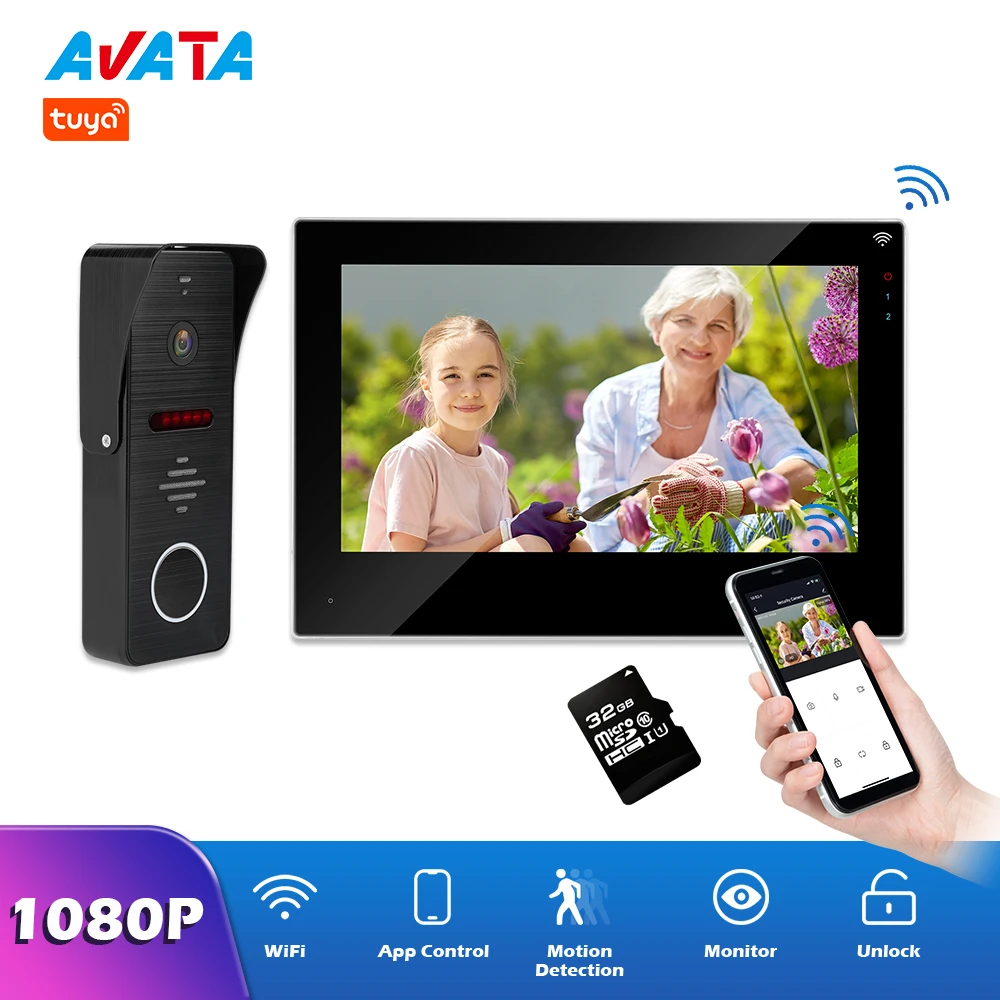

Tuya WiFI Smart Video Intercom Full Touch Screen Video Doorphone With AHD 1080P Video Doorbell Camera Motion Sensor For Home

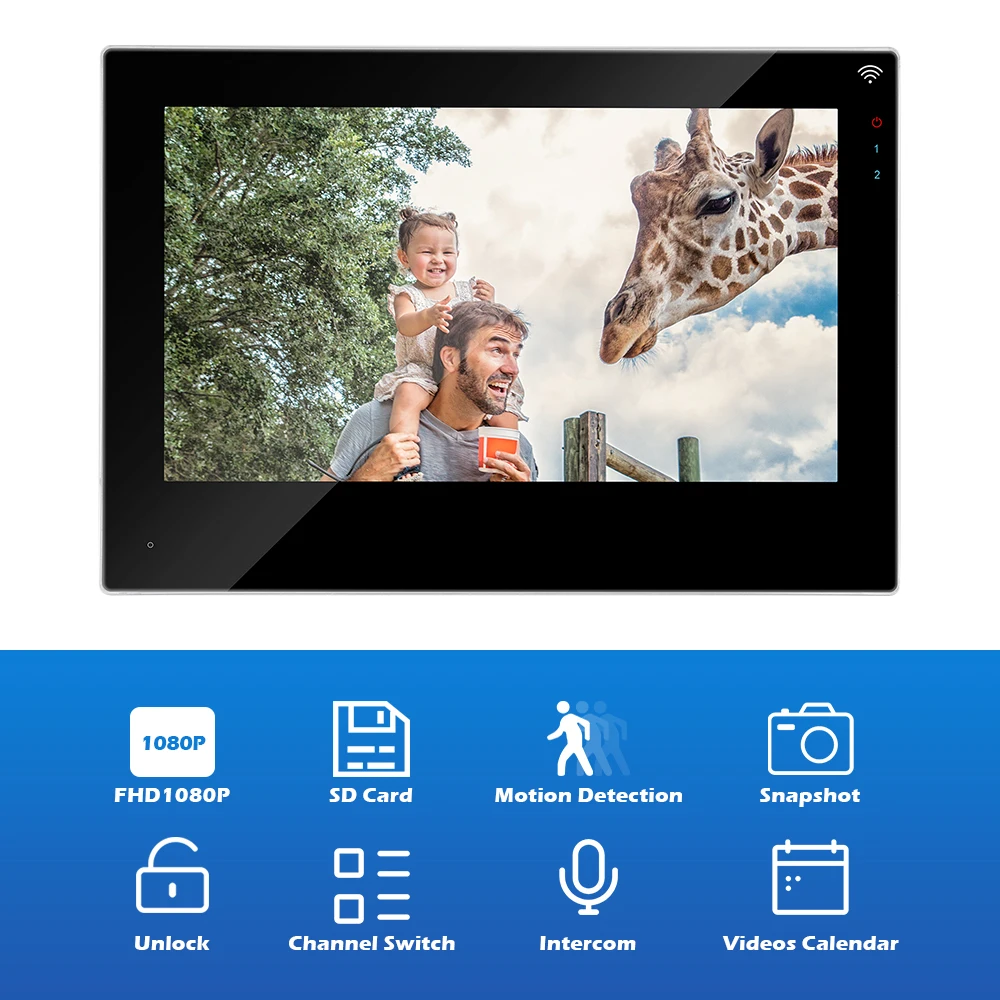

Indoor Monitor

-7 Inch color LCD video intercom monitor
-WIFI Video Doorphone System

-

Support Tuya Smart APP
-Real-time remote operation by smart phone

-Resolution:1024*600

-

Material:A

crylic

-Button:Touch Screen

-Monitor/APP

Support visual intercom /

motion detection push message/

video recording / screenshot / talking / 3 locks unlock separately

-Monitor/APP

Support monitoring 2 doorbells + 2 cameras

-Monitor supports multiple languages: English/Russian/Italian/Spanish/Ukrainian/Polish/German/French
-Monitor support 3 electronic locks connection:2 locks connected to doorbell, 1 lock connected to monitor
-Monitor support 6 monitors+2 doorbells+2 cameras
-Monitor support built-in motion detection,motion recording time 10s -300s ,save video/screenshot to memory card , SD card support up to 128G

-Monitor support

2-way talk / transfer to salve monitor / silent mode / message push to phone /clock mode /10 ringtones optional /

unlock time and volume are adjustable.

-Monitor

Support different menu display:

Standard / Android / Win10

-Monitor

Support NO or NC unlock way.

-Monitor

Support video format:

AHD/ TVI / CVI / CVBS

-

Monitor supports zoom in / out image

-Monitor has

Built-in power supply AC220V / External power supply DC12V for optional.

-Please noted the monitor connects to the doorbell by wired,monitor connects to APP by WIFI

Real-time remote operation by smart phone

Easy steps to connect the App with monitor

By EZ mode

-Step 1:Monitor choose EZ mode
-Setp 2: Install the "Tuya Smart" App at your devices
-Step 3:Click" Add Device"→Video Surveillance→Smart Doorbell
-Step 4:Select "EZ Mode"→Next→Add Wifi Password
-Step 5:Connect successfully and you can operate on the App

By AP mode

Step 1:Monitor choose AP mode
Setp 2: Install the "Tuya Smart" App at your devices
Step 3: Click" Add Device"→Video Surveillance→Smart Doorbell
Step 4:Select "AP Mode"→Next→Choose your home WiFi and write the password→connect.
Step 5:Choosedevice hotspot" Smartlife xxx "to connect, write password 12345678
Step 6:Connect successfully and you can operate on the App

Devices can Receive the Call at the Same Time

The APP can read and playback videos list from SD card storage, freely check calendar to select exact date and view videos streams.

Touch screen video intercom

Support different menu display:

Standard / Android / Win10

Monitor supports multiple languages: English/Russian/Italian/Spanish/Ukrainian/Polish/German/French

Support visual intercom, 2-way talk, transfer to 5 salve monitors

Monitor support 6 monitors+2 doorbells+2 cameras+3 locks

Monitor Supports At home, Not at Home and Sleeping Mode

Not at home---The doorbell will tip the visitor leave a message if you not answer the call after your setting time. But the App can receive the call.
Not disturbing mode--The monitor will become silent and not disturb you.

Display clock when standby mode,screen will keep on

Monitor with built-in motion detector, it supports motion detection display.

❗

If you set the not at home mode at App, it will send notification to your phone if someone approach to your front door. This is very important for your home security.

Adjustable unlocking time

Built-in power supply AC220V  or  External power supply DC12V/1A for optional.

Monitor support 3 electronic locks connection:2 locks connected to doorbell, 1 lock connected to monitor

Outdoor Doorbell

FHD1080P, Wide angle 130° horizontal angle , 160° diagonal angle

Camera sensor: 1/3 CMOS
Color:Grey
Material:

aluminum alloy

Waterproof IP65

Day vision and night vision with IR led

Working temperature:between -40℃ to 60℃

The function of doorbell panel

1.Waterproof cover
2.Mic
3.Camera lens
4.IR sensor
5.Speaker
6.Call button

The door phone can be rain-proof, dust-proof and vandal-proof, suitable for temperature between -40℃ to 60℃

The product size

How to connect with lock?

What is in the package?

Monitor*1
Doorbell*1
200mm 4 pin cable*5
200mm 2 pin cable*2
32G SD card*1(for optional)
User Manual *2
Guarantee Card *1
Screw Bag *2
Monitor Mounting Plate*1
Steering block*1
Rain cover*1
Power adapter*1( if you choose AC220V,there is no 12V power adapter)
