7 Inch Video Intercom Doorbell Kits for Home Security + Electric Lock+ Power Supply+ Door Exit + Video Door Phone System Unlock wireless gate intercom with camera Door Intercom Systems

Brand Name:	AMOCAM
Connection Method:	Wired
Camera Sensor type:	CMOS
Origin:	CN(Origin)
Answering Mode:	Hands-free
Display Size:	7
Kit Configuration:	One to One video doorphone
Type:	Intercom System
Smart home platform:	Other
Smart home platform:	NONE
Installation:	Wall Mounting
Resolution:	> 420 TV Line
Connection Type:	Wired
Certification:	RoHS
Power:	12
Model Number:	4218L
Sensor Size(Inch):	1/3
Doorbell:	Yes
Technology:	ANALOG

Welcome to our store buy more products:

http://www.aliexpress.com/store/1454030

This video intercom door phone system includes 1-outdoor color camera, 1-color LCD 7 inch screen.

When someone press the call button, you can see and speak to whoever comes to your door via the indoor video monitor. Just press

the "UNLOCK" button of indoor monitor to welcome your visitors.

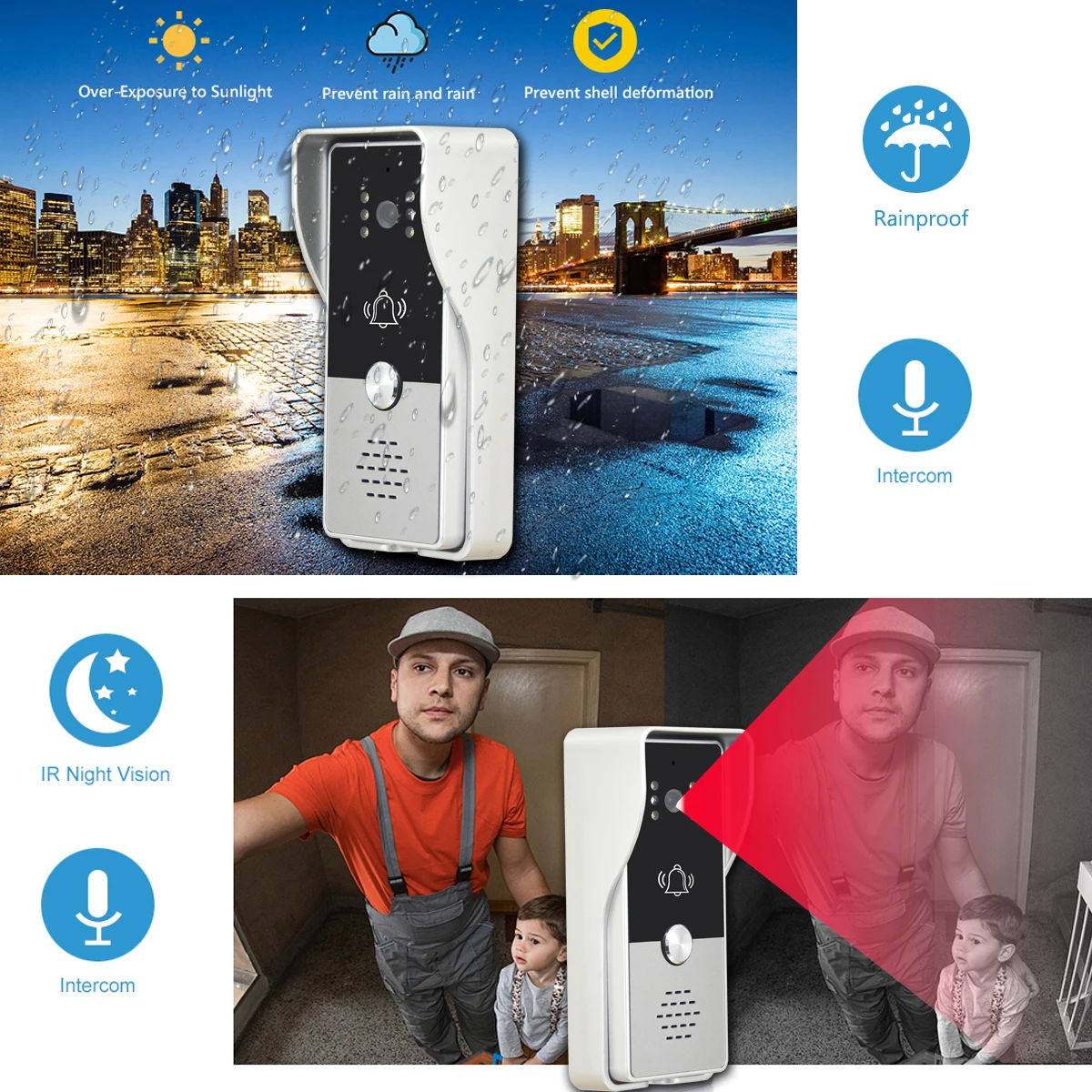

The outdoor camera provides a 92-degree viewing angle, attached with a rain proof cover to prevent the water and protect the outdoor camera from damage. waterproofing and IR LED projection provides both durability and clear images no matter the weather or time of day/night.

Door Camera:

The operating temperature range of this outdoor camera is -4℉(-20℃) to 122℉(50℃), it can run perfectly in extreme temperatures.

 Horizontal resolution:1000 TV-Lines

 Image sensor:Colorful CMOS sensor

 Sensor Size:1/4,Visual angle:92

 IR Led: 6pcs, auto on/off

 Panel Material: ABS/Plastic

 Installation: Surface mounting

 Simple 4- wire connection

 Size: 5.3 x 2.5 x 1.0 inch

The indoor monitor provides dimmable display, hands free intercom, dual-Way Intercom, you can adjust volume, brightness as needed. provides brightness of screen, volume and music setting,Easy Surface mounting,integrated video doorphone and access control,

it brings more convenience in daily use.

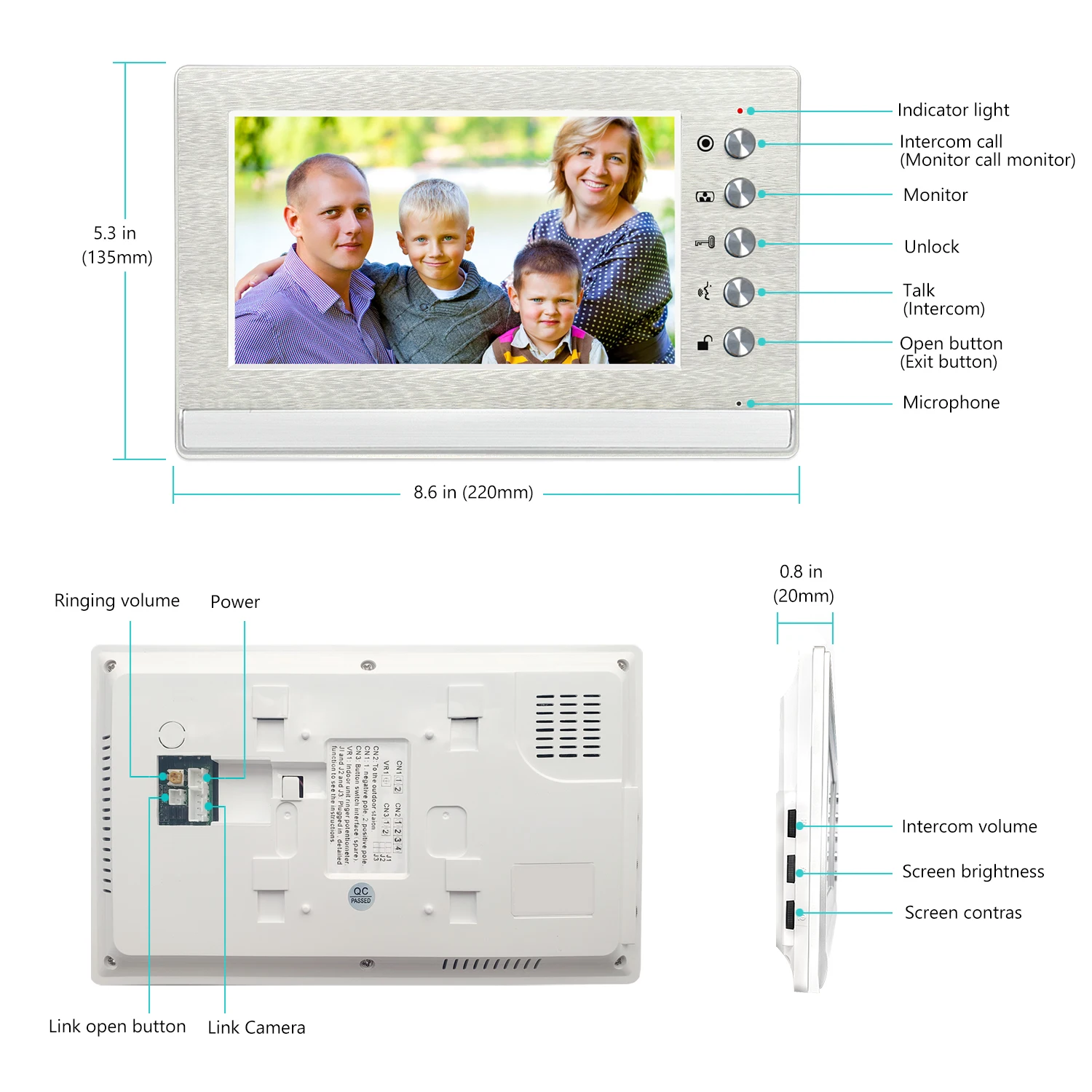

Indoor Monitor:

Stay away from robbers and other bad guys without having to walk to the front door or outside the door when strangers ring doorbell.

Screen: 7 inch TFT-LCD touch screen

 Resolution: 800 x 480

 Ring: 7-chord melody rings

 Panel Material: ABS/Plastic cover

 Installation: Surface mounting / On the table

 Input voltage:AC 100-240V 50/60Hz

 Working voltage:DC 12V, 1.0A

 Size: 8.6 x 5.3 x0.8 inch

Packing includes:

  1 x Indoor 7-Inch color monitor (With a mounting bracket).

  1 x Outdoor camera with rain cover.

  1 x Power adapter.

  1 x 4-Core connection cable.

  1 x 3-Core connection cable.

  1 x Bag screws

  1 x Manual

 Optional (Electrical lock/power control/door exit)

Note: The extension wire is not included in the box,but we will provide the 4 pin connector for you connect the extension wires.

You can use RVV4(4 core wire)/Cat5/Cat6 wires to extend the distance for monitor to doorbell, monitor to monitor according to

your need, maximum distance 100-200 meters.

Electrical lock and indoor Unlock, make house safer

This door phone can work with 12V electrical lock, so you can connect an electrical lock to this system. With this function,

you don't need go to the door to unlock for your guest, you just need to press unlock button on monitor. It will bring great convenience for you and your family members.

( This electric lock is not included, if you need please feel free to contact us. )

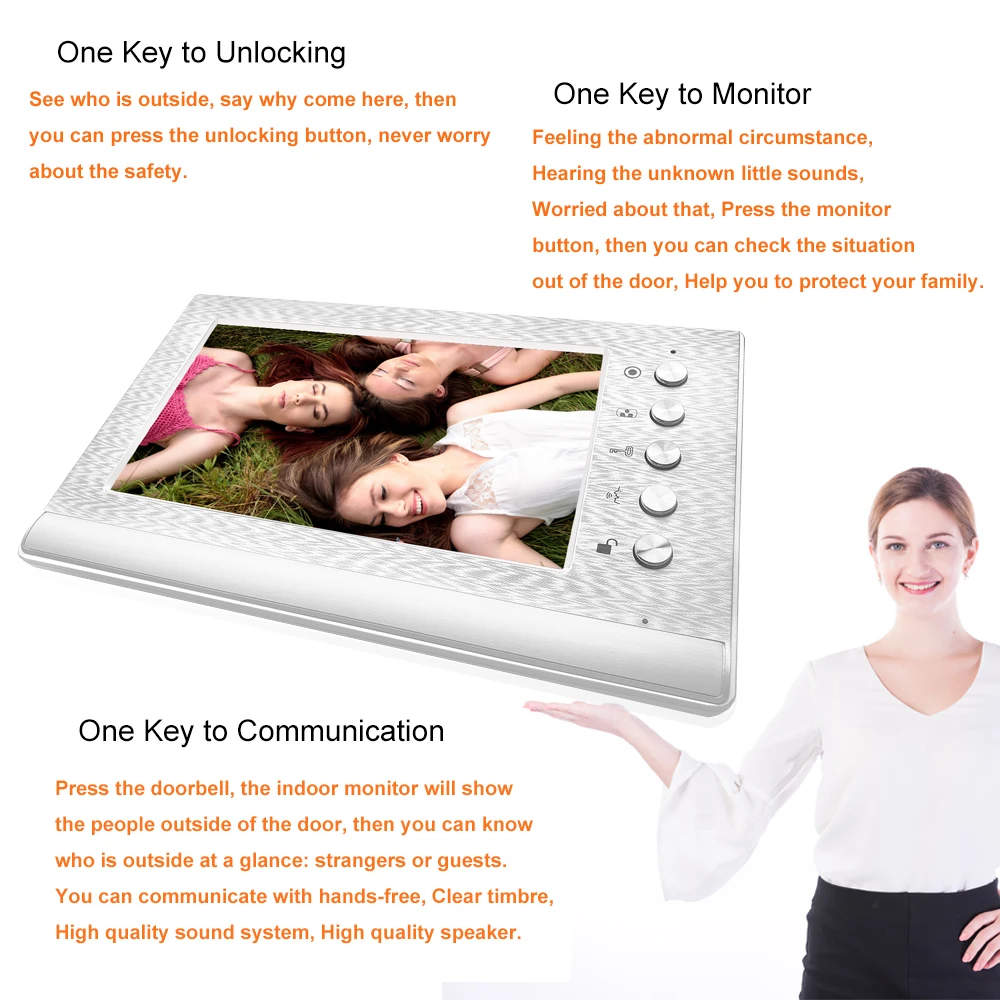

One key to monitor, communication, unlock

Press the doorbell, the indoor monitor will show the people outside of the door,the you can know who is outside at a glance,stangers or guests. Feeling the abnormal circumstance,Hearing the unknown little sounds,Worried about that, press the monitor button,then your can check the situation out of the door. You can press the unlocking button, support unlock electrical lock, wtrike lock, magnetic lock, drop bolt lock(lock is not included)

You can communicate with hands-free, clear timbre, high quality sound system, high quality speaker, convenient and fast,never worry about the safety.

IR for Night-vision, allows you see color image at night

This video door phone adopts a different design. The outdoor unit embeds in a intelligent IR sensor, the IR sensor can control the leds according to illumination intensity. At night or at low light status, the  led lights will turn on automatically and allows you can still see color image at night. At daytime, the  led lights will not turn on. It is a brilliant design.

The outdoor camera is attached with a rain proof cover to prevent the water and protect the outdoor camera from damage.  Waterproof(IP65) can put In the rain directly

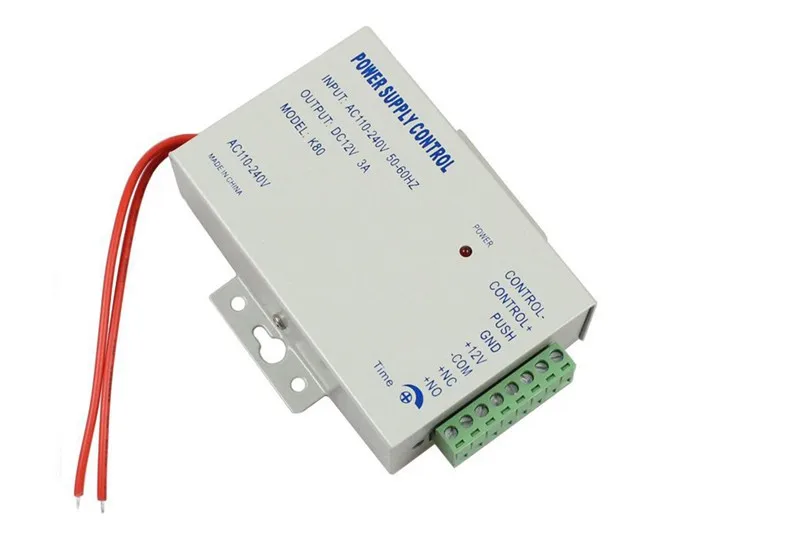

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

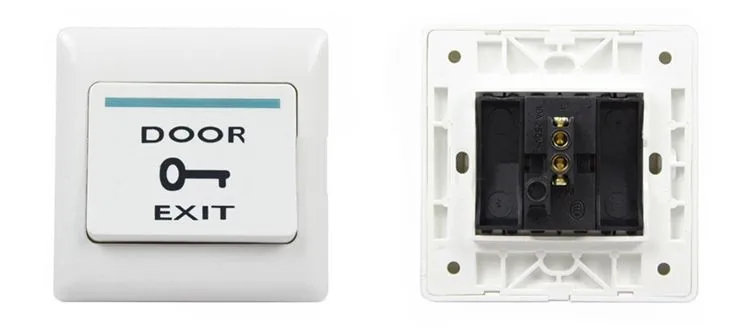

Door Exit Button :

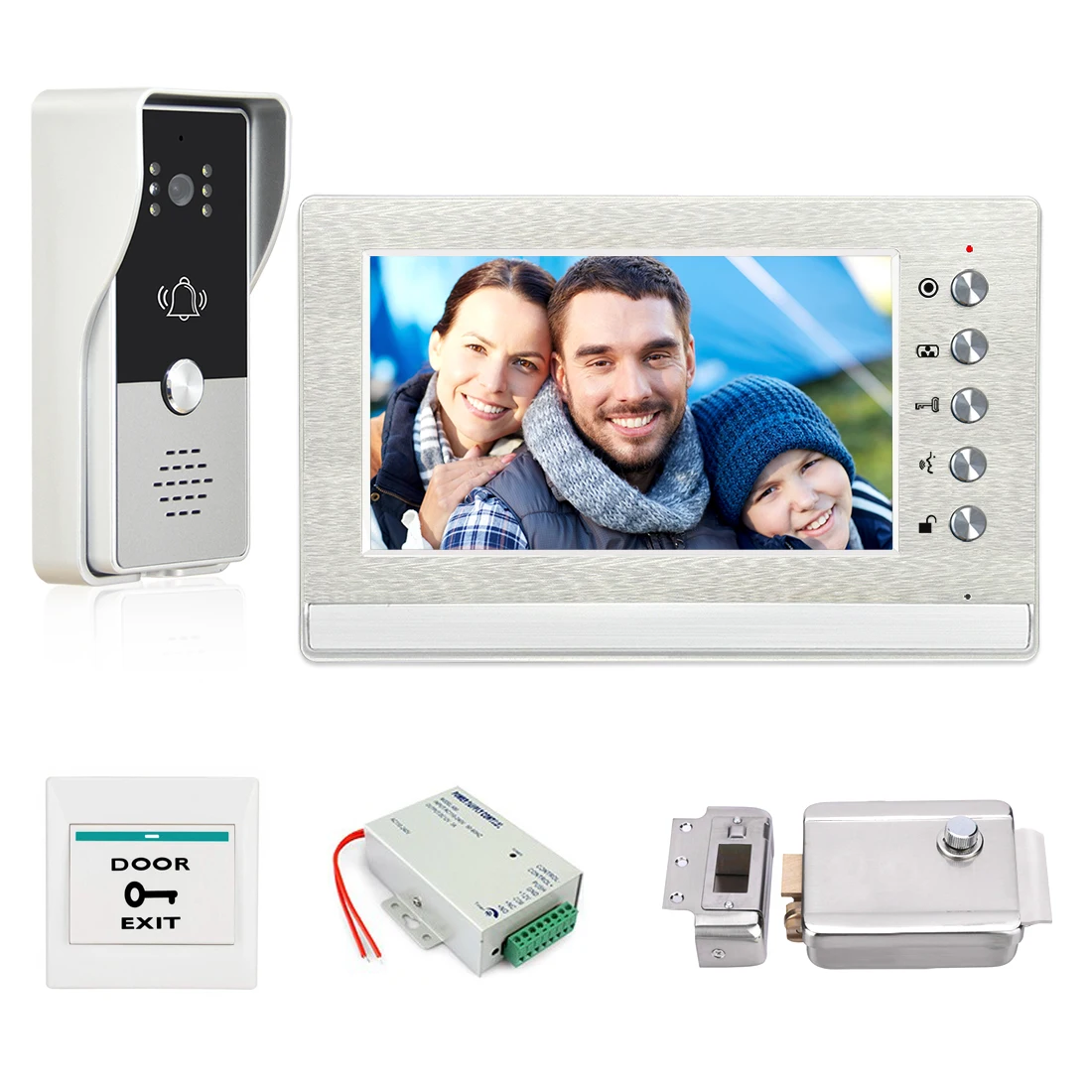

Electric Lock Kits: Video Door Phone System+ Power supply + Door Exit B

utton + Electric Control Lock

NO Fail-secure mode___Unlock while supplied with power, and lock without power.

Suitable for Wooden door, Glass door, Metal door, Fireproof door, not need bracket, convenient to install.

Product Features:

 Secure mode: Locked when power on, still locked when power off, you can open the door with hand.

 Especially suitable for wooden/metal doors.

 Have the lever effect of the lock tongue, but with electronic anti-theft door.

 Electric control, knob, all can unlock keys.

 Static electricity power consumption, long service life, strong security.

 Metal wire drawing processing, lock body surface anti-corrosion, durable and beautiful.

 Suitable for residential buildings, public door, organs, schools, hotel building, factory warehouse and other departments.

Technical Information:

 Working voltage: 12VDC

 Opening Voltage: 9 to 18V

 Working current: 150mA

 Material: Metal

 Dimension: 131mm(L) x 107mm(W) x 39mm(H)

 Dimension: 5.1"(L) x 4.2"(W) x 1.5"(H)inch

Magnetic Lock Kits: Video Door Phone System + Power supply + Door Exit button + 180KG Electric Magnetic Lock

NC fail safe mode ___ Lock while supplied with power, and unlock without power.

Suitable for wooden, metal and glass door, not need bracket, convenient to install.

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.

Material: Aluminium Alloy + Metal Plate

Electric Strike Kits: Video Door Phone System+ Power supply + Door Exit Button + Electric Strike Lock

NO Fail-secure mode___Unlock while supplied with power, and lock without power.

suitable for wooden door, convenient and beautiful.

Features:

Specifications:

***(We will send the NO Fail-secure mode by default, if you want NC Fail-safe mode, please leave us a message.)***

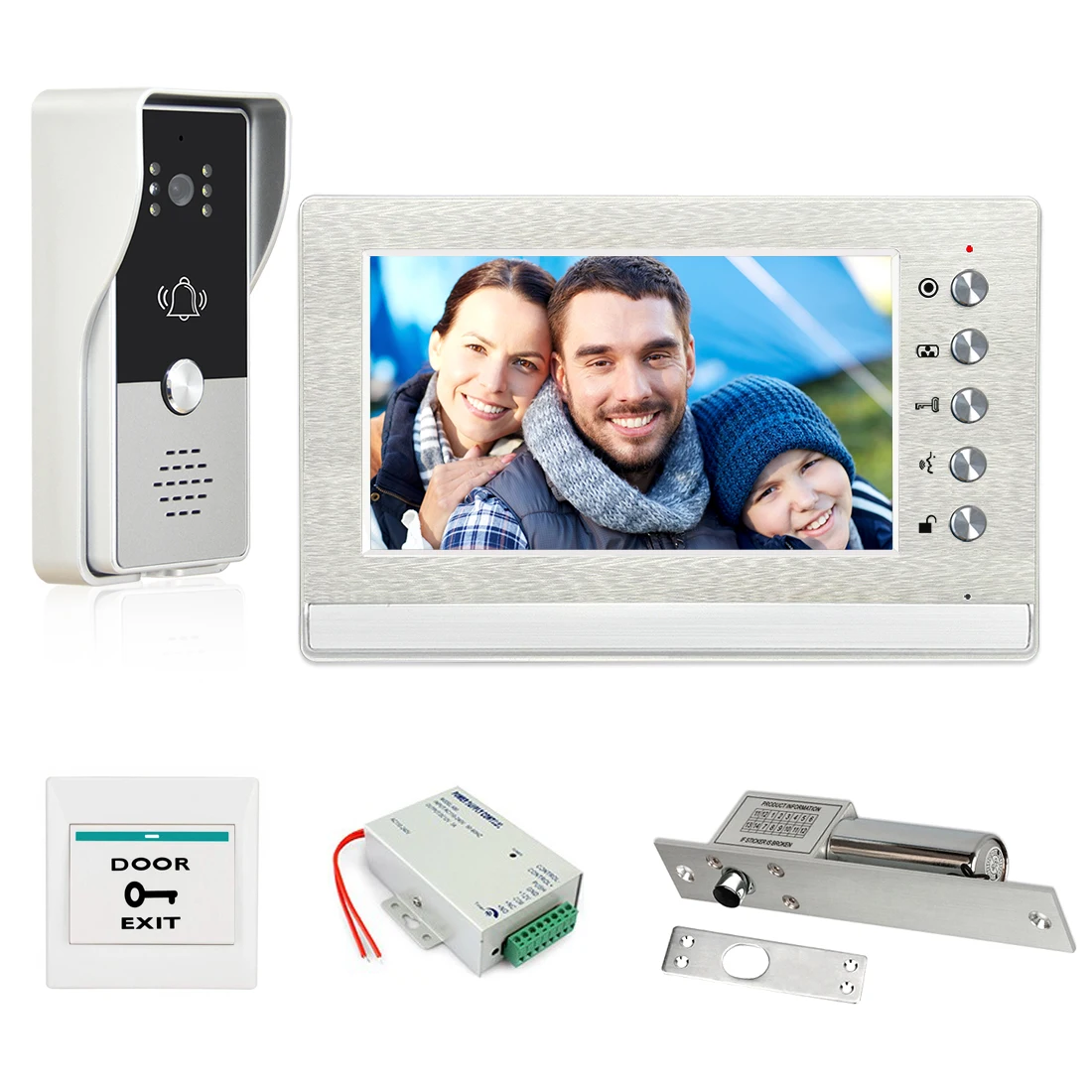

Electric Drop Bolt Lock Kits: Video Door Phone System+ Power supply + Door Exit Button + Drop Bolt Lock

NC fail safe mode ___ Lock while supplied with power, and unlock without power.

Suitable for Wooden door, Glass door, Metal door, Fireproof door, not need bracket, convenient to install.

This drop bolt door lock is aluminum alloy material, durable and wear-resistant.
It's especially suitable for wooden and metal doors. Protect business company shops.

Features:

Easy Installation

We provide screws and hanging plate for you, whether it's a monitor or a camera, it can be easily mounted on the wall,

Please read our instructions carefully.

Wiring Diagram (Not Include other product)

1 door camera support up to 4 monitors

Applications

This door phone system can be widely used in Villa, office, private house, and other place needs intercom. It is not only a intercom system, but also a home security system.
