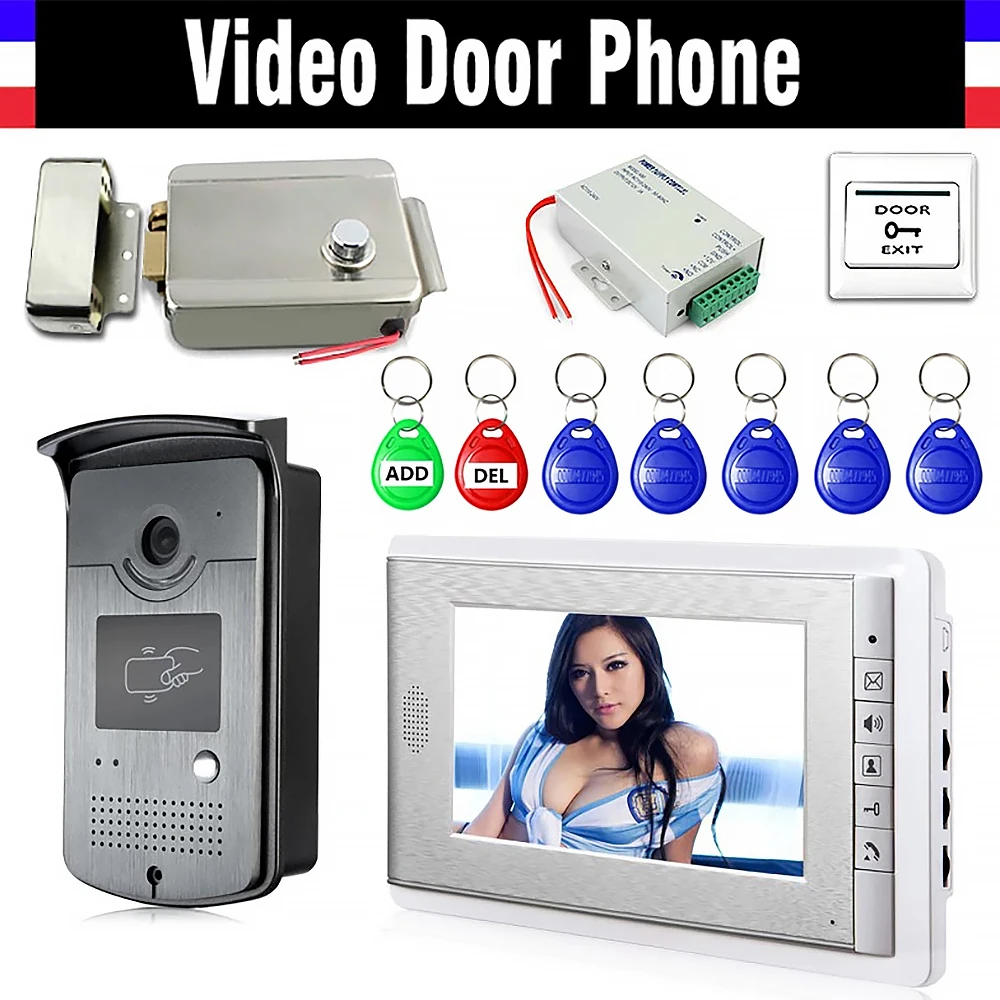

7" Screen Video Door Phone Doorbell Intercom System + Electric Lock+Alunimum pane Camera + Power Supply+ Door Exit+ ID Keyfobs

Brand Name:	AMOCAM
Connection Method:	Wired
Certification:	NONE
Smart home platform:	Other
Origin:	CN(Origin)
Answering Mode:	Hands-free
Camera Sensor type:	CMOS
Display Size:	7
Display Screen Type:	color
Viewing Angle (°):	92
Power:	15V
Model Number:	70IDS
IP Camera Interface:	No
Zone Input:	None
Samrt Home Interface:	Yes
Kit Configuration:	One to One video doorphone
Installation:	Wall Mounting
Resolution:	> 420 TV Line
Doorbell:	Yes
Access Control:	Inductive Card
Sensor Size(Inch):	1/3
Technology:	DIGITAL
Camera:	color
Type:	Intercom System
Power:	220v
Connection Type:	Wired
Waterproof:	Yes
Type:	7 Inch Monitor Video Door Phone
Model:	1V1
Connectivity:	Wired
Function:	ID Keyfobs Access Control
Working match:	1 indoor monitors + 1 outdoor camera
Apply to:	Families/floors/villas/apartments
Power Supply:	EU/US/AU/UK Plug Optional
Night vision:	Support infared night vision
Lock:	Electric Lock

Welcome to our store choose more products:

http://www.aliexpress.com/store/1454030

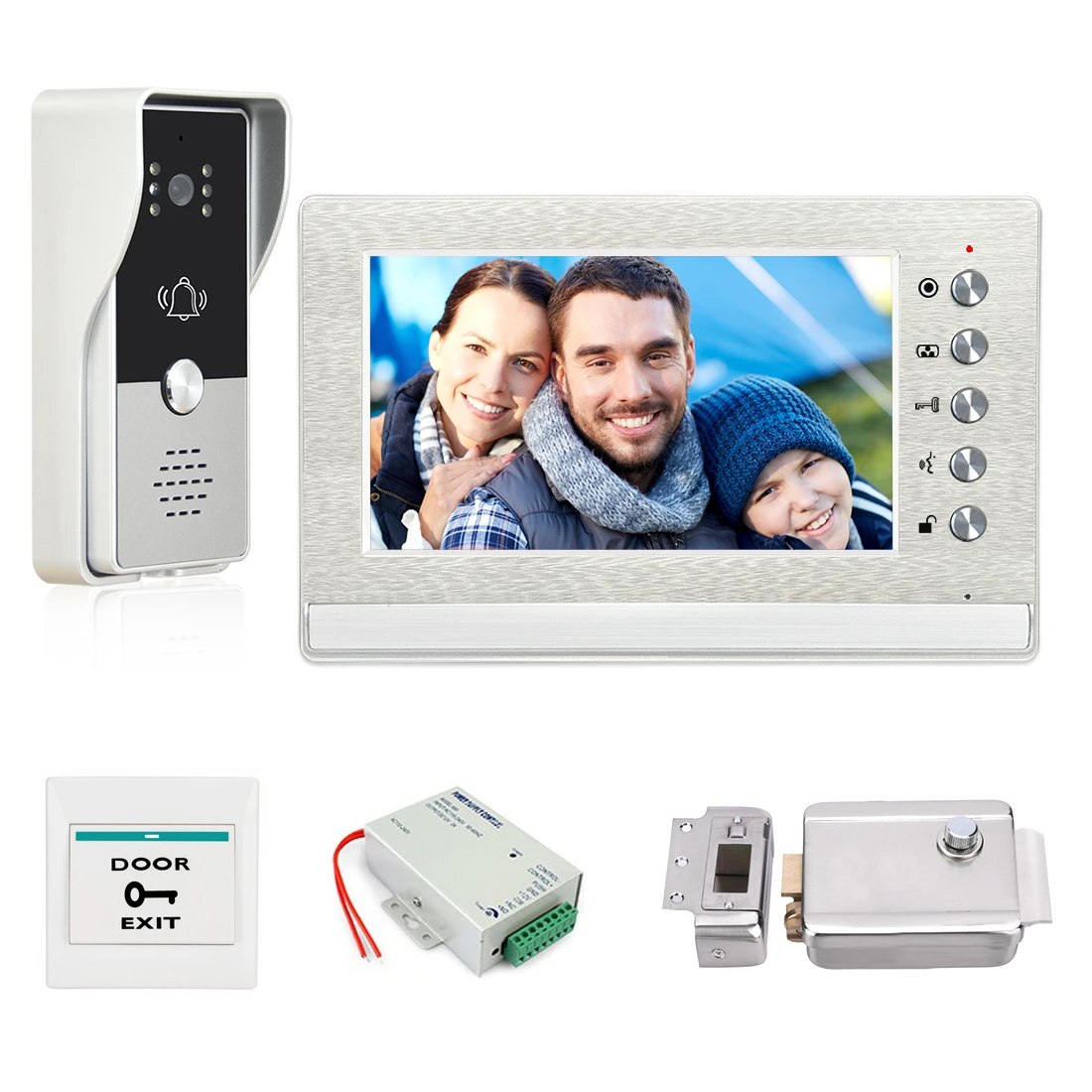

7 Inch RFID Card Video Door Phone with 1 Camera + 1 Monitor + Power +Door Exit +Electric Lock

This system can be used in apartments,villas,hotels and offices etc.

For better taking advantage of the prior functions please carefully read our instruction for correct installation and operation.

(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)

Comes with 5 RFID keyfobs, a push release button switch.

Support maximum 500 id keyfobs or cards.

700 TVL Sony Camera.

*** The display image in themonitor is very clear for viewing, which will definitly meet the general use.

Dsplay: 7 inch TFT LCD(16:9display)

Resolution: 800x480

Charger:adapter input voltage: AC100-240V 50Hz-60Hz

Adapter outup voltage current: DC15V 1500mA

Case: Plastic

Installation: Surface mounting

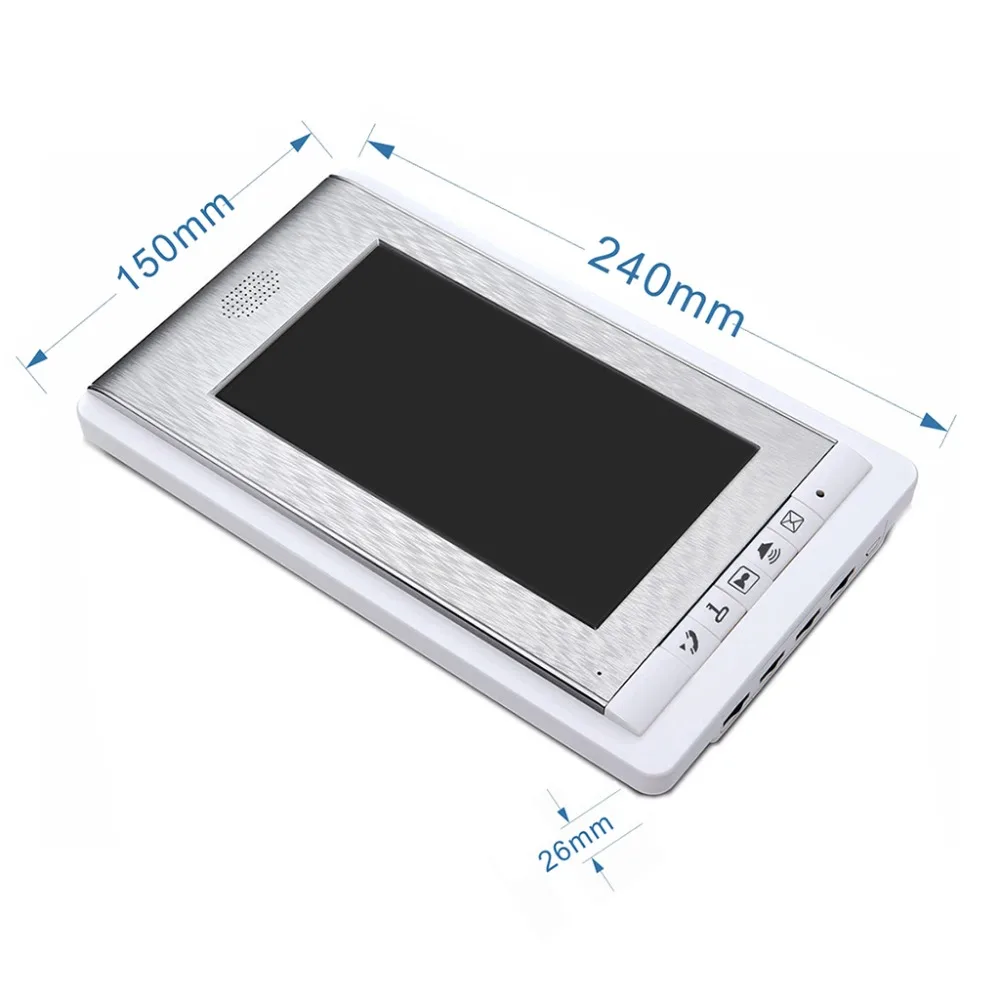

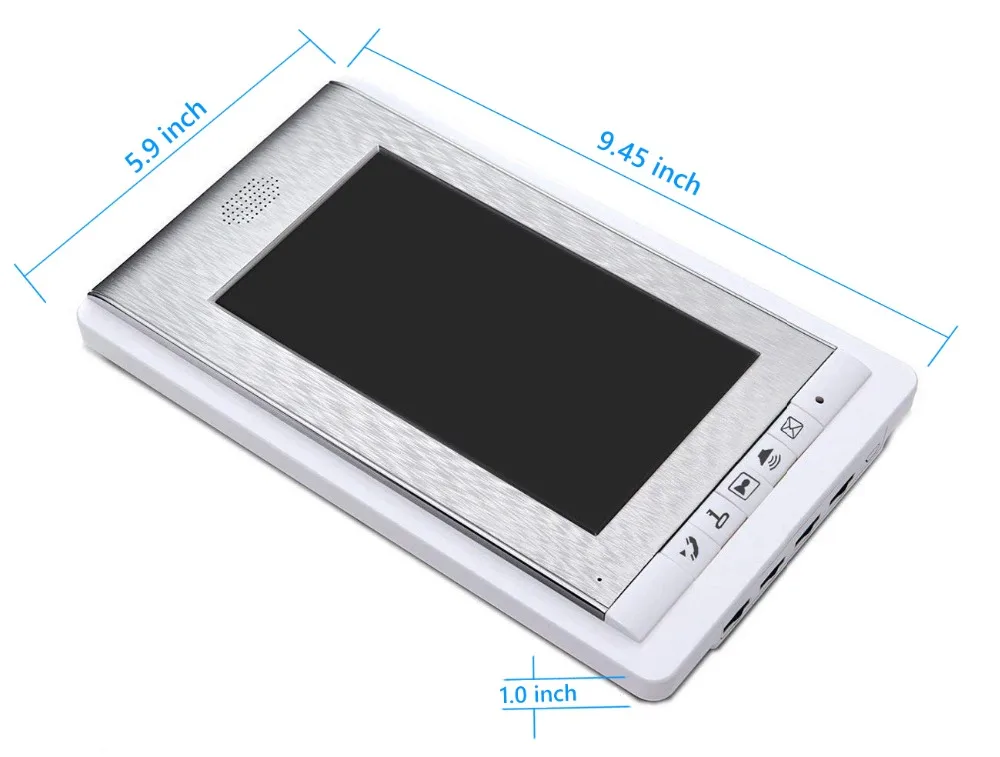

Dimensions: 230L x 150W x 27H mm

Weight: 0.85kg

(including added keyfob and deleted keyfob)

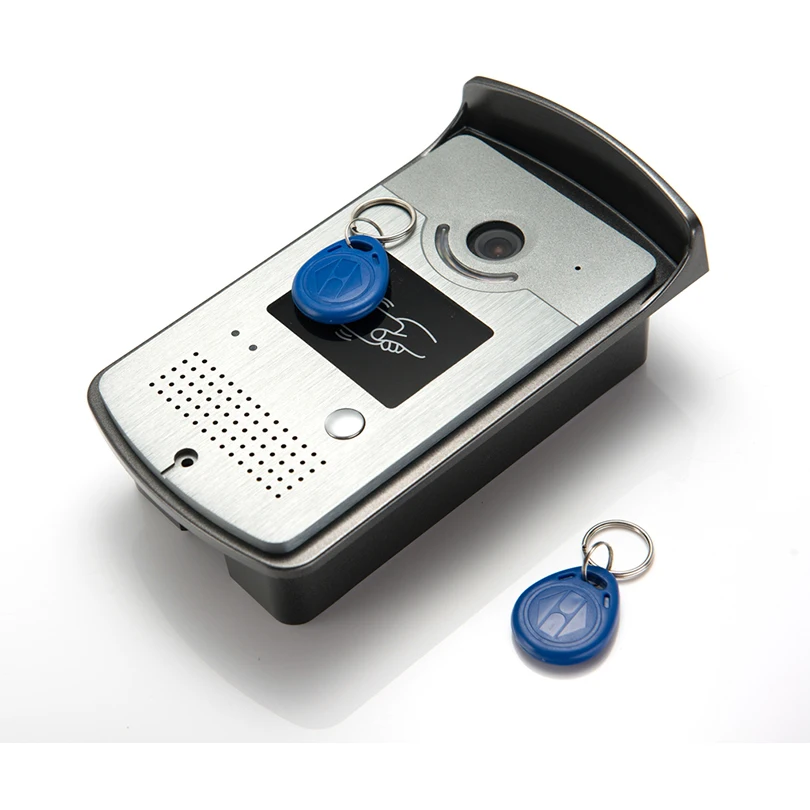

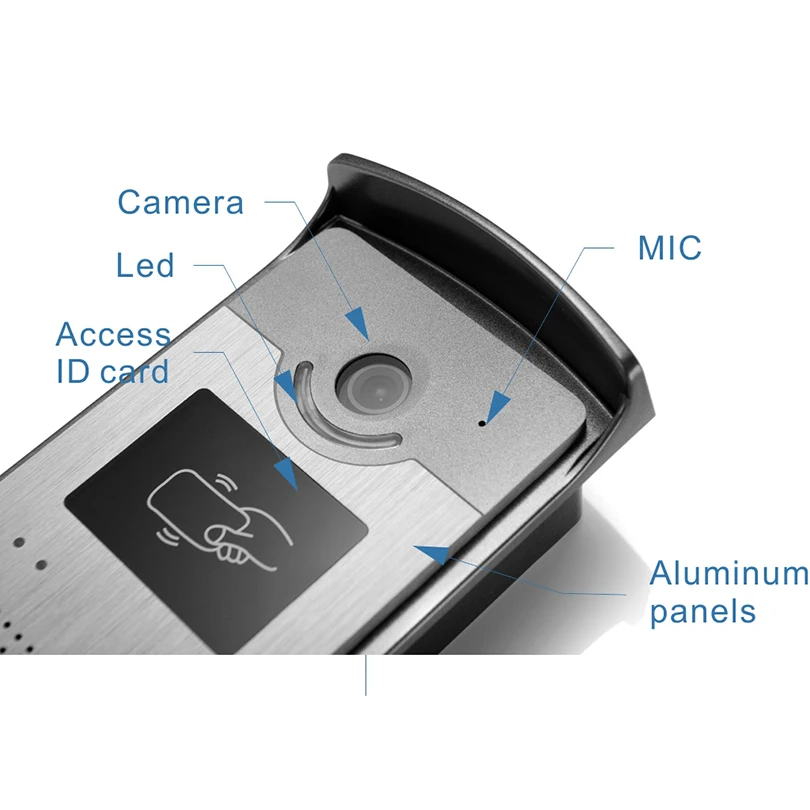

The outdoor unit has RFID reader, which supportsmax 500 RFID cards/fobs. It is easy to add new cards and delete old cards.

(Note: the function of the added card and delete keyfob (the added/delete keyfob can not unlock the door lock)

Exit Button :

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)

Performance Testing: 1000000 times aging test

Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc

Application: wood/iron doors

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

Can reduce the load of access controller, save wiring to reduce the hidden trouble

Set NC / NO outputs, can control various types of electric locks

Based delay control circuit, lock time can be in 0-15 seconds

The circuit board has remote control port.

Input Voltage: AC 1 10~220V 50~60Hz

Output Voltage: DC 12V 3A

Electric Control Lock

This 12V electric rim lock can unlock via keyfobs, inside button, access control or video door phone system. It can fit for different kinds of doors, mostly for the lock with 35mm-55mm thick. When bolt extends out, the door can be locked normally. It has 2 wires running from it for connecting with access control system and video intercom system. Beside, it is easy to install.

Main Feature

Brand New and high quality

Made of Stainless steel

Connect via 2-wire to our acccess control system and video intercom system

Fits for electrical control, key or hand operation

Good quality and durable to use

Can be opened from outside (with keys) even if no power

Locked with keys from inside, then the button on the lock will not work

Automatically lock when the door is closed

Fit doors 35mm (1-3/8 inch) to 55mm(2inch) thick

Specification

Mode:   NO Mode-(Locked while power is off)

Material:    Stainless Steel

Authority Certification:   CE & MA Approved

Application:   wood/iron doors

Working Voltage:   12VDC

Working Current:   0.2-0.45A

Weight:    1500g

Dimension (Face Plate):   131mm x 107mm x 39mm

Center distance:    60mm

Door distance:    35-55mm

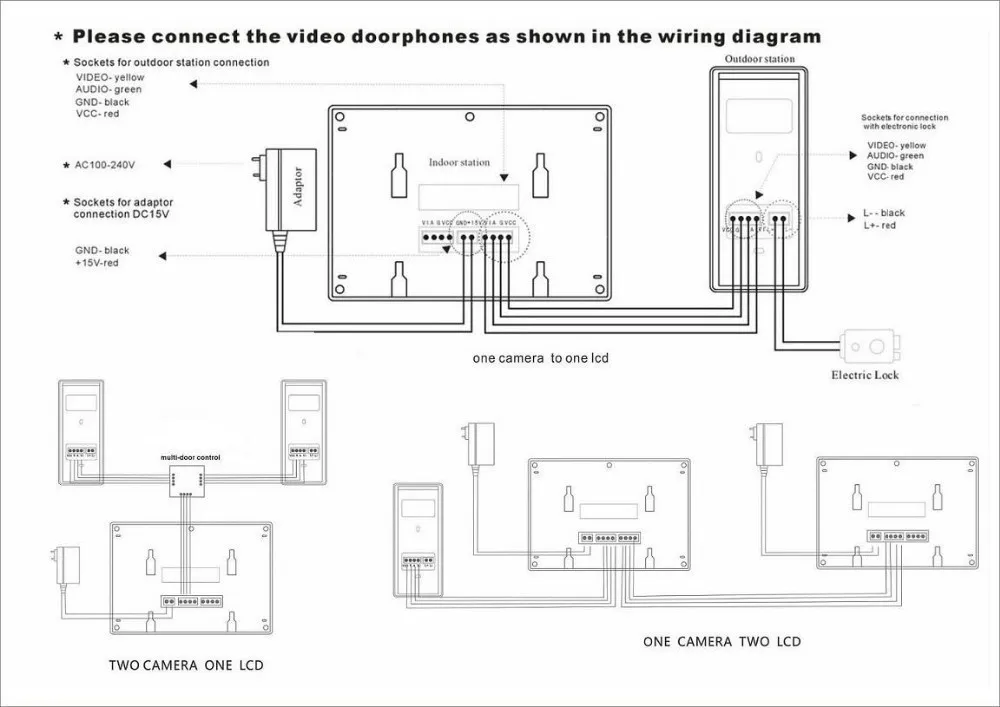

Wiring Instruction

(Please note the e-lock at below photo is not included, if you need, please feel free to contact us)

Note:

1 x Indoor monitor

1 x Outdoor camera

1 x Power adapter(Send EU/AU/US/UK type according to your address)

7 x Rfid keyfobs

(Please contact us if you need more keyfobs)

1 x Electric Lock

1 x Power supply

1 x Door Exit

1 x Screws and connection terminals for installation

1 x User manual
