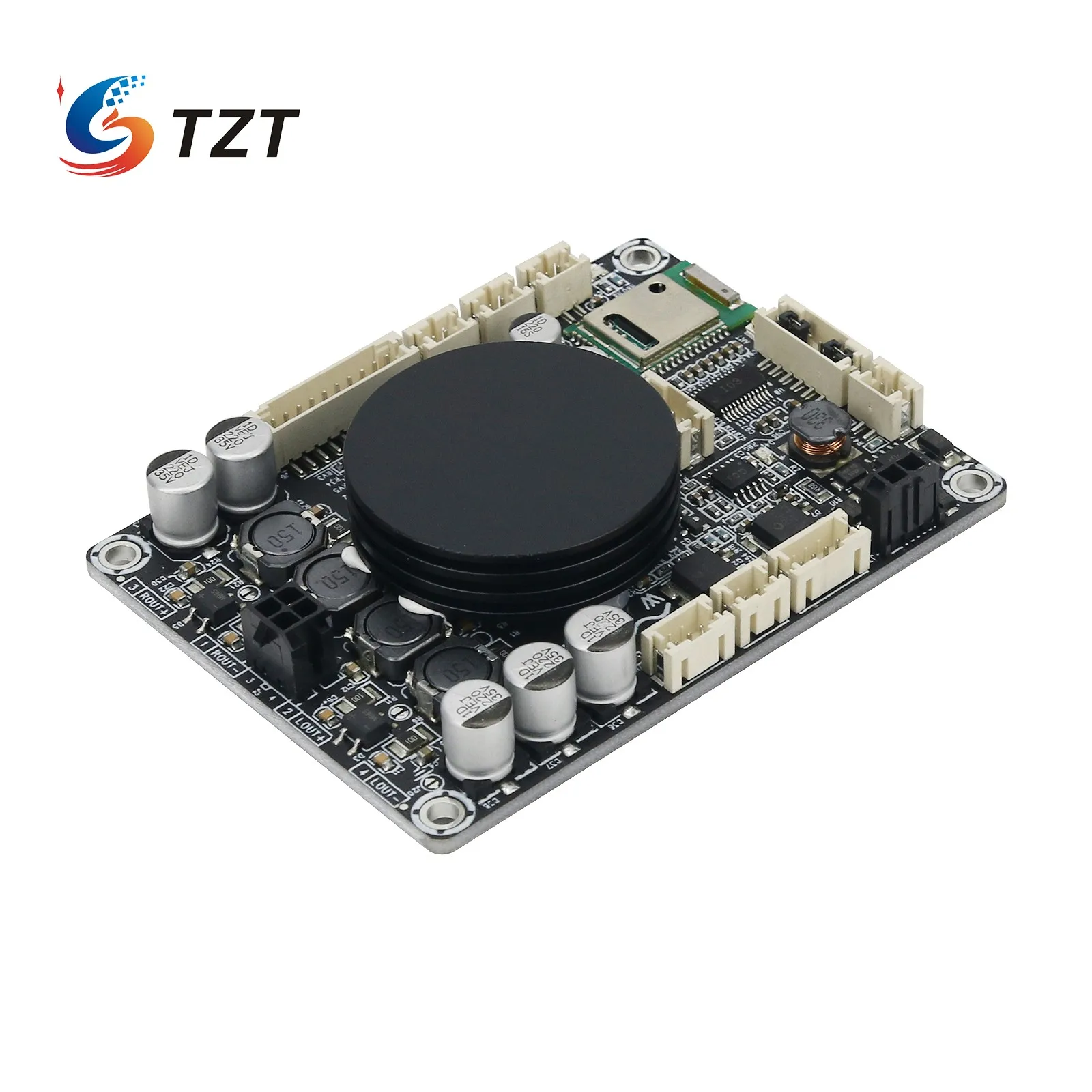

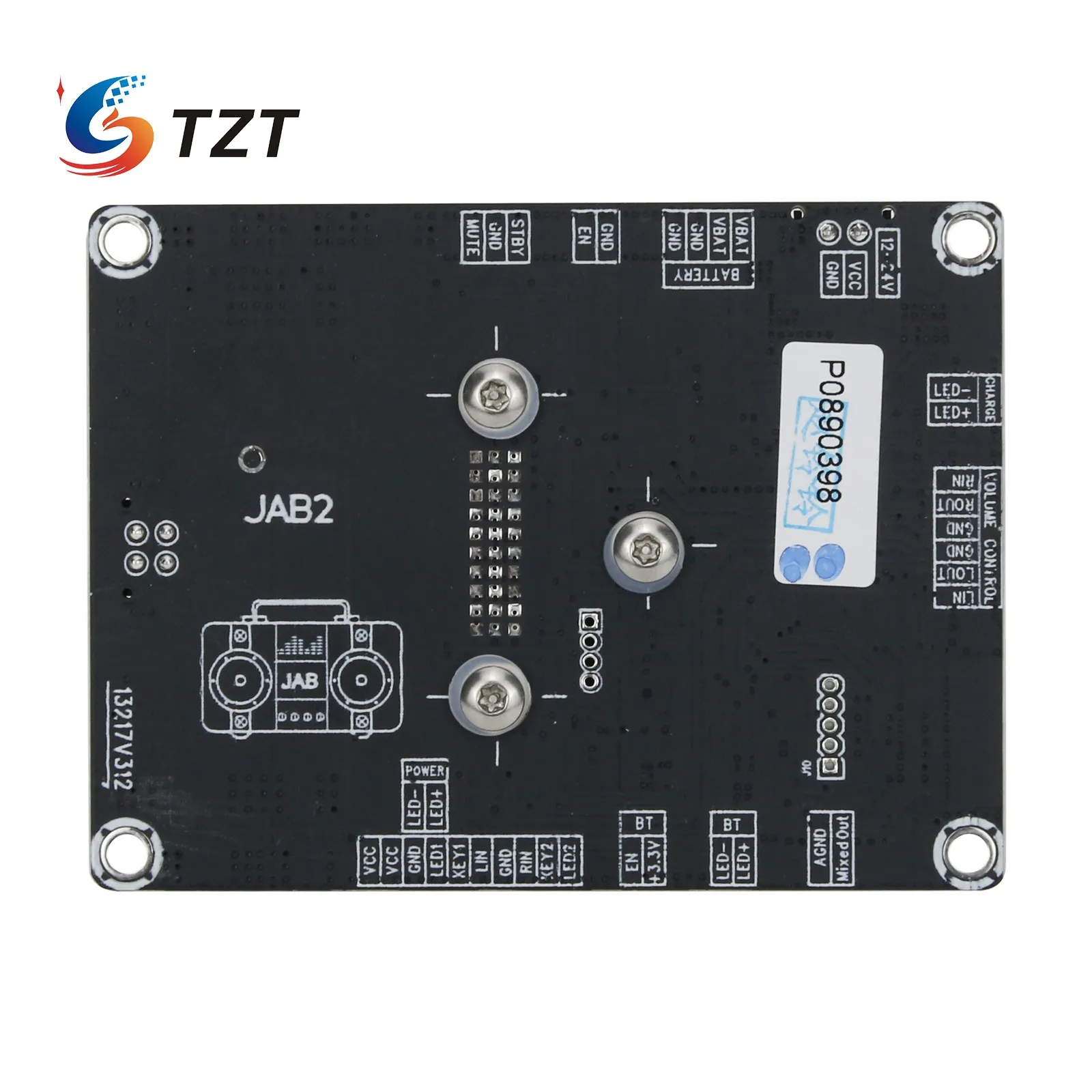

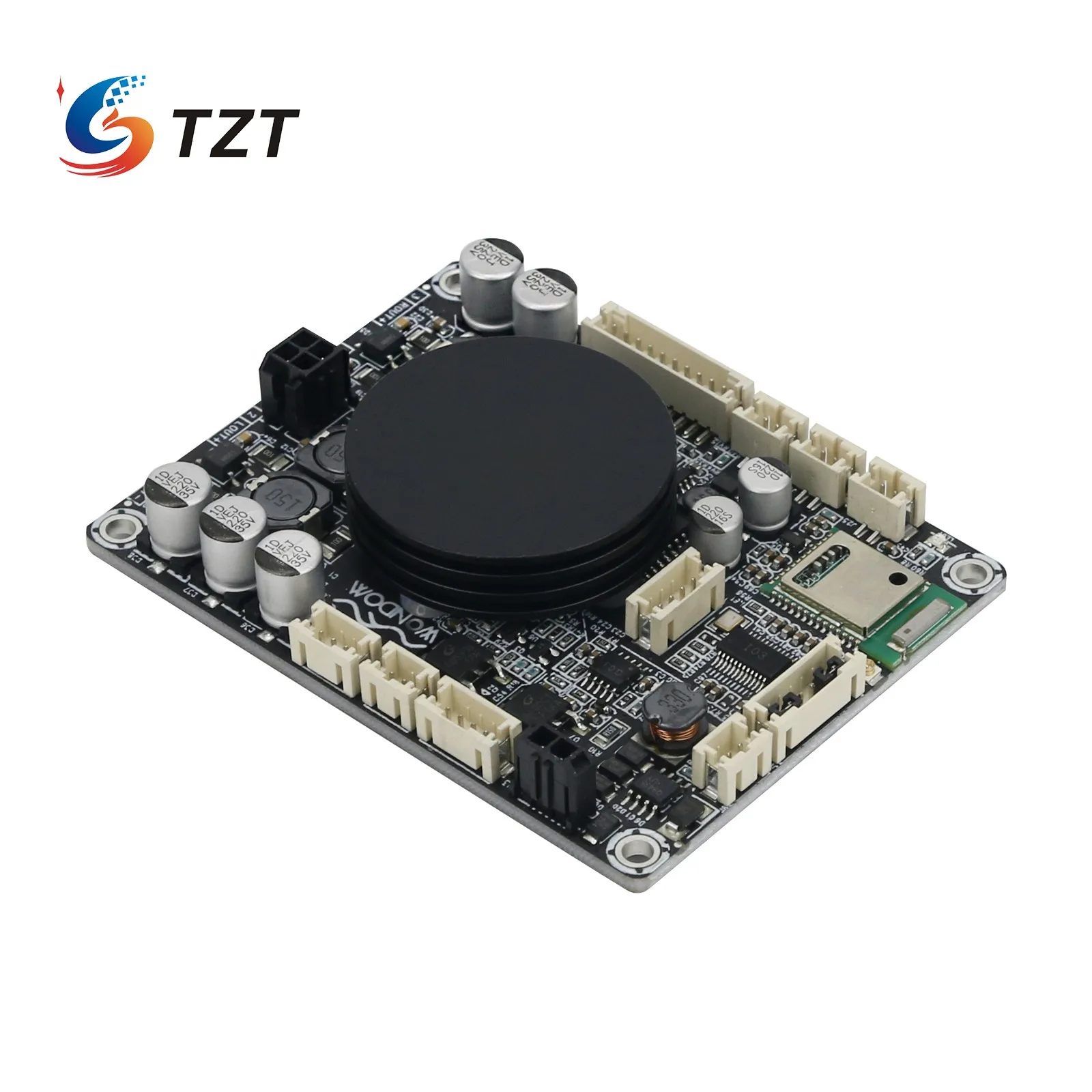

TZT Wondom 2x50W Class D Audio Amp Board Bluetooth 5.0 Amplifier Board JAB2-250 With DSP DIY Speakers

Description:

It is audio amplifier board integrated with Bluetooth 5.0 (supporting for aptX HD) and DSP, offering a real all-in-one audio solution for customers. JAB2-250 covers 2 x 50W, 2 x 30W, 1 x 60W and 1 x 100W four models. Thanks to the equipped DSP chip, JAB2-250 supports PC UI control after connection with WONDOM ICP5 or higher version(s), through which, you can adjust volume, gain, frequency and EQ setting to customize your own audio. In addition to speaker output, JAB2-250 offers an extra mixed signal output, which can be input to other audio amplifier board to build audio 2.1 / 4.0 system. Customers can configure it into a subwoofer signal by frequency adjustment in PC UI. Wireless audio input, light weight and high quality audio performance make JAB2-250 perfectly suitable for portable Bluetooth speakers, home audio, garden audio and DIY applications. A DC10.8V-24V power supply is required.

Integrated with Bluetooth 5.0 module

JAB2-250 employs Bluetooth 5.0 module for audio input, which supports for various audio formats as aptX, aptX HD, aptX LL, SBC & AAC and high receive sensitivity with RF power up to 9dBm and -90dBm. There is a built-in antenna equipped on this board. So you can directly pair JAB2-250 with the device to play music. An external antenna port is also provided on the board to ensure the stable connection and high audio performance in such applications that JAB2-250 is installed into a speaker or a cabinet.

Supporting Line Input

In addition to Bluetooth input, JAB2-250 supports 3.5mm line input. Signals from the two input methods will be mixed before being transmitted to the amplification circuit. You can get the 3.5mm AUX-IN cable in optional Functional cables kit (AA-JA11114 / AA-JA11116).

Integrated with DSP, Supporting PC UI

Taking customers' reviews and feedbacks into account, we integrate DSP chip on JAB2V2. Programming port is provided on JAB2V2. After connection with WONDOM ICP5 or higher versions, you can get PC UI control function. Sure Electronics has developed a PC UI, with which, you can try with gain, high/low-pass filter, noise suppressor, bass, frequency shifter and many other effects. ICP5 is under test now and will be released soon.

JAB2-250 provides a mixed line output signal, which can be transmitted to other WONDOM audio amplifiers to build an audio 2.1 / 4.0 system. You can set the frequency with the PC UI to configure this signal as subwoofer. Please note that it's audio signal, so an amplifier board is required for connecting with a speaker.

Bluetooth pairing cancellation function is integrated on JAB2V2. You can disconnect with Bluetooth by one simple press, without worry about which Bluetooth is paired. Shutdown function is also available on JAB2V2. Once you shutdown JAB2V2, JAB2-250 will power off. Ports for External LED indicators are offered to show the status of Bluetooth, power and charging, so you can have an overview of the running condition of JAB2V2.

We provide optional accessories for customers' simple operation. With 3.6" x 2.7" L-style bracket (AA-JA11115), you can immobilize JAB2-250 in connection and installation stage. You can connect JAB2-250 with the Interface extension board (AA-JA11112) to get a 3.5mm line input port, 2 USB discharging ports with 2.1A maximum current per port, a power switch and indicators for power and mute. Functional cables kit (AA-JA11114) offers all the cables you need for better use of JAB2V2.

Package Included:

Basic Information:

- Style: Boards
- Number Of Channel(s): 2
- Output Power: 50W per channel
- Size: 3.6 x 2.7 inches (91.44mm x 68.58mm)
- Chipset: TPA31xx
- Heat Dissipation: Heat Sink
- Supported Parallel Bridge Tied Load Mode: YES
- Input: Bluetooth, Single ended Line-in
- Power Voltage: 11V-24V

Features:

- 3.6 x 2.7 Inches PCB Size
- Bluetooth V5.0 for apt-X HD
- High Receive Sensitivity with RF power up to 9dBm and -90dBm
- Supporting for Various Audio Decode Formats as APTX, APTX HD, APTX-LL, SBC & AAC
- Bluetooth Pairing Cancellation
- Integrated with DSP
- Supporting PC UI Control
- Mixed Mono Output Provided for Cascading with Other Amplifier Boards
- Volume Control Port (Potentiometer)

Specifications:

Specifications typical at +20℃, Powered by 21V DC, unless otherwise noted. Specifications subject to change without notice.

Performance:

Connection:

Note:
- Beside power supply, JAB2-250 supports battery power. What's more, JAB2-250 is equipped with MPPT charging circuit. So you can use 3S Lithium battery board (AA-JA11113) to power JAB2V2. When you want to charge batteries, connect the battery board (AA-JA11113) with JAB2-250 and connect a power supply with JAB2-250 at the same time. It is suggested to use a power supply whose output voltage is within DC15-24V and current is higher than 1A to charge batteries. Batteries are not included.
- Lithium battery board is supported.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
