karaoke amplifier TZT Wondom 2 x 50W Class D Amplifier Board JAB3 DSP Electronic Crossover For Sigmastudio Programming home audio amplifier Audio Amplifier Boards
Code: TD-1005002603136755
6 orders
Free Shipping
$ 70.74
$ 78.43
Other people want this. 19 people have this in their carts right now.
| Brand Name: | TZT |
|---|---|
| Certification: | NONE |
| Origin: | CN(Origin) |
| Maximum Power Per Channel: | NO POWER |
| Model Number: | JAB3 |
| Package: | No |
| S: | 71047 |
| Heat Dissipation: | Heat Sink |
| Power Voltage: | 12V-26V |
| Number Of Channel(s): | 2 |
TZT

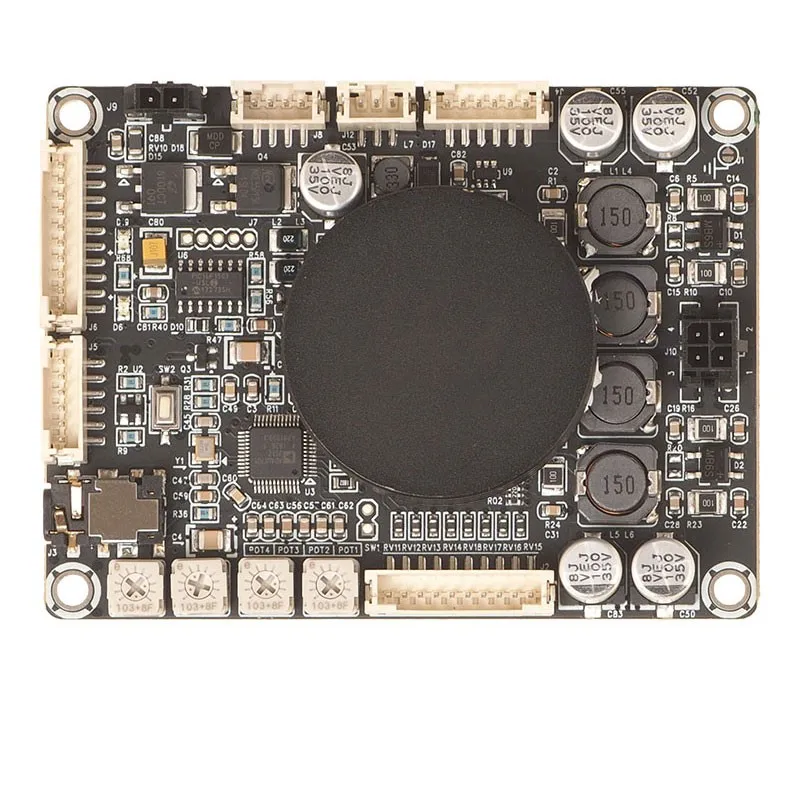

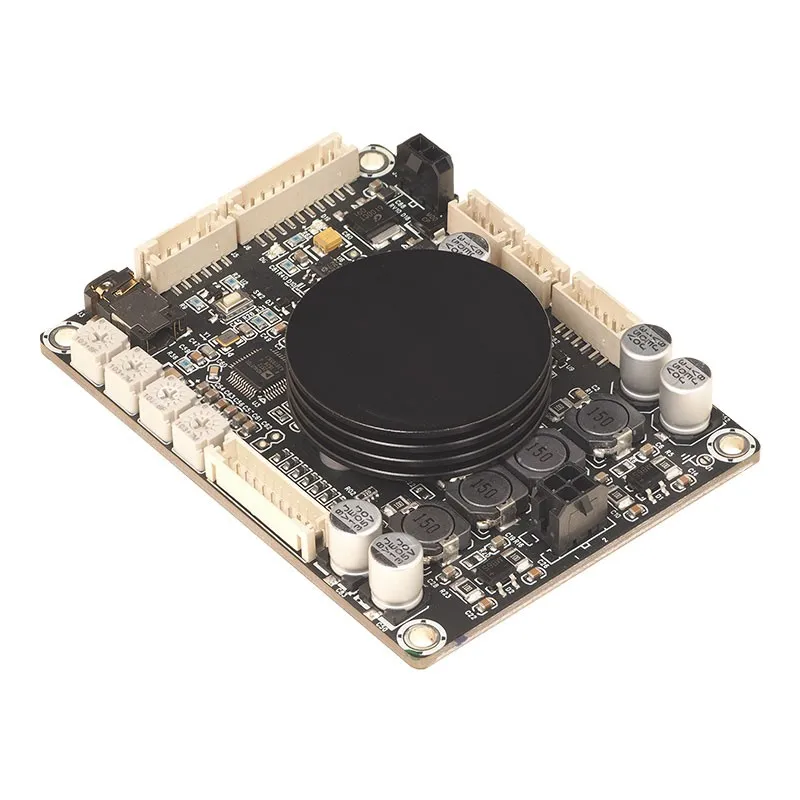

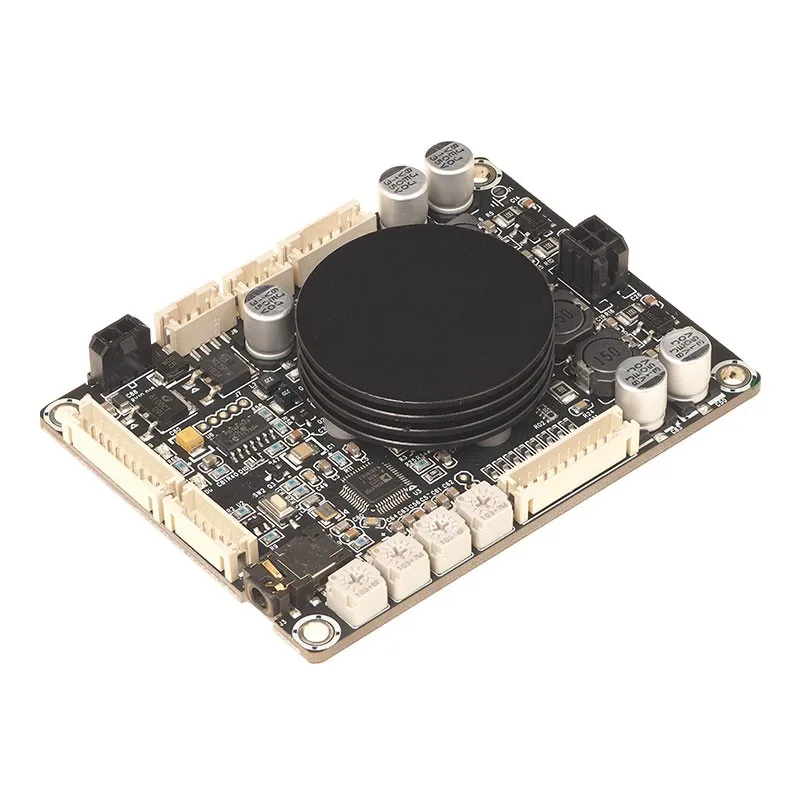

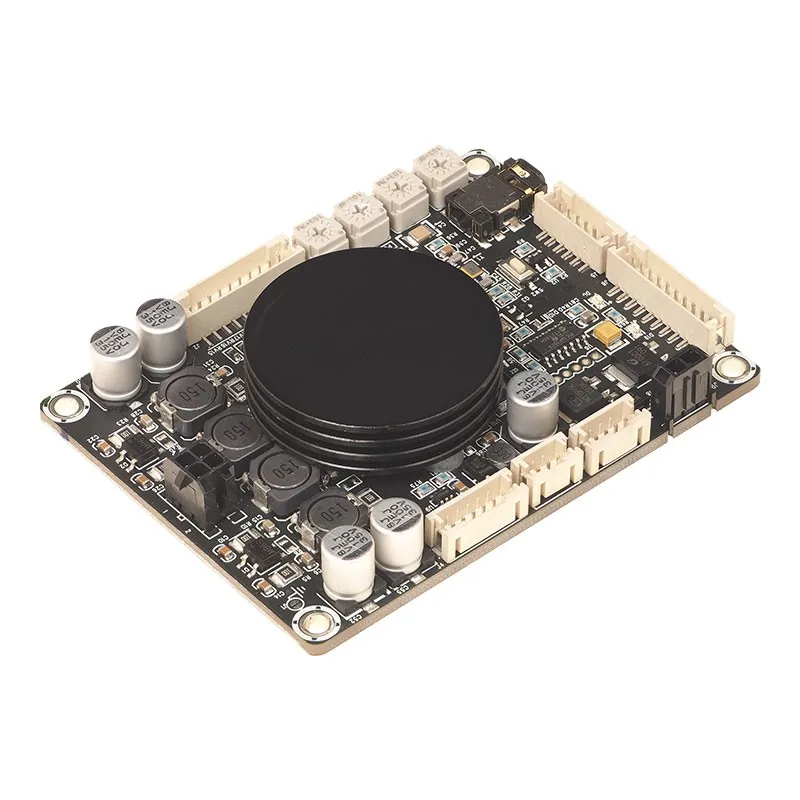

Wondom 2 x 50W Class D Amplifier Board JAB3 DSP Electronic Crossover For Sigmastudio Programming
Description:
JAB3 is an All-in-one stereo Class D audio amplifier board integrated with high performance DSP - ADAU1701, outputting 50W per channel into a 4Ohm load based on TPA3116 chip. With the integrated DSP chip, JAB3 can be applied to various DIY audio, commercial or industrial applications such as digital crossover, bass enhancement, loudspeakers, kiosk, etc. After connection with WONDOM programmer - ICP series, JAB3 supports for SigmaStudio programming, remote control through APP or PC UI.
Video for how to achieve I2S input and output of JAB3:
https://www.youtube.com/watch?v=7huHn2JoGkA
Video for introduction of JAB3:
https://www.youtube.com/watch?v=3Kz13mp55oA
Video for connection with JAB2 and APP control:
https://www.youtube.com/watch?v=-wOcJUeXEUY
Video for reprogram DSP with SigmaStudio:
https://www.youtube.com/watch?v=-vQsGYfodEI
Miumax Download link for Android Phone:
store.sure-electronics.com/images/documents/Miumax_v1.0.1_2020.6.22.apk
Miumax Download link for iOS Phone: Please go to APP Store and search "Miumax" directly.
Integrated with DSP
The on board fully programmable 28-/56-bit audio DSP ADAU1701 from Analog device is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality.
Four potentiometers are provided on JAB3 for real time hardware control of the whole audio system for volume, gain and high / band pass filter.
Supporting for SigmaStudio Program and Remote Control
Different applications have unlike requirements on audio as the speakers, the environment and the preference are different. To give customers better control of audio systems, Sure Electronics has released In-circuit programmers (ICP series), with connection of which, you can program DSP with for SigmaStudio or remote control the system with APP or PC UI.
We have developed an APP - Miumax for remote control, with which, you can adjust volume, gain, frequency and EQ setting. PC UI is also available for different applications as digital crossover, bass enhancement, subwoofer, and so on.
Sure Electronics has provided open-sourced files for customers to start the project quickly.
High Quality Audio Performance
Thanks to dedicated PCB layout design and engineers' attentive debugging, this JAB3 audio amplifier board features high audio performance, whose SNR is 88dB and THD+N performs well as 0.04% at 4Ohm, 5W, 1kHz.
Low Power Consumption and Long Playback Time
Power management system and signal level sensor system are employed on JAB3 for low power consumption. We have preset a threshold on the input voltage of the signal. When there is no signal detected in 5min, JAB3 would enter into standby mode automatically.
This JAB3 audio module dissipates only 120mW in standby mode. The extremely low power consumption ensures long playback time especially when JAB3 is powered by battery boards (not included), which is absolutely an advantage for portable Bluetooth speakers.
Easy for Installation
Four screw holes provided make this Bluetooth amplifier board easy for installation and quick for integration in any cabinet. We provide a Functional cables kit (JAB-FC) for your convenient operations. Furthermore, a 3.6" x 2.7" L-style aluminum bracket (JAB-LAB) is available to fix the Bluetooth amp in wiring process and to install the board to cabinets.
Build Audio 2.1/4.0 system with Bluetooth and DSP
JAB2 can connect with mono JAB3 to build an audio 2.1 system or connect with stereo JAB3 to build an audio 4.0 system. This built system will be integrated with both Bluetooth and DSP, suitable for portable Bluetooth speakers and digital crossover applications. An Optional Functional cables kit (AA-AJ11116) is released for your convenient connection.
Package Included:
- 1 x Set of Audio Amp Board
Basic Information:
- Style: Boards
- Number Of Channel(s): 2
- Output Power: 50W per channel
- Size: 3.6 x 2.7 inches (91.44mm x 68.58mm)
- Chipset: TPA31xx
- Heat Dissipation: Heat Sink
- Input: Others
- Power Voltage: 12V-26V
Features:
- 3.60 x 2.70 Inches PCB Size
- Power Management Circuit
- DSP Integrated
- Gain of Speaker Output Adjustable
- High-pass Filter of Speaker Output Adjustable
- High-pass Filter of 3.5mm Headphone Output Adjustable
- Overall Volume Adjustable
- Signal Level Sensor System*
- External 3.5mm AUX IN Port
- Power Switch Port*
- 3.5mm Headphone Output
- Compatible with JAB2*
Specifications:
Specifications typical at +25℃, powered by 24V DC, unless otherwise noted. Specifications subject to change without notice.
Performance:
Connection:
