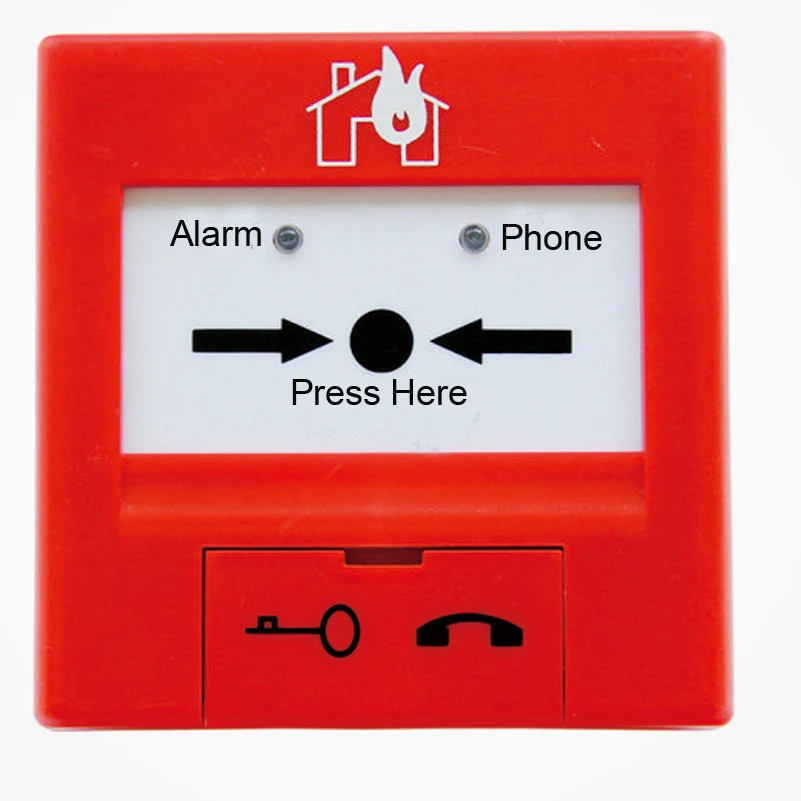

TCSB5214H Manual Call Point

Installed in public places, the call point has a phone jack

When there is a fire, pressing the frangible element on this MCP can send fire signal to fire alarm control panel

Alarm by pressing, reset by a special key

Non-polarized two-wire to the controller

Electronically addressed

Reusable

Technical Specifications

Operating voltage:

Loop 24V

Operating current:

Standby current: ≤0.2mA

Alarm current: ≤0.8mA

Operating Environment: Indoor

Temperature: -10°C-+55°C

Relative Humidity: ≤95%, non-condensing

Indicator:

Operation/fire warning indicator

Red

Flashes about every 3s when polling

Illuminates after alarming

Telephone indicator

Red

Flashes about every 5s

Programming method: Electronically programming

Code range: one address is within 1-255

Material and color of enclose: ABS; Red

Weight: About 120g (with base)

Mounting hole distance: 60mm

Dimension (L×W×H): 90mm×90mm×42mm (with base)
