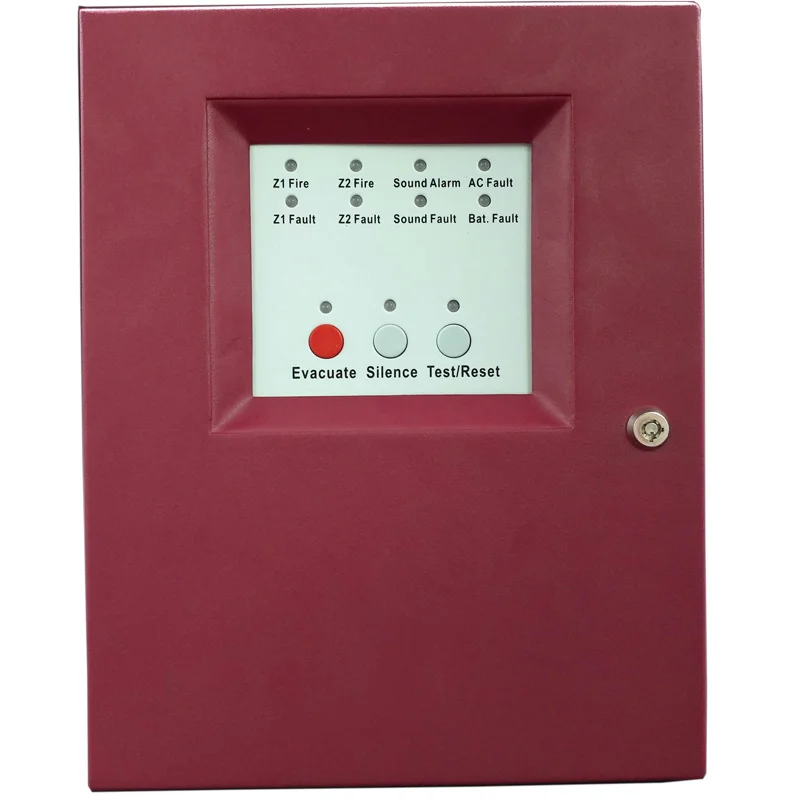

Name: 2 Zones Fire Alarm Control Panel MINI Fire Alarm Control System Conventional Fire Control Panel salve panel
Brand: MMO Dropship
SKU: 2251800628532513
Price: 214.4 VND
Availability: InStock
Rating: 4.9 (70 reviews)

Code: TD-2251800628532513

Free Shipping

$ 214.4

Quantity:

Other people want this. 5 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	zoanco
Model Number:	ck1002
is_customized:	Yes

2 Zones Fire Alarm Control Panel MINI Fire Alarm Control System Conventional Fire Control Panel salve panel

Technical Specifications

Primary AC : 120VAC 50/60 Hz Power supply rating 240VAC 50/60 Hz

Power supply rating : 2 Amps @ 24VDC

Maximum Battery Charging Current : 0.98 Amps @ 26VDC
Initiating Device Circuits 2 Zones: Alarm Zone 2
Normal Initiating Operating Voltage: 23VDC, Maximum 26VDC, regulated
Normal Quiescent Current (normal status): <50mA
Alarm Current (not include the others)： <150 mA
Short Circuit Initiating Current (per zone)： 35mA Maximum
Maximum Initiating Resistance (per zone)： 10 ohms
Initiating End-of-Line Resistor： 4K7 ohms, 1/2W 5%
Standby Detector Current (per zone)：4mA maximum
Maximum Detector Count (per zone)：30 detectors
Initiating Cabling Type：18AWG Twisted Shielded pair (14 – 18 AWG)
Detector Base Impedance：430 ohms
Notification Appliance Circuits：1 NACs, Special Application
Maximum NAC Current Rating：1 Amp maximum per circuit
NAC Operating Voltage：26VDC Nominal, 30VDC Maximum
NAC End-of-line Resistor：1N4007 Diode
FAULT Relay rating：2A & 30VAC, resistive
Alarm( Auxiliary ) Relay rating：2A & 30VAC, resistive
Slave alarm panel：LED display only

Special Features

Four Style B (Class B) Initiating Device Circuits (IDCs).

One Master Panel also has two zones, each zone can connect max.25 conventional detectors.

One slave Panel has two zones, each zone can connect max.25 conventional detectors.

The Mater panel could show the fire and fault of all slave panel. The slave panel can only show itself fire and fault.

Master panel has 4 digital LED display to show slave number and status.

2 Detection Zones Panel, 25 Detectors per Zone

Fire 1 relay would be activated when one zone alarms.

Fire 2 relay would be activated after 30 seconds delay when two zones alarm.

1 Sound relay output for sound alarm

1 Fault relay output for fault condition

Zones Fire and Fault LEDs indication

Fire1, Fire2, Sound relay outputs can be activated manually

RS485 Port for repeater up to 1.2Km

Up to 31 Slave panels can be connected to one Master panel

End Of Line Status Detection, Short circuit /open circuit detection

Two modules power supply could be selected.

The power supply input is AC110-270V

Two 4AH batteries can be housed in the power supply cabine

Relay output contacts rated at: 2.0 amps @ 30 VDC.
