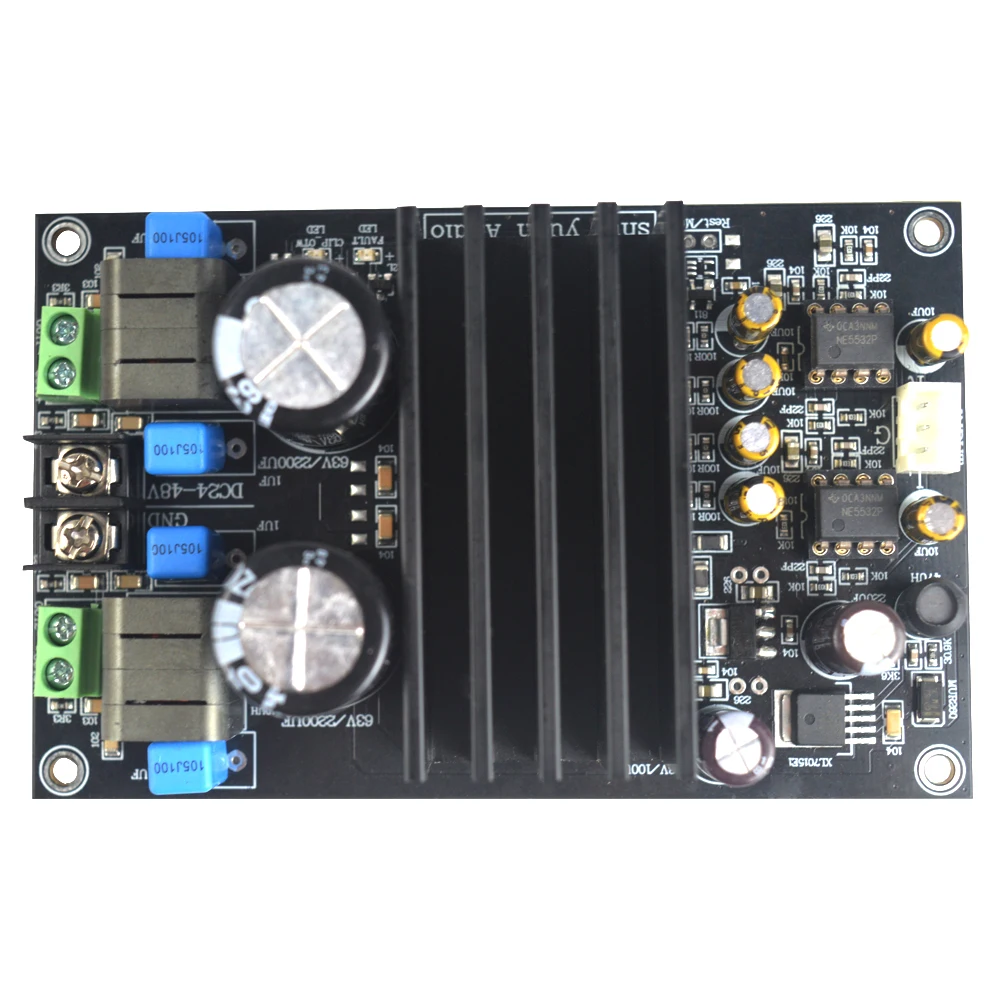

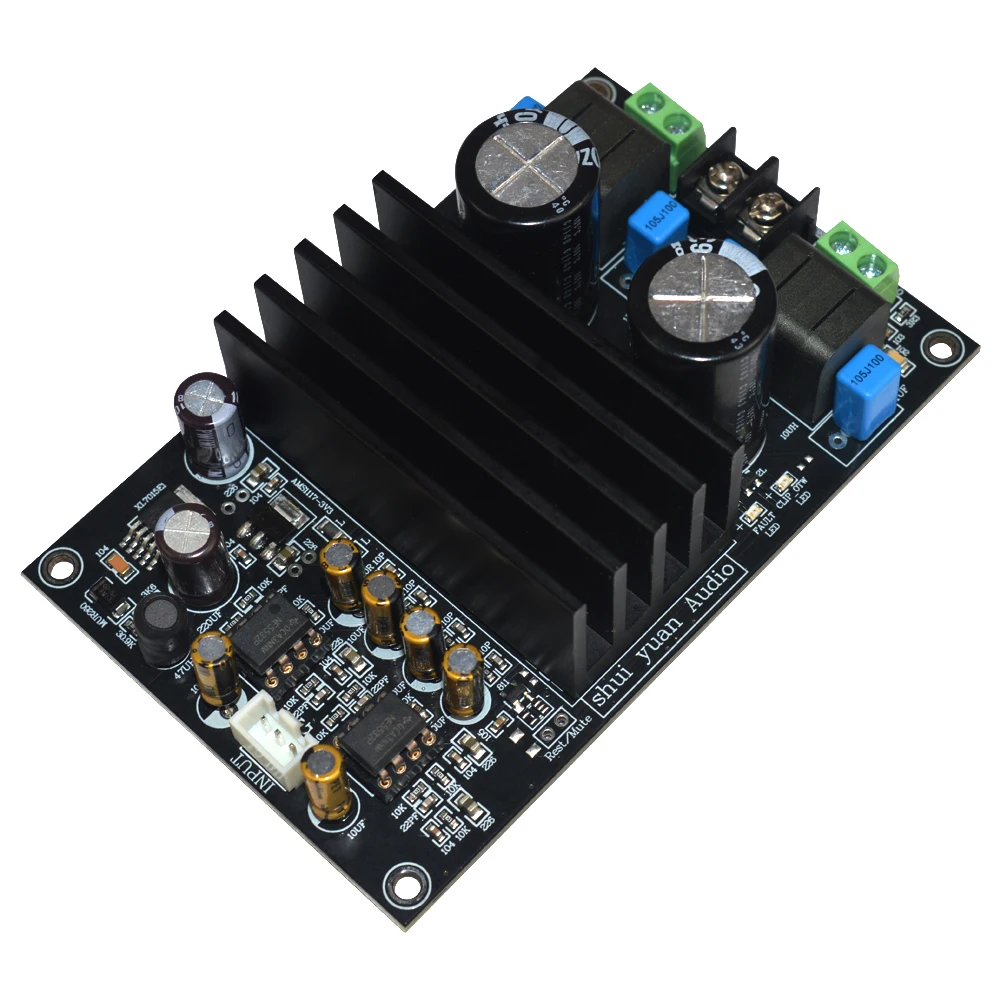

Name: Strong High Power 300W + 300W Class D TPA3255 2.0 Digital Amplifier Board stereo amplifier
Brand: MMO Dropship
SKU: 1005003855691636
Price: 76.48 VND
Availability: InStock
Rating: 4.9 (94 reviews)

Code: TD-1005003855691636 16 orders

Free Shipping

$ 76.48 $ 88.48

Quantity:

Other people want this. 23 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	SKOPERLL
Origin:	CN(Origin)
Maximum Power Per Channel:	Above 200W
Certification:	NONE

TPA3255 is a high-performance class D power amplifier, it has class D efficiency and can bring true high-end sound quality. The device features advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePath Ultra HD). This technology allows the device to maintain ultra-low distortion throughout the audio frequency band while exhibiting perfect sound quality. The device works in AD mode. When the THD is 10%, it can drive up to 2 315W/4R loads and 2 150W (unclipped power)/8R loads, and has a 2 VRMS analog input interface that supports high-performance DAC (For example, TI's PCM5242) seamless connection. In addition to excellent audio performance, TPA3255 also has two major advantages: high power efficiency and ultra-low power level idle loss (less than 2.5W). This can be achieved with an 85mR MOSFET and an optimized gate driver scheme. Compared with the traditional discrete implementation, this solution can significantly reduce idle loss.

product details:

1. Use original TPA3255

2. The computing end uses the replaceable DIP-8 op amp *2, and buyers can upgrade the computing model independently. This product uses 2 TI high-performance audio operational amplifiers NE5532P

2. The main filter electrolytic capacitor adopts Nichicon capacity 3200UF/63V*2, 6 Nichicon FW series 10UF golden audio input coupling capacitors. Other filter capacitors use Nichicon series.

3. Adopt SAGAMI 7W14A inductor for audio digital class D amplifier to ensure the sound is clear and powerful.

Basic performance parameters:

Working method: Class D

Standby current: 80mA

Work efficiency:.>90%

Channel: 2.0

Rest/mute: short circuit mute function

Output Power:

315W/4Ω, distortion 10%

185W/8Ω, distortion 10%

260W/4Ω, distortion 1%

150W/8Ω, distortion 1%

Frequency response: 20Hz to 20KHz

Dynamic range: >100 dB

Signal to noise ratio: (SNR)> 111dB

Working voltage: DC24-40V switching power supply

(recommended voltage 36V)

PCB size: 110*70*36.5MM (small size, high power, more convenient DIY installation)

Deluxe version volume: 110*70*41MM (including capacitor)

Net weight: 0.15KG

Package list:

Power amplifier board*1

Signal line*1

Buyers note: The indicator light works normally. If the circuit board fails or the temperature is too high, the corresponding LED light will be turned off as a warning. If you mind, please don't place an order! thank you for understanding
