Smallest SIM800L GPRS GSM Module Kit MicroSIM Card Core BOard Quad-band TTL Serial Port With The Antenna For Arduino

Smallest SIM800L GPRS GSM Module Kit MicroSIM Card Core BOard Quad-band TTL Serial Port With The Antenna For Arduino

Name: Smallest SIM800L GPRS GSM Module Kit MicroSIM Card Core BOard Quad-band TTL Serial Port With The Antenna For Arduino
Brand: MMO Dropship
SKU: 3256802338847097
Price: 29.26 VND
Availability: InStock
Rating: 4.9 (97 reviews)

Code: TD-3256802338847097 2 orders

Free Shipping

$ 29.26

Color:

Note

Quantity:

Other people want this. 19 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Skatolly
Certification:	NONE
Origin:	CN(Origin)

Description:

SIM800L module can support 4-band GSM/GPRS, and the working frequency bands are GSM850, EGSM900, DCS1800 and PCS1900MHz.

The size of the module is only 17.815.82.4 mm, which can almost meet the requirements of space size in all user applications.

The physical interface between the module and the user is 88Pin LGA pad, which provides all the hardware interfaces of the module.

Up to 50 keys can be supported. All the way full function serial port.

One USB interface can simulate one serial port, which is convenient for users to debug and download software

Two audio interfaces, including microphone input and receiver output.

Programmable general purpose input/output interface (GPIO).

All-way SIM card interface

Support FM function

Pwm function pin

SIM800L is designed with power-saving technology, which consumes as little as 1.11 mA in sleep mode.

Module configuration:

GSM： 850、900、1800、1900MHz

BT: Not supported

FLASH： 24Mbit

RAM ： 32Mbit

Main features of module:

Characteristics: Description

Power supply: voltage range: 3.4V ~4.4V

Power saving: the current consumption in SLEEP mode is 1.11mA(AT+CFUN=0)

Band: Four bands: GSM850, EGSM900, DCS1800, PCS1900, which can automatically search for four bands.

You can also set the frequency band through the AT command.

Comply with GSM Phase 2/2+

GSM type: small mobile station

Transmit power class 4 (2w): gsm850, EGSM900

 Class 1 (1W)：DCS1800、PCS1900

GPRS connection feature GPRS time slot defaults to level 12

Gprs time slots class8, 10 and 12 are optional

Gprs mobile station class b

Temperature range Working temperature:-40℃ ~+85℃ Storage temperature: -45℃ ~ +90℃

GPRS data characteristics GPRS data downlink transmission: maximum 85.6kbps.

Uplink transmission of GPRS data: maximum 85.6kbps.

Coding formats: CS-1, CS-2, CS-3 and CS-4

PAP (password authentication protocol), which is usually used for PPP connection, is supported

Embedded TCP/IP protocol

Support packet broadcast control channel (PBCCH)

Transmission rate: 2.4, 4.8, 9.6, 14.4 kbps

Unstructured supplementary data

Service (USSD)

Support Unstructured Supplementary Data Service (USSD)

Short Message (SMS) MT, MO, CB, Text and PDU modes

Short message (SMS) storage device: SIM card

SIM cards supported by SIM card interface: 1.8V, 3V

Antenna interface antenna pad

Audio characteristic speech coding mode:

Half rate (ETS 06.20)

Full rate (ETS 06.10)

Enhanced full rate (ETS 06.50/06.60/06.80)

Adaptive multi-rate (AMR)

Echo cancellation

noise suppression

Serial port and debugging port serial port:

By default, all the standard full-function serial ports are supported

The transmission rate supports from 1200bps to 460800bps

AT command and data can be sent through serial port

Support RTS/CTS hardware flow control, and the flow control function can be turned on or off by software

Support serial port multiplexing function conforming to GSM 07.10 protocol

Support adaptive baud rate detection function from 1200bps to 115200bps

software upgrade

Commissioning port:

Used for debugging

Address book management support types: SM, FD, LD, RC, ON, MC.

The SIM application toolkit supports SAT class 3, GSM 11.14 Release 99

Real time clock (RTC) support

Timing function is set by AT command

Specifications:

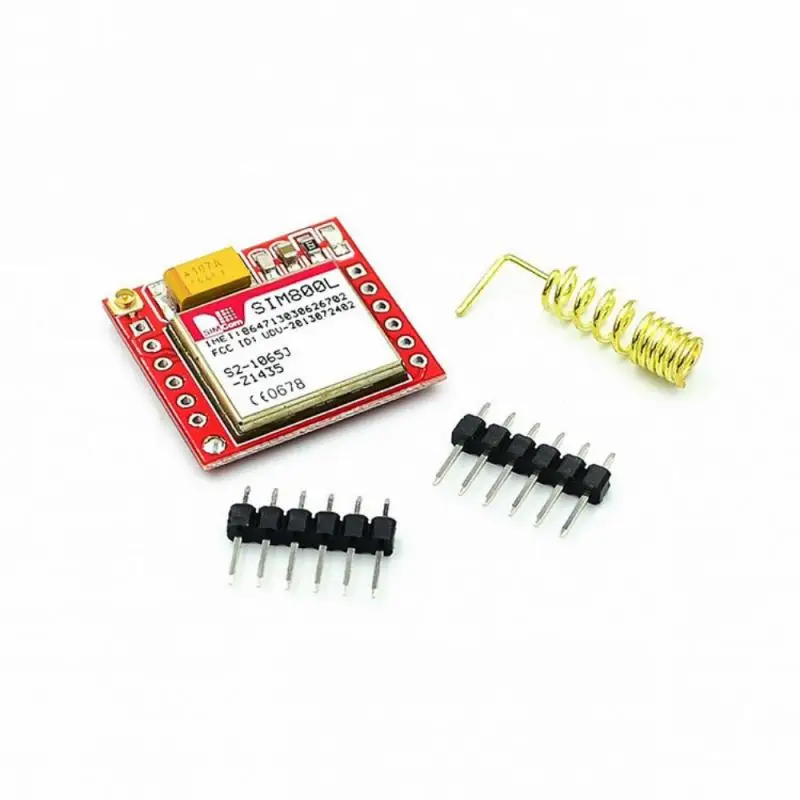

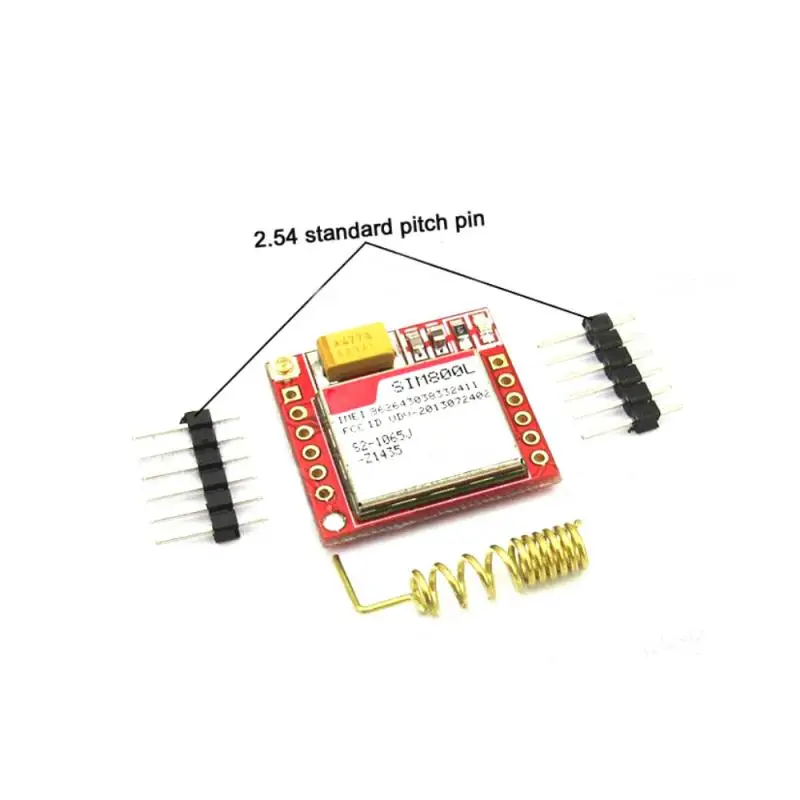

By default, the row needles are not welded, so as to reserve more expansion space for customers

Module model: SIM800L (the latest module, with performance exceeding SIM900/M590)

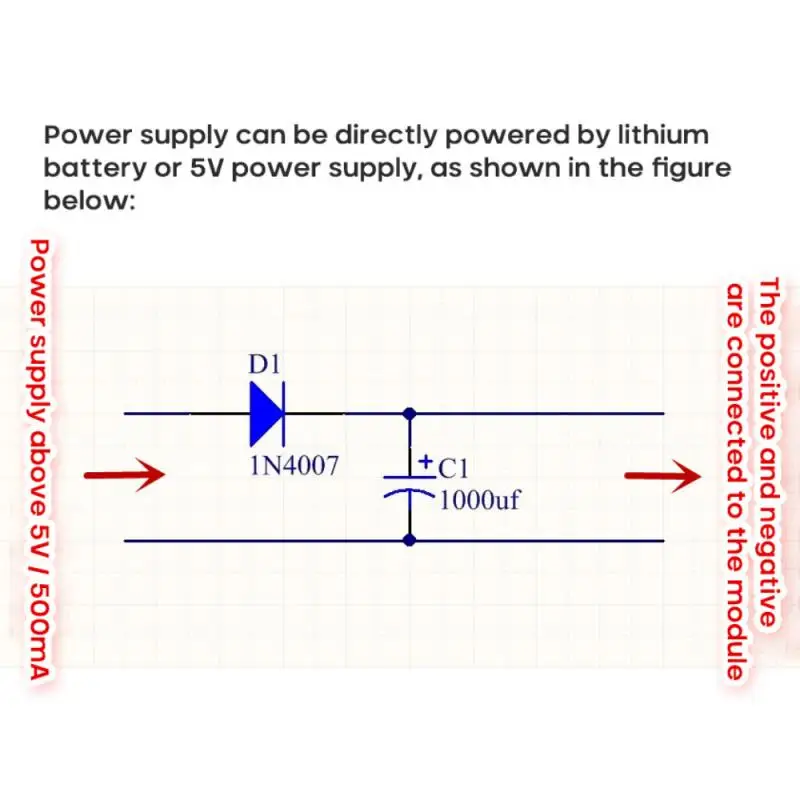

Working voltage: 3.7~4.2V (peak current is 1A, please handle it properly)

Supporting networks: China Mobile, China Unicom and the global four-frequency network

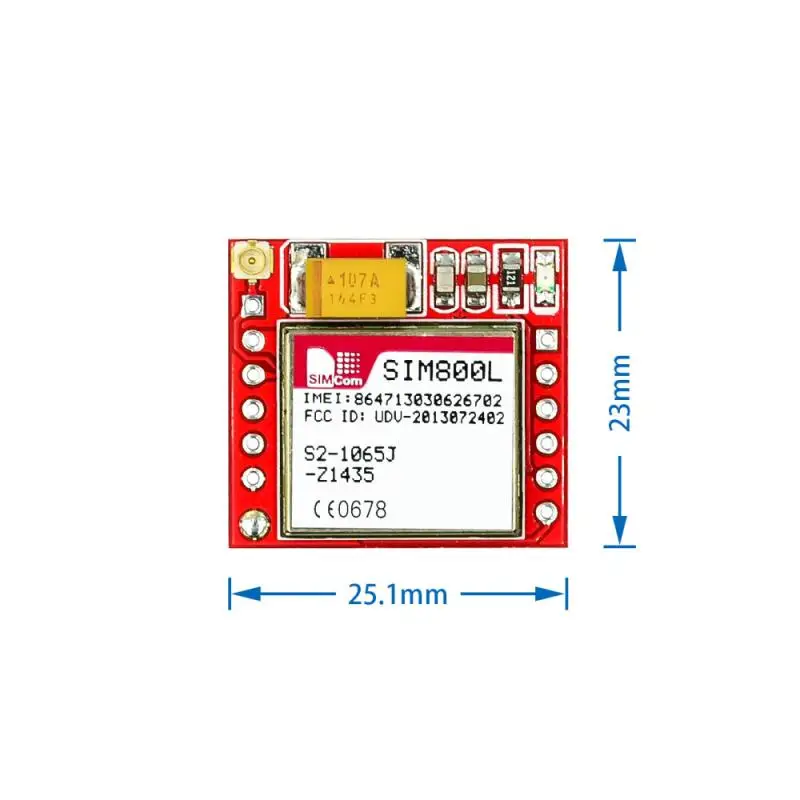

Module size: 2.5cmx2.3cm

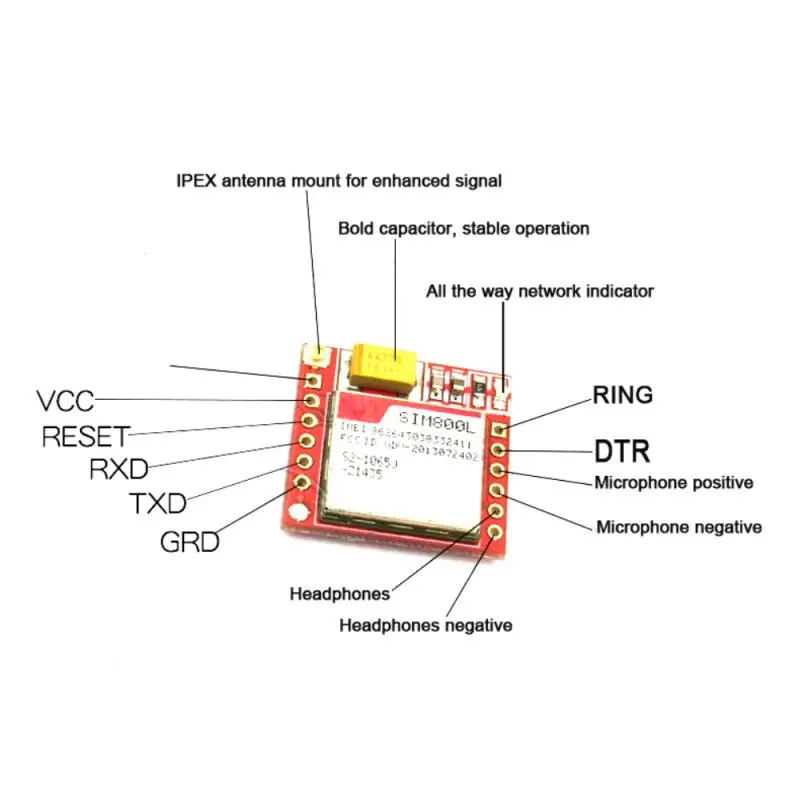

Serial port is TTL serial port, which can be directly linked with MCU. MAX232 is not required

The module is powered on and started automatically, and the network is searched automatically

On-board one-way signal indicator lamp (with signal flashing slowly, without signal flashing)

Small size, there is no GSM module smaller than this module

Full machine chip processing, reflow soldering, stable performance factory direct sales

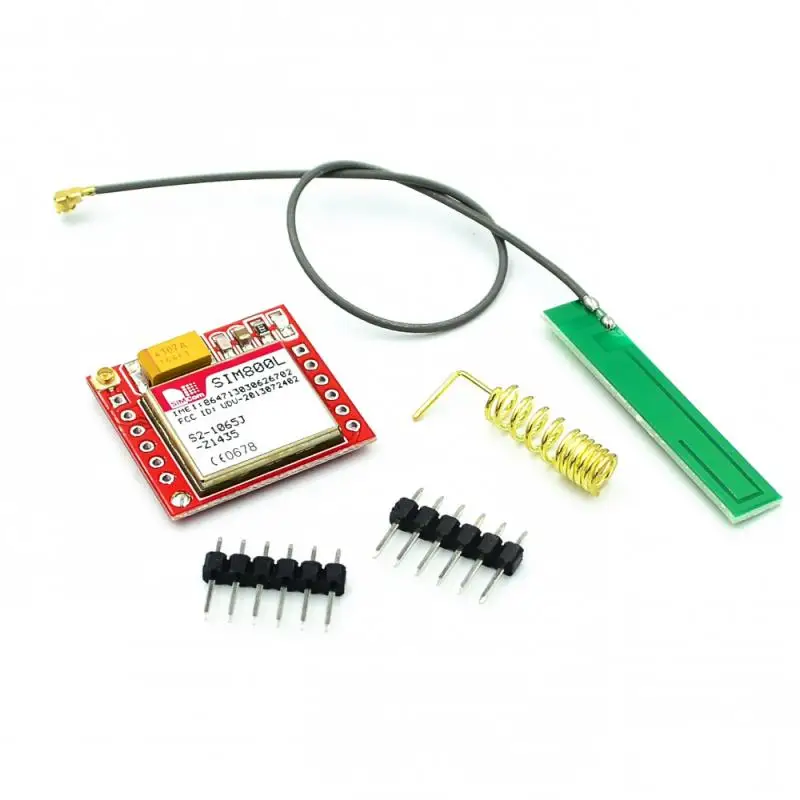

Package Included:

1*GPRS adapter board and accessories
