small car inspection equipment ELM327 V1.5 OBD2 Car Scanner PIC18F25K80 KONNWEI KW903 Bluetooth-compatible OBD 2 Diagnostic Tool ELM 327 Auto Car Scanner car inspection equipment for sale Code Readers & Scanning Tools

Brand Name:	KONNWEI
Origin:	CN(Origin)
Certification:	CE
Certification:	FCC
Certification:	RoHS
Language:	Arabic
Language:	Czech
Language:	Denish
Language:	Dutch
Language:	English
Language:	Finnish
Language:	French
Language:	German
Language:	Greek
Language:	Hungarian
Language:	Italian
Language:	Japanese
Language:	Korea
Language:	Norwegian
Language:	Polish
Language:	Portuguese
Language:	Russian
Language:	Slovenia
Language:	Spanish
Language:	Swedish
Language:	Thai
Language:	Turkish
Software Update:	Yes
Hardware Version:	ICar 2 OBD 2 Autoscanner
Special Features:	Bluetooth
Software Version:	Accurate/Torque Pro/ Dash Command
Item Type:	Code Readers & Scan Tools
Icar 2 OBD 2 Autoscanner Protocols:	PIC18F25K80, 4mhz crystal oscillator, support commands ATAL and ATPPS
OBD 2 Autoscanner Compatible Device:	For Android Phone, Tablet etc
OBD 2 Autoscanner Bluetooth Password:	1234
OBD 2 Autoscanner Softwares:	Coming along with its own software "ACCURATE"
Icar 2 Support Language:	All Languages
Icar 2 Compatible Vehicles:	All OBDII Compliant Vehicles
OBD 2 Autoscanner Handling Time:	Within 1 Working Time
OBD 2 Autoscanner Functions:	Read and Erase Codes, Turn Off CHECK ENGINE LIGHT,Live Data
Delivery Time:	12-30 Days for standard shipping,3-5 days for expedited shipping
Tip:	Not for IOS

ELM327 V1.5 OBD2 Scanner PIC18F25K80 KONNWEI KW903 Bluetooth OBD 2 Diagnostic Tool ELM 327 Code Reader Auto Scanner

This is Bluetooth  version, support android/PC system,

can't work with Iphone, ipad.

Bluetooth

ELM327 does support the diesel vehicles, but not for trucks, and this ELM327 is bluetooth version for android system cellphones/smart device.If you need the IOS version, please refer to

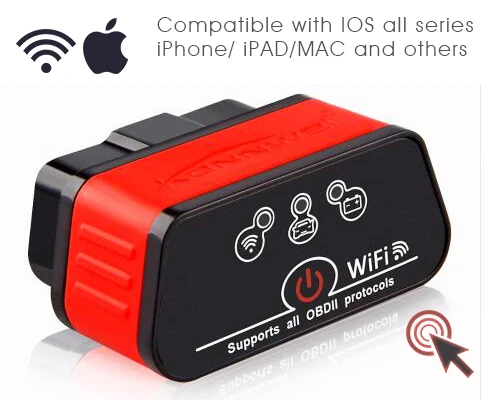

ICAR2 WIFI for IOS

The Switch is reset function, not for the power switch, pls kindly be aware of it.

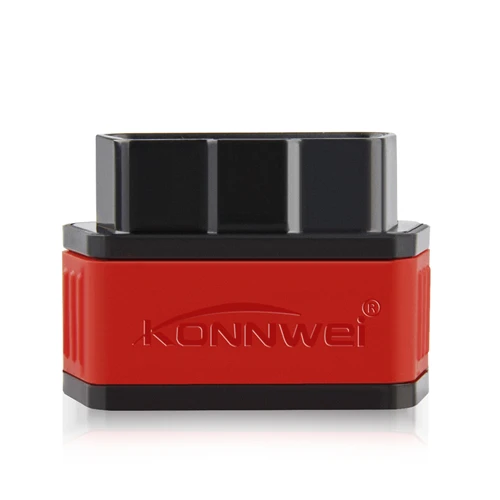

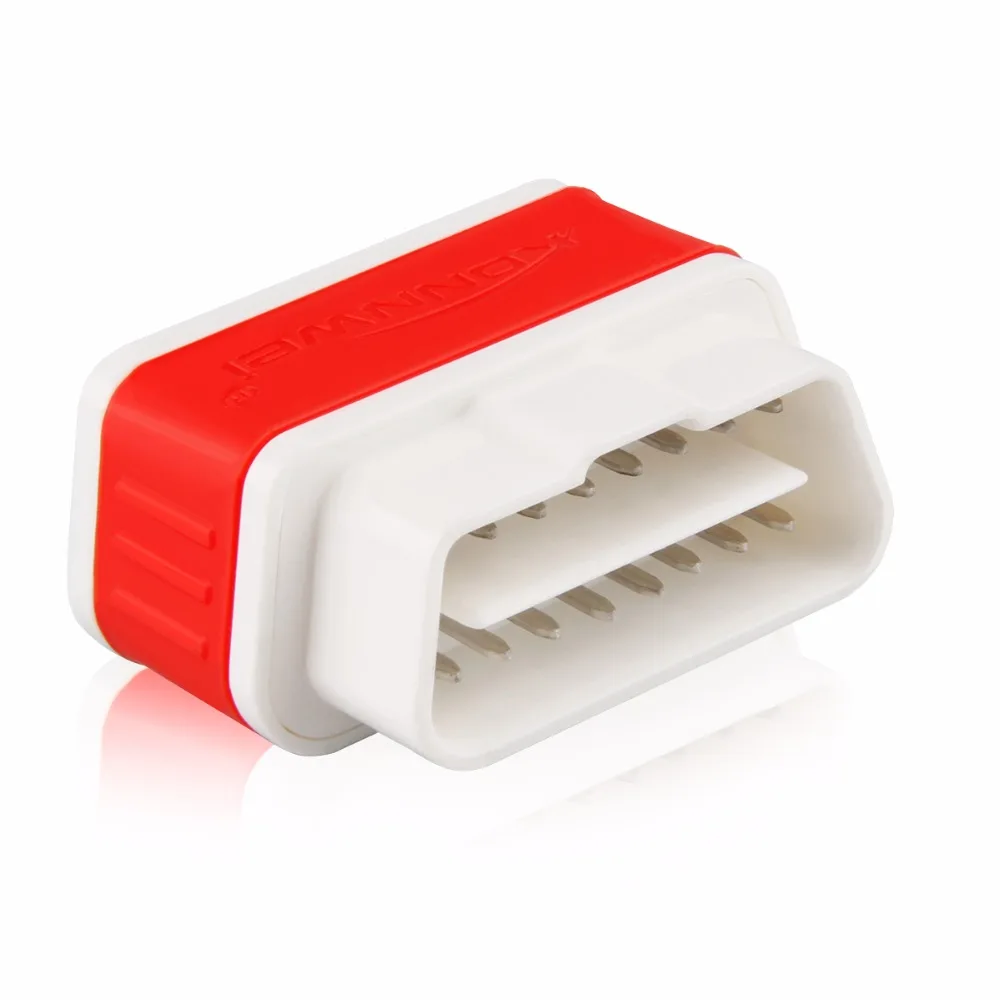

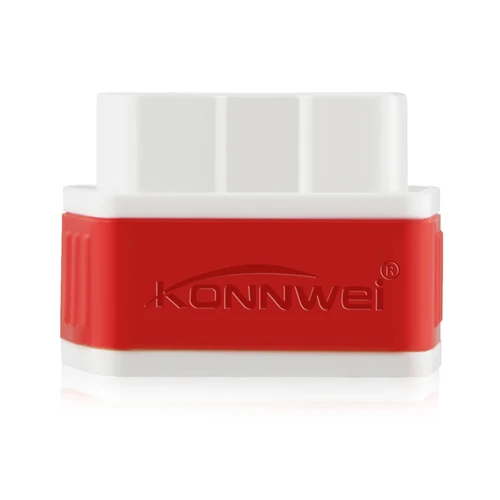

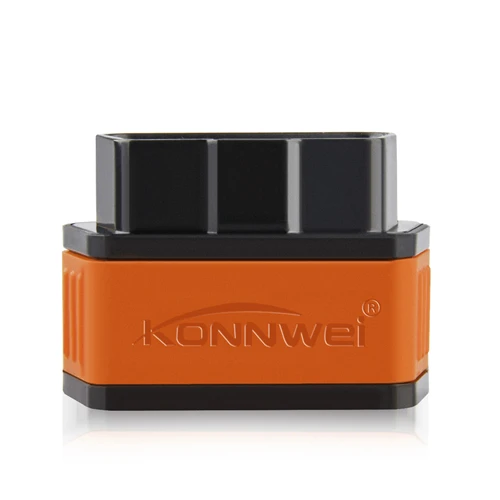

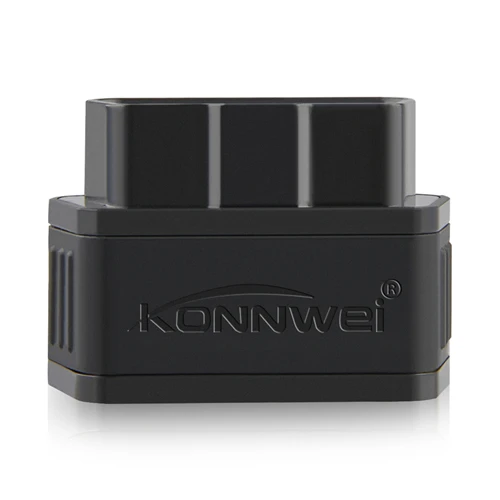

ICar 2 Bluetooth Brief

The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to  anycomputer, tablet or smartphone, with associated diagnostic procedures . Doing these simple operations, you will be

able:

* Read, erase and display code descriptions problems - both pending and permannent codes

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

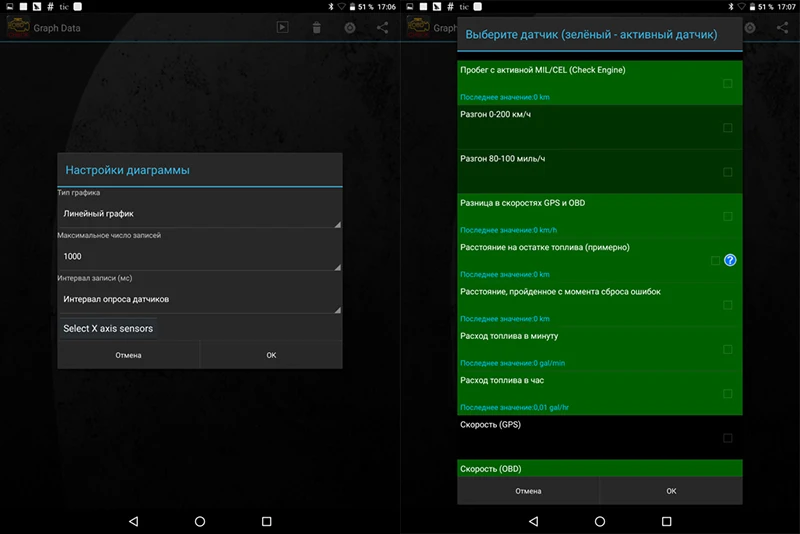

* Record various parameters, display graphics in real time, and more.

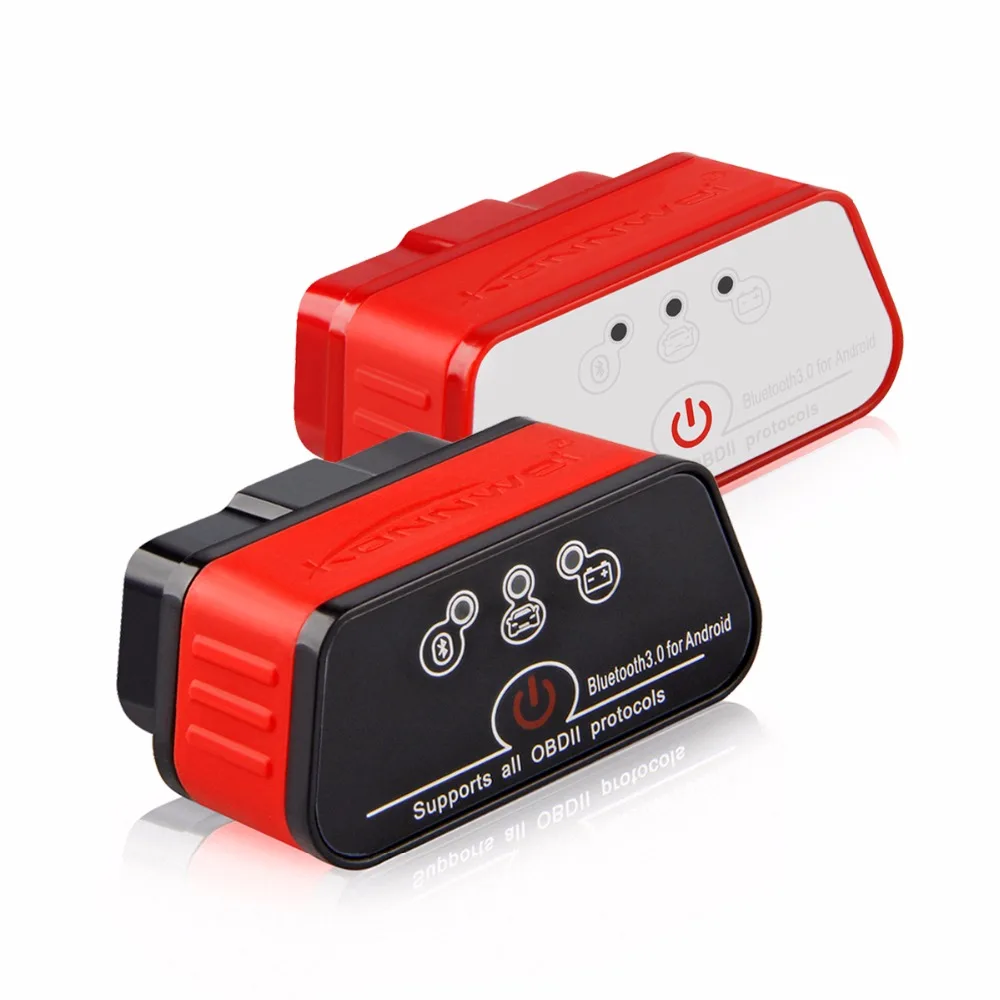

ELM327 1.5 ICar2 Bluetooth Scanner Features:

Small size, compact structure. Plug and never unplug,

ON-OFF Switch

allows you to turn off the elm327 totally.

Stable bluetooth 3.0 wireless connection

No wires or batteries (adapter is powered by the diagnosis size sockets)

Stop communication, press the button, no more consumption.

Supports all OBDII 9 protocols

The adapter uses the fastest and most reliable

PIC18F25K80

chips

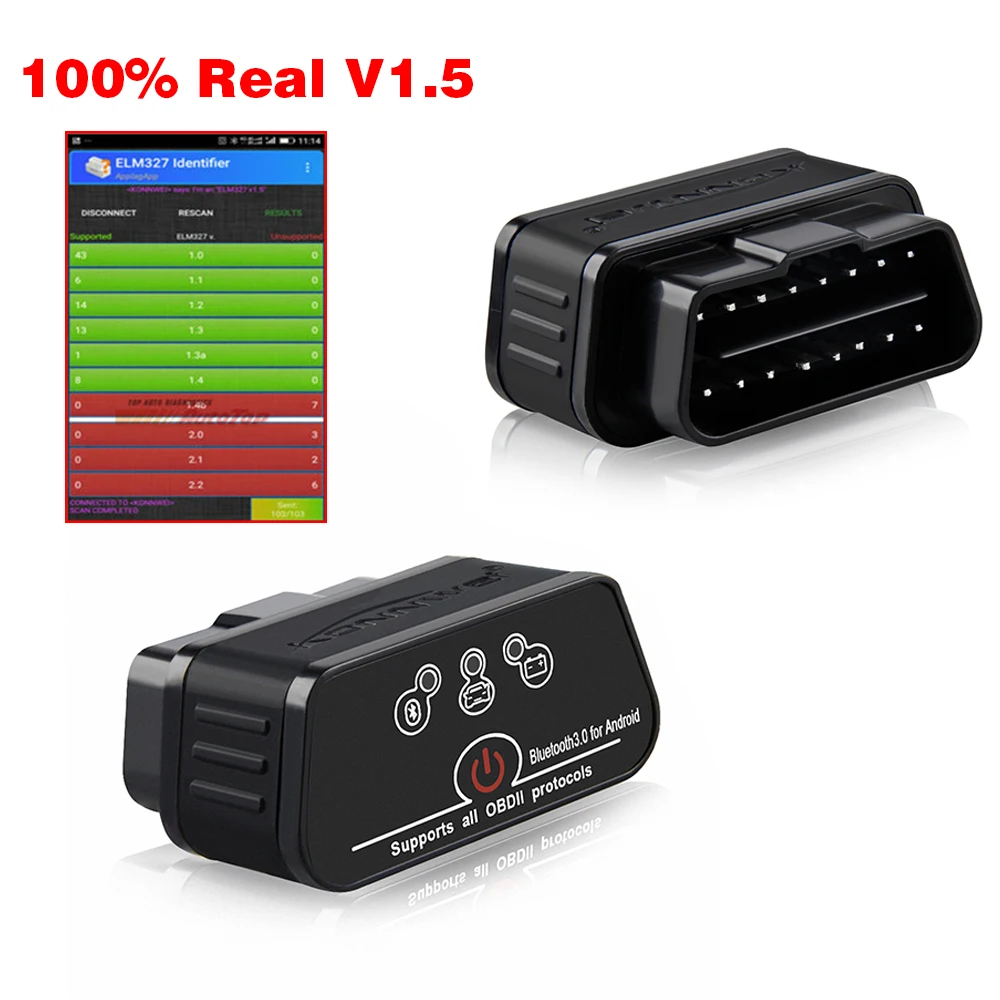

The icar2 ELM327 Bluetooth adapter is

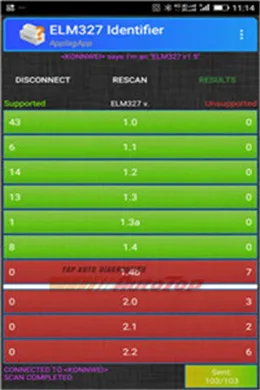

100% V1.5, support all obd2 commands.

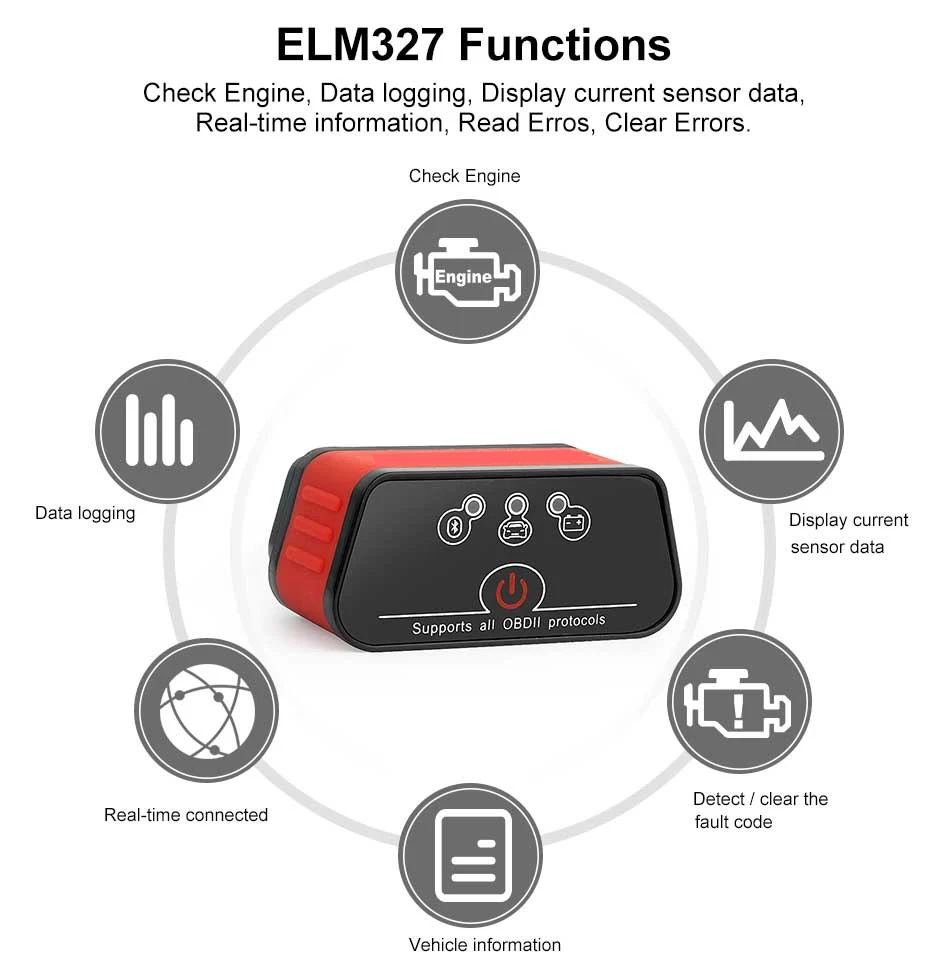

ICar2 Detailed Functin List:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

With iCar you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.

V1.5 supports all OBD-II Protocols:

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

The OBDII compliant vehicles referernce as below:

1996 or newer model year vehicle made in the United States

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep

2004 or newer model year vehicle made in the European Union

Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault after 2009 year,

doesn't support Clio 2

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu  ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar

2008 or newer model year vehicle made in the Asian Union

Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai  ,Fit for Dacia  ,Fit for Lexus ,Fit for Mazda

Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota

Warm Notice

For

Lada/ VAZ/ UAZ

car makes, please don't purchase If your car is before

2011.

For

Renault Dacia Logan

car model, please don't purchase If your car is before

2009.

You may also pop the hood and look for a sticker named "VEHICLE EMISSION CONTORL INFORMATION"

NOTE:  Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol. If you're not sure, ask us anytime!

Notes:

Delivery time Note:

If your Confirmation Time is coming, you still not receive the goods, please contact us, we will extend the delivery date in advance.

No Dispute please:

Please do not apply dispute within 60 days, let's keep good business relationship. Thanks for your kind understanding.

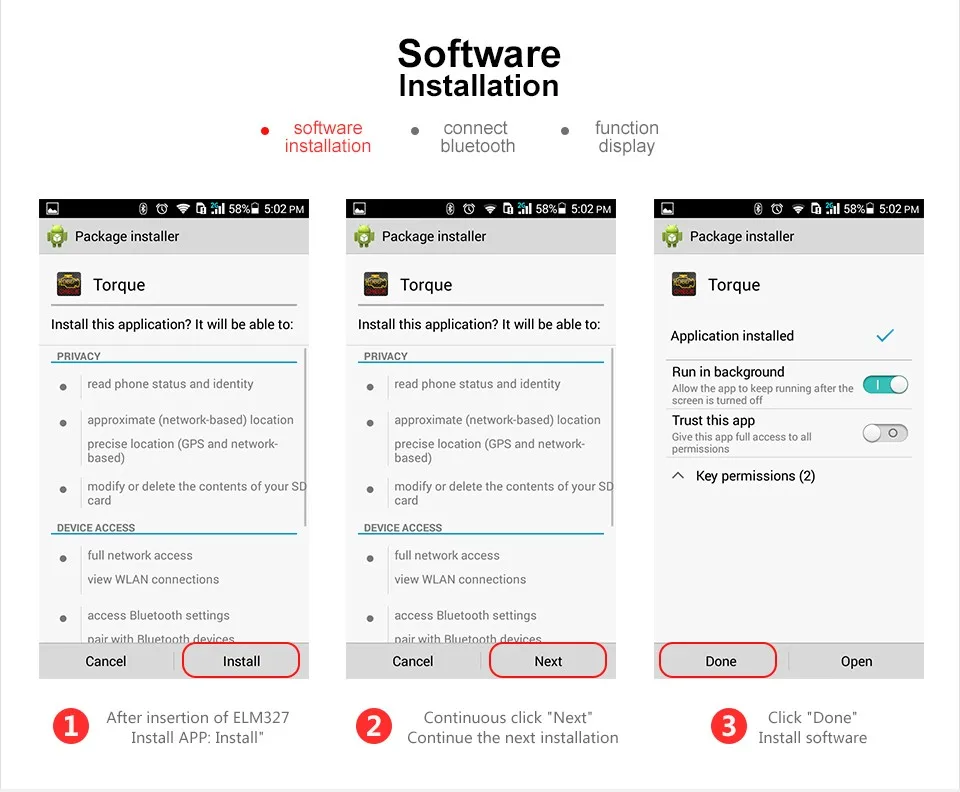

Step by step guideilnes for ICar2 Bluetooth Adapter

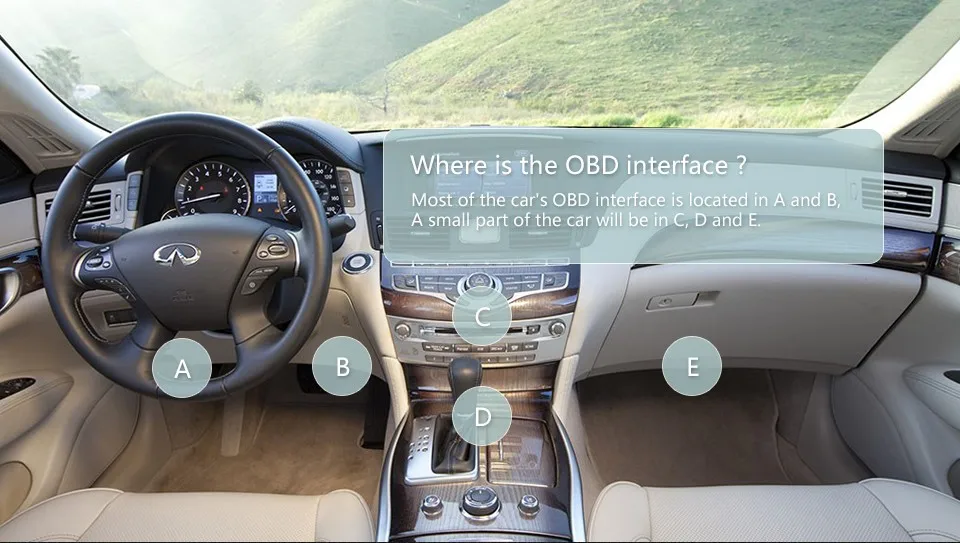

1. Locate your OBDII Diagnostic Port. If your car does't have OBDII 16pin Port, you can check the pins on your diagnositc port, we will help you find the connector the convert it to 16pin.

2. Download the Torque APP from android market or install it from our CD.

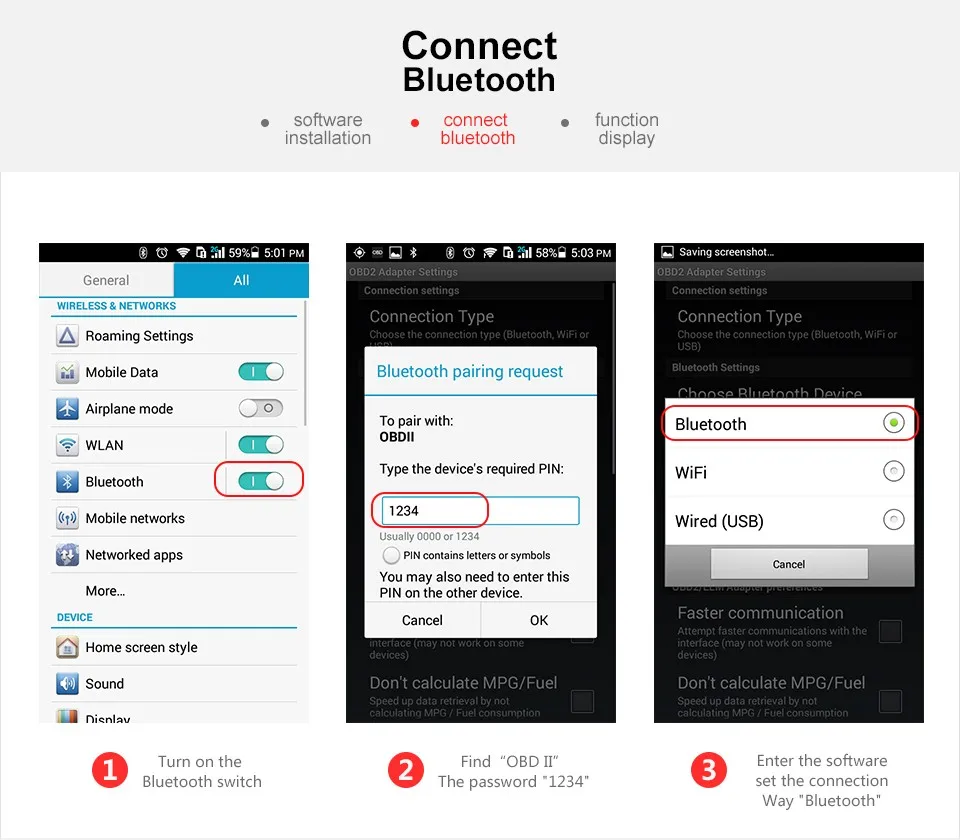

3. Plug the ELM327 into your car, and it will emit the bluetooth signal, connect it with your cell-phone. Password is "1234".

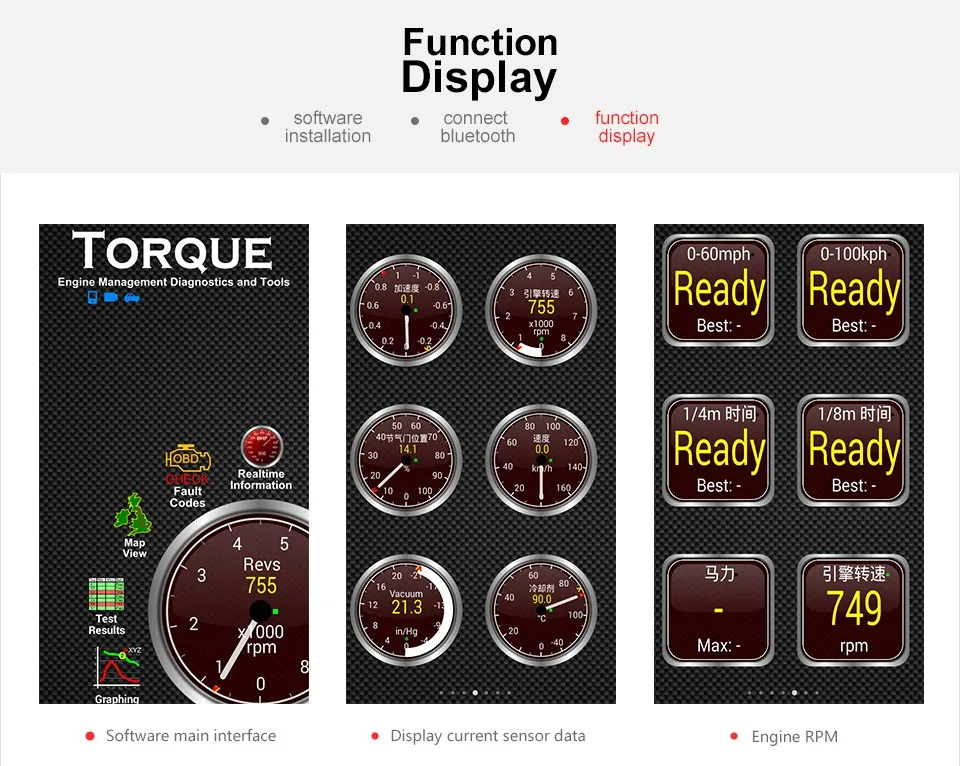

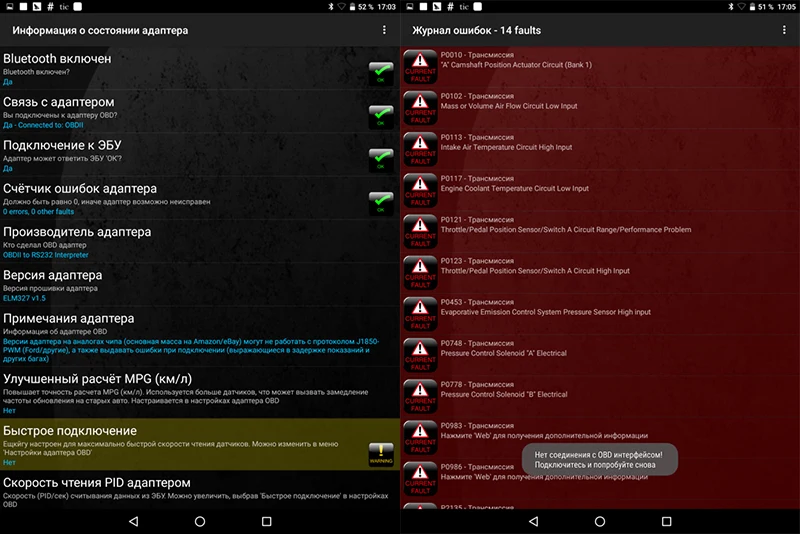

4. Open the TORQUE Software, go to"Adapter status" --  "Settings" on top right,

Select "OBD2 Adapter settings" ;

Choose "Connection settings" as "Bluetooth" ;

Choose "Bluetooth settings" as "V_LINK" ;

EXIT the APP TORQUE

Restart the TORQUE App, You will see the green light blinking, and wait for a while it will build up the communication.
