automotive battery charger Autel MX Sensor 433 315 TPMS Mx-Sensor Tire Pressure Monitor Tester Programmer TPMS Sensor Tire Repair Tools Work TS601 car battery charger Code Readers & Scanning Tools

Brand Name:	Autel
Origin:	CN(Origin)
Hardware Version:	autel mx sensor 433MHz 315MHZ
Software Version:	autel MaxiTPMS PAD
Item Type:	Code Readers & Scan Tools
Certification:	CE
Language:	Swedish
Language:	Finnish
Language:	Polish
Language:	German
Language:	Russian
Language:	Spanish
Language:	Japanese
Language:	Korea
Language:	Dutch
Language:	English
Language:	Portuguese
Language:	Italian
Language:	French
Operating Frequency:	autel sensor 315 MHz 433 MHz
Function 1:	Activate TPMS sensors
Function 2:	Read sensor data
Function 3:	Scan TPMS sensor ID and copy ID into MX-Sensor
Function 4:	Manual input OE ID into MX-sensor
Function 5:	Program MX-Sensor by auto creating sensor ID
Function 6:	Print TPMS sensor data via PC
Function 7:	Internet updatable
Function 8:	Multilingual support
Warranty:	Limited 1 Year

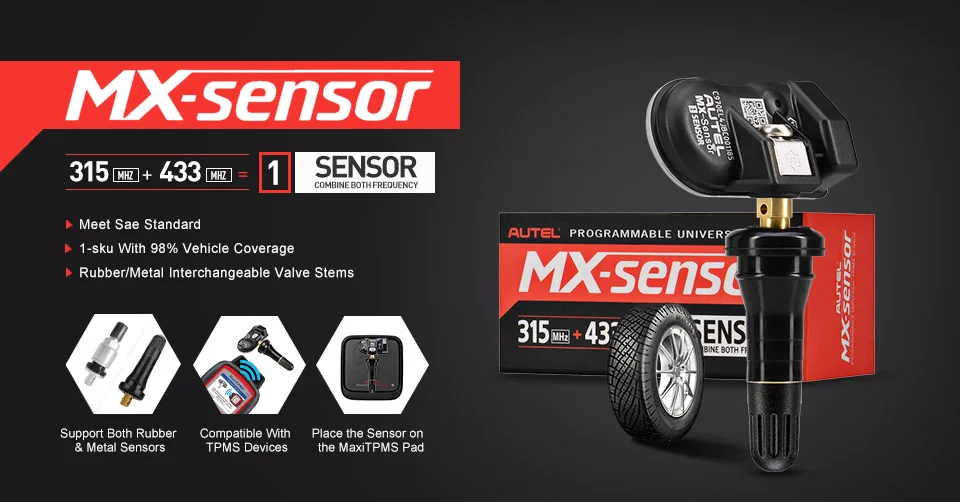

Autel MX-Sensor 2 In 1 (315MHz + 433MHz) Clamp-In OE-Level Programmable Sensor for Tire Pressure Monitoring System (TPMS)

100% Cloneable

 +

Fits 98% Mainstream Vehicles /

MX-Sensor 433 MHz /TPMS PAD Sensor Programmer

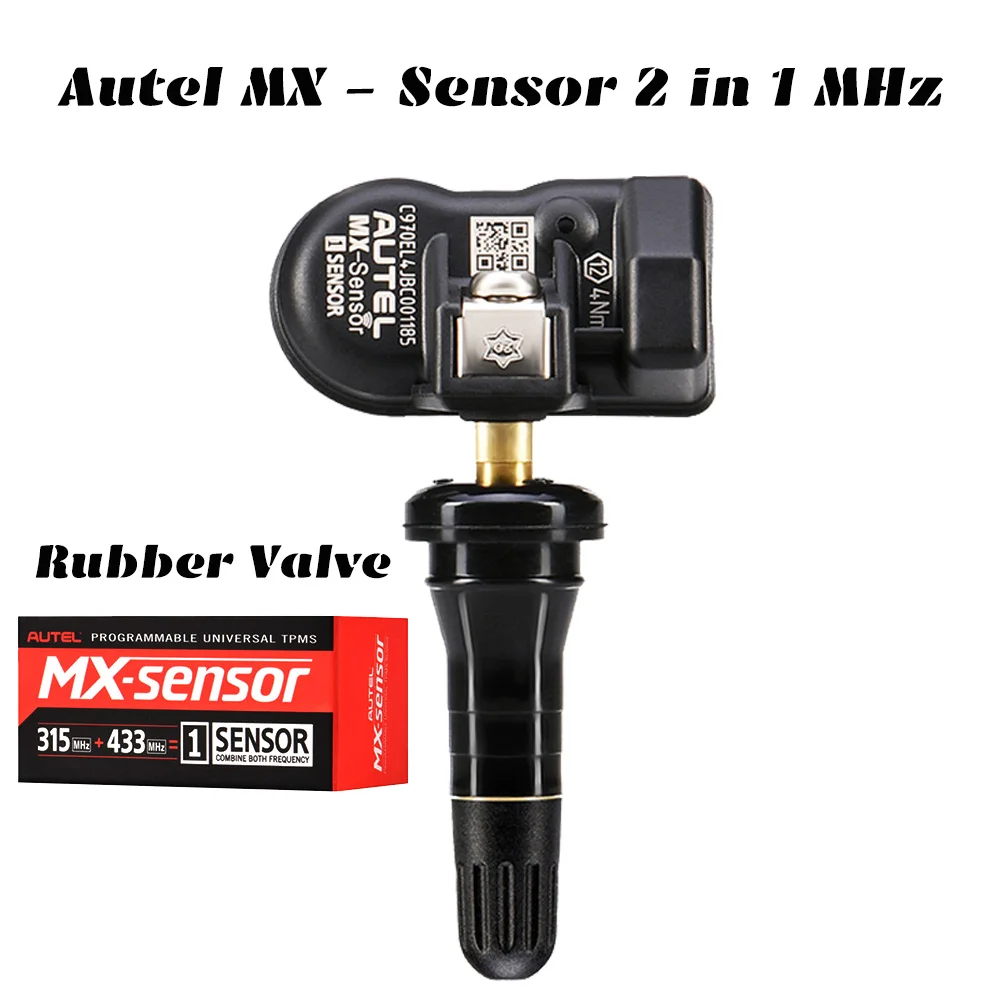

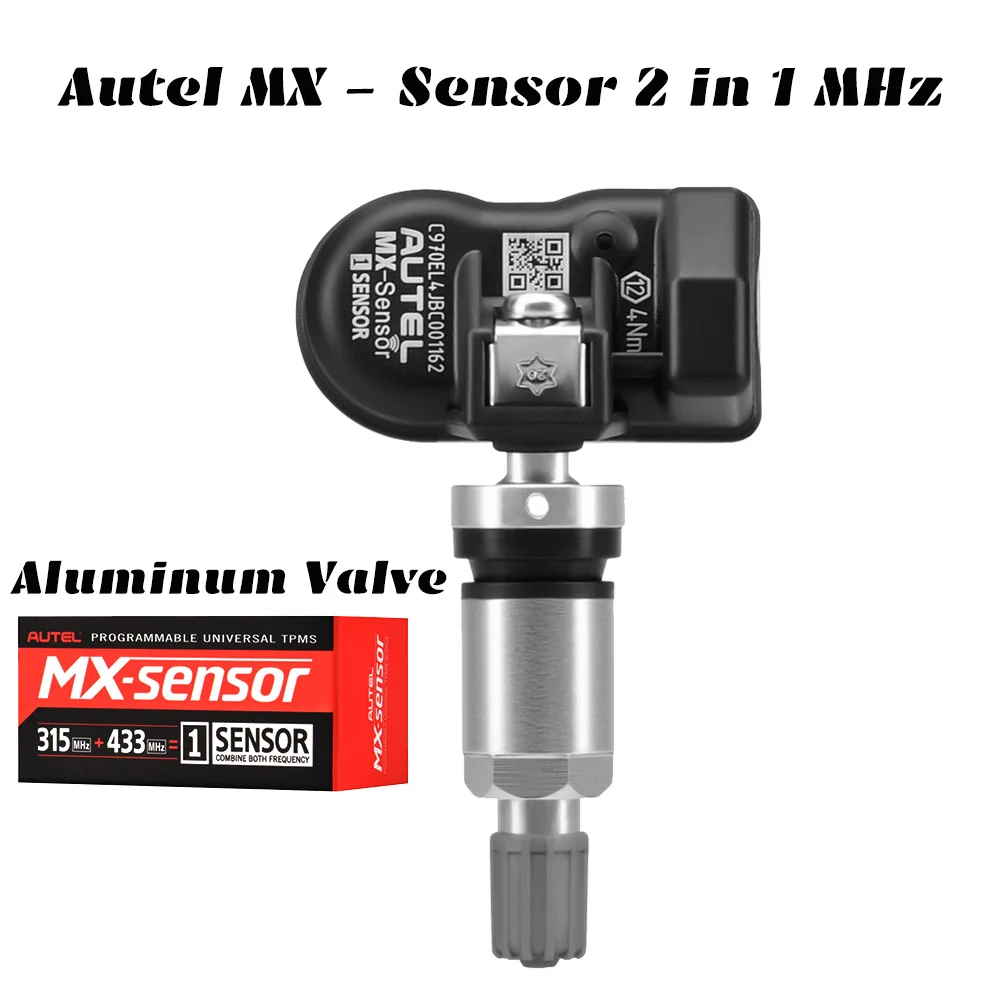

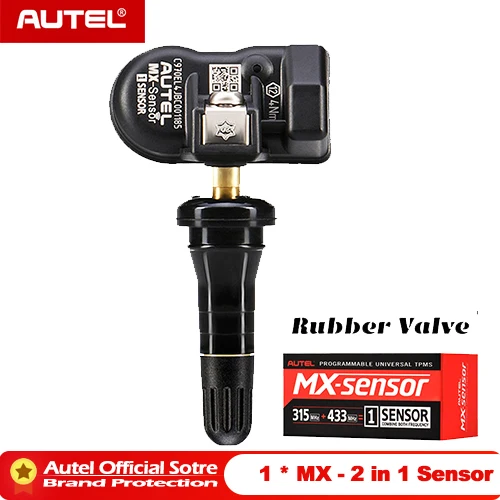

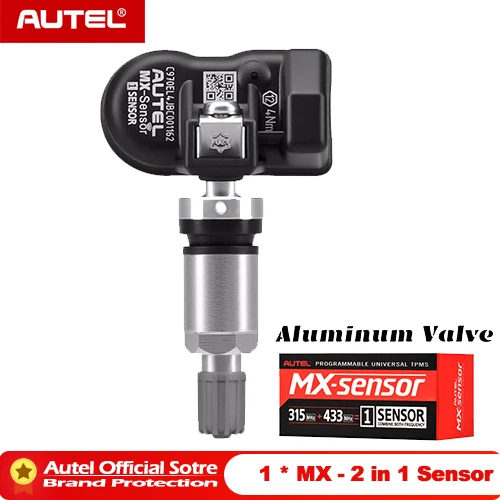

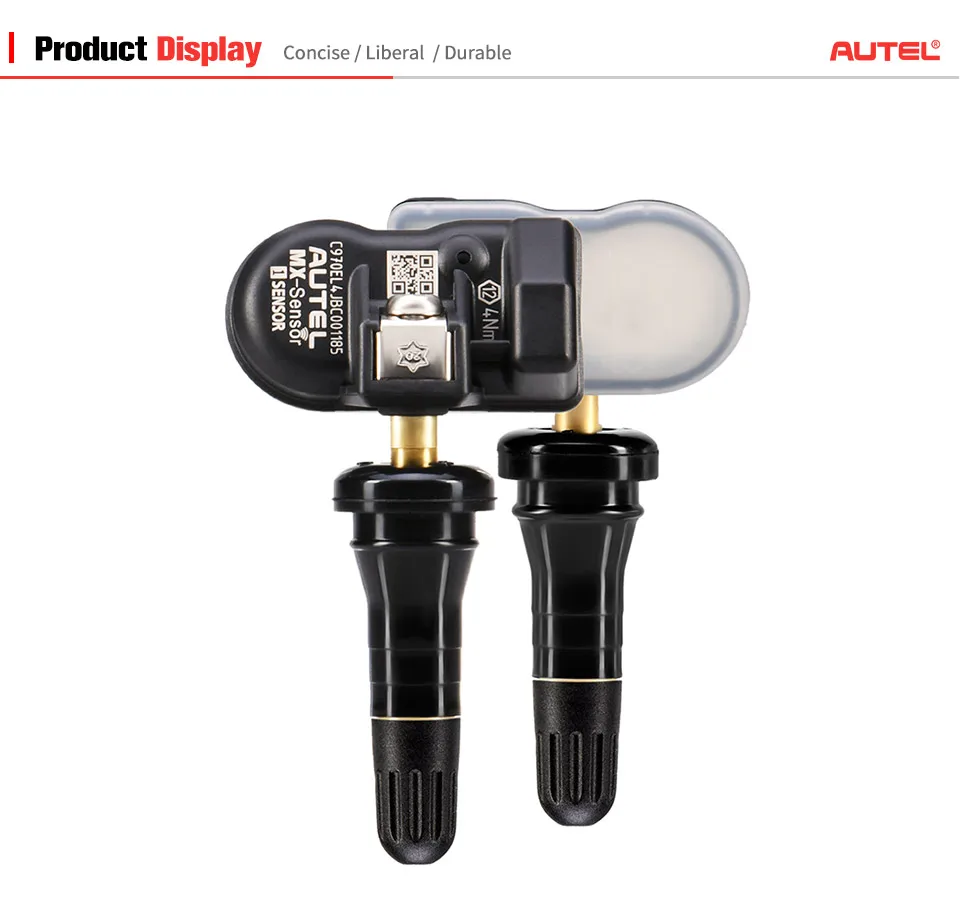

1. Autel MX-Sensor 2 In 1 (315 + 433MHz)

■

 Introduction

Autel MX-Sensor 2 In 1 (315 + 433MHz), as a programmable universal sensor featuring in Clamp-in and Snap-in options which are both smart and efficient specially built for sensor replacement with maximum application coverage, ease of use, OE-level fit, performance and reliability, will help users economize the cost of diagnostic work and raise the repair efficiency greatly.

■

Bullet Points

2 IN 1 FEATURE:

 Only 1 Sensor to service

nearly every TPMS equipped vehicle

 to lower repair cost and to have higher install efficiency with

no relearnrequired

. The MX-Sensor is

100% cloneable with the original sensor ID

 and put in the same position.

98% COVERAGE:

 Featuring the latest and most comprehensive

 coverage of 98% OE sensors

 on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.

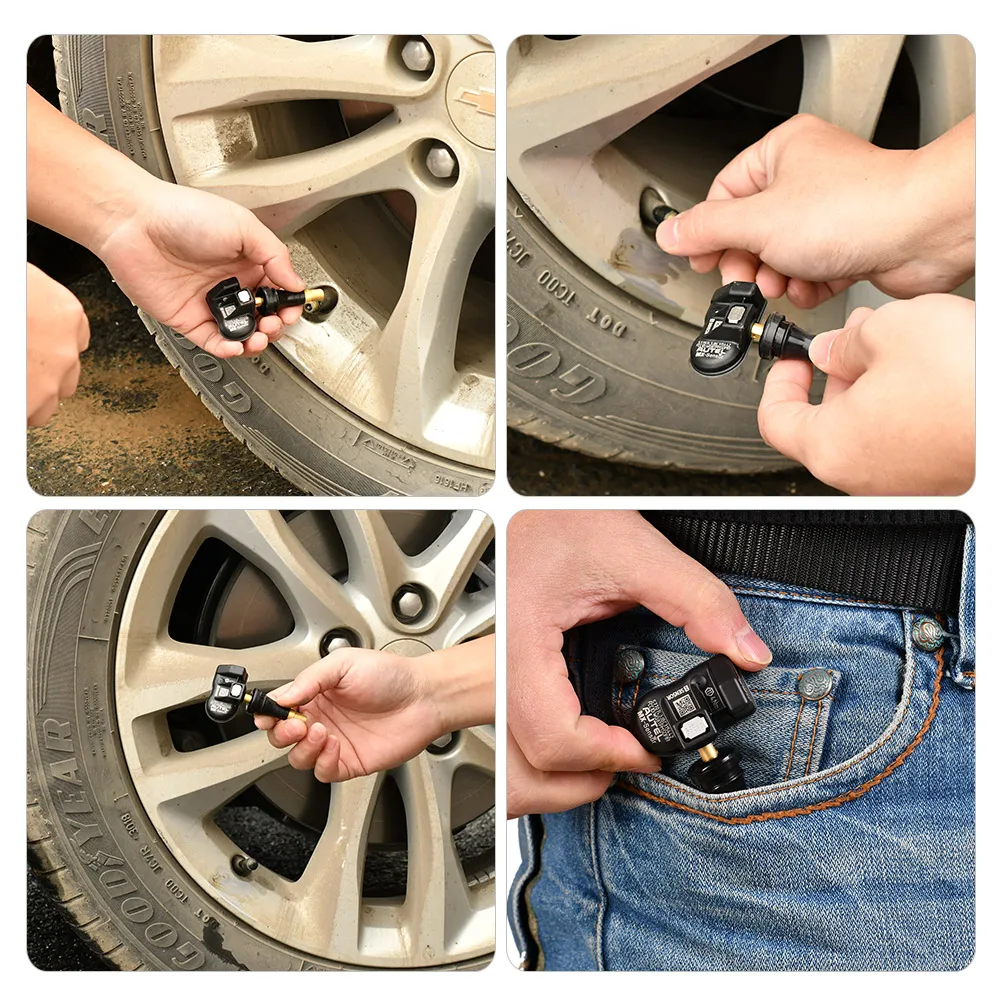

EASY TO USE:

 The

maximum sensor signal

 strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.

SOLID & DURABLE:

 Equipped with an automotive grade battery, a replaceable aluminum/rubber valve stem to withstand cold, hot and resistancecorrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.

WARRANTY:

 Autel guarantees that the sensor is free from material and manufacturing defects for a period of

24 months or for 24,000 miles

. Each sensor is marked with a seriesnumber to track the sensor quality from the factory to ensure that only the highest quality parts are installed.

High-Speed Accident Mostly Due To A

Blow Out

Tire Aging/ Tire Leak/ High Temperature/ Speeding/ Overloaded...

Five Reasons to Choose

Autel MX-Sensors

2 in 1 Sensors/ 433 MHz Sensors

Comprehensive

Vehicle Coverage

Cover Over 98% of All OE Sensors on the Market

■

Notice

1. The TPMS sensor assemblies are replacement or maintenance parts for vehicles that have a factory installed TPMS.

2. Make sure to

program the sensor by AUTEL sensor programming tools

 for your specific vehicle make, model and year before installation.

3. Do not install programmed TPMS sensor in damaged wheels.

4. In order to guarantee optimal function, the sensor may

only be installed with

original valves and accessories provided by Autel.

5. Upon completion of installation, test the vehicle TPMS systems using procedures described in the original manufacturer' s user guide to confirm proper installation.

6. Each time a tire is serviced or dismounted, or if the sensor is removed or replaced, it is mandatory to replace the rubber grommet, washer, nut and valve core with our parts to ensure proper sealing. It is mandatory to replace the sensor if it is extremely damaged.

■

Installation Process

1.

Loosethe tire

: Remove the valve cap and core and deflate the tire.

2.

Dismount the tire

: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.

3.

Dismount the sensor

: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.

4.

Mount sensor and valve

: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.

5.

Mount the tire

: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.

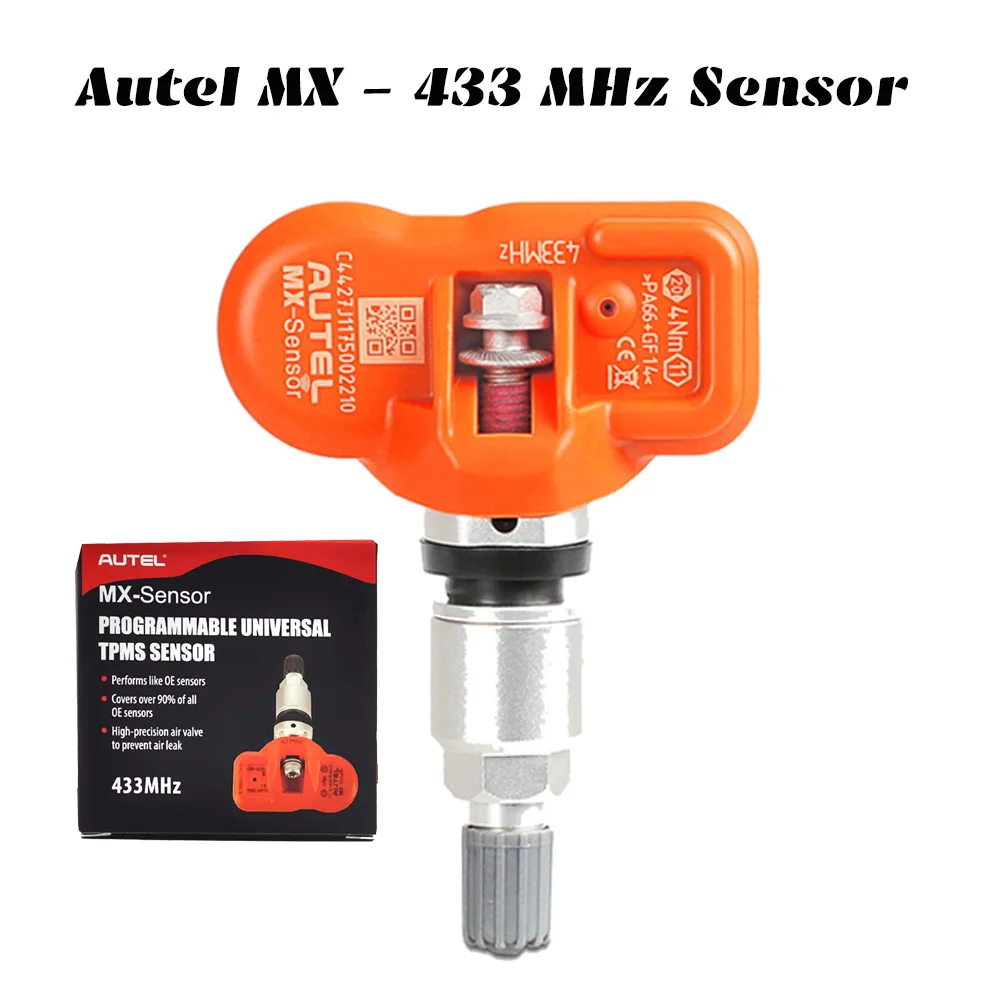

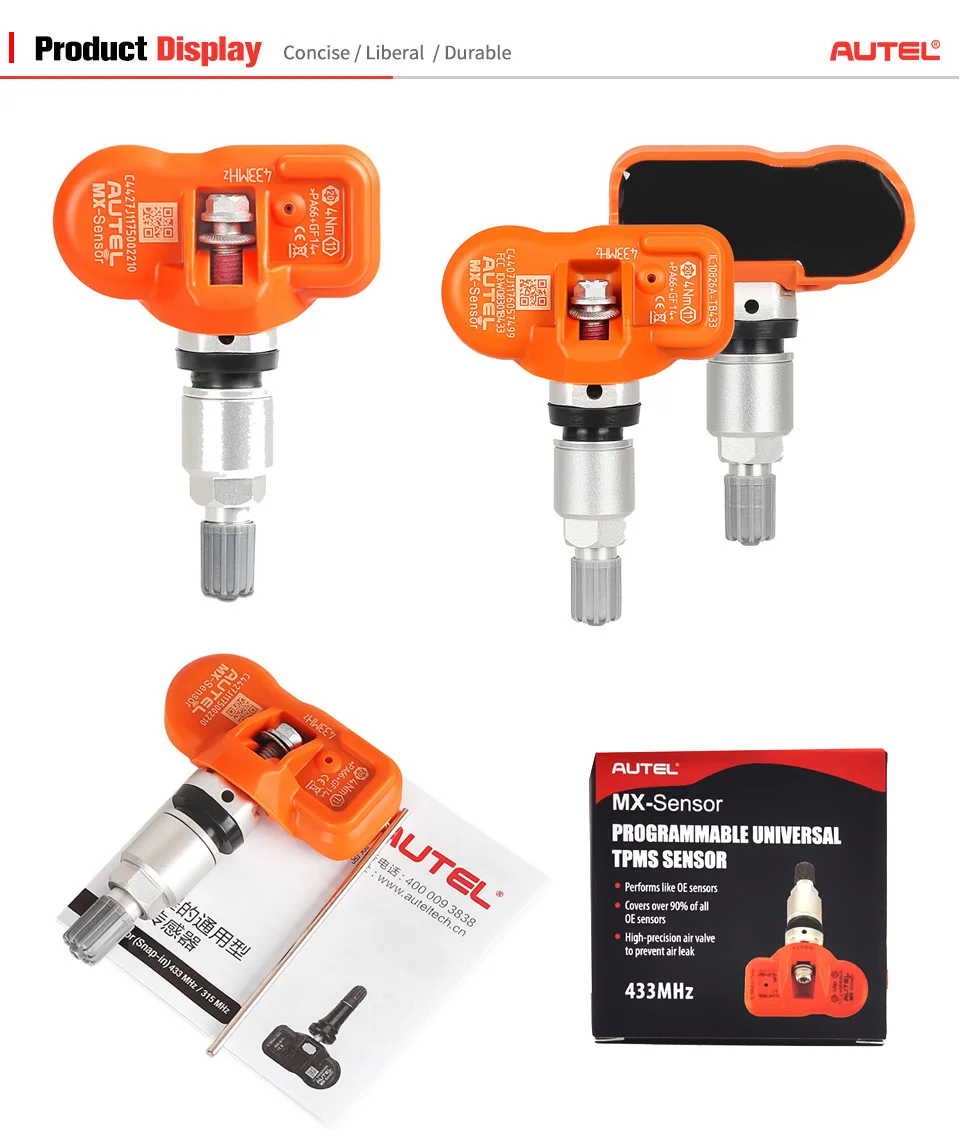

2. Autel MX-Sensor 433 MHz

■

Introduction

MX-Sensors (433MHz), the programmable universal sensors, are both smart and efficient specially built for sensor replacement to perform like OE sensors, in terms of signal interval, durability and functionality supporting up to

99% of the US and Canadian vehicles.

 The 2-SKU sensor solution that covers over

98% of all OE sensors on the market

will greatly simplify your inventory management and lower investment and sales loss.

■

AUTEL VALUE ADVANTAGE

1. Covering

98% of all OE sensors

 on the market

2. 2 sensor types to reduce inventory (

two valve types available

)

3.

Wireless

 sensor programming with Autel TPMS service tools

4.

100% ID clone-able

 sensor with no re-learn required

5. Independently tested and certified to

meet SAE standards

■

Specifications

Battery Life ≥5 years

Operating Temperature -40°C to +125°C

Storage Temperature -40°C to +150°C

Operating Humidity 90%

Operating Frequency 433 MHz/315MHz

Pressure Monitoring Range 100 to 900 kPa

Pressure Reading Accuracy ±10 kPa

Temperature Reading Range -40°C to +125°C

Temperature Reading Accuracy ±5°C

G Sensor Reading Accuracy ±15%

Transmission Power 5-8 dBm

Battery 3.0 V

Dimensions (W x H x D) 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)

Weight (Without Valve) 18.5 g (Clamp-in Sensor)

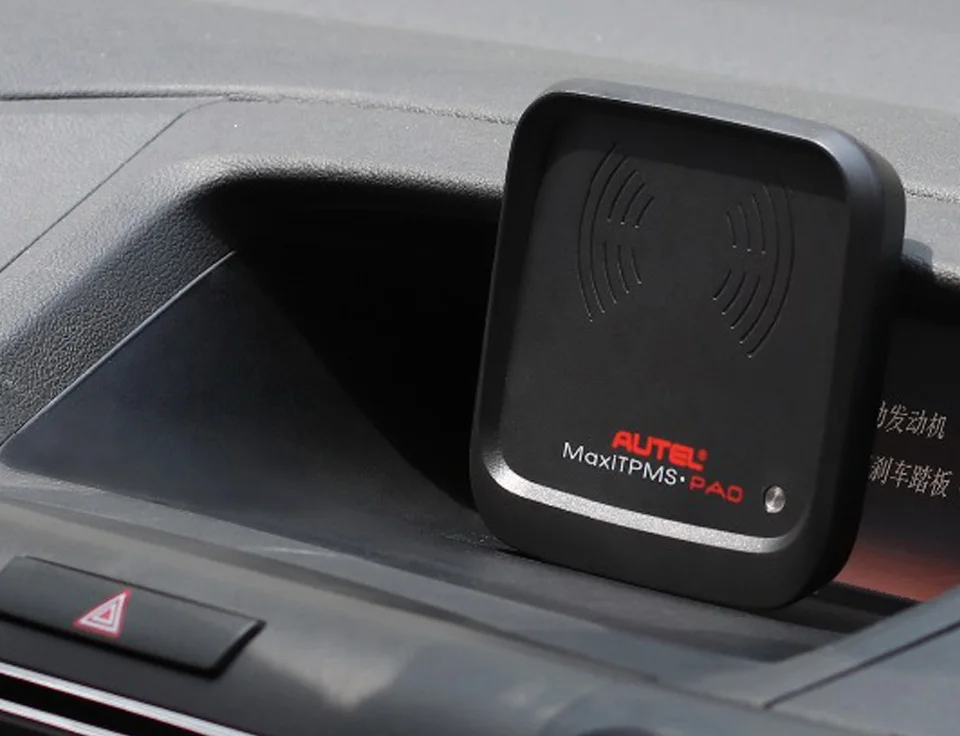

3.TPMS PAD Sensor Programmer

Supported Languages: English,Korea,Spanish,Finnish,Polish,French,Portuguese,Russian,German,Italian,Swedish,Japanese,Dutch

■

 Introduction

The MaxiTPMS programming accessory device (PAD) is the perfect tool for busy shops, it frees up your TPMS activation tools for important projects. When attached to your Windows , the easy-to-use MaxiTPMS Pad can

test and clone the four universal Autel MX-Sensor types

 quickly.

■

8 Reasons to Choose AUTEL MaxiTPMS PAD

1.

Easy-to-use

 PC software

2. Self-contained PC operation

3. Make/model/year selection allows for correct sensor replacement

4. Direct reading from sensors for

quick programming

5. No need for vehicle relearns

6. Ideal for mechanically broken sensors

7. Can automatically

create ID numbers

 compatible with the vehicle

8. Runs from PC USB power,

no batteries

 required

TPMS PAD

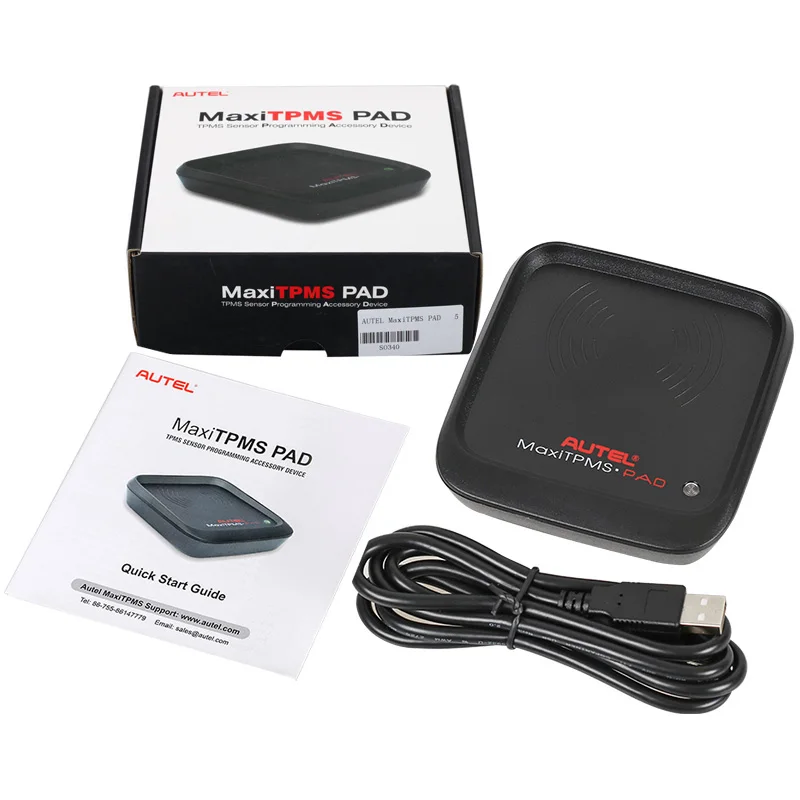

Family photo

PAD/ USB Cable/ Quick Start Guide/ Package Box

■

How to program our sensors by TPMS PAD

1.

Load

the software on the PC.

2.

Connect

 the PAD to the PC.

3.

Program

 MX-Sensor.
