ring alarm wall mount Outdoor IP65 Waterproof Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System alarm siren Alarms & Sensors

Code: TD-1005003515805733 2 orders
Free Shipping
$ 74.69 $ 78.55
Color:
pet friendly
wide angle type
cutain type
Note

Quantity:
Other people want this. 6 people have this in their carts right now.
Certification:  CE
Origin:  CN(Origin)
Smart home platform:  NONE
Model Number:  OTD-40T
Detection Distance:  12 Meters
Waterproof:  IP65
Pet Friendly:  up to 25kgs

Outdoor IP65 Waterproof Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System

Product Introduction:

This wired outdoor motion detector includes 2 PIR+MW. It is waterproof for outdoor protection, with and/or selection and "B" mode helps it to avoid PIR distance shorting cause by temperature. Its anti-mask function makes it more safety than normal detector.Pet immunity up to 25kg. Fit for commercial/residential area,factory,hotel,bank,apartment,villa,farm etc...

Specification:

1.DRO micro radar+2 independent dual PIR detection technology.
2.Adopts multi-grades intelligent signal processing software, full analysis and processing of all kinds of false alarms.
3.Adopts micro power-consumption 8 digits CMOS single chip control.

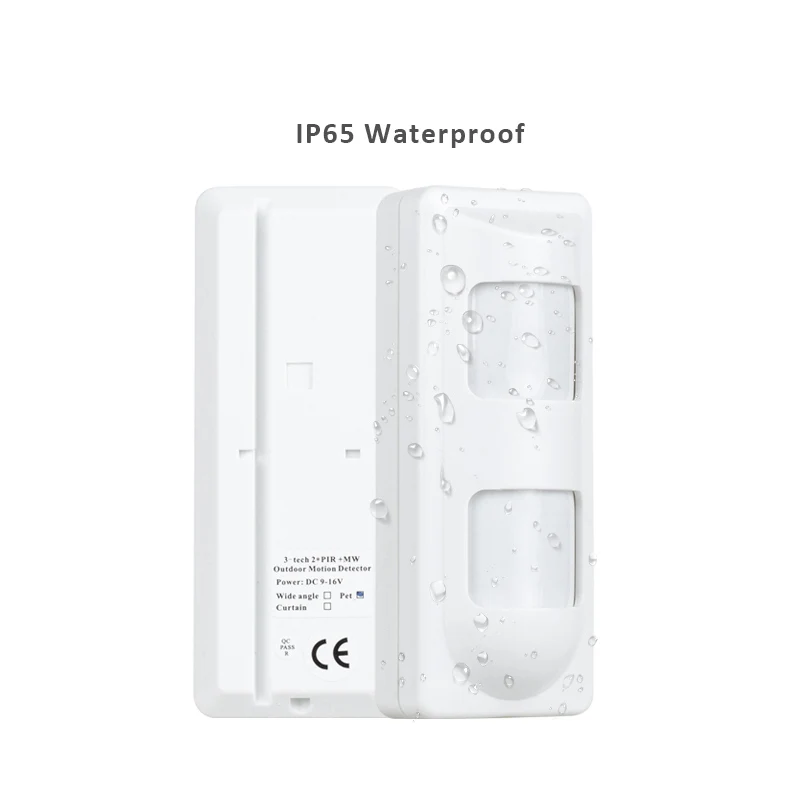

4.Professional grade IP-65 water-proof design, fit for fully outdoor installation
5.Double layer filtering system, anti strong light interference..
6.Digital analysis pet-immunity technology.
7.MW anti-masking technology, can detect the attempt of blocking MW or PIR channel.
8.3 colors LED display, can recognize signals of PIR, MW, anti-masking and troubles.
9.Unique anti-masking and trouble output.
10.AND/OR modes for option, fit for various kinds of environments.
11.MW range adjustable.
12.With high/low sensitivity selection.
13.Unique full-range temperature compensation technology.
14.Anti strong EMI interference.
15.EI control mode for option.

Prameter:

Operation voltage/current

9-16V/DC   25mA

Detection distance

12m   110degree

Installation height

1.5m-2.4m

MW frequency

10.525GHz

Sensitivity

L/H for option

RFI/EMI protection

>30V/m   500MHz

Alarm output

200mA/24V

Anti-mask /trouble output

100mA/24V

Tamper output

300mA/24V

Operation temperature

-20~+50 degree

Operation humidity

5%-95%(RH)

Anti white light

>10000LUX

Operation mode

Dual-tech or single-tech alarm modes for option

Detection speed

0.2m/s to 3.5m/s

Pet immunity

25Kg

Manual Show:

Packing List:

1pc Wired Outdoor PIR +MW  Sensor (Manual,Screws and Bracket included).

Note: This sensor can not work alone, it can connect to all alarm system which supports wired zones.

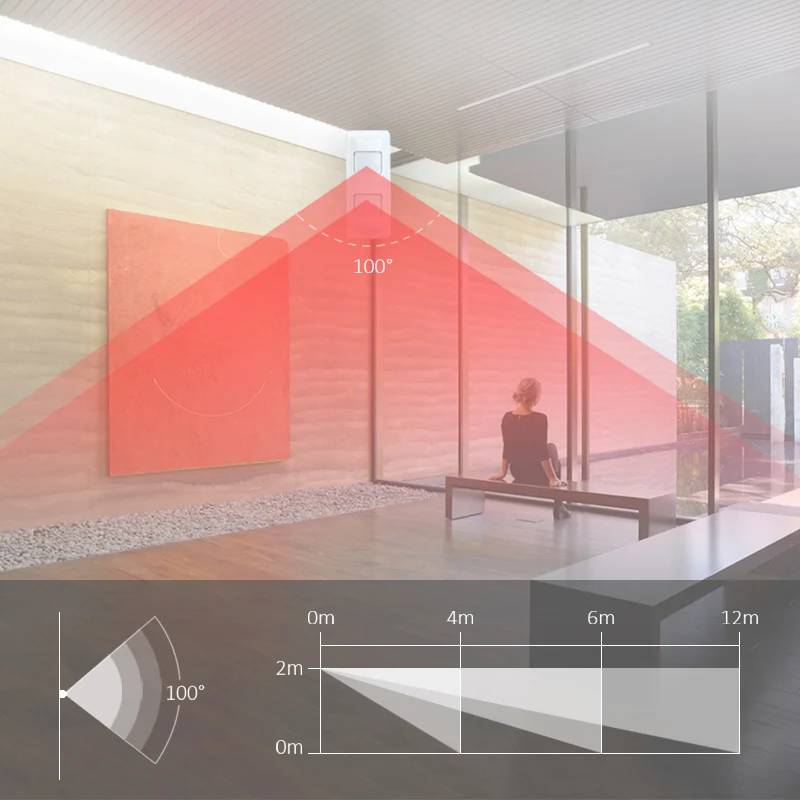

There are 3 lens for option: Pet Immune/Wide Angle/Curtain. Pet friendly Lens enable pet ( like dog, cat below 25kg) pass the protected zone without trigger alarm. Curtain Lens offer wider range of infrared line protection, like a curtain. Below picture can show detection range difference:

Overview:

ring alarm wall mount Outdoor IP65 Waterproof  Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System alarm siren
ring alarm wall mount Outdoor IP65 Waterproof  Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System alarm siren
ring alarm wall mount Outdoor IP65 Waterproof  Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System alarm siren
ring alarm wall mount Outdoor IP65 Waterproof  Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System alarm siren
ring alarm wall mount Outdoor IP65 Waterproof  Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System alarm siren
ring alarm wall mount Outdoor IP65 Waterproof  Pet Immunity Wired Dual PIR + MW Motion Sensor PIR Motion Detector for All Wired Alarm System alarm siren
