portable car battery charger ELM327 V1.5 super mini OBD2 Diagnostic Interface Bluetooth 4.0 for IOS/Android ELM 327 Code Reader Tool Support multi-brand car auto inspection equipment Code Readers & Scanning Tools

Name: portable car battery charger ELM327 V1.5 super mini OBD2 Diagnostic Interface Bluetooth 4.0 for IOS/Android ELM 327 Code Reader Tool Support multi-brand car auto inspection equipment
Brand: MMO Dropship
SKU: 3256803507215497
Price: 33.66 VND
Availability: InStock
Rating: 4.9 (75 reviews)

Code: TD-3256803507215497 7 orders

Free Shipping

$ 33.66 $ 35.54

Color:

Note

Quantity:

Other people want this. 30 people have this in their carts right now.

Description
Shipping & Returns

Certification:	CE
Origin:	CN(Origin)
Special Features:	Bluetooth
Software Version:	V2.1
Language:	English
Software Update:	No
Hardware Version:	V1.5
Item Type:	Code Readers & Scan Tools
V01 V03 V05 series:	Support 9 protocols
B02 series:	Support 7 protocols

ELM327 mini V1.5 Bluetooth 4.0 Code Reader ELM 327 1.5 OBD2 Diagnostic Interface For IOS Android Windows

Please Note:

1.Our link has multiple options, all of which are V1.5.

2.There is an option

"B02 BLUE"

, the product of this option only supports 7 protocols. Several other options support 9 agreements, please pay attention to the picture and name of the option when purchasing, thank you
3.The product does not contain a CD and is packaged in an electrostatic bag. The form of downloading the software is to scan the QR code.

Highlight:

1.Hardware Version: V1.5

Software Version: V2.1

2. Compatible Platforms

support platform: Windows , IOS, Android, Symbian, etc.

Bluetooth-compatible: Wireless,BT4.0

4.Applicable: All vehicles complying with OBD II

Support most gasoline cars

5. CAN Chip

Description:

ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports most standard OBD-II protocols.

BT 4.0 supports IOS & Android. ELM327 V1.5 BT 4.0 is mainly used to read the data of car engine and emissions, diagnostic car engine trouble, and erase trouble codes. It is small size, highest chip integration, Passed CE, FCC, and RoHS certification.

The product is CAN Chip, it support ATPPS commands and can be used with FORSCAN, but it does not guarantee that all functions on this software can be used. (FORSCAN is a software specially used to change some ECU parameters of for Ford cars.)

CAN Chip is a special chip for CAN communication. It corresponds to the car. The data transmission is more accurate, the adaptation is stronger, and the stability is better.

V01, V02,V03,V05 Supprots 9 Protocols:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

B02 Supprots 7 Protocols:

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

19.Many others

Default Settings(user adjustable):

1.Works with OBD-II compliant vehicles

2.Wireless (Bluetooth-compatible) 5~10 meter

3.Software included for Pa, PDA,Mobile

4.Software included for Windows PC ,Can also be used with a PC with a BT Card.

5.Software included for Windows Smartphone Android torque

V01 BLUE:

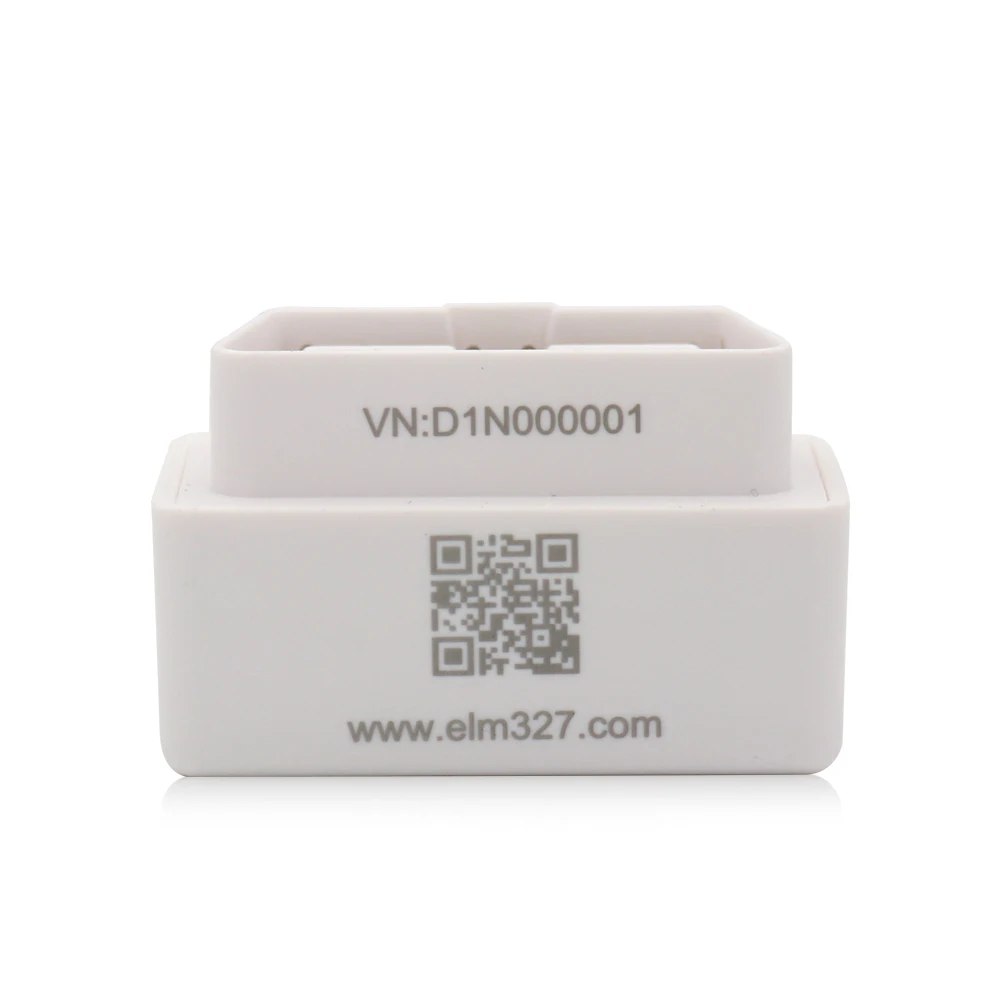

V01 WHITE:

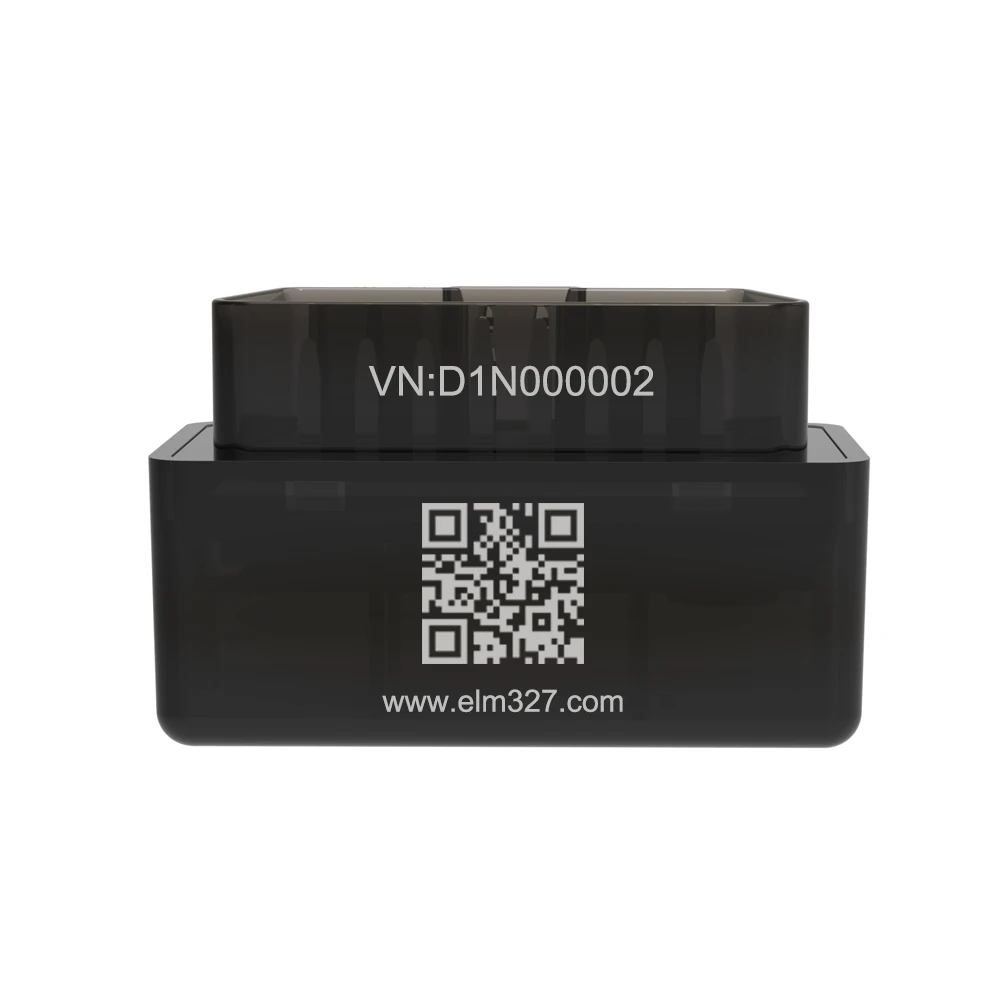

V01 BLACK :

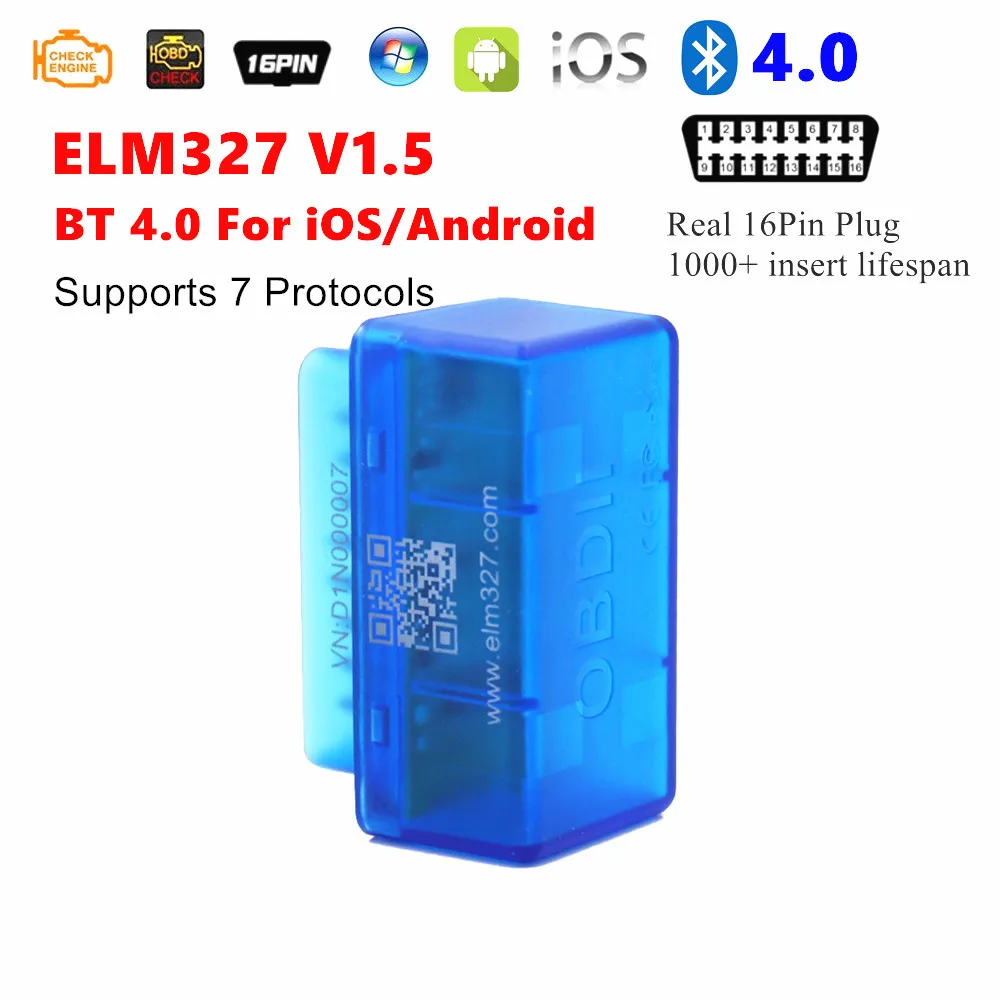

B02 BLUE:

V02 BLACK:

V03 OLD :

V05 BLUE:
