EWD 2014D 2015A Super Multi-Language Full Chip 2014D Green PCB Board OBD2 Diagnostic Scanner best car inspection equipment Code Readers & Scanning Tools

Origin:	CN(Origin)
Hardware Version:	NEW
Item Type:	Code Readers & Scan Tools
Certification:	CE
Language:	Dutch
Language:	English
Language:	French
Language:	Italian
Language:	Japanese
Language:	Portuguese
Language:	Russian
Language:	Swedish
Language:	Thai
Language:	Turkish
Software Update:	No
PCB Board 1:	Green PCB Full Chip
PCB Board 2:	With Japan NEC Relay

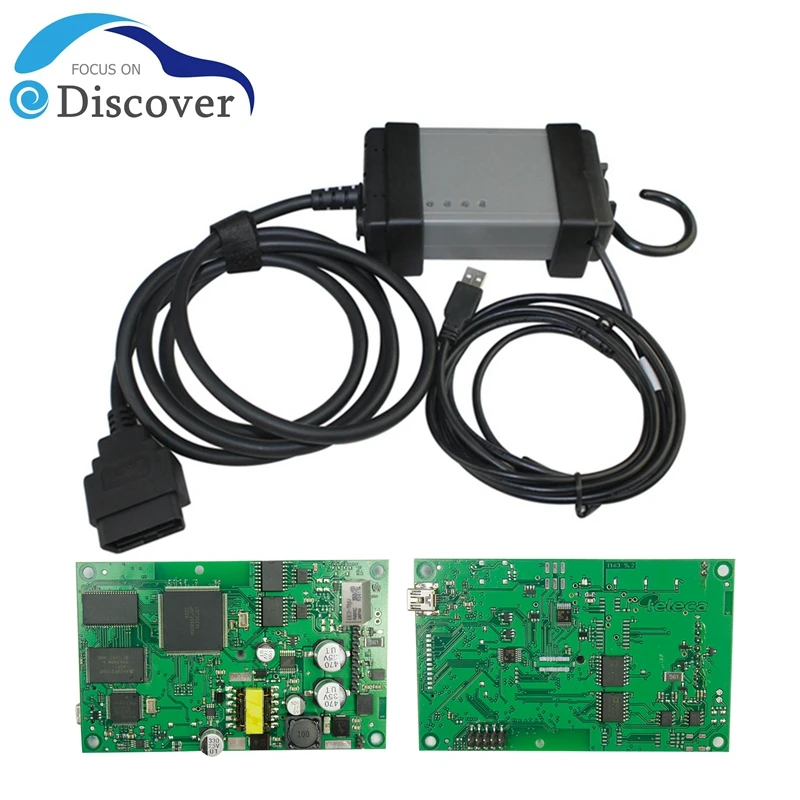

Full Chip 2014D 2015A OBD2 Diagnostic Tool EWD 2014D with Green PCB Support Multi-Language

Buy multiple products, more favorable, please click:

5PCS/LOT:

https://www.aliexpress.com/item/1005003625785934.html

10PCS/LOT:

https://www.aliexpress.com/item/1005003625851746.html

Please note that there are 4 different options in the product link:

Optional 1:

2014D Full Chip version (old version, the price is more expensive)

Optional 2:

2015A USB DONGLE (Not included 2014D hardware !!)

Optional 3:

2014D Full Chip version+ 2015A usb dongle

Optional 4:

2014D Standard Hardware PCB Version (price discount, needs activation)

Please check the option name and photo carefully before buying, choose the version you need, thank you

Description:

Diagnostic Communication Equipment,it is the newest For car scanner which is used together with all-in-one to communicate with the vehicle. Diagnosing and troubleshooting the vehicle .

2014D has an integrated CARB cable, which is connected to the vehicle's diagnostic socket. When connecting to the vehicle, it is powered as long as the battery is charged.

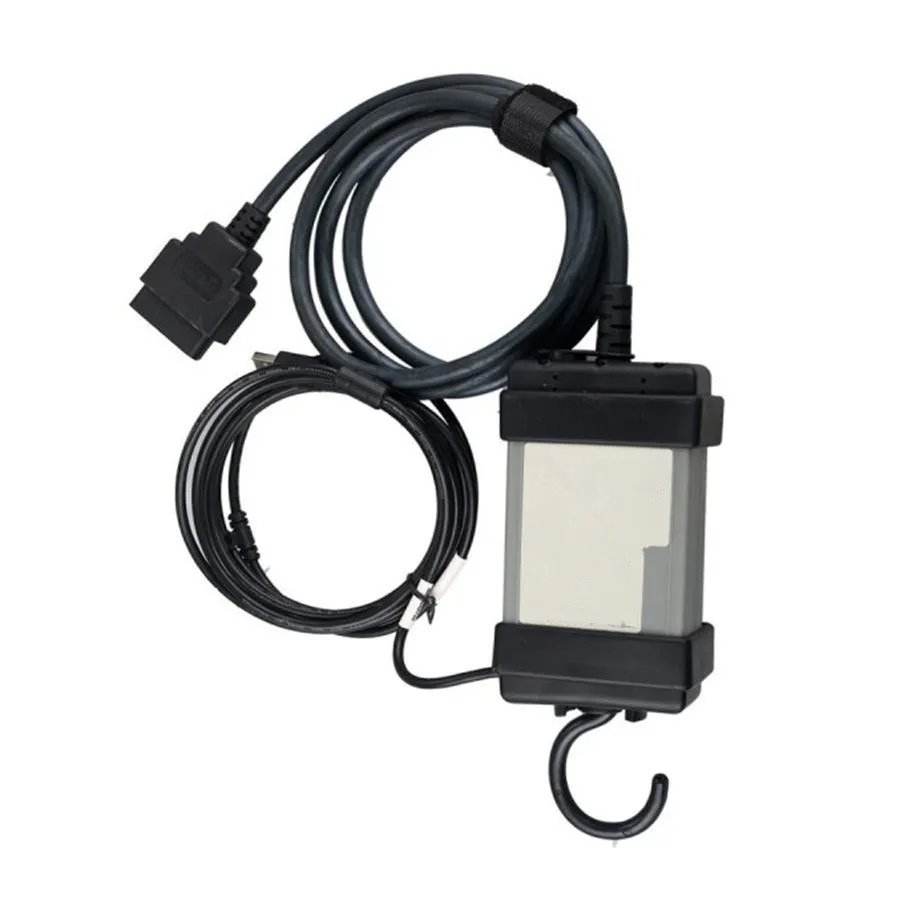

2014D has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.

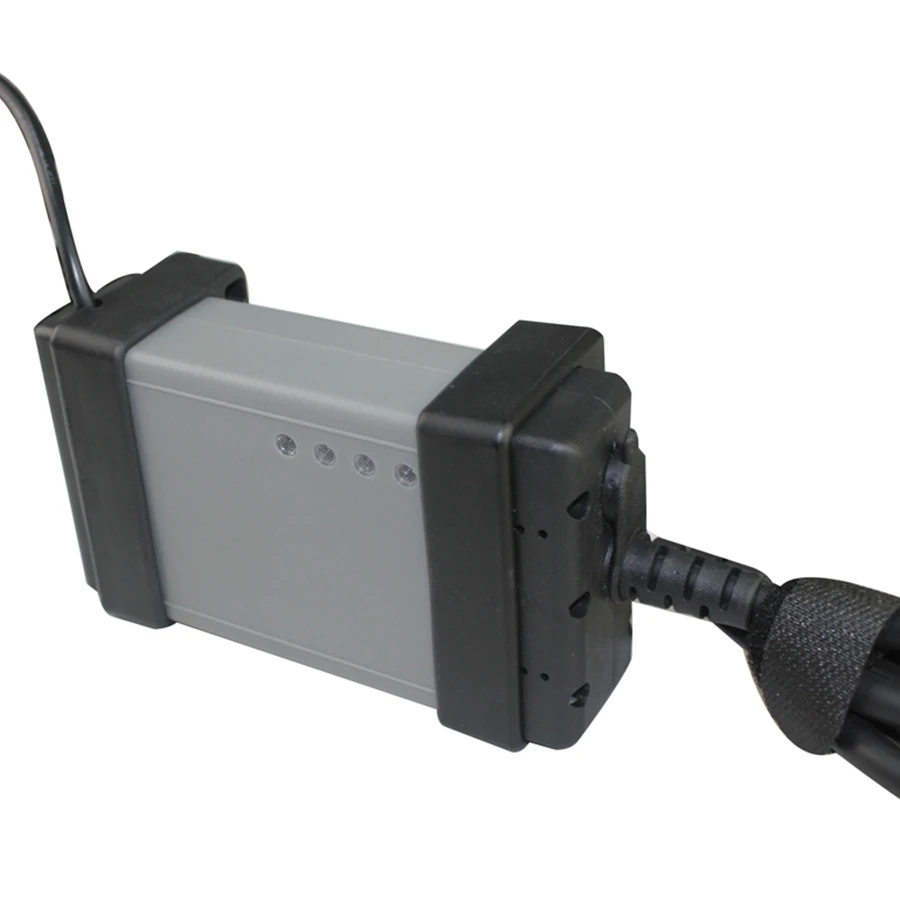

2014D is equipped with four status LEDs that indicate the status of the , the USB and Bluetooth communication and the interface to the car.

At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the 2014D .

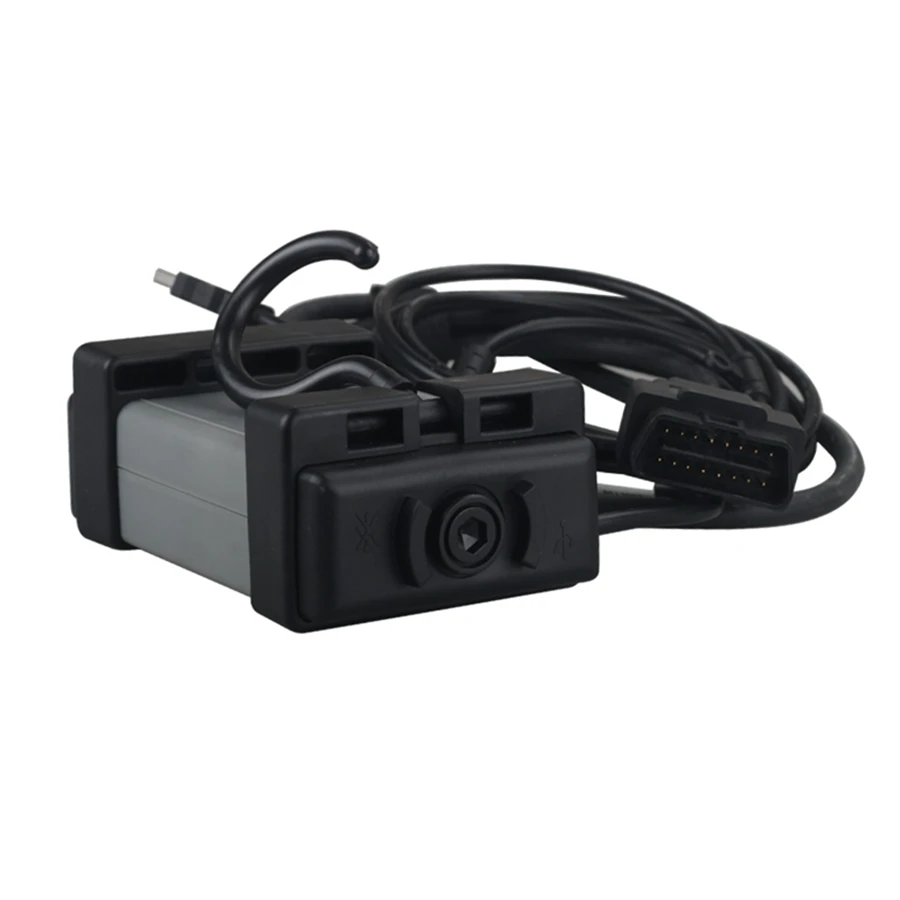

In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.

Top Reason to Get 2014:

Version: 2014D

Firmware: Full Chips

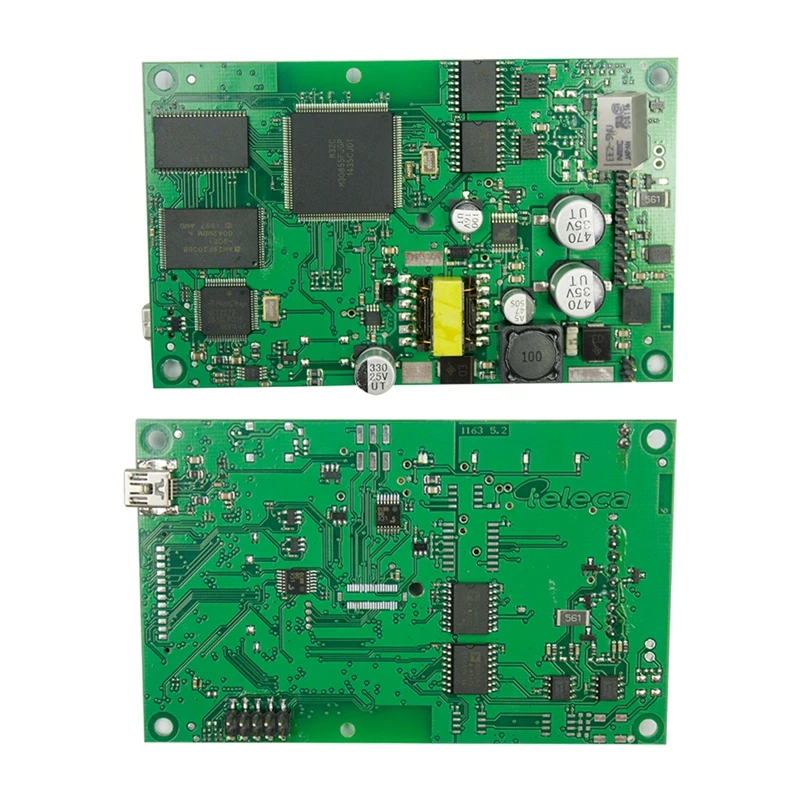

PCB Board: Green Color With NEC Japan Relay , M32CM30855FJGP Chip

Update Method: by Email

2014D Supported Language: English/Spanish/French/Janpanese/Korean/Portuguese/Russian/Swedish/Thailand/Chinese

Applicable Model: Support cars after 1999~2016 newly

Feature:Firmware Update&Self Test

Supports System: WIN7 Professional (32Bits is better)

Require Explorer:Internet Explorer 9 or above and NET. Framework 3.5

User Name: 1 or admin

All in one:

EWD Diagnostic Communication Equipment is used together with all-in-one to communicate with the vehicle. (WE NO SELL BAD which resvised from J2534, because that do NOT supports full functions and firmware update.)

2015A Supports Language:

English,Chinese

2014D Supported Language:

English/Spanish/French/Janpanese/Korean/Portuguese/Russian/Swedish/Thailand/Chinese

Note:

It connect by USB, Doesn't Support Bluetooth.

No Supports new XC90 Doip

Newest 2014D version must install IE 9, then you can use it .

Please close the anti-virus programmer before install and disconnect internet .

It can not support for car models before 1999 year(no ECU system).

It can not be update online directly, or device will damged borken

Must install on C Drive with 40G spare space.

Does not supports XP and WIN 7 Home System.

Remember to run the file EnableIEHostingx86.reg for 32bit systems or EnableIEHostingx64.reg for 64 bit system. The files can be found in the folder INSTALL->Utils. Just run these file as administrator So " Communication Tool " ( CONFIGURATION ) will be OK .

Function:

1.Administration - General information, design and function

2.Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)

3.service and maintenance

4.Engine with mounting and equipment

5.Electrical system

6.Power transmission

7.Brakes

8.Suspension and steering

9.Springs, shock absorbers and wheels

10.Body and interior - among other things, diagnostics, design and function, repair and spare part information

11.Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.

Features of diagnostic:

Fault-tracing

General diagnostics and tests

Diagnostic trouble codes and associated procedures

Symptom-related diagnostic procedures

Wiring diagrams

Repair

General safety information

General information

Component location

Service programs

Removal, replacement and installation

Overhaul instructions

Cleaning, Inspection and Adjustment

Installation instructions, accessories

Parts catalogue

Product specification :

Visual identification

Design and function

Specifications, electrical/electronic

Specifications, mechanical

Mechanical schematics and diagrams

Gas, Vacuum and Fluids Schematics/Diagrams

Bulletins：

General Information Bulletins

Manual Update Bulletins

Product Fix/Special Tool Bulletins

Recall/Service Campaign Bulletins

Emission Recall Campaign Bulletins

Service Manager Bulletins

Parts/Accessories Bulletins

WB, mechanical tools

Requirement on Computer:

It must be windows WIN 7 Professional

It need to be Internet Explorer 9

Computer memory need over 3GRAM

C:// must have 40GB space

must install on C://

It must be NTFS format

Installation Tips:

1. Run the -ROM ,<\Install\\_header\Main\setup.exe>,Choose the languages:[EN-GB...], install it to list, till all installations finished ,then restart the computer.

2. After restarted, once the service icon(The bottom of the right corner) is available(Status: Running) , and choose the below cracked executing documents [2014D_patch.EXE], install it to list, then retart the computer.

3. User Name: 1 or admin

Note :

1.Do not try to update the 2014D unit with when it is running. otherwise you will get the Firmware status Red light.

when the yellow light is on, pls do not plug off the USB cable and diagnostic cable, or the 2014D will lose program.

2.After done self-test, pls click disconnect, then go to all in one, or u will get the 2014D lose program.

Our 2014D products are available in 2 different PCB board configurations:

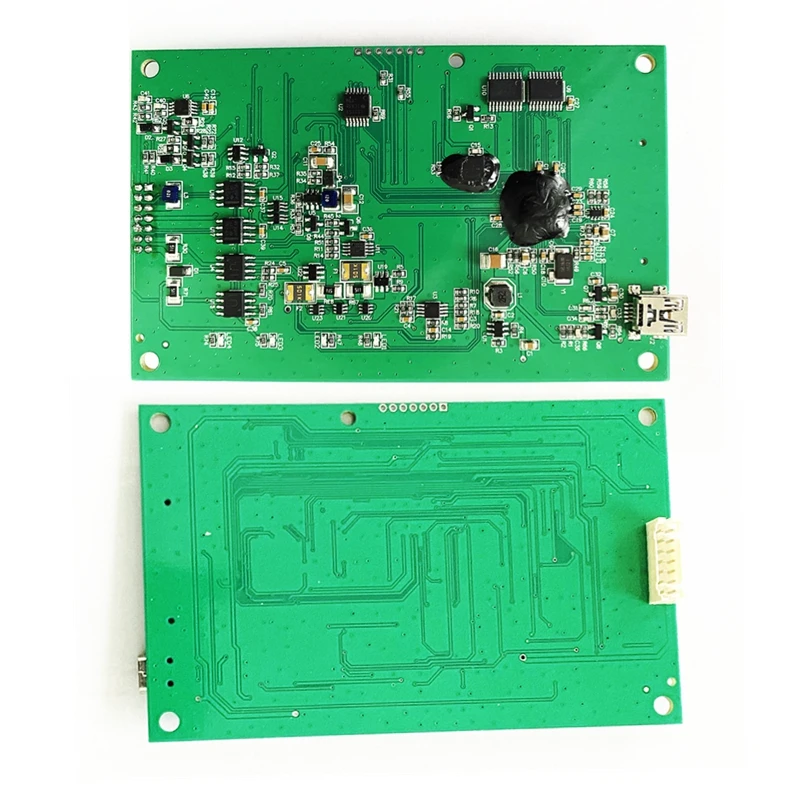

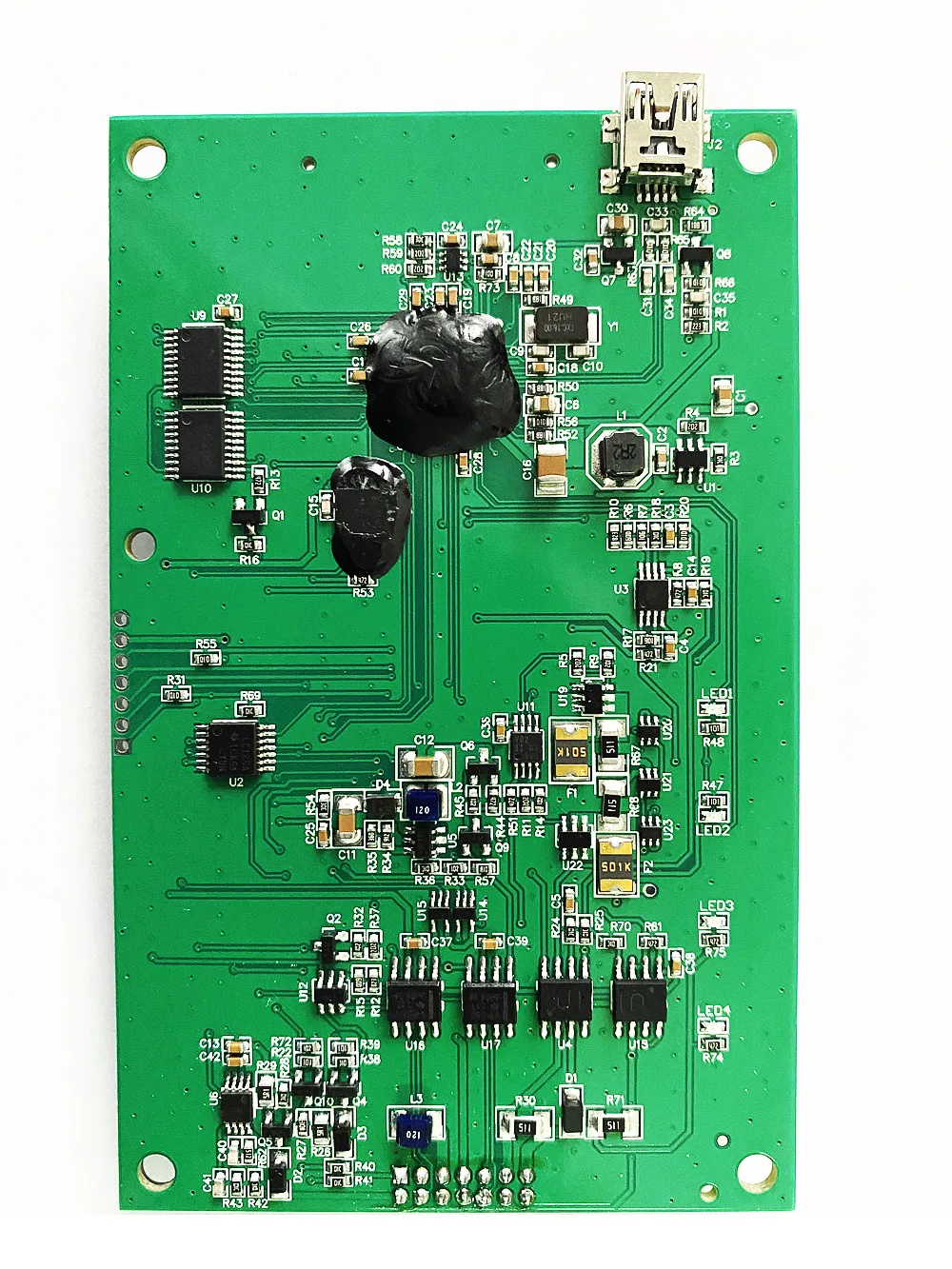

1.Standard Hardware PCB Board Display:

Please note, this type comes with default 2015A together,after runs please send back ID to activate. (We have fully tested and works perfectly .)

For real test 2015 year car model,even test parts of 2016/2017 etc... If buyer interest,we can send you real test photos ,please contact us via message.

Becasue of 1:1 green full chips shortage and increased high price .This one is cheaper price Models,but function compatible very well .Not like others use VX J2534 protocols driver types . Please do not worry .

2.Full Chip old version：
