Brand Name: | Gadinan |
---|---|
Type: | ip camera |
Supported Operating Systems: | Windows 10 |
Supported Operating Systems: | Windows Vista |
Supported Operating Systems: | Windows 8 |
Supported Operating Systems: | Windows 7 |
Supported Operating Systems: | Mac OS |
Supported Operating Systems: | windows xp |
High Definition: | 1080P(Full-HD) |
Lens (mm): | 8mm |
Lens (mm): | 6mm |
Lens (mm): | 3.6mm |
Lens (mm): | 2.8mm |

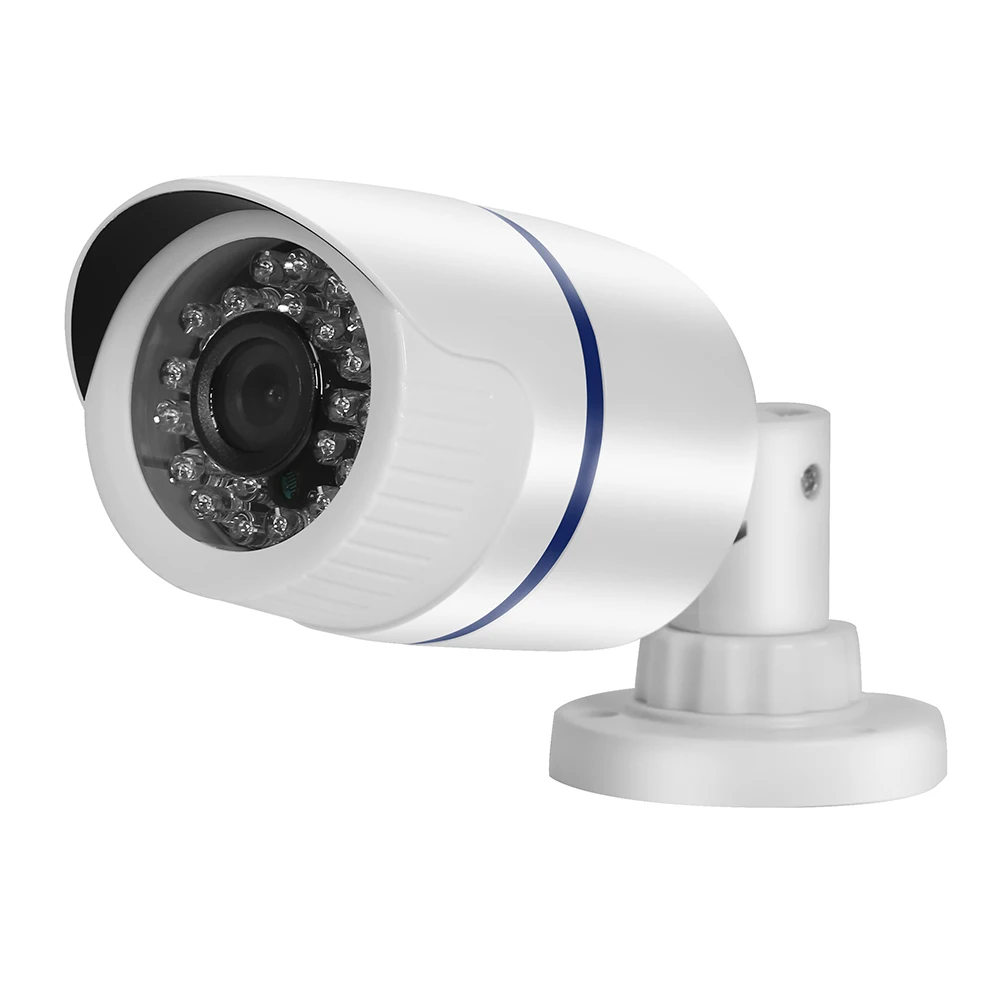

Style: | Bullet Camera |
Certification: | CE |
Connectivity: | IP/Network Wired |
Smart home platform: | Other |
Origin: | CN(Origin) |
Installation: | Side |
Wall Bracket: | Side |
Power Consumption(W): | 3W |
Color: | white |
Minimum Illumination(Lux): | 0.01LUX |
Sensor: | CMOS |

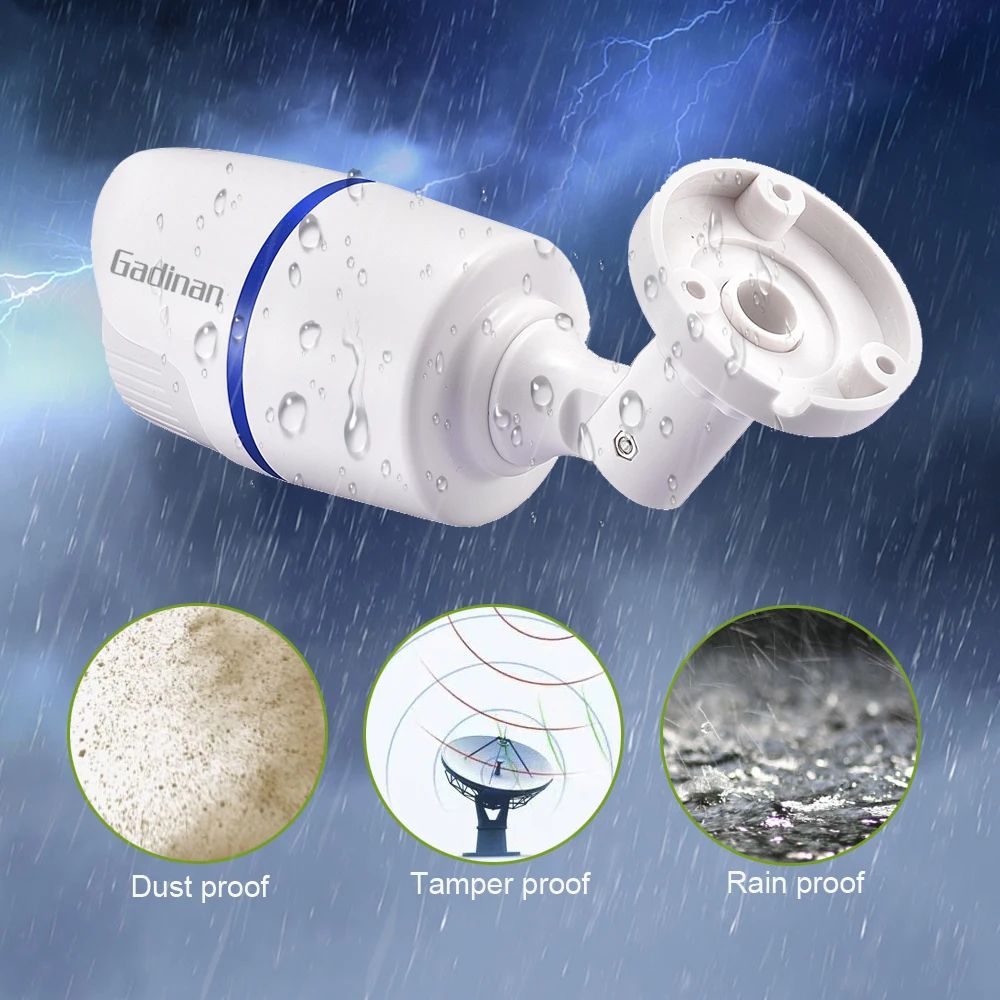

Special Features: | Waterproof / Weatherproof |
Storage: | None |
Alarm Action: | FTP Photo |
Alarm Action: | Email Photo |
Video Compression Format: | H.264 |
Video Compression Format: | H.265 |

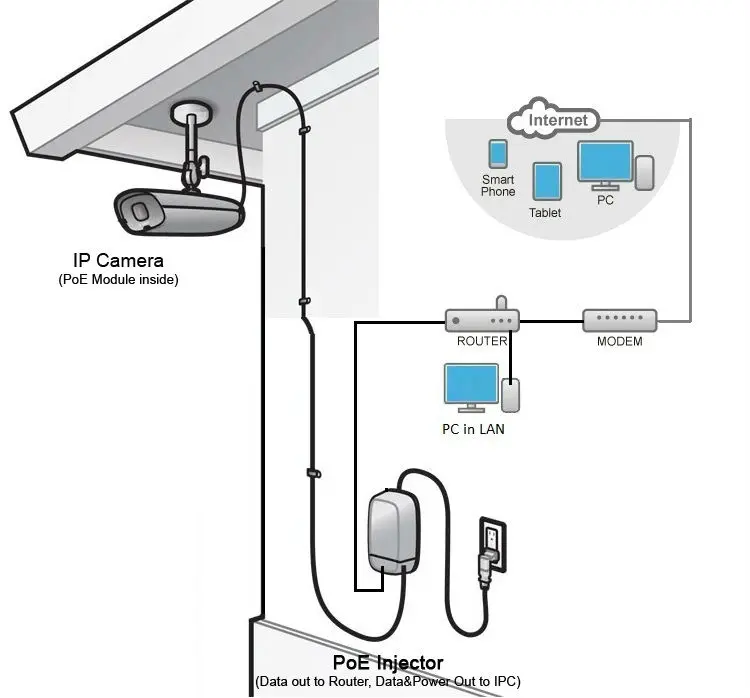

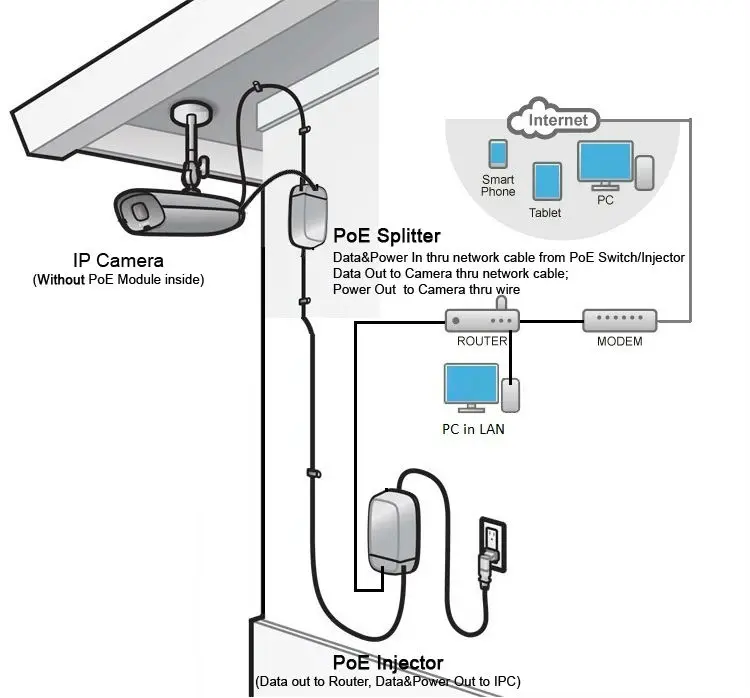

Power Supply: | DC 12V or 48V PoE |
IR Distance(m): | 5-15M |
is_customized: | No |
Power Supply(V): | DC 12V or 48V PoE |
Model Number: | 201701261758 |
Viewing Angle : | 85° |
Technology: | Infrared |
Dimensions (L x W x D)(mm): | 17.8*5.5cm |
Supported Mobile Systems: | iOS |
Supported Mobile Systems: | Android |

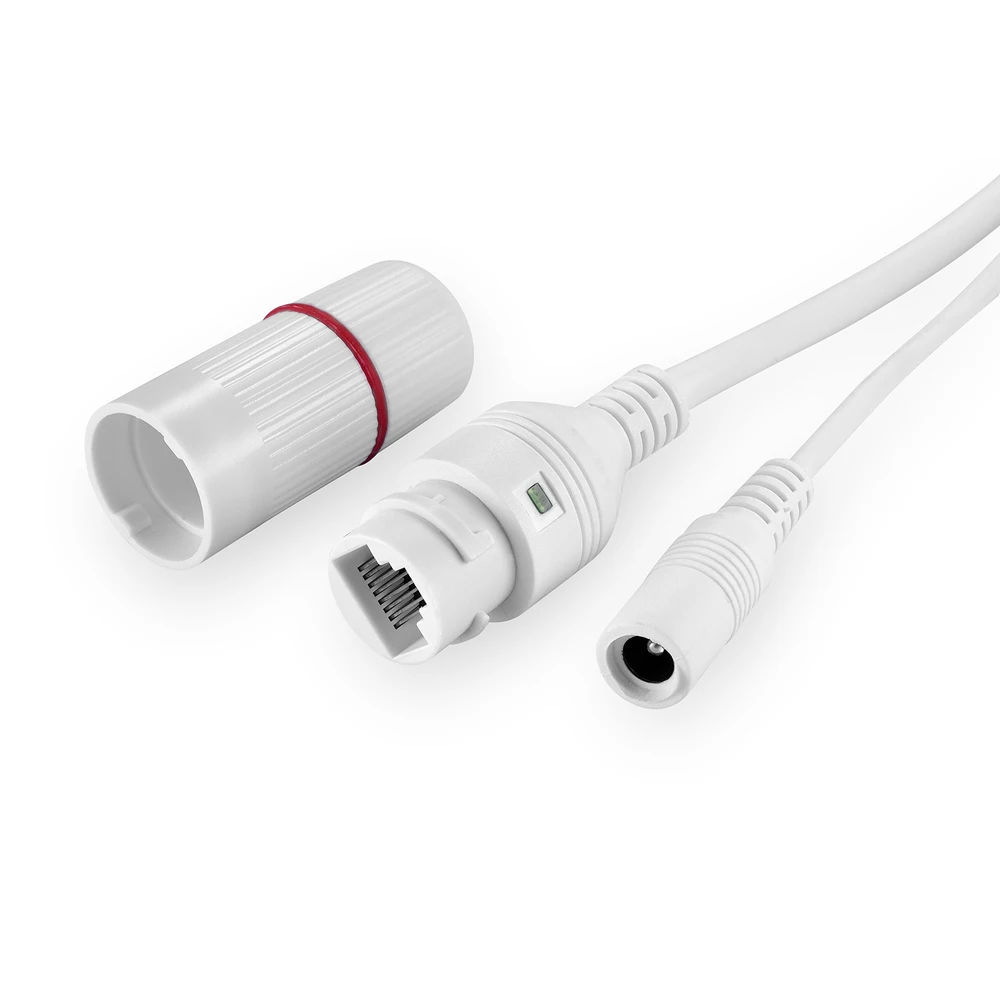

Network Interface: | RJ-45 10/100Mb Ethernet Slot |
Audio Output: | no |
Motion Detection & Alarm Alert
When detect motion,the camera can push alarm message to APP or send photo to your email.Then you can check the details timely.
Suitable for all kinds of environments
Monitor Day&Night
Multi Platform Access
Support Windowns PC,iPhone,Android mobile access
H.265 is a new generation video compression standard, a successor to H.264, also known as High Efficiency Video Coding (HEVC)
Why we need H.265 now ?
With the explosive increasing of camera resolution from D1 to 720p,1080p, then 4K in the future , the H.264 compression capacity is far left behind the market need .
How to transfer and store UHD images effectively without increasing storage device and internet expenses ? People do need a more efficient compression format . Then H.265 comes just at the right time.
H.265 advantages
1. It is approximate 2 times as effective as H.264.
2. Reduces file size up to 50% with the same quality.
3. Supports resolution up to 7680 × 4320 (8K).
4. Reduces video noise and increases dynamic range.
5. Extend far greater video quality experience compared to H.264
Features:
1. DSP XM535AI+1/2.7'' SC3235 CMOS Image sensors;
2. H.265AI(compatible with H.265/H.264),support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;
3. Color 0.1Lux; B/W 0.01Lux;
4. 1 RJ45 Ethernet interface, 10/100M automatically adapting;
5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;
6. Lens: 2.8/mm3.6mm/6mm/8mm;

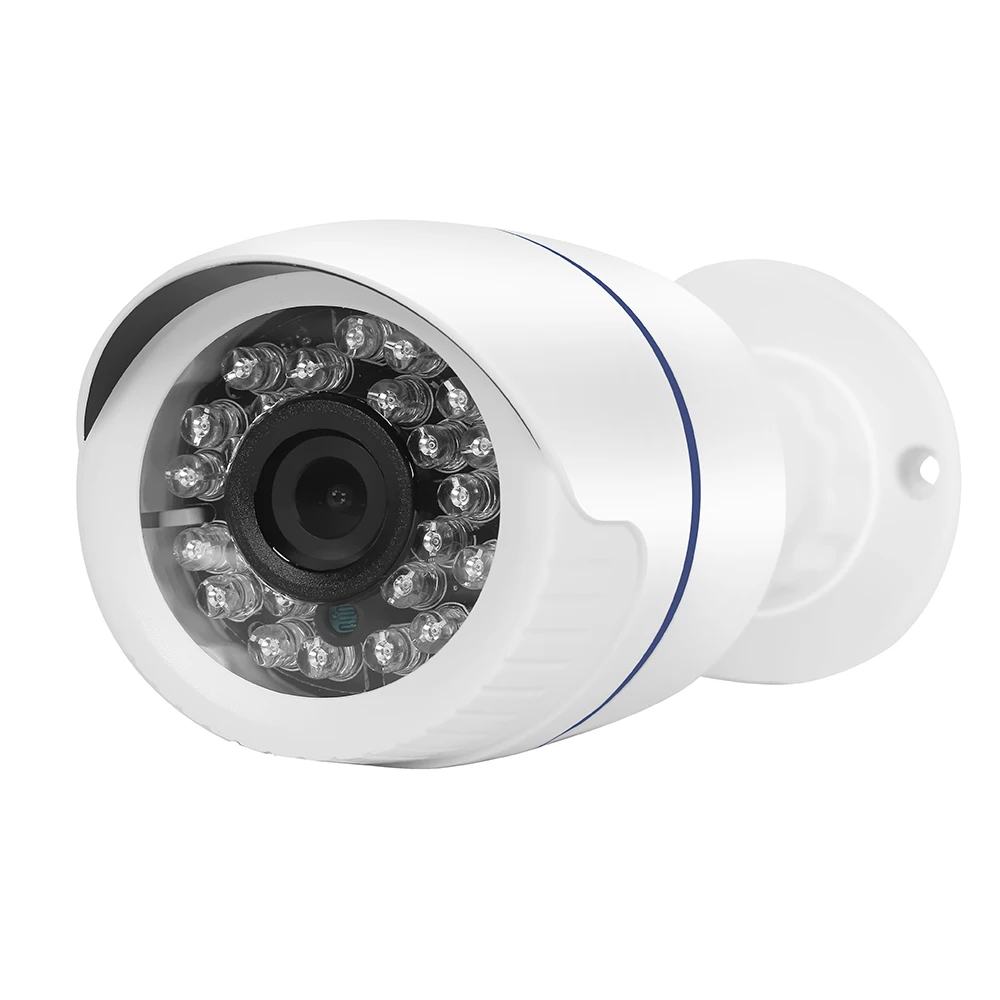

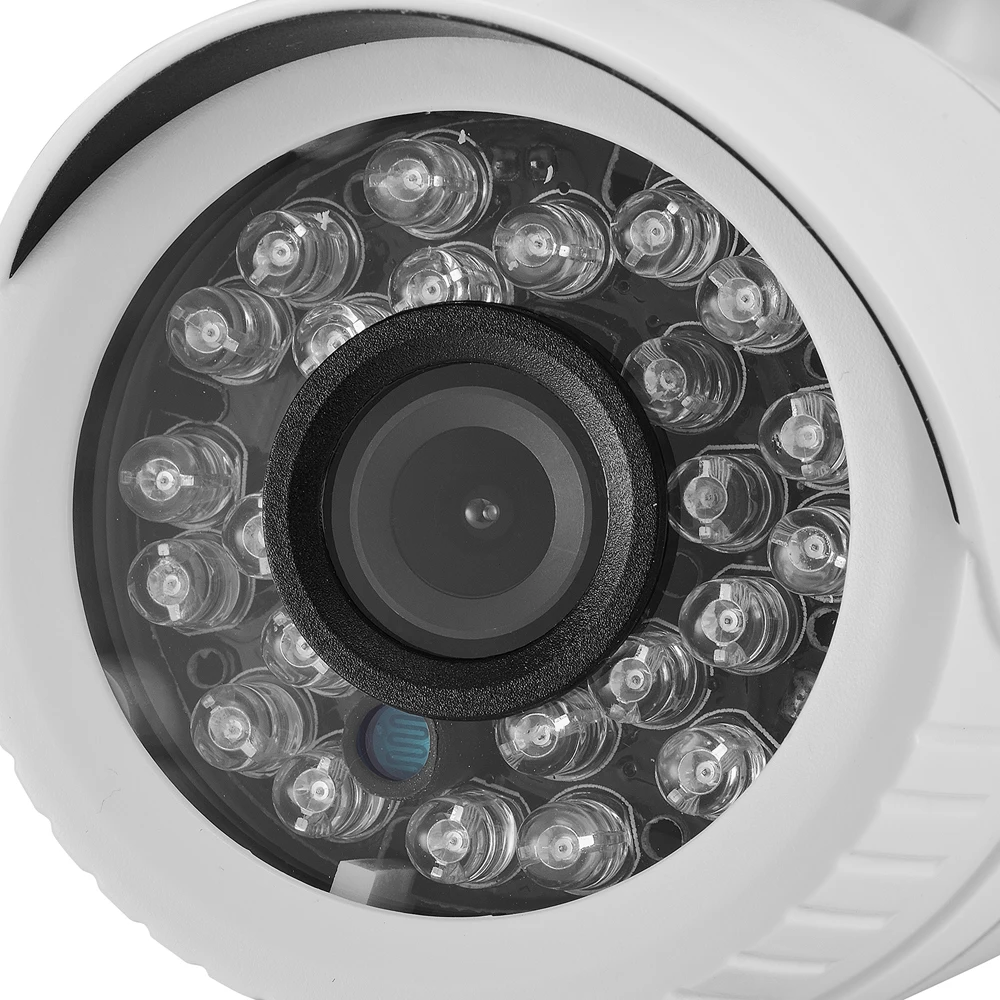

7. 24PCS high quality IR led light;
8. Support onvlf, can work with third-part NVR.
9. Mobile phone viewing (iOS,android) depends on NVR APP.
Specifications:
Model
H.265/H.264 3MP
System structure
Embedded RTOS,dual-core 32bit DSP(XM535AI),pure hard compression ,watch dog
Sensor
2.0M 1/2.7" SC2235P CMOS sensor ,color 0.1Lux’F1.2,black/white 0.01Lux’F1.2
Video compression
H.265AI/H.265+,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image output
Main stream: 2304*1296@25fps,1920*1080@25fps,1280*720@25fps; sub-stream: 704*576@25fps;
Noise reduction
Support 2D/3D
lens
2.8mm/3.6mm/6mm/8mm optional
Storage
Via PC/Mobile Phone/NVR With HDD
Infrared light
24pcs IR leds
Wide dynamic
Support digital
Network interface
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Singal interface
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
Auto iris
No
SD Card
Unsupport
Reliability
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing)
Other function
live video transmission,motion detect and IO alarm,playback/download, and center
reminder and image linkage,support JPEG capture;united remote client monitoring sofaware、MYEYE;perfect SDK;
ONVLF
Support
Mobile monitoring
Support multiple mobile monitoring(iOS,Android)
Power
DC12V/2A or 48V POE input(optional), power consumption:≤3W
Dimension
17.8*5.8cm
Housing material
ABS plastic
Package included:
1 x IP Camera
(Does not include Power Adapter,if you choose "
DC 12V with 12V 2A",default EU plug
)
Note: "DC 12V" Please use
12V 2A
power supply, packaging does not include the power supply.
We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.
1,View via PC
Install the CMS(CMS for Windows,VMS for Mac)
( Software in the CD ,or can download online,need contact us )
You can select the language(
18 languages
)
How to watch via CMS:
How to find "Serial ID" (very important)
2,View via web:
Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)
3,View via Phone(iOS and Android):
Find "XMEye"in Apple APP or Android Market
Horizontal screen:
