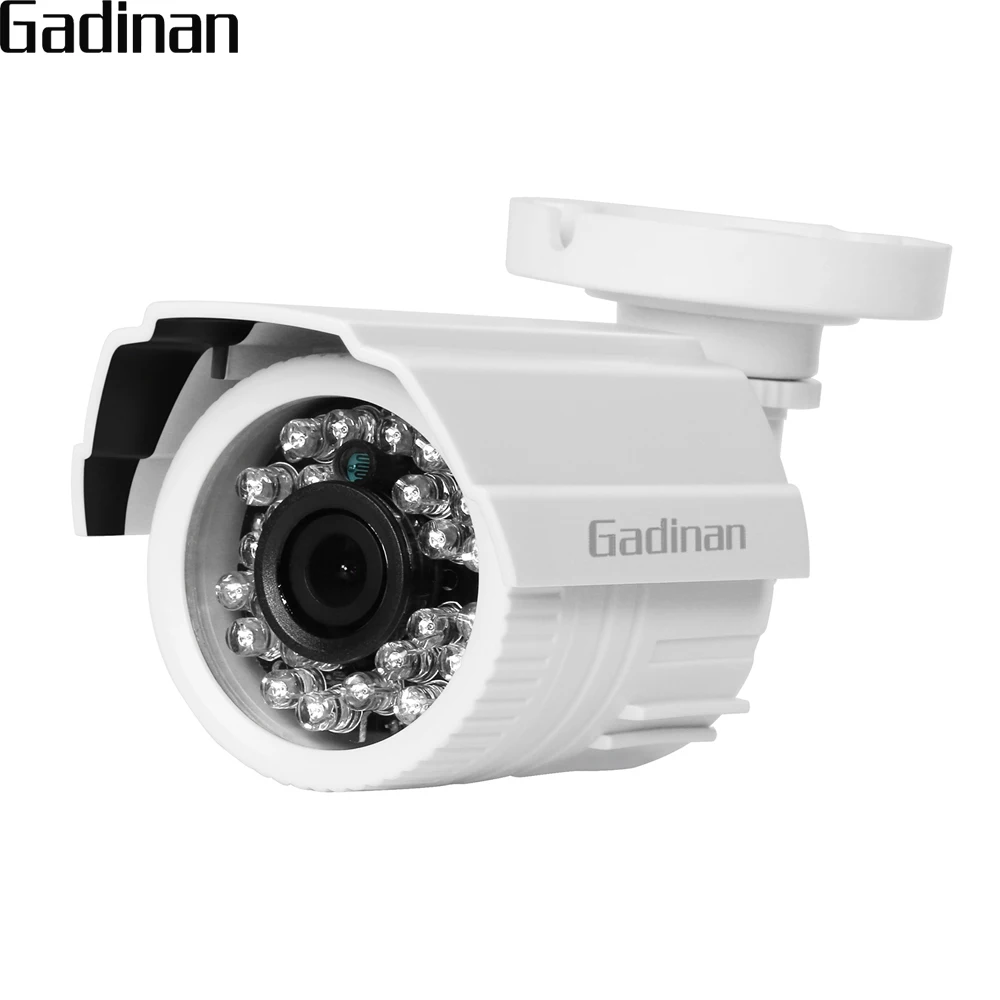

GADINAN AHD Bullet Camera 1MP 1.3MP 2MP 3MP 4MP Full HD CCTV Outdoor Security IR Cut Night Vision With 24PCS IR LED ABS Plastic best outdoor security cameras Surveillance Items

Lens (mm):	6mm
Lens (mm):	3.6mm
High Definition:	4.0 Megapixels
IR Distance(m):	5-20M
Type:	AHD Camera
Brand Name:	Gadinan
Technology:	Infrared
Network Interface:	None
Power Consumption(W):	3W
Power Supply(V):	12V
Supported Operating Systems:	No
Installation:	Side
Dimensions (L x W x D)(mm):	15.5*6cm
Power Supply:	Normal
Minimum Illumination(Lux):	0.001Lux
Special Features:	Waterproof / Weatherproof
Connectivity:	Closed System/CCTV Wired
Sensor:	CMOS
Model Number:	201707051445
is_customized:	No
Wall Bracket:	Side
Style:	Dome Camera
Viewing Angle :	85°
Storage:	None
Video Compression Format:	H.264
Color:	white
Audio Output:	no
Feature:	Analog High Definition
IR-CUT:	Auto Switch
Power Supply:	DC 12V
Ships From:	Shenzhen,China
Viewing Angle (Degree):	80-90 degree
Housing material:	ABS plastic

GADINAN AHD Camera 2MP Panoramic 1.7mm Lens 360 Degree Fisheye Camera AHDH 1080P Full HD CCTV Camera

USD 21.05/piece

GADINAN 2MP AHD Camera AHDH 1080P 3.6mm Full HD CCTV Surveillance Security Night Vision Indoor Dome Camera

USD 12.86-14.62/piece

GADINAN AHD 5MP 2560*1920 SC5239 Sensor Metal Outdoor AHD Camera Security Surveillance Waterproof 6pcs Array IR Leds CCTV Cam

USD 24.39/piece

AHD 720P=1.0MP,AHD 960P=1.3MP(Still show 720p in DVR)

Description

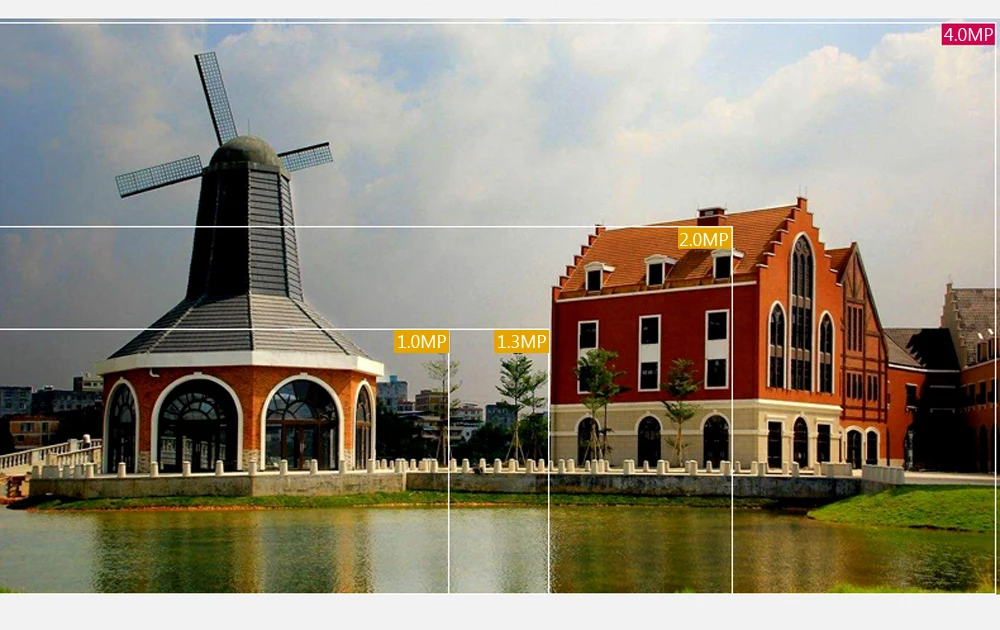

1. 1.0MP/1.3MP=720P;2MP=1080P;

    3.0MP High Resolution :

PAL/NTSC : 2048*1536;

4.0MP High Resolution :

PAL/NTSC : 2560*1440

2. 3.6mm/6mm HD lens optional

3. 1MP:1/4 inch H42 sensor;1.3MP,1/3 inch H81 sensor;2MP:1/2.7 inch F22 sensor;

    3MP:

1/3 inch SC3035 sensor;

4MP:

1/3 inch OV4689 sensor;

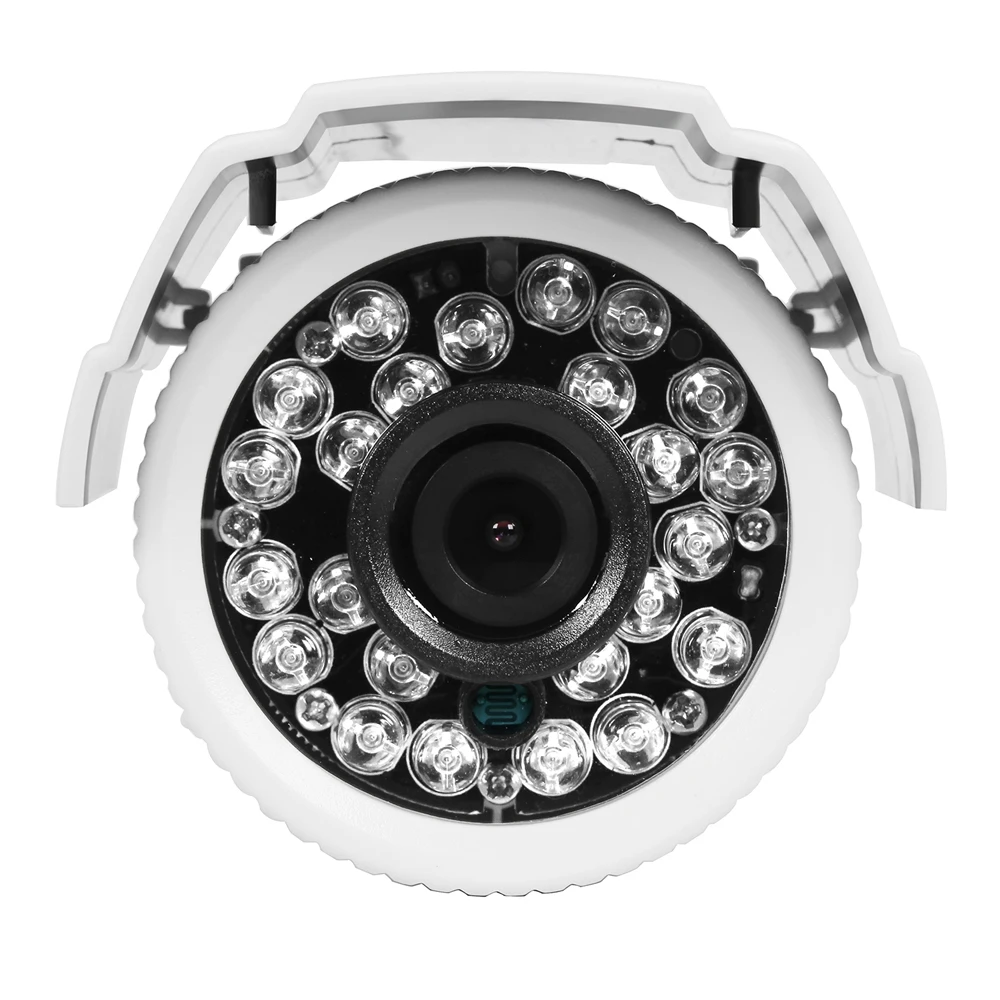

4. 24pcs IR led light , 5-20M Max IR distance

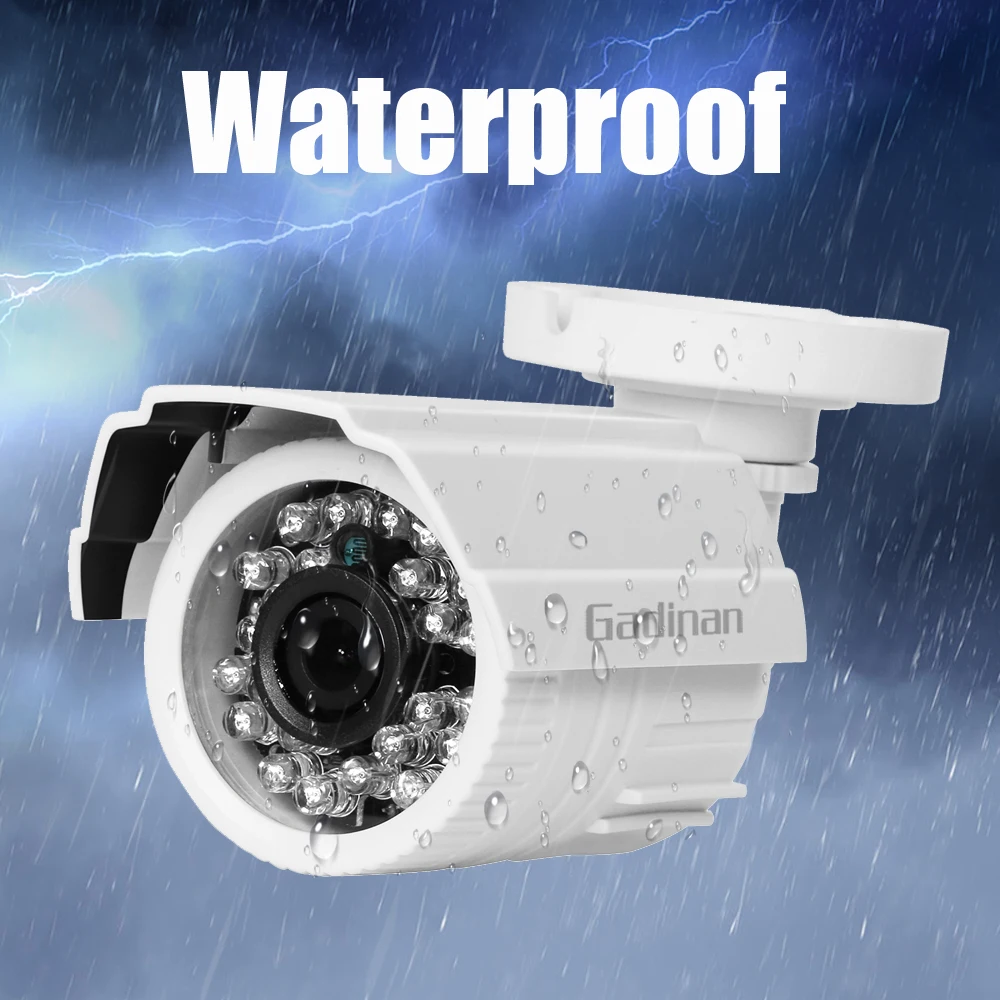

5. IP66 waterproof

6. ABS plastic housing

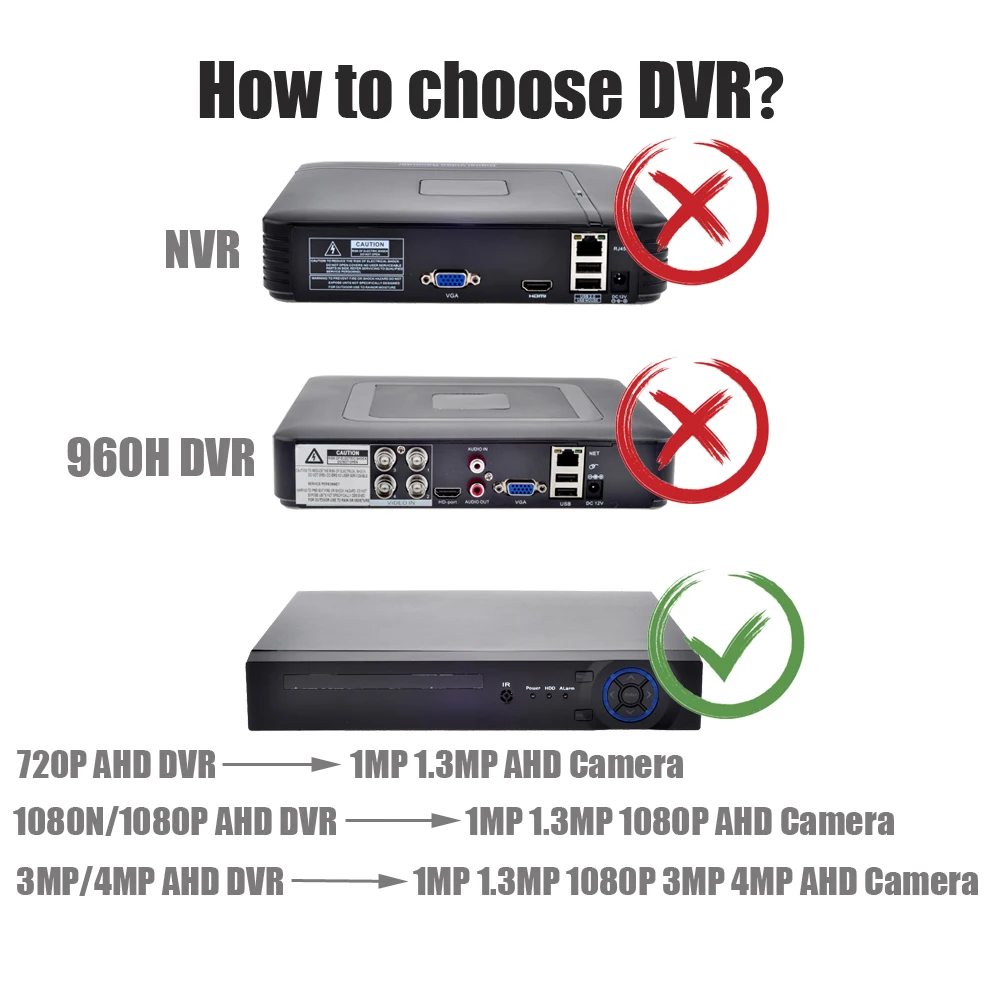

AHD DVR can be backward compatible, not upwards compatible

such as:

AHD 4MP DVR compatible with AHD 4MP 3MP 2MP 1.3MP 1MP camera

AHD 720P DVR is not compatible with AHD 2MP 3MP 4MP camera

It can not use conventional analog DVR, it can not be directly connected to the monitor.

AHD 1MP 1.3MP 2MP

Model

AHD 1.0MP (720P)

AHD 1.3MP(720P)

AHD 2.0MP(1080P)

Sensor

1/4 inch H42 sensor, PAL / NTSC: AHD-M clarity (TVL) is equivalent to the network HD 720P camera

1/3 inch H81 sensor, PAL / NTSC: AHD-M clarity (TVL) is equivalent to the network HD 720P camera

1/2.7 inch F22 sensor, PAL / NTSC: AHD-H clarity (TVL) is equivalent to the network HD 1080P camera

Minimum Illumination

Color:0. 1Lux,(F1.2,AGC ON),0Lux with IR

Color:0.01Lux,(F1.2,AGC ON),0Lux with IR

Color:0. 1Lux,(F1.2,AGC ON),0Lux with IR

Black & White:0.01Lux, (F1.2,AGC ON),0Lux with IR

Blank & White:0.001Lux, (F1.2,AGC ON),0Lux with IR

Black & White:0.01Lux, (F1.2,AGC ON), 0Lux with IR

Photosensitive Resistance

1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage

Shutter

1/50(1/60) seconds to 1/10,000 seconds

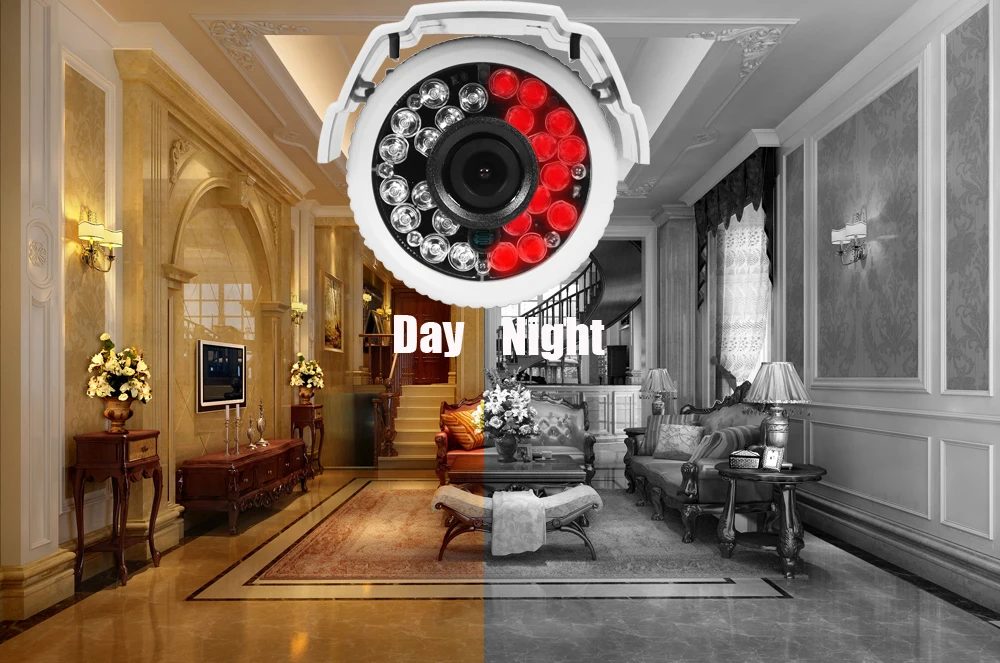

Day and Night Function

Support IR-CUT

Infrared light

24pcs IR leds

Lens

3.6mm/6mm optional

Synchronous Mode

inter-sync

Noise-signal Ratio

>58dB

Temperature and Humidity

- 10’C ~ 60’C, humidity is less than 90% (no condensation)

Power

DC12V±10%

Consumption

<5W

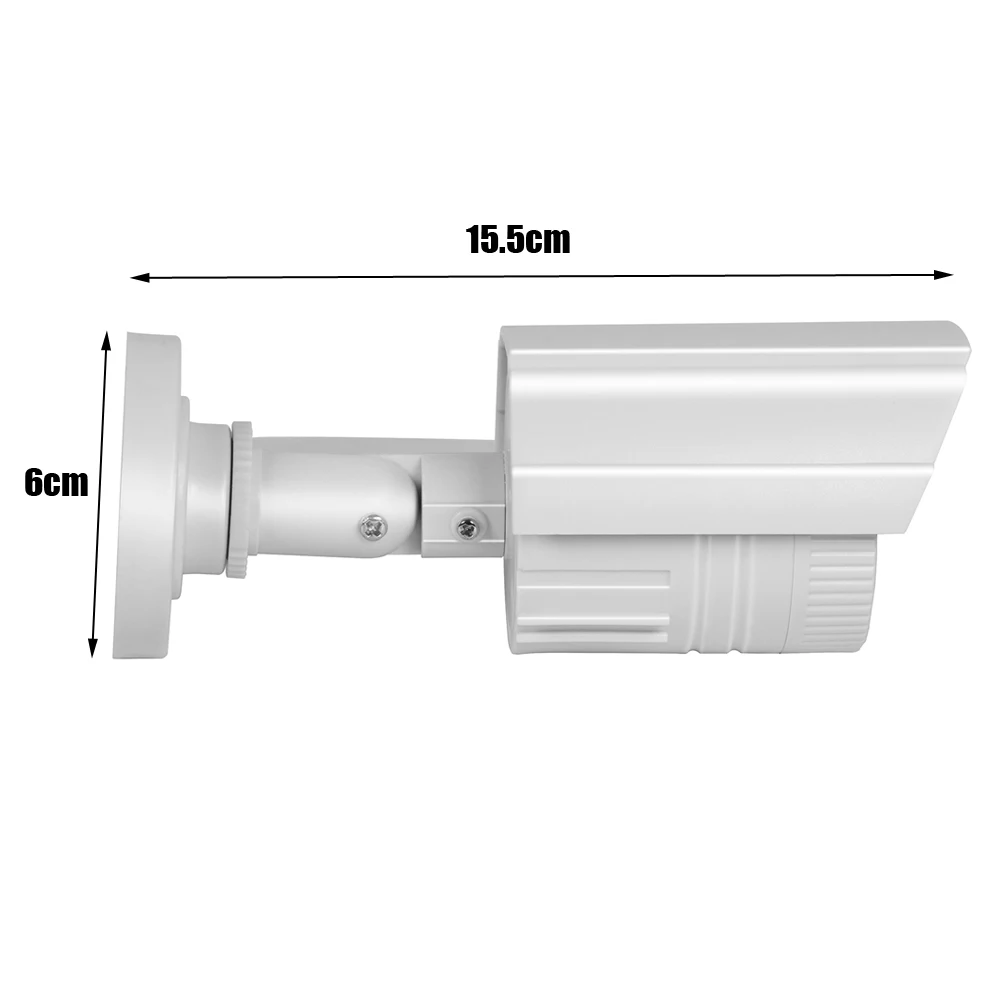

Dimension

15.5*6cm

Housing material

ABS plastic

Model

AHD 3MP

AHD-G 4.0MP

Sensor

1/3 inch SC3035 sensor

1/3 inch OV4689 sensor

Minimum Illumination

color：0. 01Lux@（F1.2，AGC ON），0Lux with IR

Black & White：0.001Lux@（F1.2，AGC ON），0Lux with IR

Video compression

H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable

Video Resolution

PAL/NTSC : 2048*1536

PAL/NTSC : 2560*1440

Shutter

1/50(1/60) seconds to 1/10,000 seconds

lens

3.6mm/6mm optional

Day and Night Function

With IR-CUT

Infrared light

24pcs IR Leds

Synchronous Mode

inter-sync

Noise-signal Ratio

>58dB

Temperature and Humidity

- 10’C ~ 60’C, humidity is less than 90% (no condensation)

Auto iris

No

Other function

IP66 Waterproof

Power

DC12V/2A input, power consumption:≤3W

Dimension

15.5*6cm

Housing material

ABS plastic

Packaging included:

1xAHD Camera

D

oes not include power supply

For reference only

Note:

MUST use with AHD DVR!!

AHD 4MP DVR can be compatible with all.

It is not compatible with conventional analog DVR,!!!
