Brand Name: | Gadinan |
---|---|
Type: | AHD Camera |
Supported Operating Systems: | No |
High Definition: | 5.0 Megapixels |
Lens (mm): | 6mm |
Lens (mm): | 8mm |
Lens (mm): | 3.6mm |
Style: | Bullet Camera |
Certification: | CE |
Connectivity: | Closed System/CCTV Wired |
Origin: | CN(Origin) |
Installation: | Ceiling |
Wall Bracket: | Side |
Power Consumption(W): | 3W |
Color: | white |
Minimum Illumination(Lux): | 0.01LUX |
Sensor: | CMOS |
Megapixels: | 5MP |
Sensor Brand: | SmartSens |
Special Features: | Waterproof / Weatherproof |
Storage: | None |
Video Compression Format: | H.264 |
Power Supply: | Normal |
TF Card: | None |
IR Distance(m): | 5-25M |
is_customized: | No |
Power Supply(V): | 12V |
Model Number: | 1903261558 |
Viewing Angle : | 75° |
Technology: | Infrared |
Dimensions (L x W x D)(mm): | 16.3*6.1cm |
Network Interface: | None |
Audio Output: | no |
Feature: | Analog High Definition |
IR-CUT: | Auto Switch |
Power Supply: | DC 12V |
Housing Material: | Metal |
Viewing Angle (Degree): | 75-85 degree |
AHD features:
The technology uses a progressive scan while forming a signal and division of brightness and color components of an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.
Long distance of a network laying without quality losses
Video data is transmitted without quality losses at the distance of 500 m.
Qualitative video without latencies
No signal latencies, indicative for IP-systems.
Description
1. High Resolution : 2MP:1920*1080P;5MP:2560*1920P

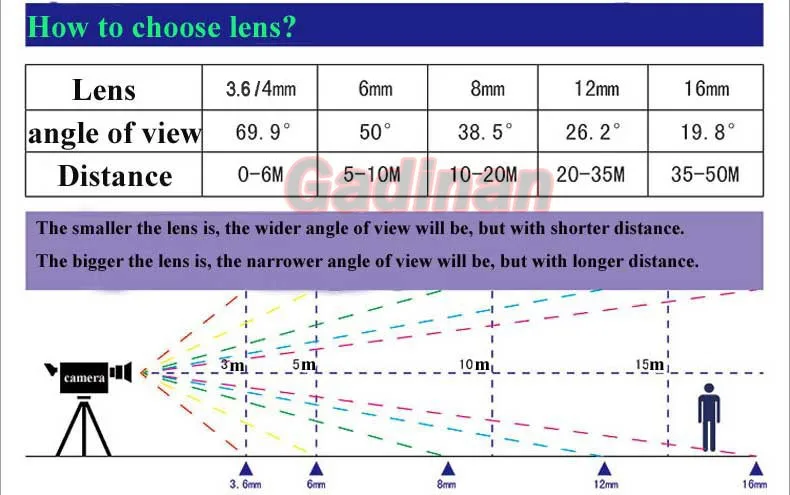

2. 3.6mm/6mm/8mm HD lens
3. Color 720P:1/4" H62 CMOS sensor;2MP:1/3'' F37 CMOS sensor;5MP:1/2.7'' SC5239 CMOS sensor
4. Metal housing,waterproof
5. 6pcs array led light , 5-25M Max IR distance
It must be connected via AHD 1080N/1080P DVR.
It can not use conventional analog DVR, it can not be directly connected to the monitor.
If you need an AHDH DVR,please
click this
!!!
Model
AHD bullet camera
Sensor
2MP:1/3'' F37 CMOS sensor;5MP:1/2.7'' SC5239 CMOS sensor
Minimum Illumination
Color:0. 1Lux,(F1.2,AGC ON),0Lux with IR
Black & White:0.01Lux,(F1.2,AGC ON),0Lux with IR
Photosensitive Resistance
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage
Shutter
1/50(1/60) seconds to 1/10,000 seconds
Day and Night Function
Support IR-CUT
Infrared light
6pcs array IR Leds
Lens
3.6mm/6mm/8mm optional
Synchronous Mode
inter-sync
Noise-signal Ratio
>58dB
Temperature and Humidity
- 10’C ~ 60’C, humidity is less than 90% (no condensation)
Power
DC12V±10%
Consumption
<5W
Dimension
16.3*6.1cm
Housing material
Metal
Packaging included:
1x CCTV Camera
Does not include power supply
Notes: Not include the OSD Menu
Note:
MUST use with 1080N/1080P DVR!!
It is not compatible with conventional analog DVR!!!
