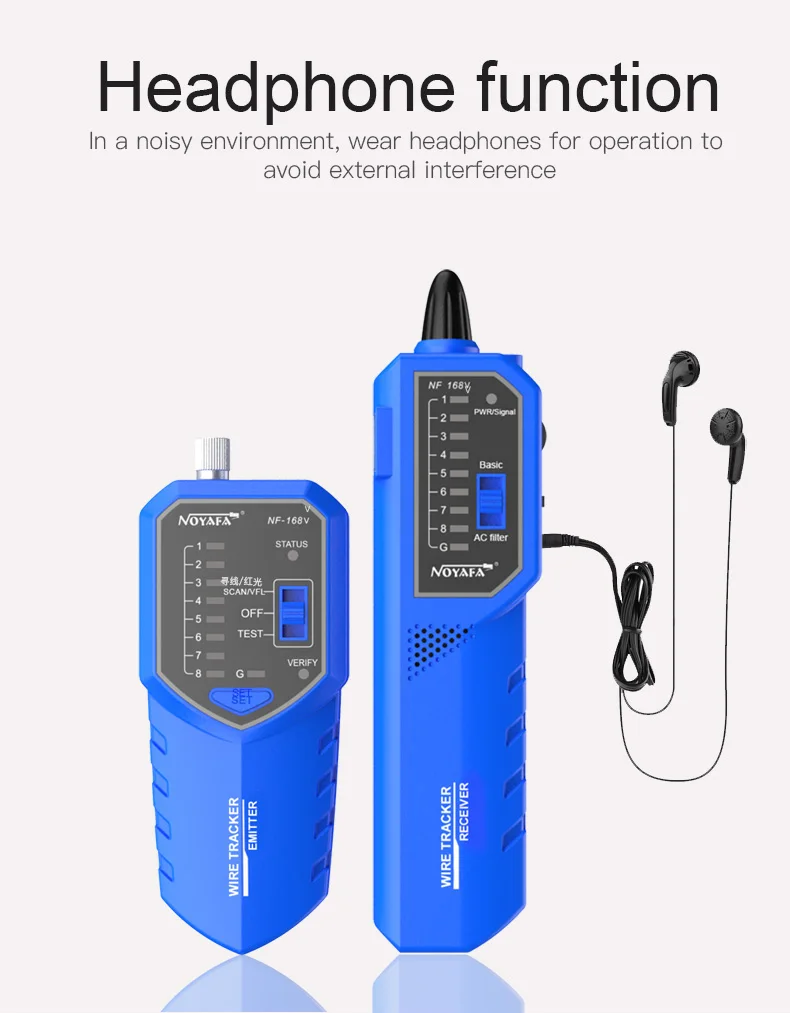

NOYAFA NF-168V Wire Tracker Telephone Network Lan Coax Cable Tester POE Tracer With Anti-Jamming Line Finder Visual Fault Locat network tone tracer Networking Tools
Code: TD-1005001732207285
5 orders
Free Shipping
$ 82.89
$ 121.27
Other people want this. 26 people have this in their carts right now.
| Brand Name: | NOYAFA |
|---|---|
| Certification: | CE |
| Origin: | CN(Origin) |
| Package: | Yes |
| Type: | Cable Tester |
| Model Number: | NF-168V |
| Main Function: | Test and Track Cables and VFL |
| Tracing type: | UTP/STP RJ45 (8P4C 8P8C), RJ11 |
| Other Function: | VFL |
| Power: | 9V Alkaline battery ( NOT INCLUDED) |
| Place of Origin: | Shenzhen.China |

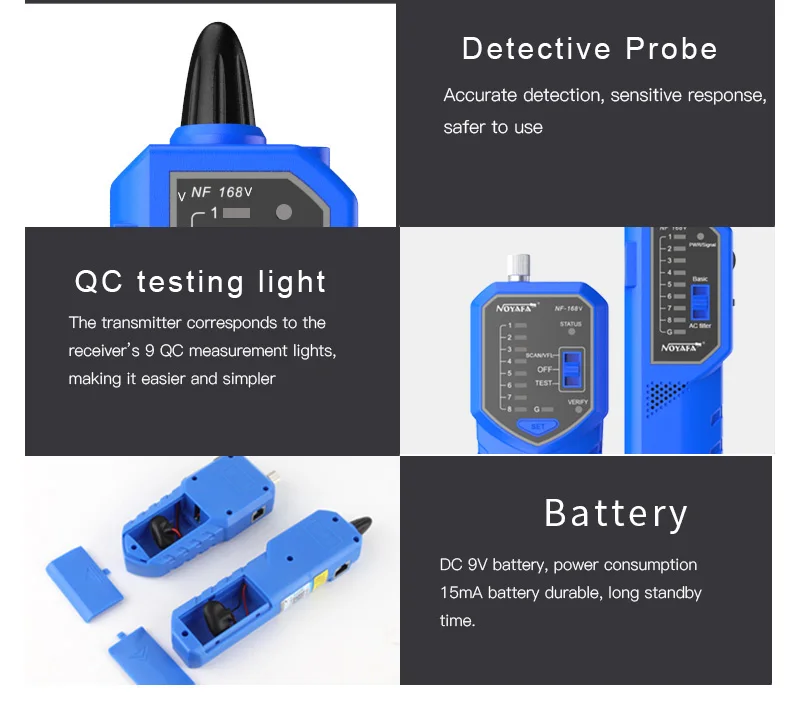

Features:
1. Quickly tracing & find Lan/telephone cable which is connected with switch or router.

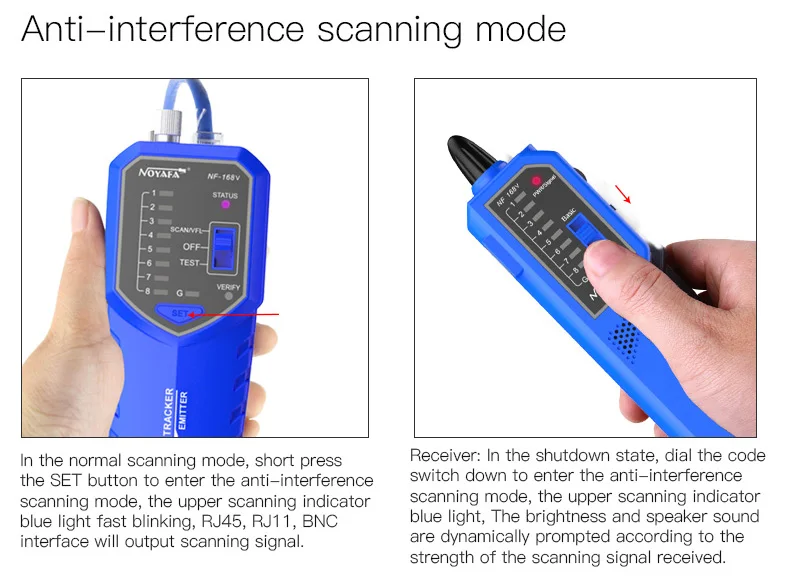

2. Two scan modes selectable: AC filter & Non AC filter.
3. Check wiremap of Lan cable with receiver directly.
4. Tone tracing breakge points of Lan cables and metal lines.

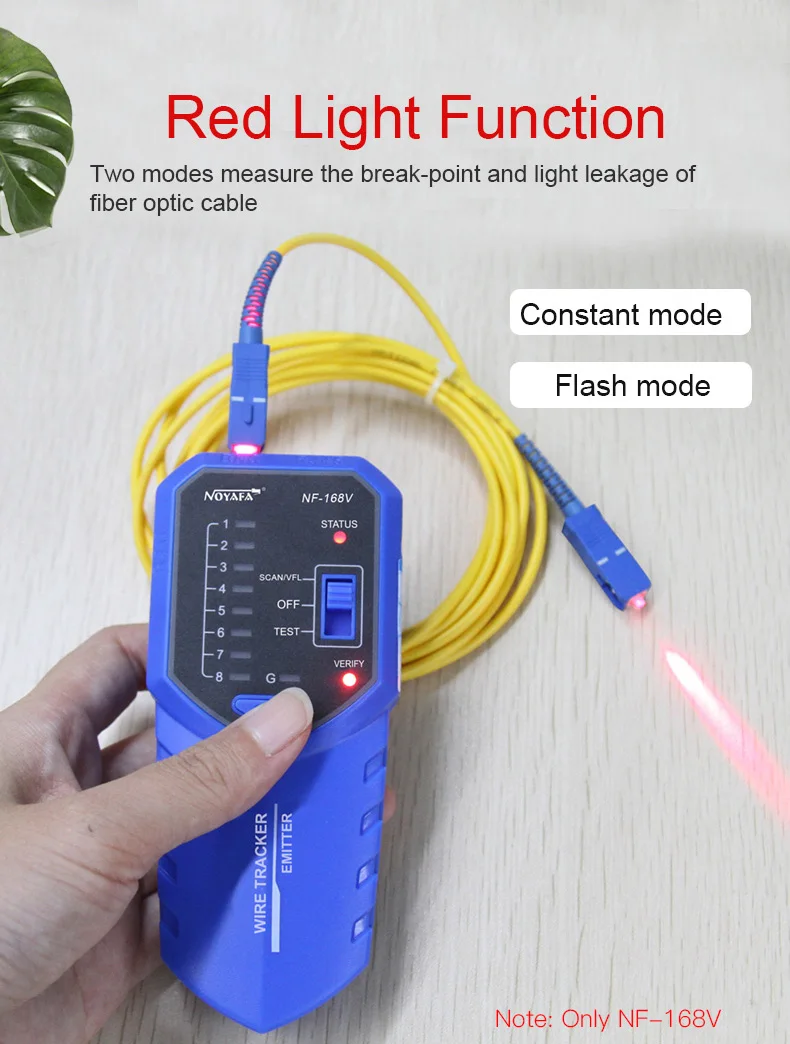

5. Check fibber breakage, winding, etc.
Technical indexes:
NF-168V Transmitter specifications
Tone frequency 200Hz
Max. distance of transmission More than 3 kilometers
Max. working current Less than 10mA
Tone mode 2 Tones, adjustable
Compatible connectors RJ11, RJ45，VFL
Max. signal voltage 8Vp-p
Function and faults light display Light display(Wiremap, tone,tracing)
Voltage protection DC 48V
Dimension(LxWxD) 13x4x2cm
NF-168V Receiver specifications
Frequency 200kHz
The Max. working current Less than 30mA
Earjack 1
Dimension(LxWxD) 10 x 5 x 2.3cm
NF-168S Transmitter specifications
Tone frequency 200Hz
Max. distance of transmission More than 3 kilometers
Max. working current Less than 10mA
Tone mode 2 Tones, adjustable
Compatible connectors RJ11, RJ45,BNC
Max. signal voltage 8Vp-p
Function and faults light display Light display(Wiremap, tone,tracing)
Voltage protection DC 48V
Dimension(LxWxD) 13x4x2cm
NF-168S Receiver specifications
Frequency 200kHz
The Max. working current Less than 30mA
Earjack 1pcs
Dimension(LxWxD) 10 x 5 x 2.3cm

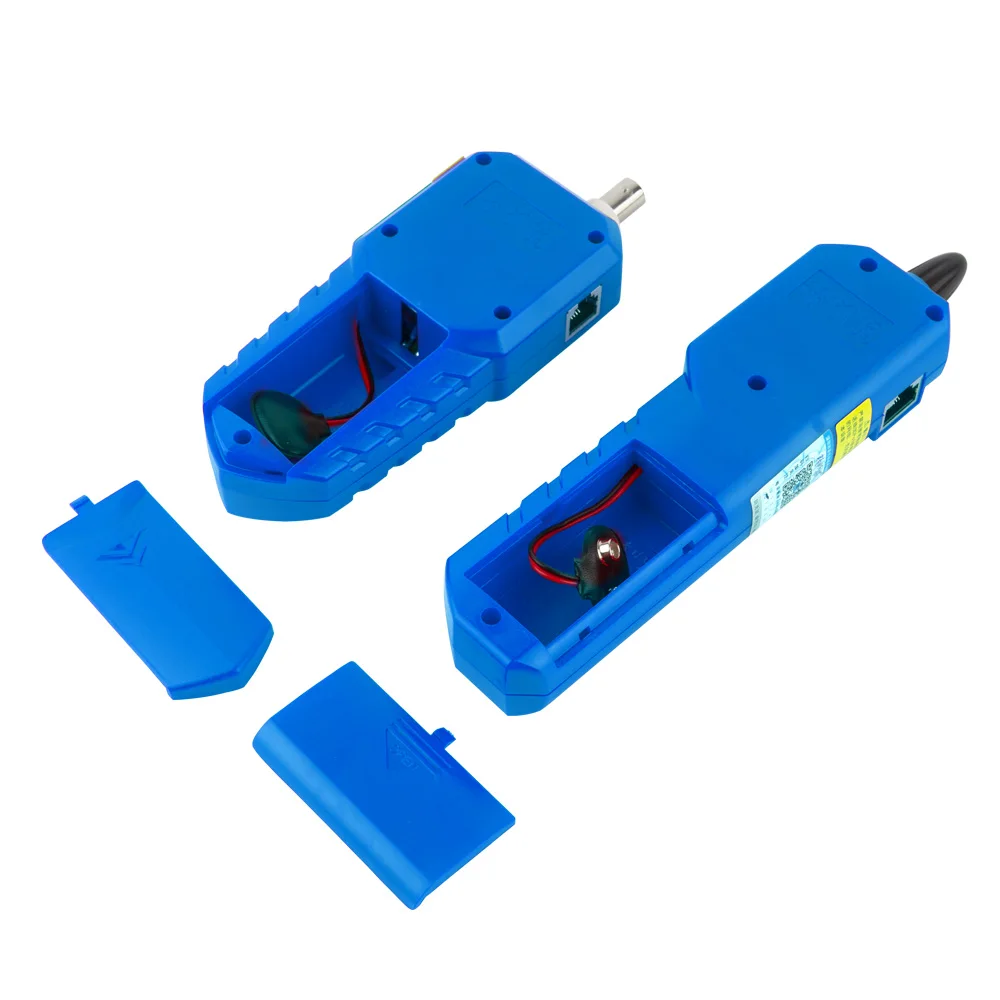

1 X transmitter ( battery is not include )
1 X receiver
