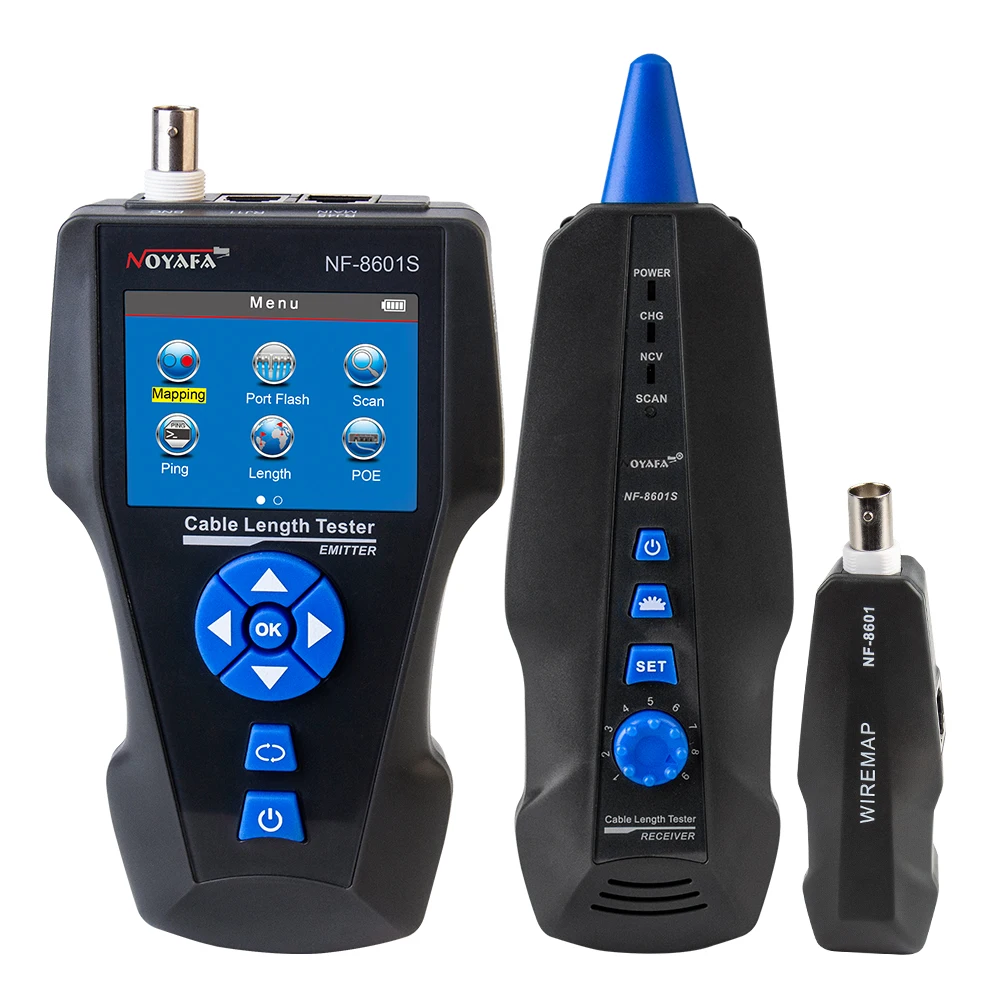

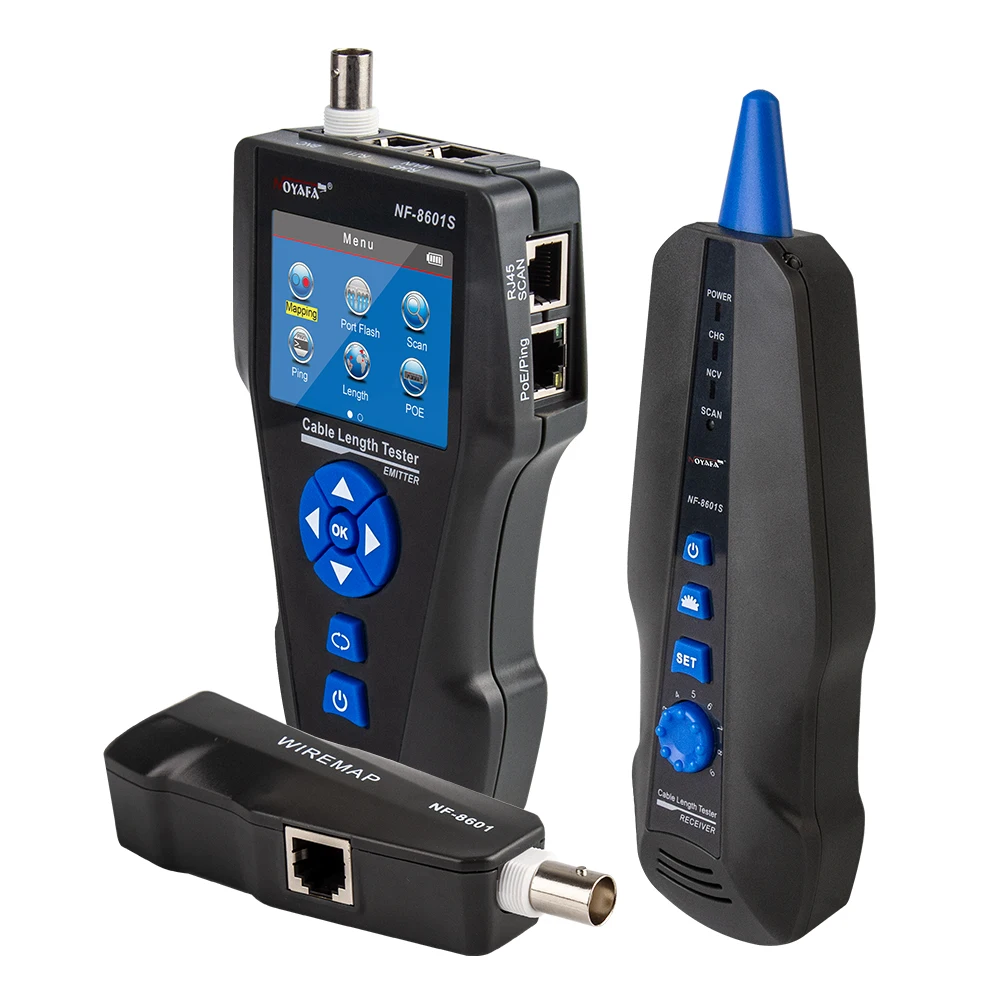

lan cable continuity tester Noyafa NF-8601S Lan Cable Tester Multifunction TDR Length With PoE/PING/Port Voltage Wiremap Tracker Cable Length Tester imbaprice network cable tester Networking Tools
Code: TD-32755808706
19 orders
Free Shipping
$ 254.04
$ 344.04
Other people want this. 18 people have this in their carts right now.
| Brand Name: | NOYAFA |
|---|---|
| Certification: | CE |
| Origin: | CN(Origin) |
| Package: | Yes |
| Type: | Multifunction Network Tester |
| Model Number: | NF-8601W |
| Port: | RJ45, RJ11, BNC, PING/POE |
| Test length: | RJ11,RJ45 ,BNC |
| Tracking Type: | RJ45, RJ11, BNC and Metal Cable |
| Power: | 3.7V lithium battery |
Functions:
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.

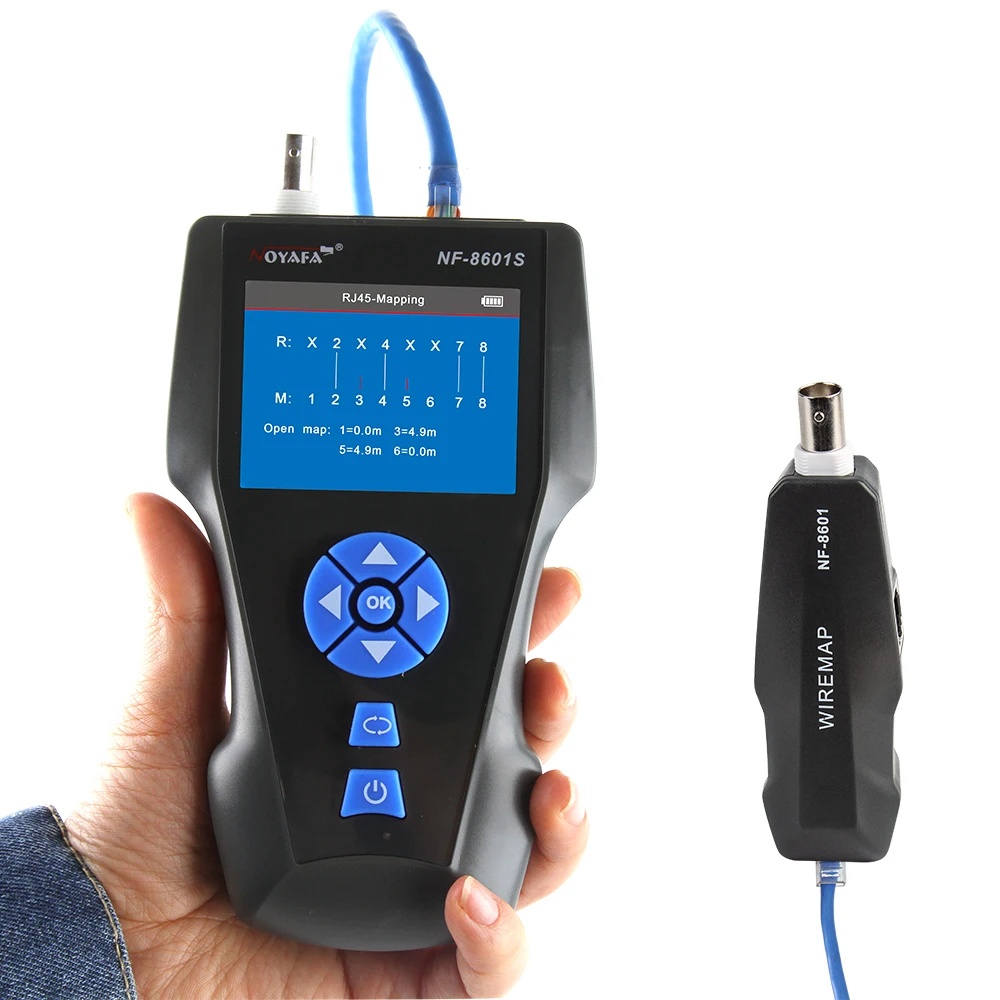

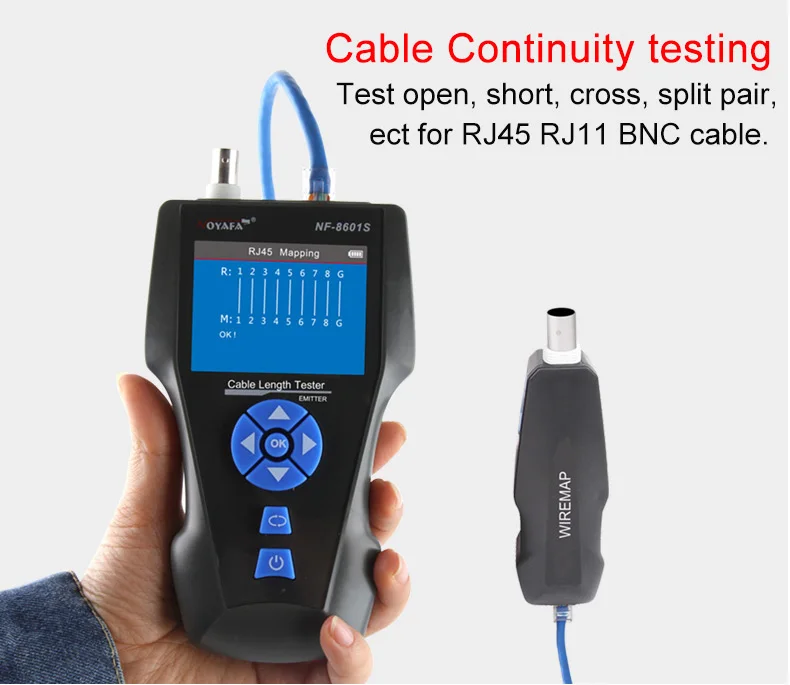

2. Wiremapping with length and provide the distance to fault information.
3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Benefits:

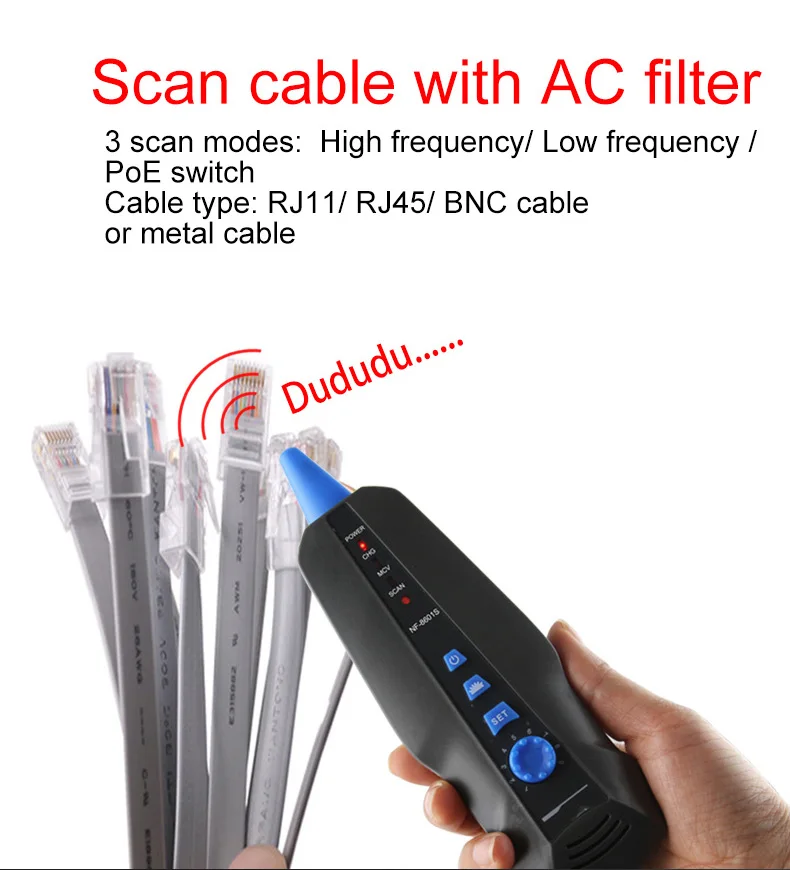

1. Tone traces cable with complete AC fliter.
2. TF card function to export data from computer (50sets, TXT format)
3. 2 scan modes: common switch and PoE switch
4. 3.7V lithium battery for power supply and 2.8 inch color screen
Technical indexes:
NF-8601S Transmitter specifications
IndictorLCD 320x240 mm, with backlight
Cable test typesSTP/UTP 5E,6E network , telephone , coaxial cable.
Max. distance of wiremap1000 m
Max. distance of tracing1000m
Max. distance of cable length1000 m
Min. distance of calibration50 m
Accuracyup to 98% ( after calibration )
Compatible connectorsRJ11, RJ45, PING/POE, BNC
Cable map indicationLCD (#1-#8)
Battery Type3.7V lithium battery 1800mAh
Work temperature / humidity10℃ ~ -60℃ / 0℃~70℃
Dimension(LxWxD)173x92x34mm
NF-8601S Receiver specifications
Cable huntingRJ11，RJ45, BNC
Types of cable≥ 2 cores
Battery Type3.7V lithium battery 1800mAh
Dimension(LxWxD)183x58x35 mm
NF-8601S Remote unit specifications
Compatible connectorsRJ11，RJ45, BNC
Dimension(LxWxD)106x32x30mm
Accessories Included:
Bulit-in battery x 2 set
Adapted telephone line x 1 set
Adapted network cable x 1 set
Cable clips x 1 set
Charging adaptor x 1 set
Toolkit x 1 set
