motorcycle temp gauge V1.5 button On/OFF ELM327 Android phone bluetooth OBD2 car code Reader V1.5 mini elm327 OBD2 bluetooth vehicle scanner in phone test car battery with multimeter Diagnostic Tools

Brand Name:	ALICAR
External Testing Certification:	ce
Origin:	CN(Origin)
Model Name:	elm327
Electronic:	No
Hardware Version:	1.5
Item Height:	1inch
Item Length:	1inch
Power:	w
Certification:	UL
Certification:	RoHS
Certification:	NONE
Certification:	FCC
Certification:	EPA
Certification:	DOT
Certification:	CE
Item Type:	Multimeters & Analyzers
Special Features:	Bluetooth
Item Weight:	0.12kg
Software Version:	2.1
Model Name:	car Mini ELM327

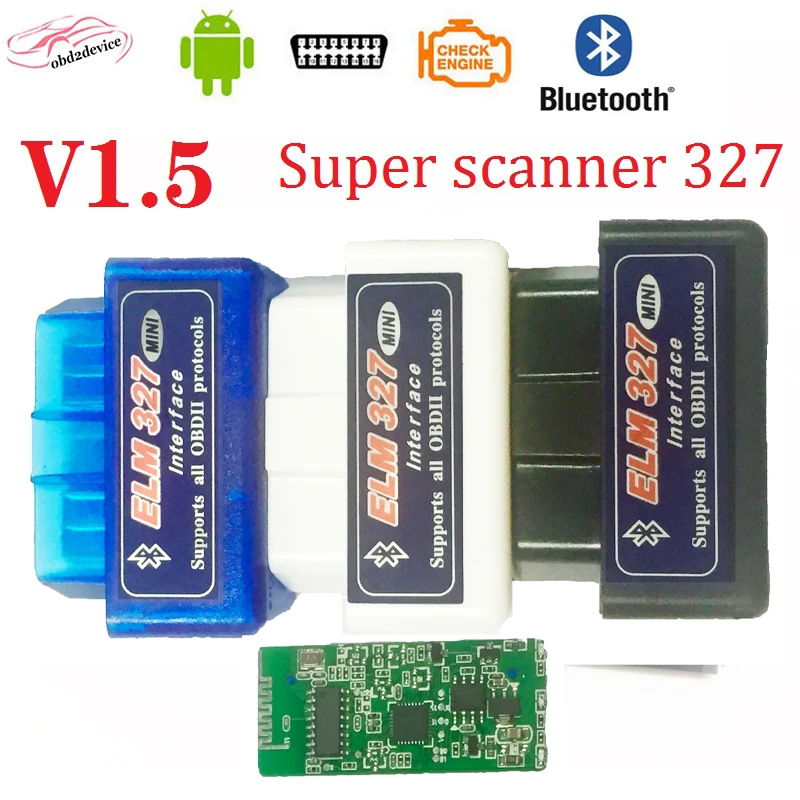

Color:	Blue black white Optional
Function:	OBD2 Diagnostic Scanner Code reader tool
Highlight:	Support OBDII Protocols
Feature:	12 Kinds Of Languages
Operate System:	Android Torque / Symbian / Windows
Live Test:	Excellent
327 CAR Diagnostic Scanner:	2020 NEWEST
Firmware version:	V1.5

V1.5 button On/OFF ELM327 Android phone bluetooth OBD2 car code Reader V1.5 mini elm327 OBD2 bluetooth vehicle scanner in phone

Warm Notice:

------------------------

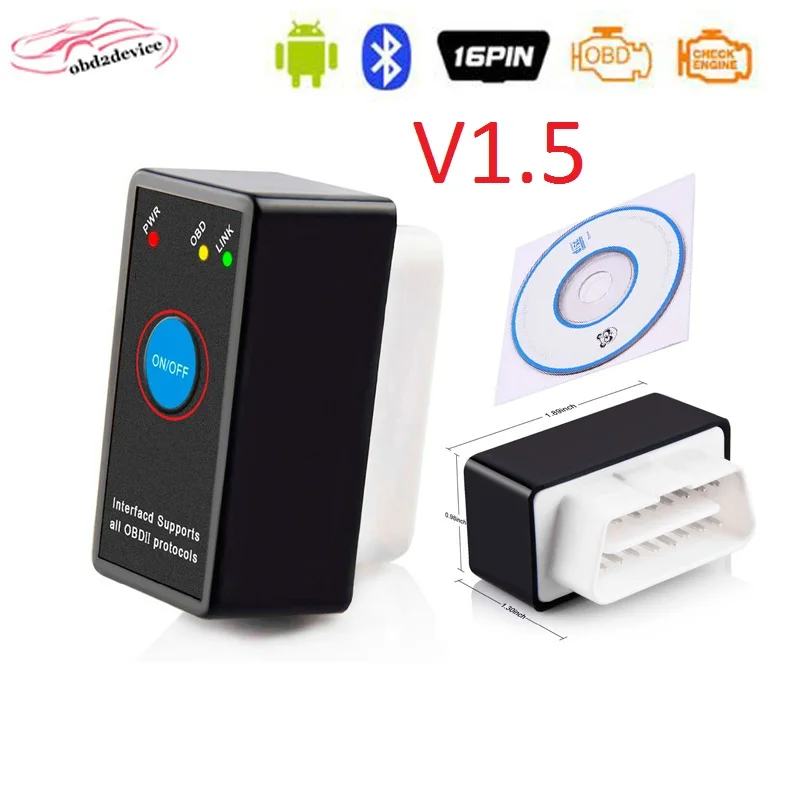

V1.5 Button ELM327 only for Adroid phone.

------------------------

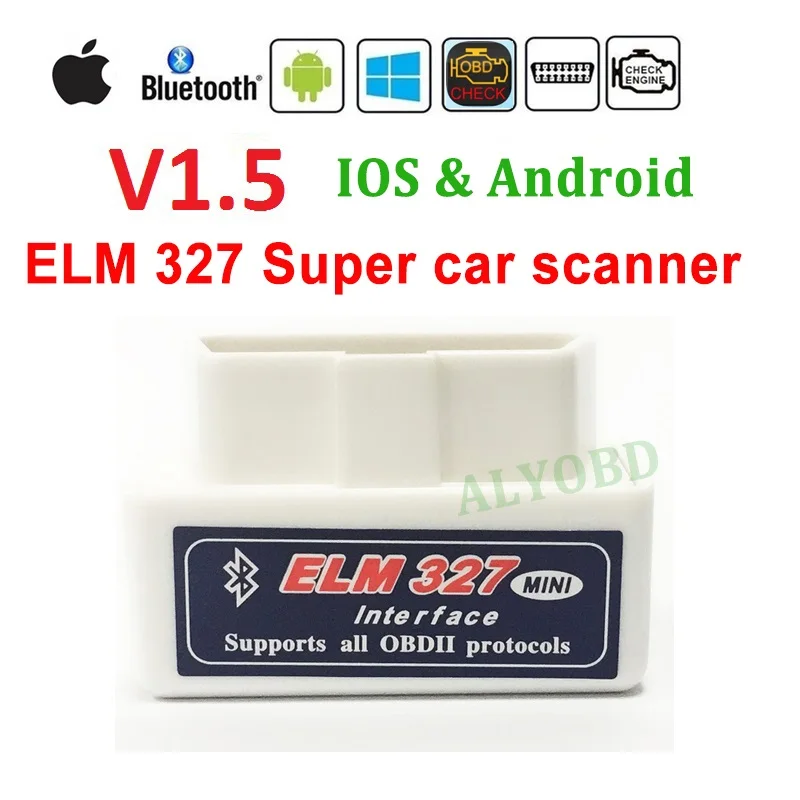

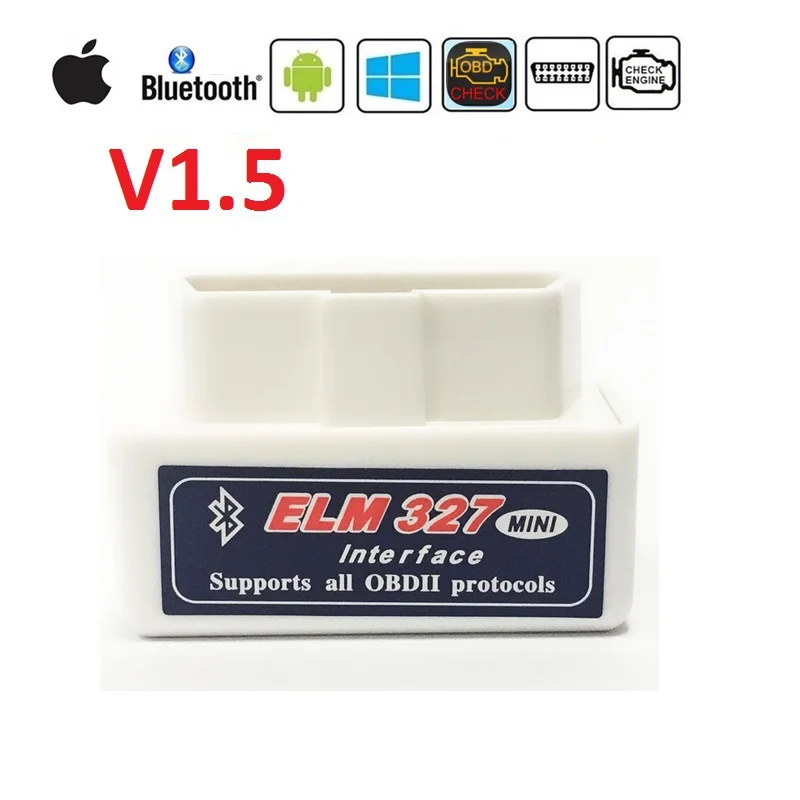

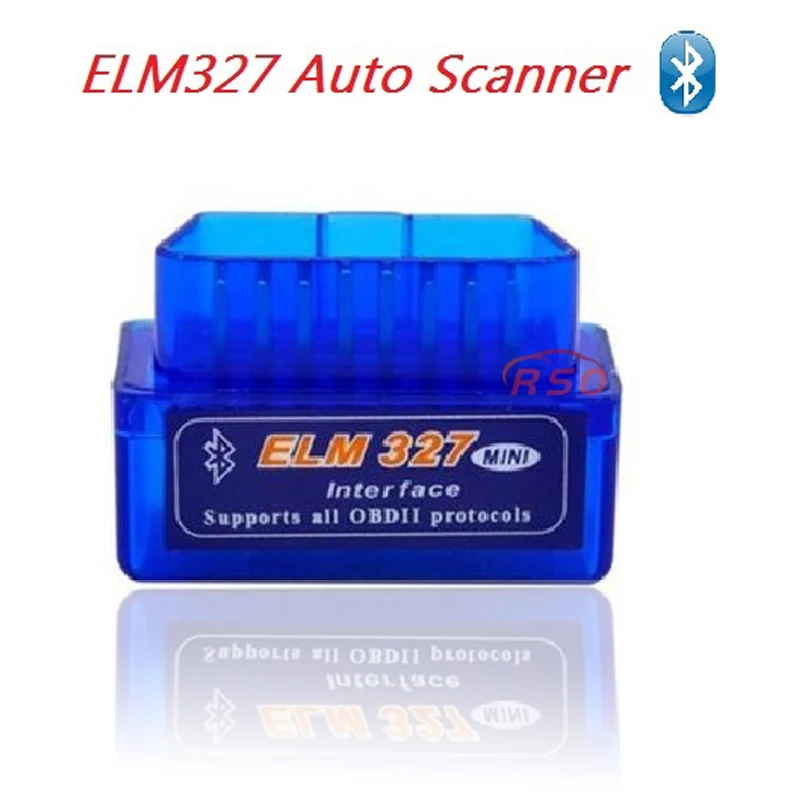

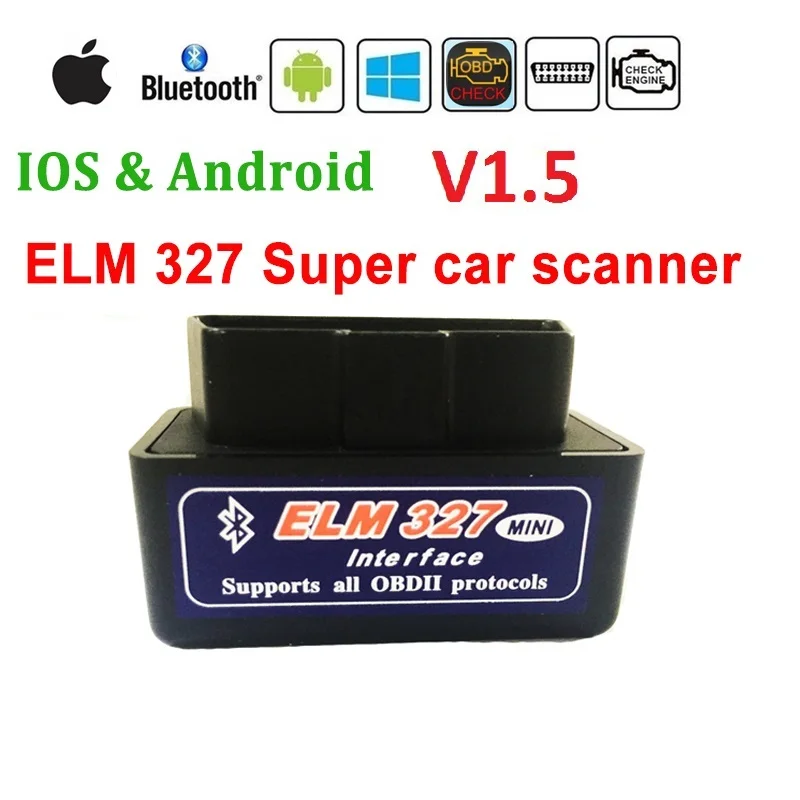

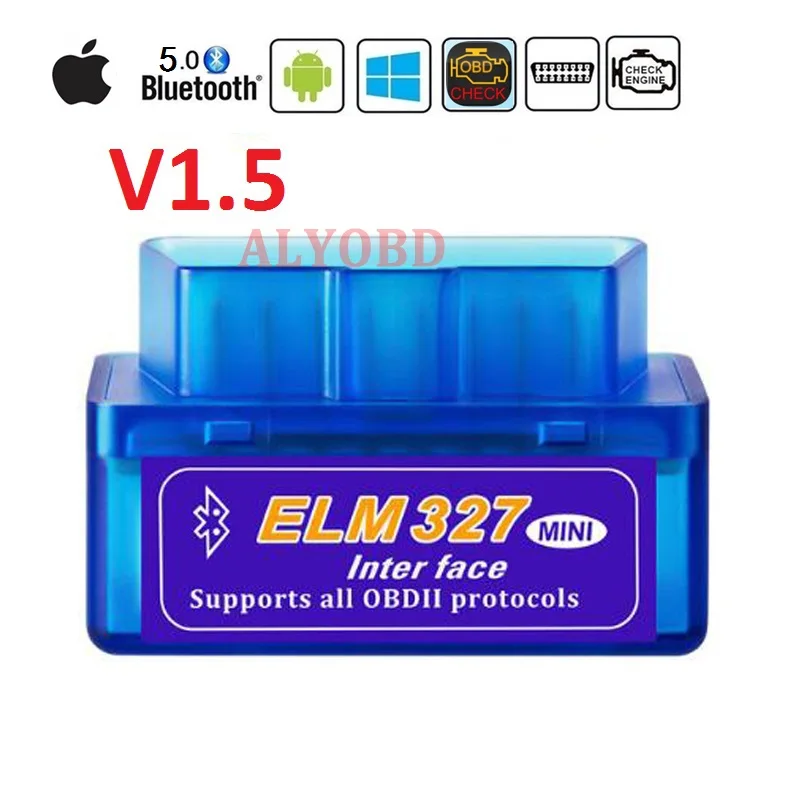

V1.5 Mini elm327 blue/back / white for IOS / Android phone

---For

Lada/ VAZ/ UAZ

cars makes, please don't purchase If your car is before

2012

.

---For

Ssangyong cars

makes, please don't purchase If your car is before

2008

.

---For

Ren-ult Dacia Logan

cars model, please don't purchase If your car is before

2010

.

---For

Electric car and Hybrid cars

did not support ,like Nissan leaf and so on.

---For

Ren-ult

/

Chev-rolet /Skoda

cars makes, not supported.

Support Language:

English/Czech/Danish/German/Spanish/French/

Croatian/Hungarian/Italian/Polish/Serbian/Turkish

Q&A  (Please kindly read before)

Q1: What is the version of the ELM327?

A1: This is the 100% V1.5  High Quality version, Support all OBD2 Vehicles, with high quality Chip set,

Which

supports continuously running over 48 hours without disconnect.

Q2: What is difference between V1.5 and V2.1 ? and How can I check it ?

A2:  Our newest ELM327 is 100% V1.5, which is support full protocols version(10 protocols), especially J1850 & J1939 Protocols for Japanese Cars and American Cars, some old car model read date have some slowly .

other elm327 V2.1 version just can supprt only 7 or 9 protocols.

How to check the ELM327 firmware version:

After you receive our ELM327, you can tested on TORQUE , if it's not V1.5 Hardware version.

Q3 : Does your ELM327 Come with any softwares?

A4: Yes, for all the software we have uploaded to cloud already, you will receive one step by step user guides(in english and russian) including QR code (scan it via aliexpress app) and download link. Software for PC and for Android cell-phones are both available. You may download the program first directly by scanning our QR code as below picture shows, thanks !

Becuase CD disk is easily damaged on the shipping way , we have used QR code and

user guides(english and russian) to replace it , Thanks for you understanding and supporting!

* The language of software will be changed depend on your device's language settings. (below screen shot for android tablet)

Q4: How do i know if my car is working with the ELM327 or not ?

A4:  This ELM327 bluetooth adapter is working for all OBD-II Compliant vehicles.

The OBDII compliant vehicles referernce as below:

2003 or newer model year vehicle made in the United States

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep

2006 or newer model year vehicle made in the European Union

Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault after 2009 year, doesn't support Clio 2

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu  ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar

2008 or newer model year vehicle made in the Asian Union

Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai  ,Fit for Dacia  ,Fit for Lexus ,Fit for Mazda

Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota

You may also pop the hood and look for a sticker named "VEHICLE EMISSION CONTORL INFORMATION"

NOTE:  Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol. If you're not sure, ask us anytime!

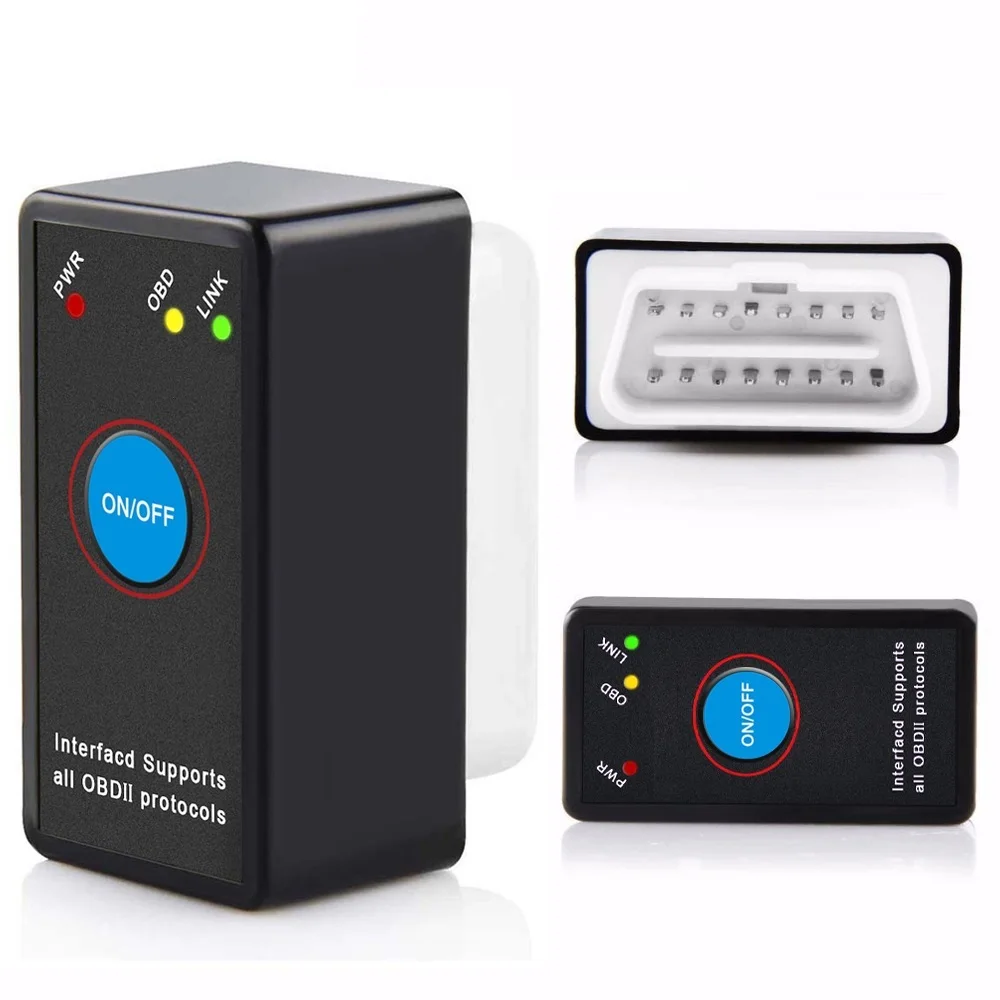

Q5: What is the function of the ON/OFF button ?

A7:  The blue ON/OFF button is for reset/ wake up the device, because this new designed ELM327 is built with auto-sleep mode, after 30 min without communication, it will go in sleep-mode.The Sleep modeconsumption of our scanner is only

10mA.

Q6: What functions that I can do with the ELM327 ?

A8:

The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to any computer, tablet or smartphone( android), With associated diagnostic procedures . Doing these simple operations, you will be able:

* Read, erase and display code descriptions problems - both standard and  special manufacturers.

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold  pressure, throttle position, the values of oxygen sensors, air intake

temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

* Record various parameters, display graphics in real time, and more.

ELM327 V1.5scaner automotivoFeatures

* Small size, compact structure. Plug and never unplug

* Stable wireless connection.

* No wires or batteries (adapter is powered by the 12V Vehicles battery)

* 30 Minutes without communication, it will automatically go to sleep mode.

* Ultra low cumsumption in sleep-mode, less than 10MA

* Supports almost OBDII protocols, widest coverages

* The adapter uses the fast communication mode and most reliable ARM chips, up to 60 PID/S.

ELM327 V1.5scaner automotivoFunction List

1.Read diagnostic trouble codes, both generic and manufacturer specific

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

19.Many others...

With our ELM327, you will be able to perform a complete computer diagnostics of your car

and even to correct minor faults without resorting to auto service stations.

Delivery time Note:

If your Confirmation Time is coming, you still not receive the goods, please contact us, we will extend the delivery date in advance.

No Dispute please:

Please do not apply dispute within 60-90 days, let's keep good business relationship. Thanks for your kind understanding.

The Step by step guideilnes for ELM327 with ON/OFF Switch !!!!

1. Locate your OBDII Diagnostic Port. If your car does't have OBDII 16pin Port, you can check the pins on your diagnositc port, we will help you find the connector the convert it to 16pin.

2. Download the Torque APP from android market or install it from our CD  or  if it comes with QR code , please screen the QR code.

3. Plug the ELM327 into your car, and it will emit the bluetooth signal, connect it with your cell-phone. Password is "1234".

4. Open the TORQUE Software, go to"Adapter status" --  "Settings" on top right,

select "OBD2 Adapter settings" ;

Choose "Connection settings" as "Bluetooth" ;

Choose "Bluetooth settings" as "OBDII" ;

EXIT the APP TORQUE

Restart the TORQUE App, You will see the green light blinking, and wait for a while it will build up the communication.

5. Please be noticed that the ON/OFF Button is for waking up the device, our ELM327 is humanized and high quality v1.5 version, it will go to auto-sleep mode if communication is suspend over 30 mins. Press the button whenever you need to use it.

If you still have any doubts, please don't hesitate to contat us!

Softwares Display on PC

Item picture:

Package List:

1* EOBD/OBD2 Bluetooth Diagnostic Interface

1* manual with softwares for PC & android

Safe packing for all ackages

Below are FAQ related to using questions

Q. What's the Password of the Bluetooth?

A: It's "1234"

Q: If it can do all most car models and diesel car models?

A: No, it can just support most standard OBD II car models, Diesel car models can't be supported

Q: Which android system phone can compatible?  If it can compatible with Iphone?

A: Please kindly use Android V4.4 and high version, The Iphone can't be supported

Q: Why my computer can't connect with this Bluetooth?

A: This unit is with Bluetooth 3.0, check your computer is compatiable with V3.0 version bluetooth.

Q:Why my phone can't connect with the Bluetooth?

A: Please kindly check if you choose the bluetooth connect way in software setting. and EXIT the software after setting is finished, then restart the software, it will automatically connect to the adapter and car ecu.
