Modbus TCP Ethernet Remote IO Module Digital input output Analog input Data Acquisition M120T anti theft lock Alarms & Sensors

Brand Name:	KING PIGEON
Smart home platform:	Alexa
Smart home platform:	Aliyun
Origin:	CN(Origin)
Certification:	CE
Certification:	FCC
Power:	9-36V
Output Number:	6
Video Interface:	No
Display:	No

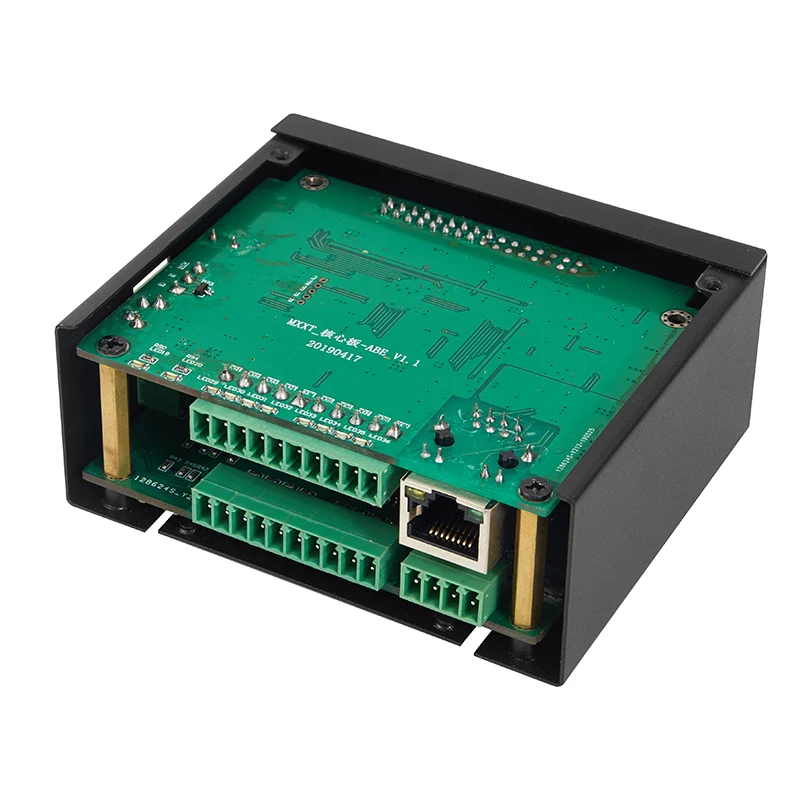

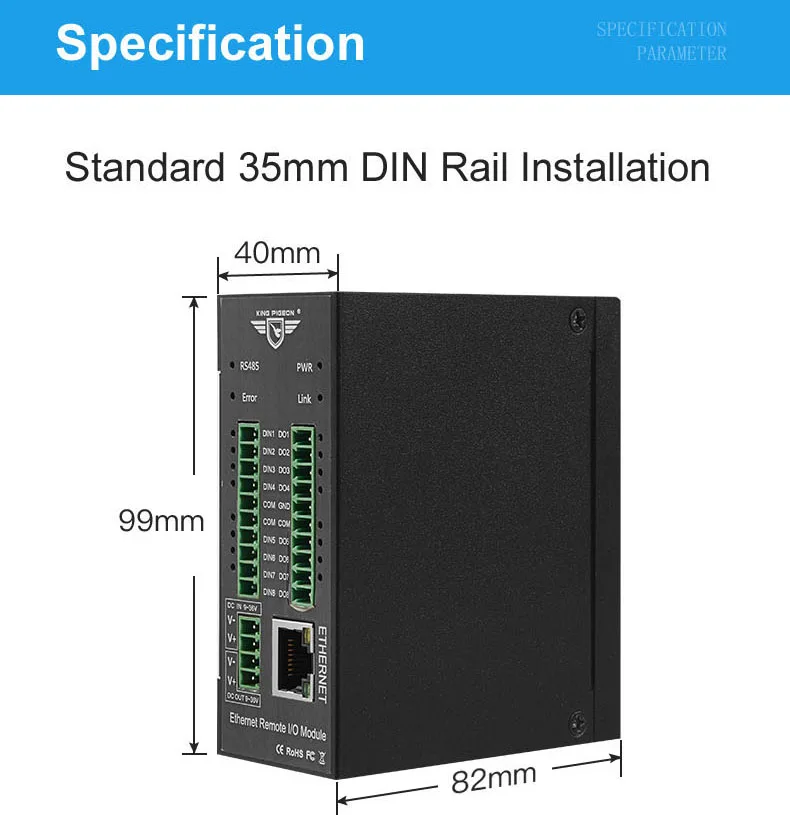

Size:	82*40*99mm
Model Number:	M120T
Password Keyboard:	No
Arming Type:	Other
Connection Type:	Wired
Zone Number:	8
Name:	Modbus TCP Ethernet Remote IO Module
Digital input:	4 optical isolated
Digital output:	4,supports 10Hz~300KHz high speed pulse output
Analog input:	4,supports 0~20mA,4~20mA,0-5VDC, 0-10VDC;
Analog output:	2,12-bit resolution,supports 0-10VDC

Note:

1.The Model default DIN type is wet contact,optional :dry contact,the input type can not be changed after

delivered,The DIN 1 default is high-speed count mode;it can be changed to low-speed count mode by open

the shell and change the internal jumper,if required dry contact input,please note when ordering,if DIN 1 require

high-speed pulse count mode then must be wet contact.

2.The DO1 supports high-speed pulse output;DO2 can be used to control the direction of the stepper motor,

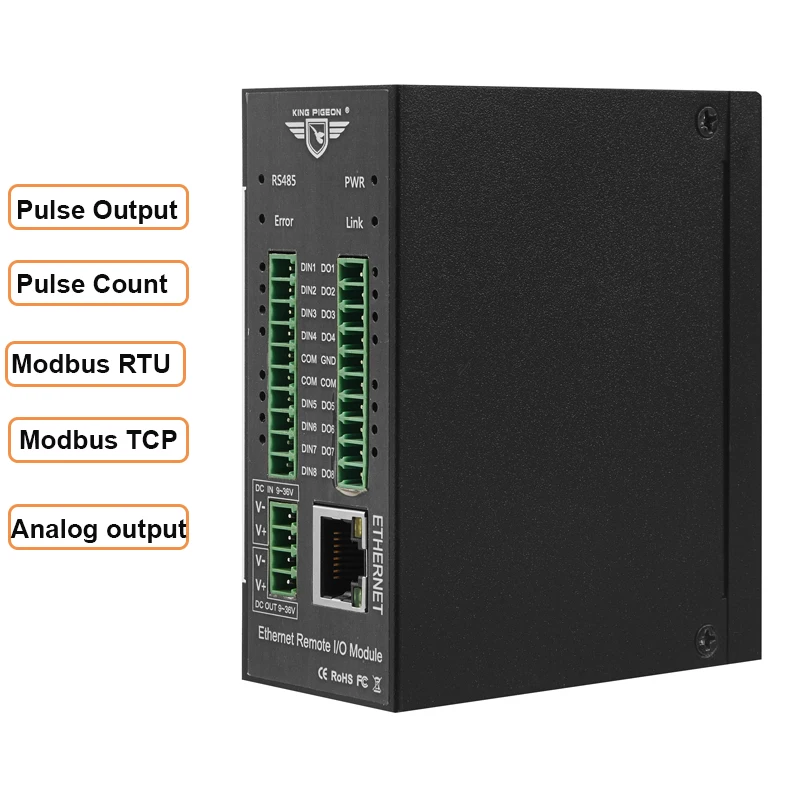

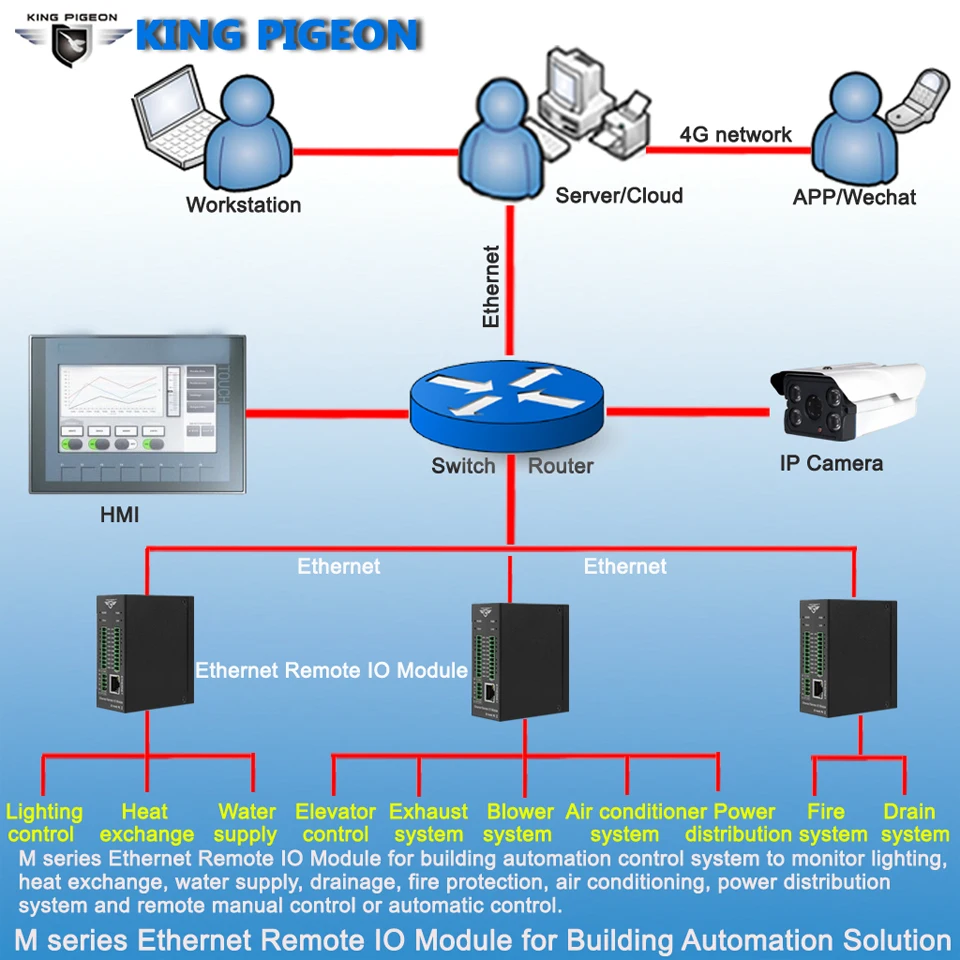

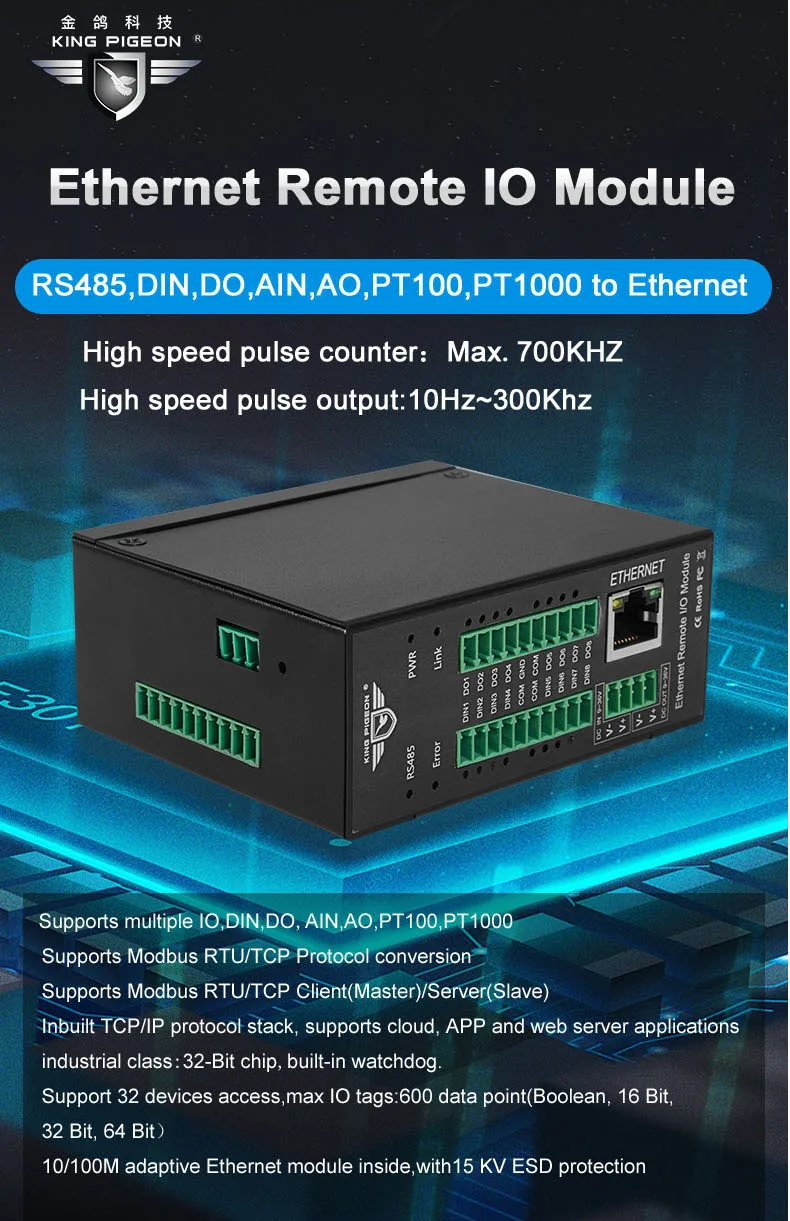

The M120T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high

precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial

10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded

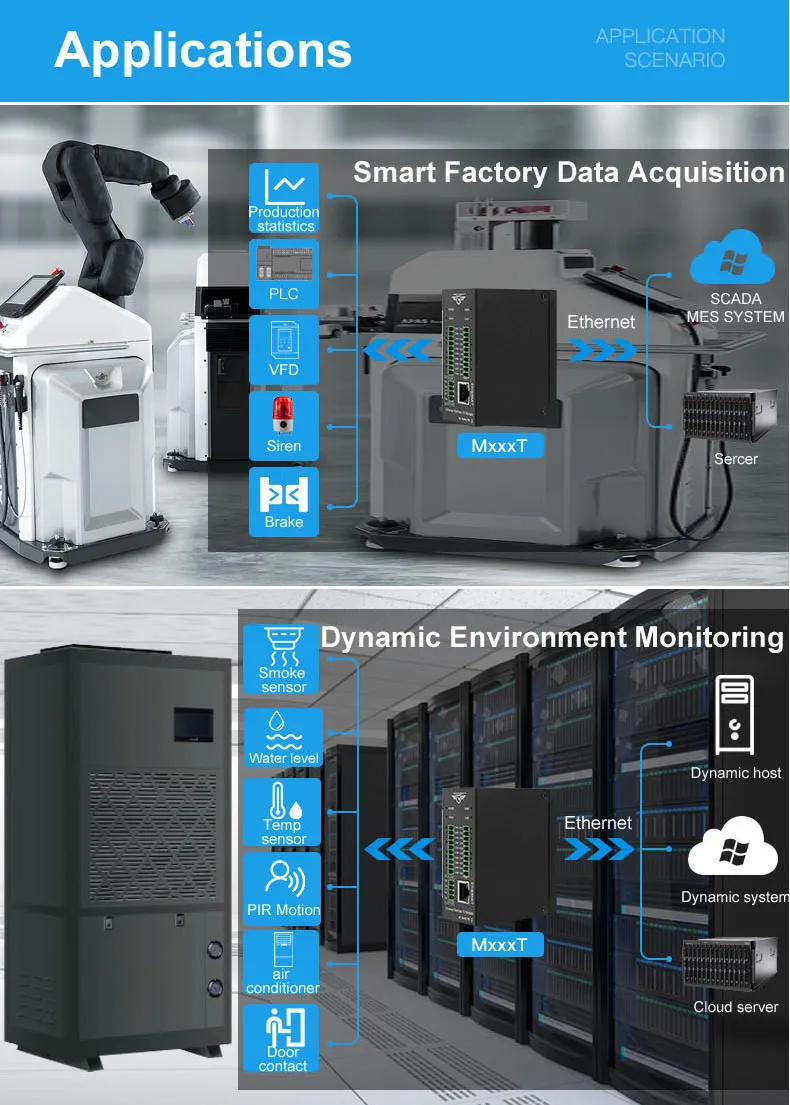

into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application

environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement

and control system.

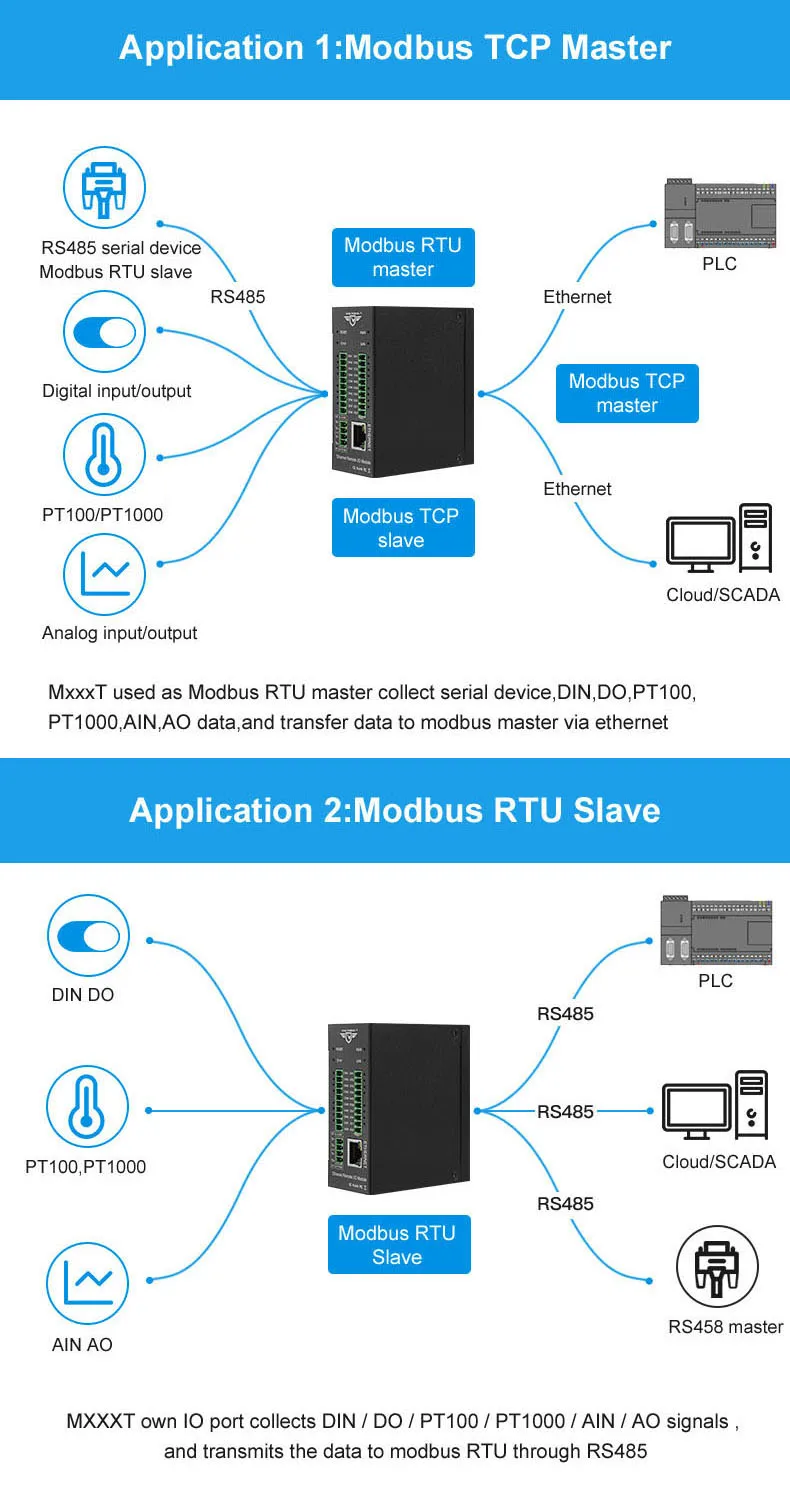

The M120T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus

RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs,

thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register

mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the

Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

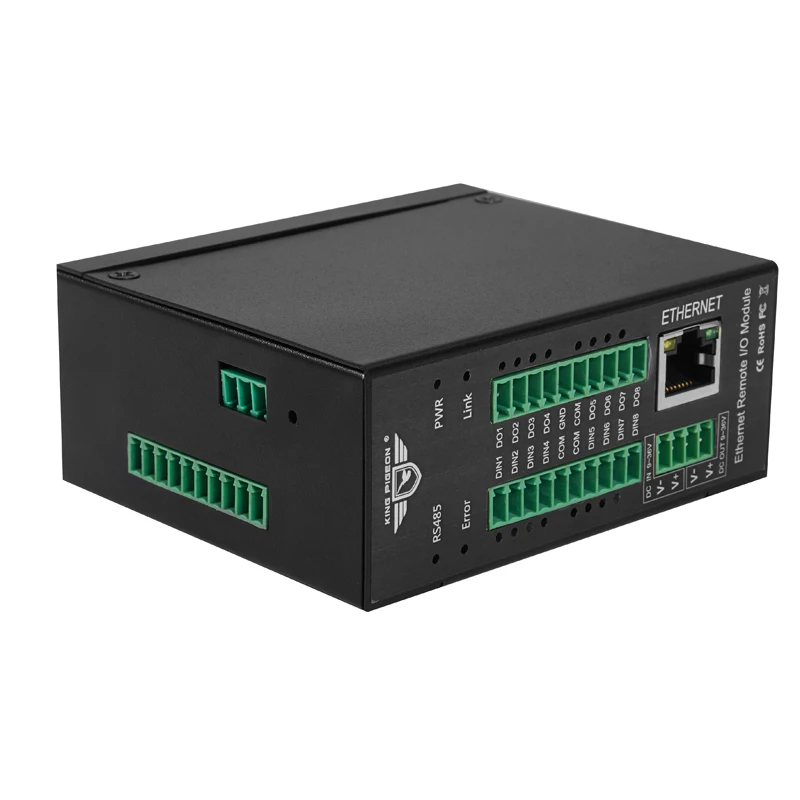

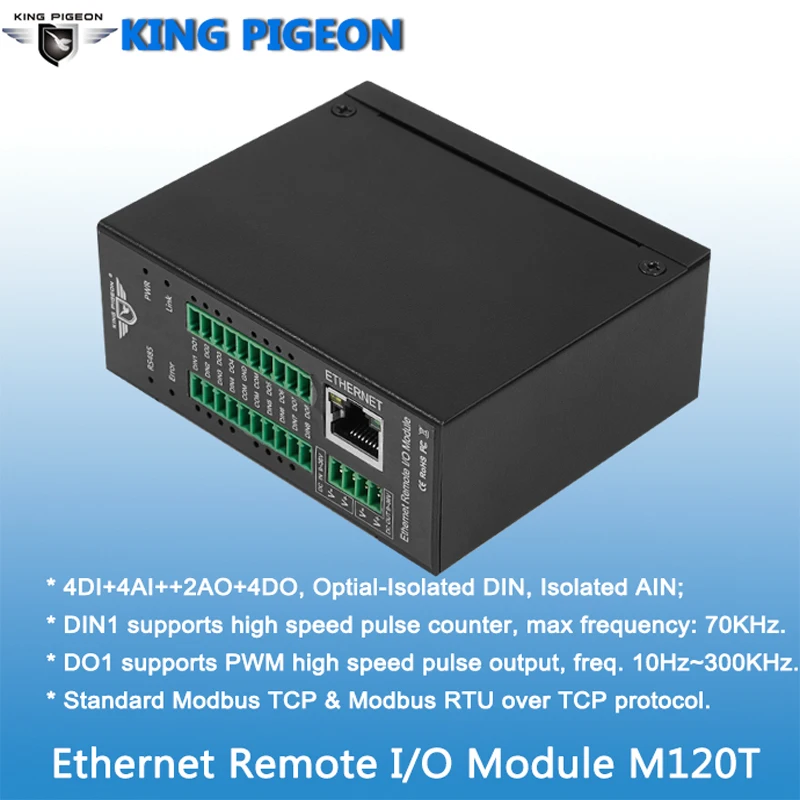

The M120T Ethernet Remote I/O module provides 4 optical-isolated digital inputs, supports max. 10MHz high speed

pulse counter, 4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 4 digital

outputs, supports 10Hz~300KHz high speed pulse output or relay outputs, 2 channel 12bits analog outputs, supports

0~10VDC signal output. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable.

1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2. Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection;

4. Integrated 10/100M adaptive Ethernet module, supports Modbus TCP master and slave;

5. 4 optical isolated digital input, supports max. 10MHz high speed pulse counter;

6. 4 digital output or relay output, supports 10Hz~300KHz high speed pulse output;

7. 4 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC, 0-10VDC;

8. 2 analog output, 12-bit resolution, supports 0-10VDC;

9. High sampling frequency and special filtering strategy to ensure reliability;

10. 1 RS485 Serial port, supports Modbus RTU Master or Slave, can extend I/O modules;

11. Supports register mapping function and extend I/O inquiry strategy;

12. Provides 1 channel 24~36VDC power source output for external device, saving wiring cost;

13. LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

14. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial

applications in the field;

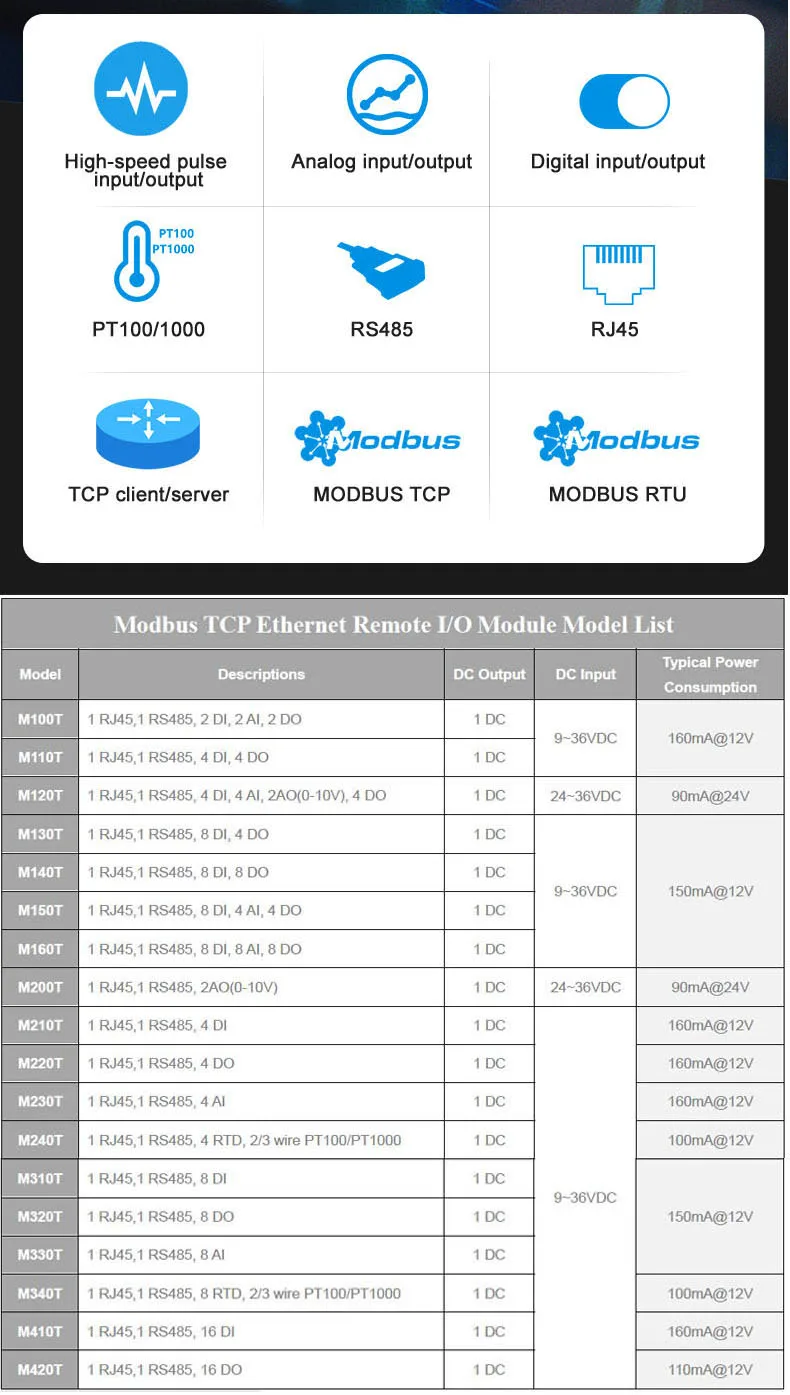

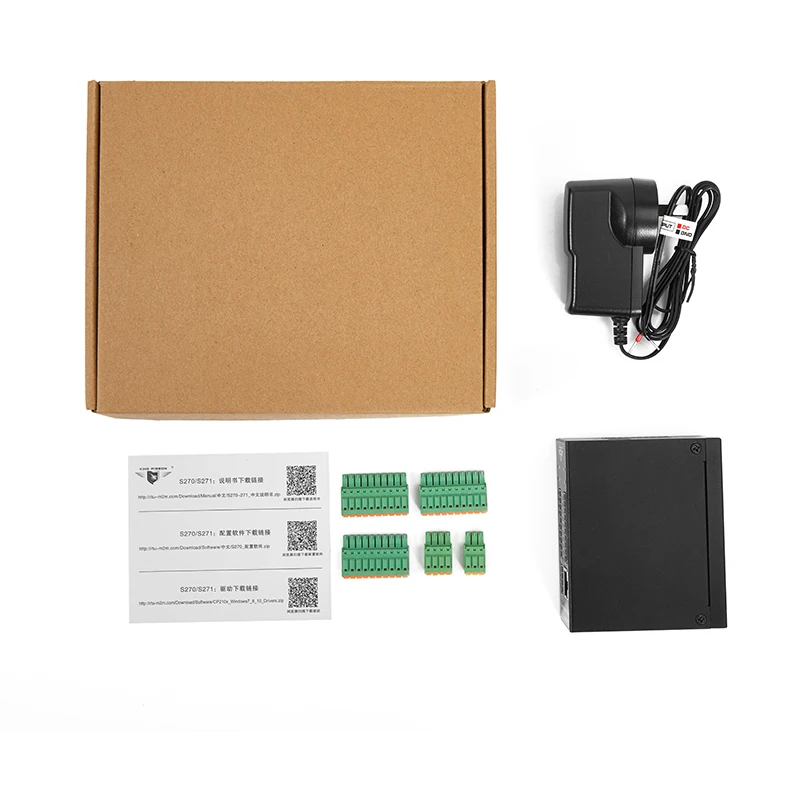

1 x Ethernet Remote IO Module M120T
