Mellow Fly-SHT Board/Fly-UtoC Board For Klipper Hotend HeadTool Support Canbus and Usb PT100 For Blv Ender 3 V-core3 3D Printer hp printhead 3D Printer Parts & Accessories
Code: TD-1005004048980837
424 orders
Free Shipping
$ 90.62
$ 96.25
Other people want this. 19 people have this in their carts right now.
| Brand Name: | Mellow |
|---|---|
| Item Type: | Motherboard |
| Origin: | CN(Origin) |
| Model Number: | 20CAN |
| website: | mellow.klipper.cn |
| SHT36: | 6-layer board |
| Product use: | CAN bus to connect Klipper expansion device |
| Communication method: | CANBUS, USB |
| SHT36 Maximum Current: | 5A |
| SHT42 Maximum Current: | 9A |
| Suggestion: | Do not turn on HDMI, it may report an error |
1
Mellow work team
My firend, We glad you came to our shop. We are committed to developing 3D printer accessories independently. We have 3 product lines, NF extruder series, NF hot end series and FLY motherboard series. I hope our products can bring you better experience. If you have any ideas (products, use, sales), please contact us.We're waiting for you.
1
Description
Suggestion:Do not turn on HDMI, it may report an error
Board information refer to this website:
https://mellow.klipper.cn/#/board/fly_sht36_42/
The SHT board uses can communication to connect the host computer with the UTOC board, and then communicate with the SHT through the UTOC. If it is not suitable for can communication, it can communicate directly with usb, but the signal stability is easily disturbed. It is recommended not to use too long usb cable.
After adding the 31865 chip to the SHT board, it supports pt100 temperature measurement, and customers can choose according to their needs. The resistance of the temperature sensing interface is 2.2K, so you need to remember to modify the value when setting the thermistor in the firmware

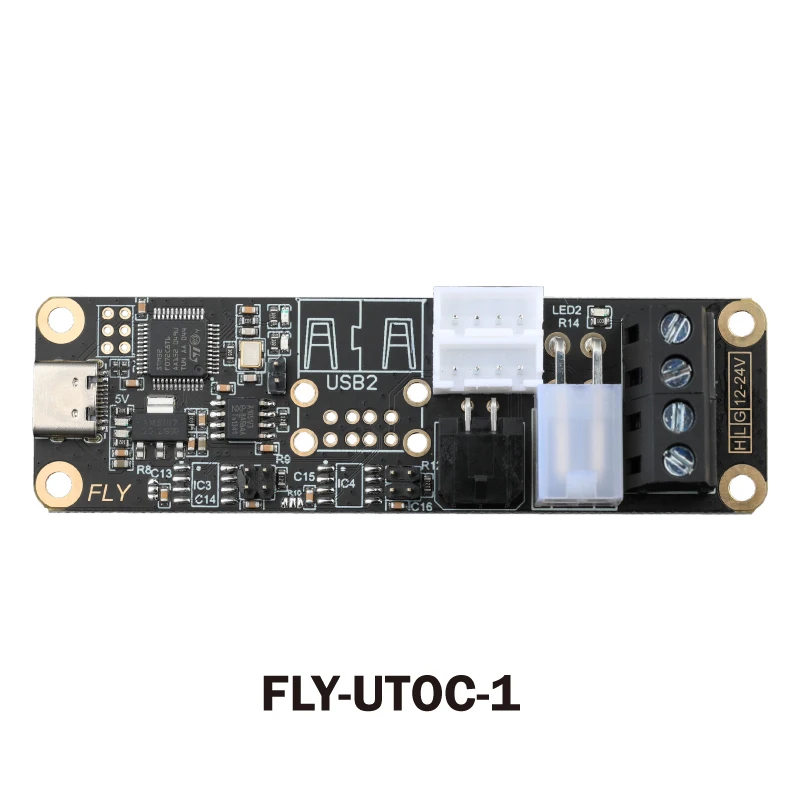

For FLY-UTOC Board, it is recommended to choose FLY-UTOC-1 Board, because most of the host computer and the motherboard through usb communication is enough to use, so there is no need to use Can communication

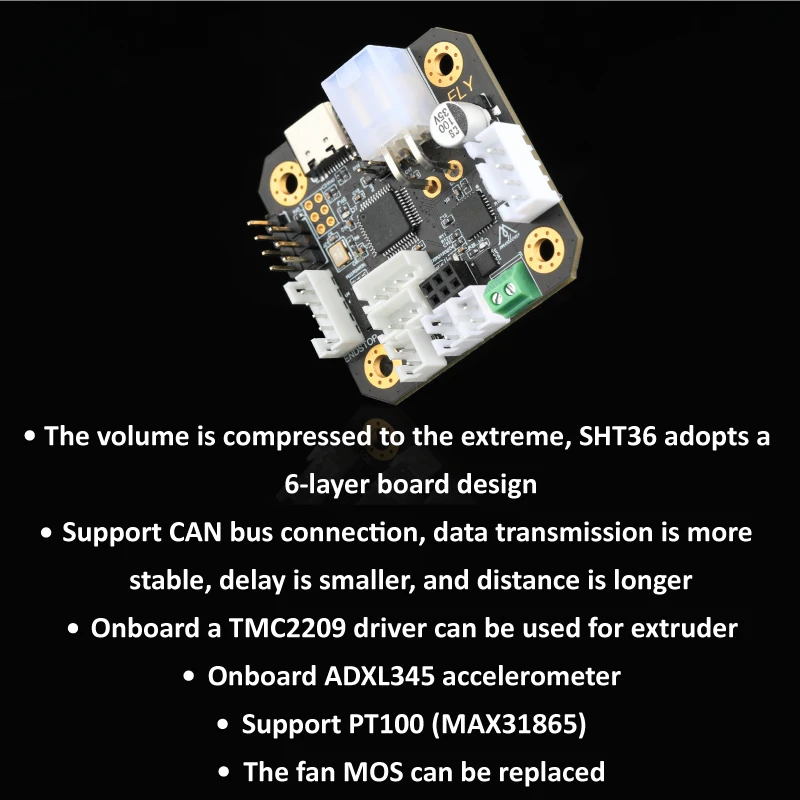

Product Features
√
The volume is compressed to the extreme, SHT36 adopts a 6-layer board design
√Support CAN bus connection, data transmission is more stable, delay is smaller, and distance is longer
√Onboard a TMC2209 driver can be used for extruder
√Onboard ADXL345 accelerometer

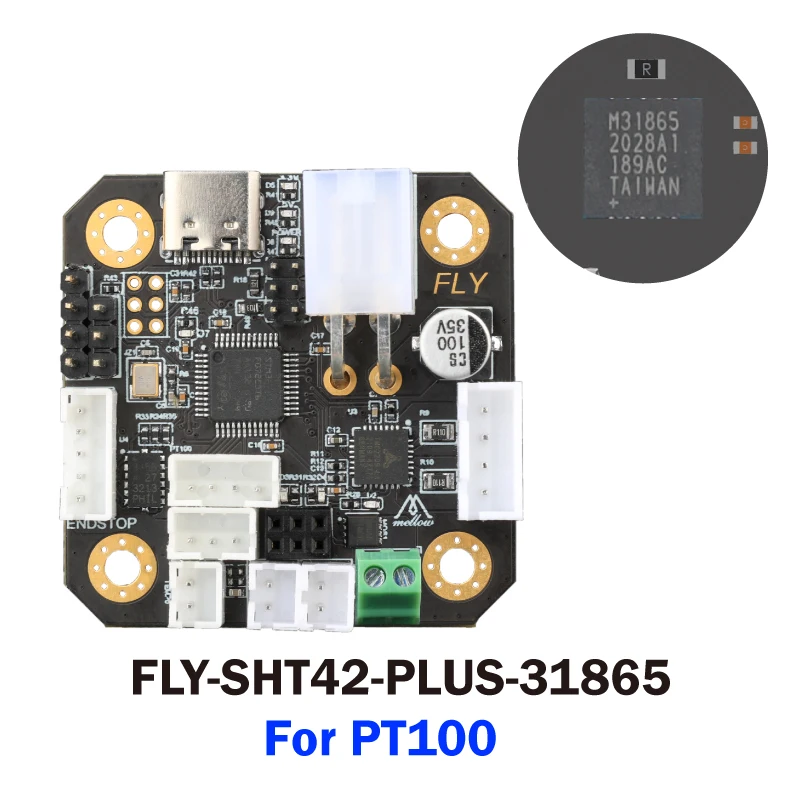

√ Support PT100 (MAX31865)
√ The fan MOS can be replaced
Product parameter
s
We constantly optimize our products to achieve the best use state. In order to achieve the best state, our products are produced with high standards.

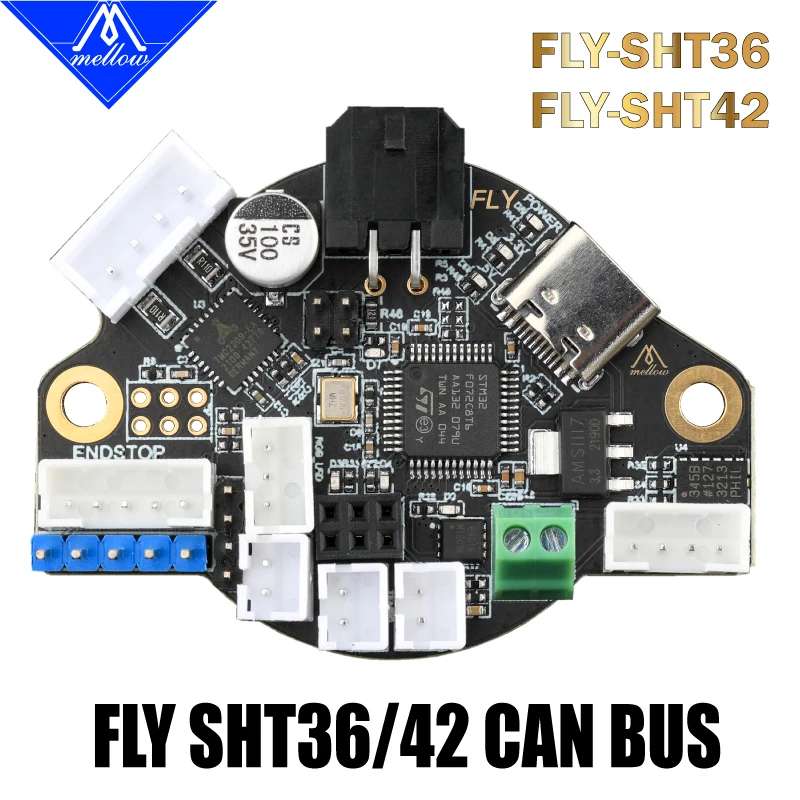

Product name:
FLY SHT Board
Product use:
Use CAN bus to connect Klipper expansion device
Product Applicable Models:
All devices running Klipper firmware
Communication method:
CANBUS, USB
Other attributes of the product:
Due to the large memory usage of CAN bus communication and KlipperScreen, it is not recommended to enable KlipperScreen when using the CAN bus on the Gemini v1/v1.1 motherboard. But Gemini v2 can be used at the same time
Peripheral interface:
USB*1, CAN*1, FAN*2, RGB*1, Servo*1, Probe*1, EndStop*3, PT100 4 line*1(optional), Thermal*1, Heater*1

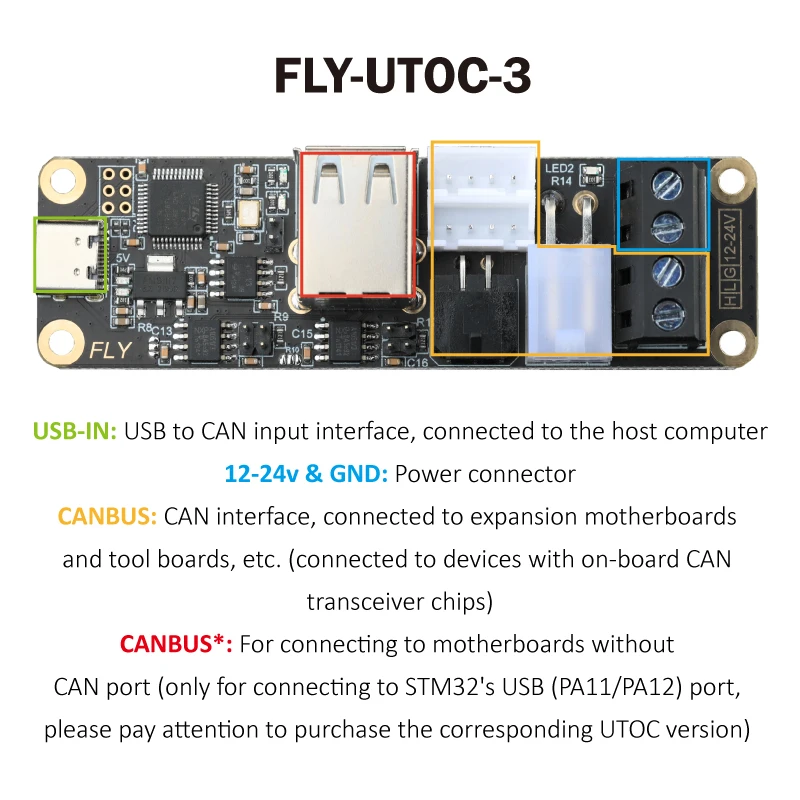

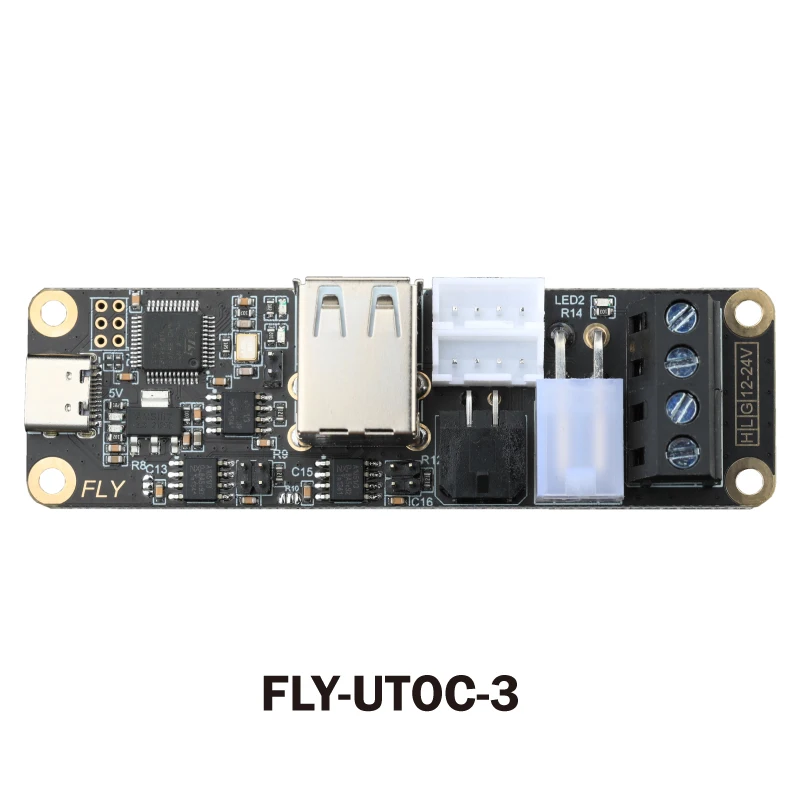

Product name:FLY-UTOC Board
USB-IN : USB to CAN input interface , connected to the host computer
12-24V & GND : Power connector
CANBUS : CAN interface , connected to expansion motherboardsand tool boards , etc ( connected to devices with on-board CANtransceiver chips
CANBUS * : For connecting to motherboards withoutCAN port ( only for connecting to STM32 , s USB ( PA11 / PA12 ) portplease pay attention to purchase the corresponding UTOC version )
√The volume is compressed to the extreme , SHT36 adopts a6-layer board design
√Support CAN bus connection , data transmission is morestable , delay is smaller , and distance is longer
√The can bus is suitable for all devices that can run linux , such as raspberry pi
√Accessories shall not touch metal to prevent short circuit
1
Compatible
Gemini V1/1.1/2
Raspberry Pi
Packege included

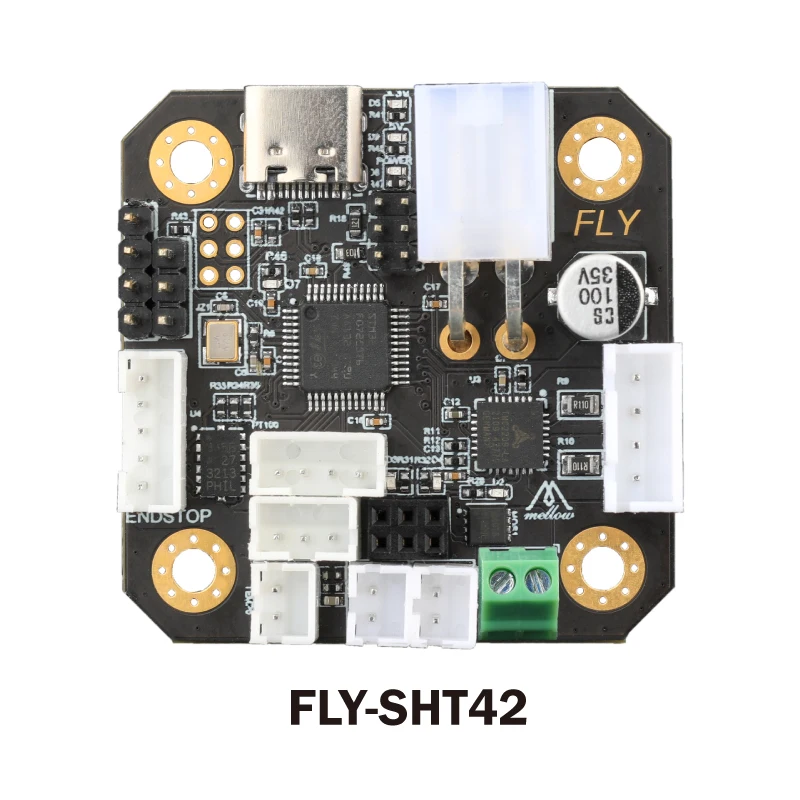

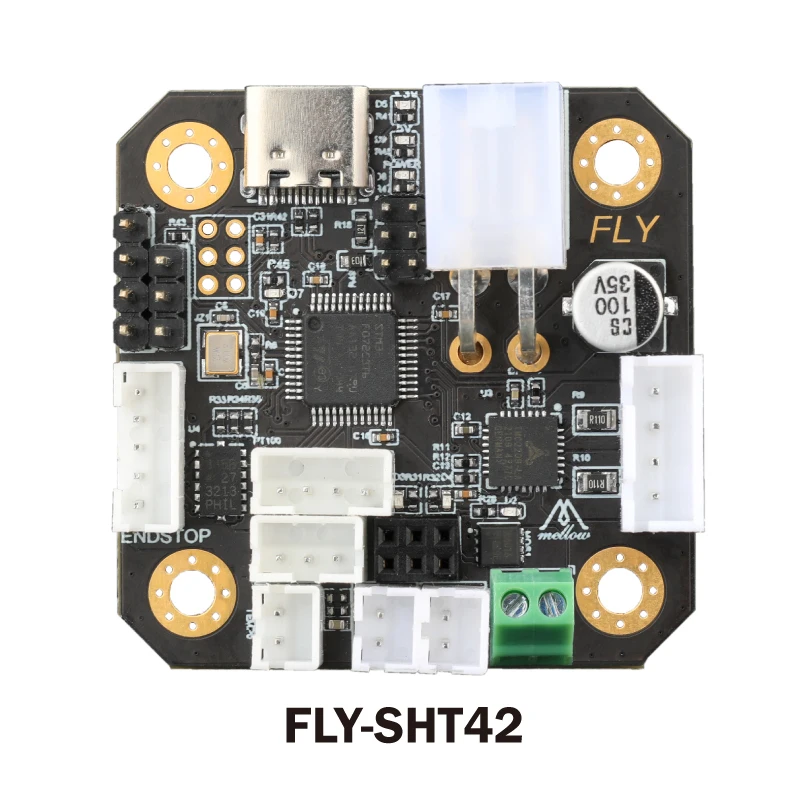

FLY SHT36 Board/FLY SHT36 PT100 Board/FLY SHT42 Board/FLY SHT42 PT100 Board/
FLY-UTOC-1 Board/FLY-UTOC-3 Board
USB-IN
12-24v & GND
CANBUS
CANBUS*
The can bus is suitable for all devices that can run linux , such as raspberry pi
Onboard a TMC2209 driver can be used for extruder
Onboard ADXL345 accelerometer
Support PT100 ( MAX31865 )
The volume is compressed to the extreme , SHT36 adopts a 6-layer board design
