Description
Shipping & Returns

Brand Name:	hongxinyuan
Item Type:	Module
Origin:	CN(Origin)
Model Number:	High-Precision AD HAT

DESCRIPTION

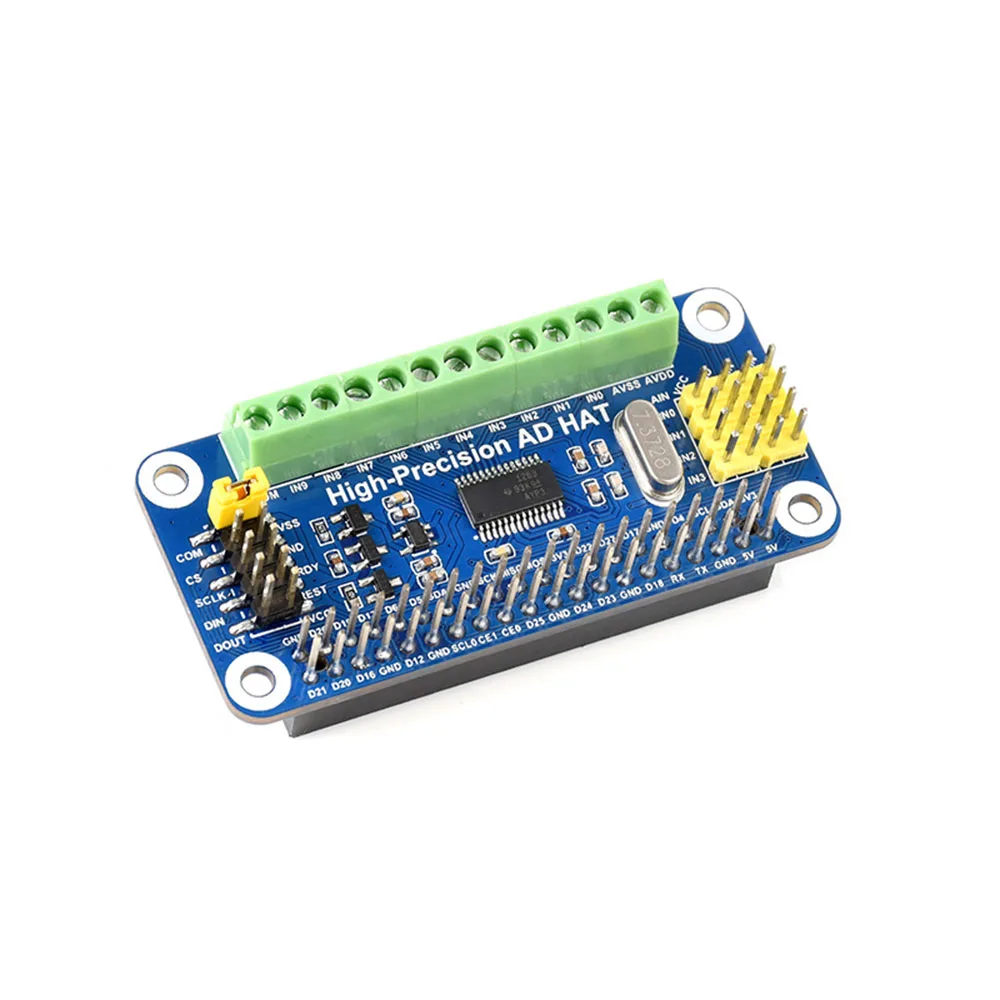

High-Precision AD HAT For Raspberry Pi, ADS1263 10-Ch 32-Bit ADC

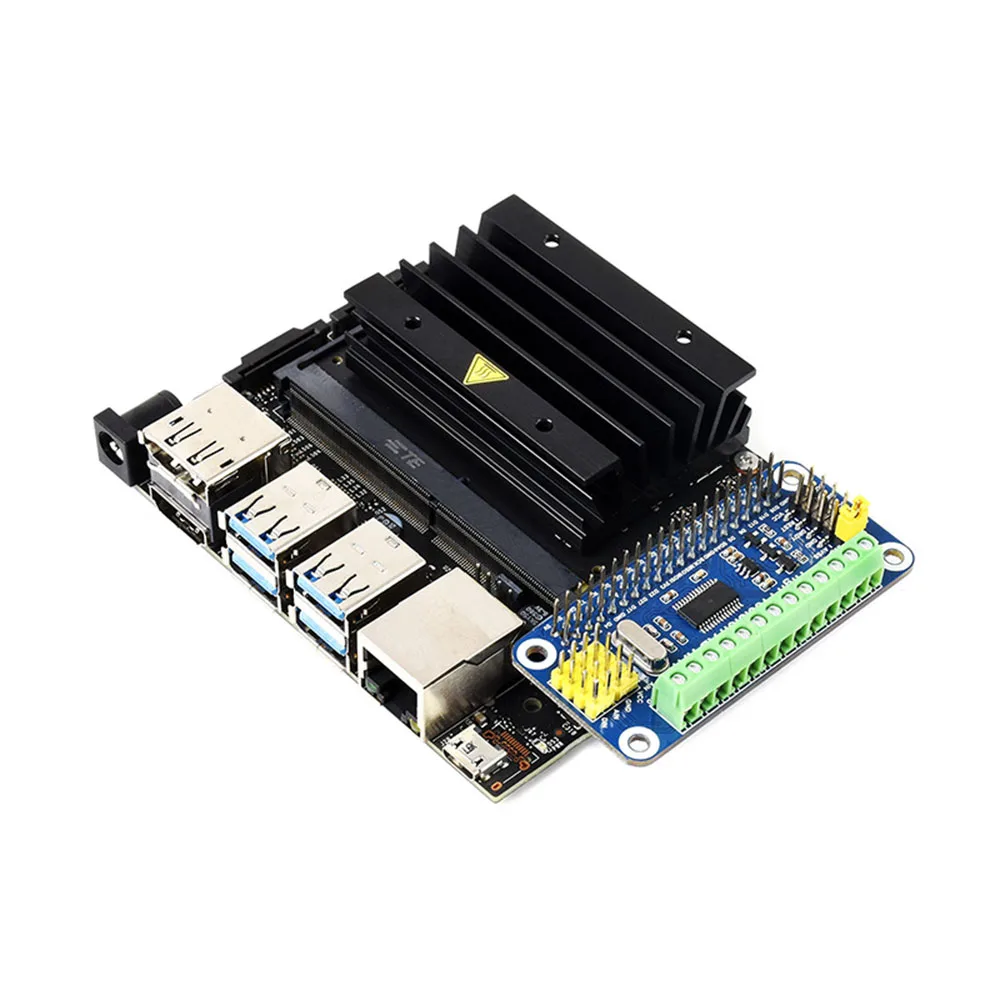

Compatible With Raspberry Pi Series And Jetson Nano

Patent Protected

Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate
with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)

Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules

Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface

Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi

Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor

RESOLUTION

32 Bits

INPUT CHANNELS

SAMPLING RATE (MAX)

38.4 kSPS

PGA MAGNIFICATION (MAX)

BUS

SPI

STRUCTURE

Delta-Sigma

INPUT TYPE

differential, single-end

REFERENCE VOLTAGE

internal, external

INPUT VOLTAGE RANGE (MAX)

2.5V, 5V

INPUT VOLTAGE RANGE (MIN)

-2.5V, 0V

Enable High Precision AD Conversion Capability For Your Raspberry Pi

Raspberry Pi and Jetson Nano are NOT included.

10-Ch 32-Bit High Precision ADC

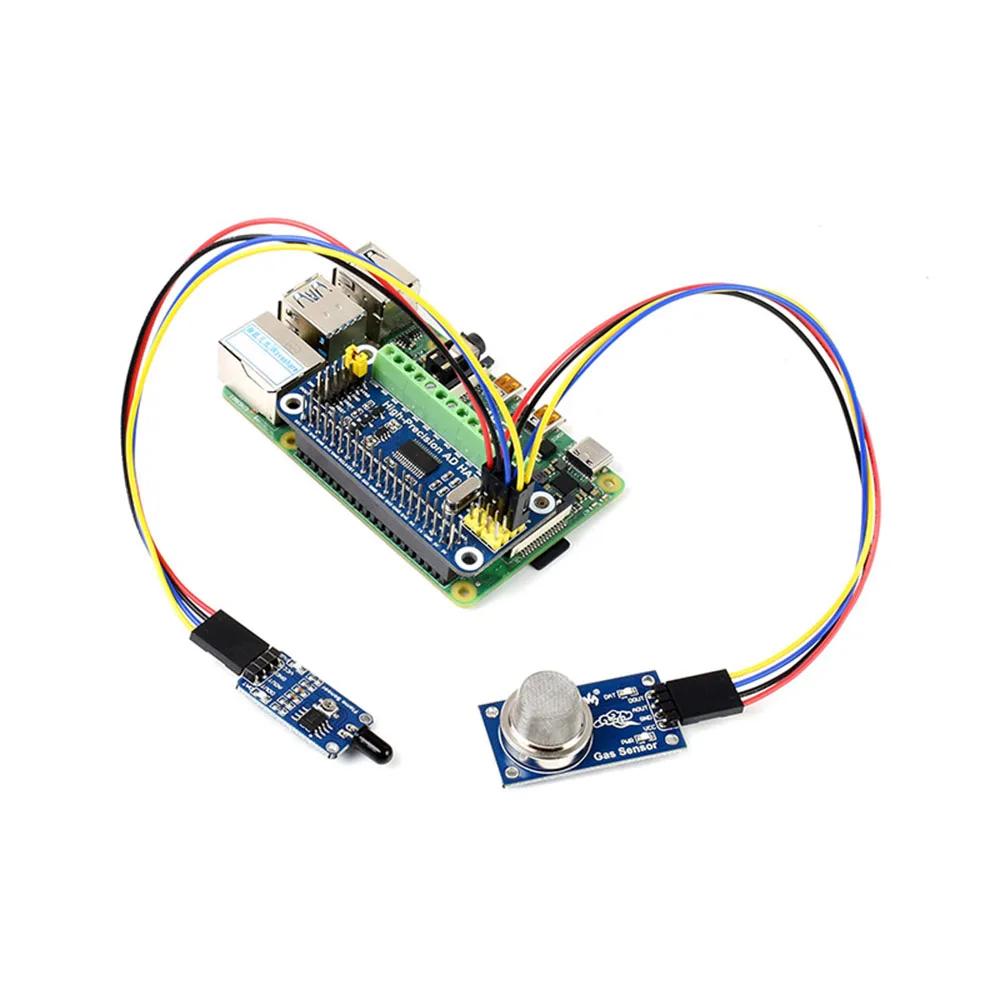

For Connecting Sorts Of Analog Sensor Modules, Compatible With Waveshare Sensor Pinout

For Connecting Analog Signal And Analog Power Supply, General Purpose

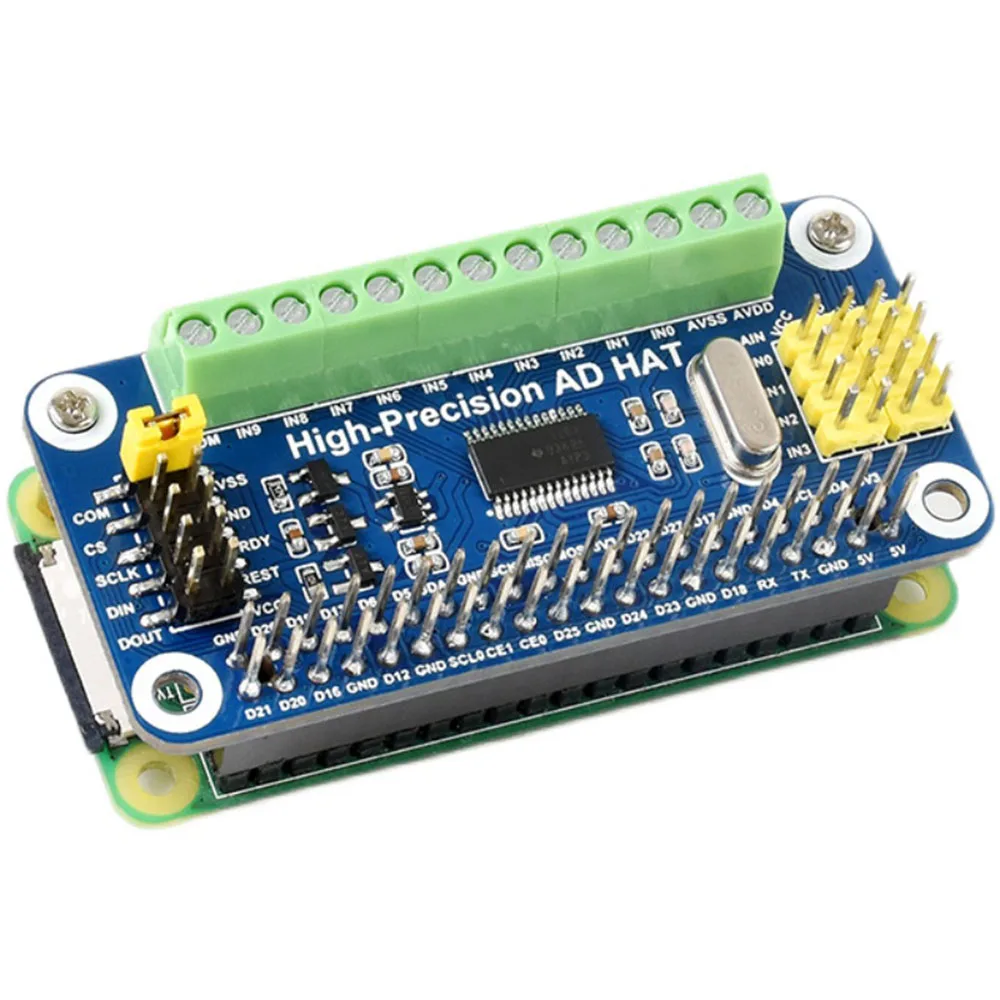

1.Raspberry Pi GPIO header

for connecting Raspberry Pi

2.AD input (screw terminal)

general purpose

3.AD input (header)

for connecting sensor modules, Waveshare standard compliant

4.Control input (header)

allows to be controlled by other hosts

5.Power configuration resistor

6.RTD configuration resistor

7.ADC ground reference configuration

COM is used as negative input terminal on AD single-end input mode, connect it to GND or external reference voltage

8.7.3728M crystal

9.Power supply section

10.RTD section

11.Input filtering section

12.ADS1263

32-bit high precision ADC, 10-ch (5-ch differential input)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

PACKAGE CONTENT

0.023 kg

Waveshare High-Precision AD HAT For Raspberry Pi and Jetson Nano, ADS1263 10-Ch 32-Bit ADC hp latex printhead
