Latest PCM FLASH V1.21 Version ECU Programmer Comes with 2 Dongles Supports ECU Read&Write PCMFLASH V1.21 KTM BENCH 67 in 1 small car inspection equipment Code Readers & Scanning Tools

Origin:	CN(Origin)
Item Type:	Code Readers & Scan Tools
Certification:	CE
Language:	English
Language:	Russian
Software Update:	No
Software Version:	Newest
Hardware Version:	Newest
Operating system:	WIN 7/10,Window XP
Feature:	ECU read/write

Please Note:

1.

All series products do not have CD, please contact customer service to send download link after purchase, thank you very much

2.The hardware hosts of these three products KTM 32IN1/KTM BENCH 67IN1/ PCM FLASH are universal. If you are a KTM BENCH user, you only need to purchase a USB dongle to upgrade the module protocol, and you do not need to purchase a full set of configurations.

3.If you need a detailed list of models supported by each module, please contact customer service and leave your email.

1. If you have any problem, please feel free to contact us first, we will try our best to help you.

2.Please"FOLLOW"our store, you will getExtra 1-3% Fans Exclusive Discount and Extra Couponsas our VIP customers.

Seller Tips：

1.

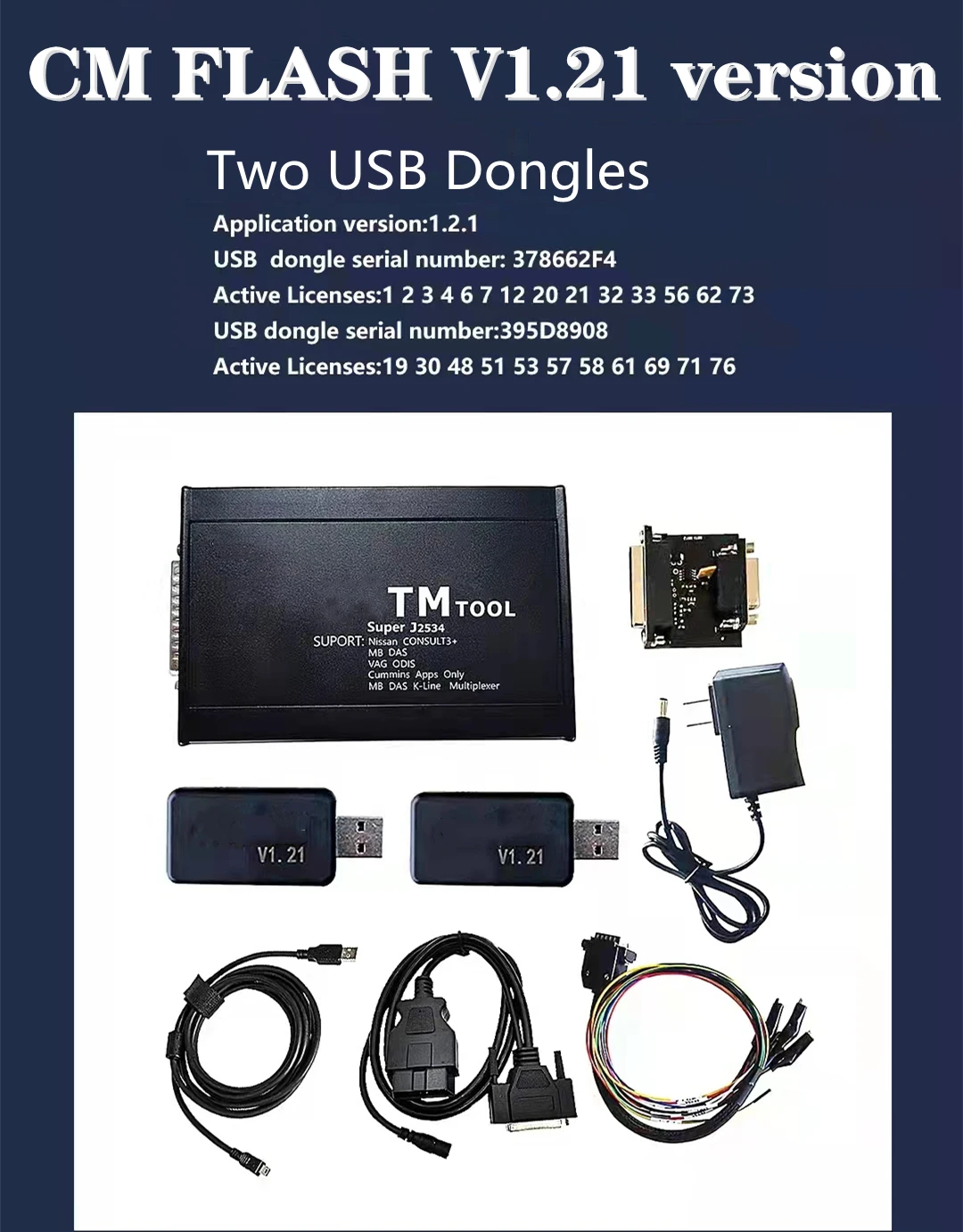

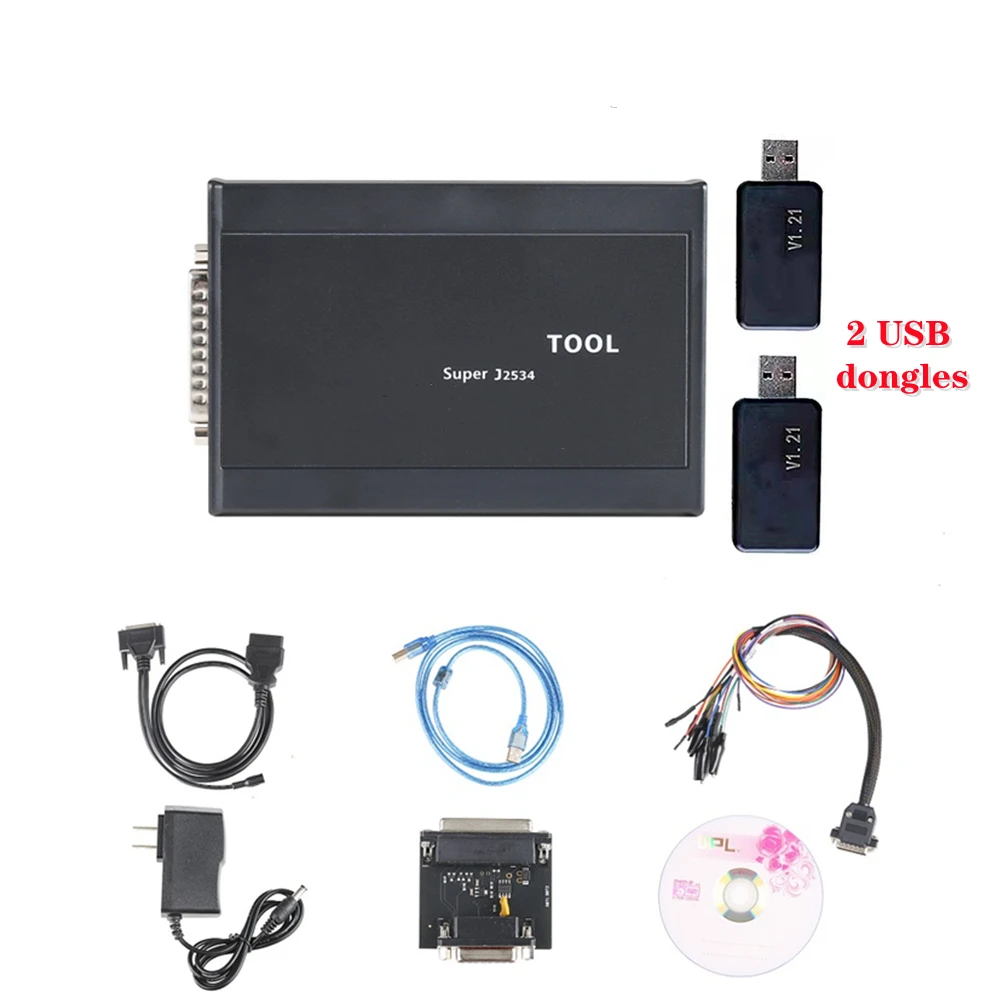

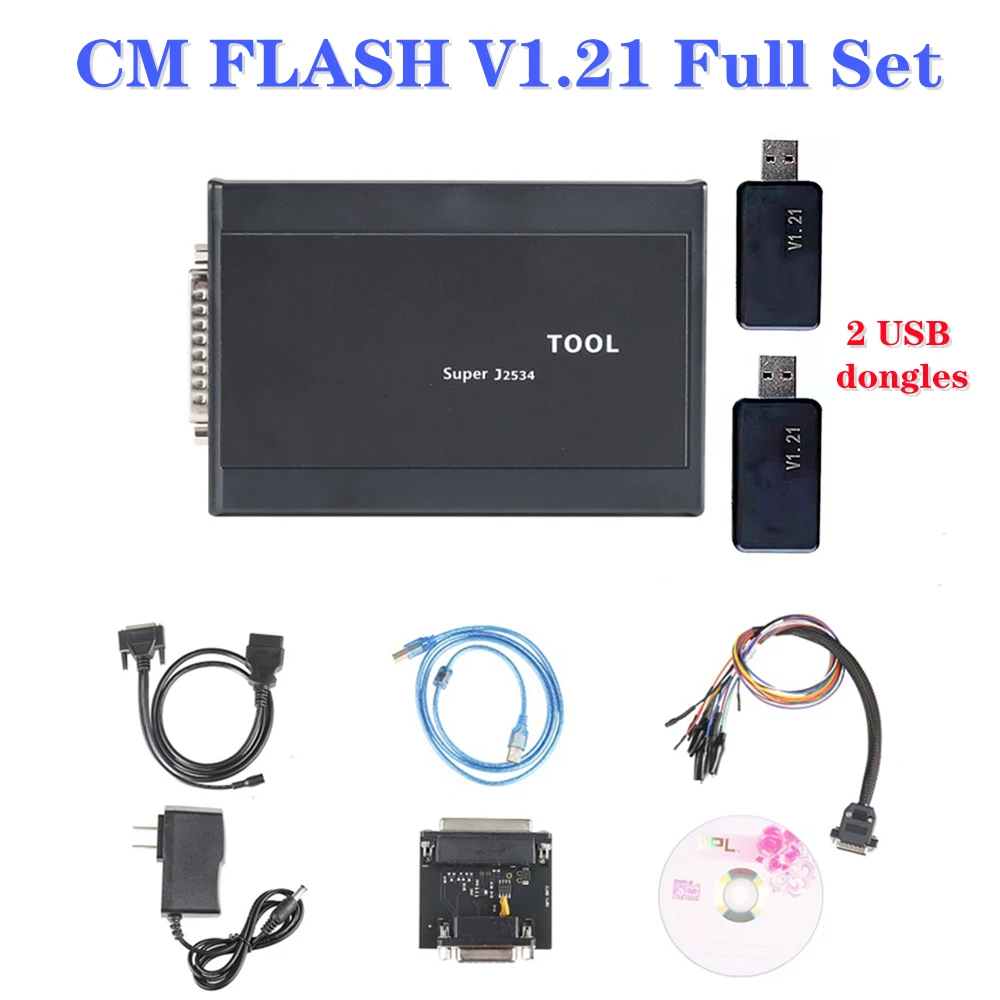

There are 2 dongles in the complete set,

The software display name of dongle 1 is:

378662F4 Supports: 1, 2, 3, 4, 6, 7, 12, 20, 21, 32, 33, 56, 62, 73 Modules

The software display name of dongle 2 is:

395D8908 Supports: 19 30 48 51 53 57 58 61 69 71 76 Modules

2.

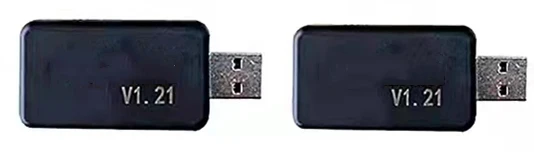

There is no difference in the shape of the 2 dongles, they can only be distinguished by plugging into the computer

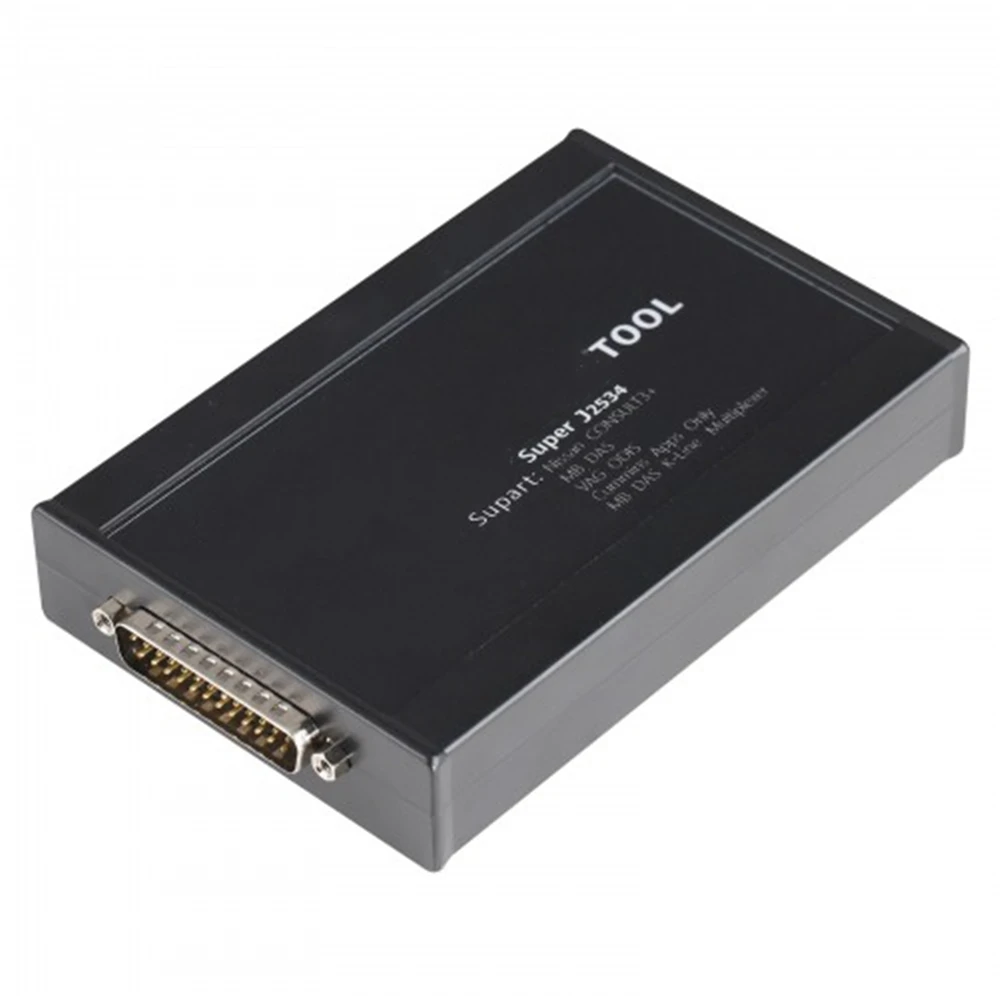

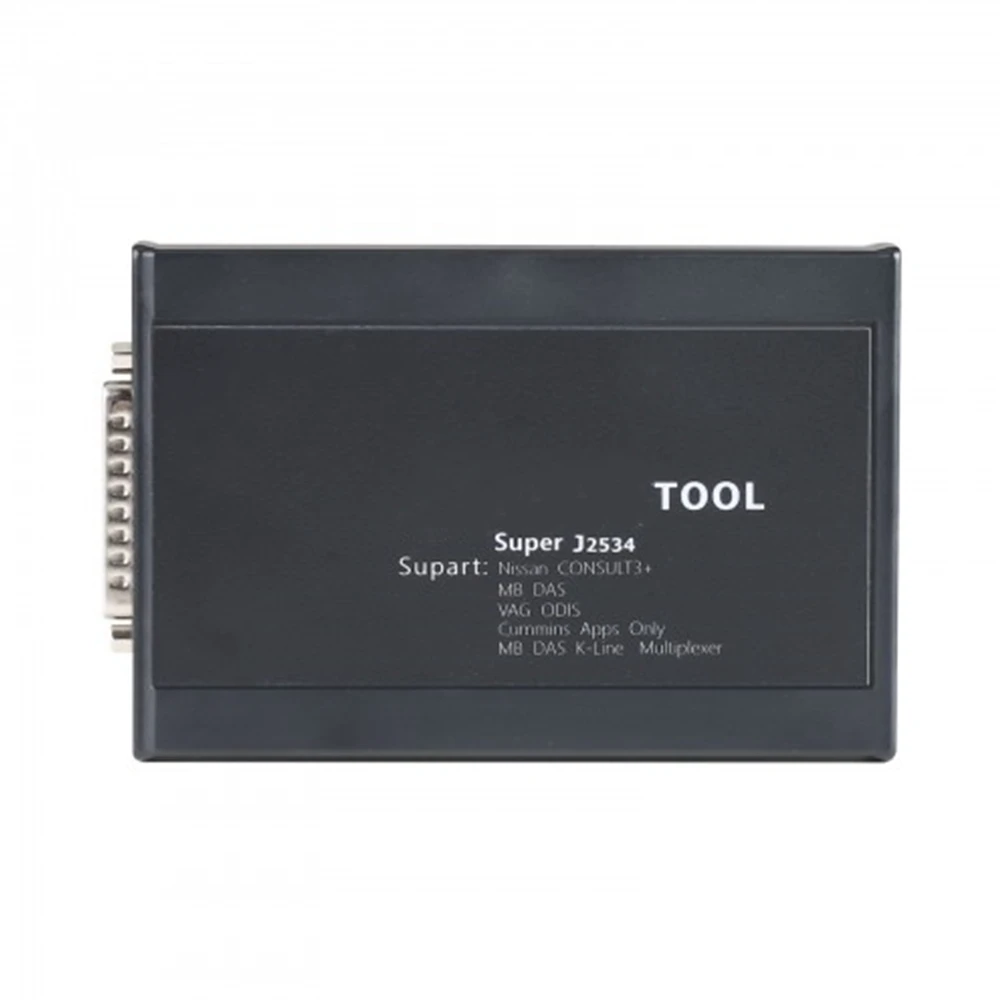

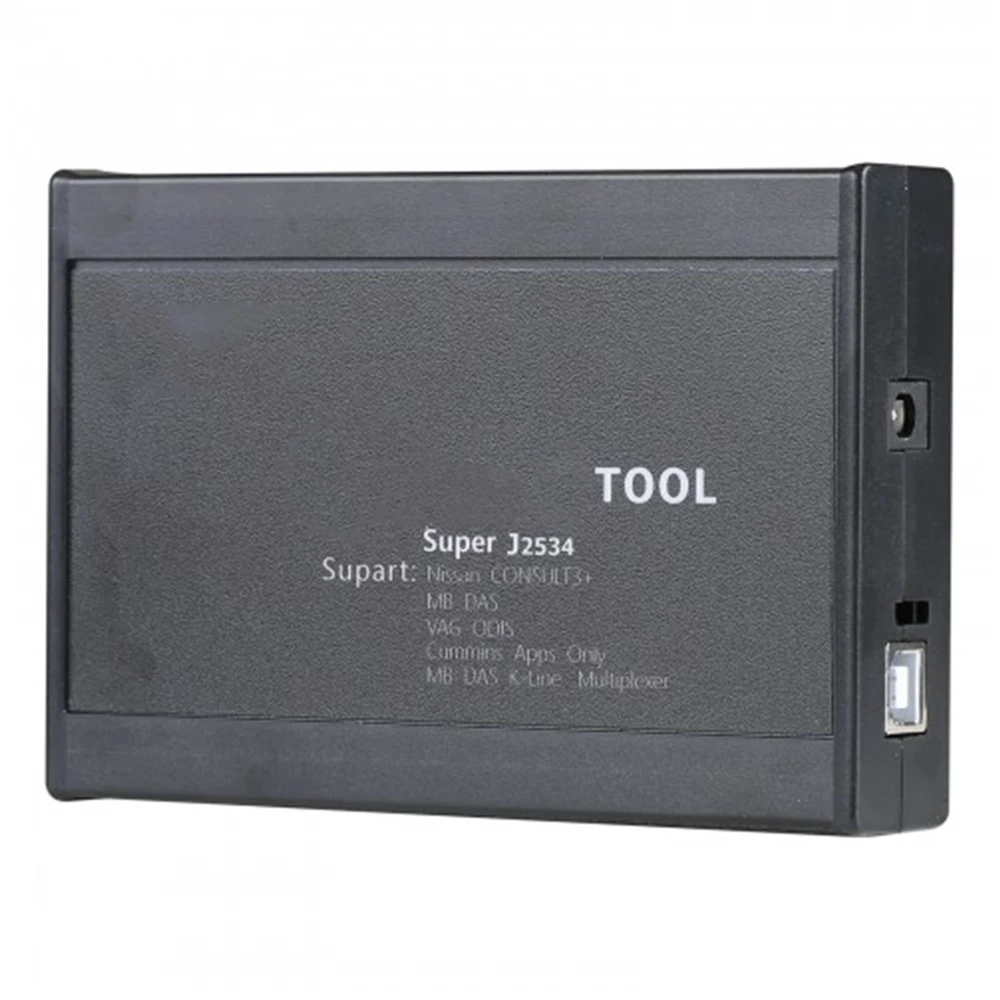

ECU Programmer for BOOT and Bench and GearBox Read and Write

5 Reasons to buy PCM FLASH V1.21 New Version:

1.Support 25 modules that can be opened:

1, 2, 3, 4, 6, 7, 12, 20, 21, 32, 33, 56, 62, 73 and 19, 30, 48, 51, 53, 57, 58, 61, 69, 71, 76

2.NO LIMITS of the car model and year + NO NEED disassemble ECUs Read and write for Bos** ECUs (Infin***'s chips) incl. flash and eeprom

3. LESS RISK to clone/copy ECUs Able to modify data or do chip tuning to achieve superior performance

4.EMT master board, Don't need pay  maual cost and month fee

5. PCM FLASH V1.21 integrates three device function sets of FLASH, BEHCH, OBD 1.20 version

BENCH Support:

Cover for BMW N20, N55, N63, etc. to change or read/write ISN codes (done with other tools)

Cover for Bentley MED17.1.1 to read/write immo data

Cover the latest for Jaguar MED17.8.32

Cover for VW MED17.5.5, MED17.5.22, MED17.5.25

Attention for Bench Installation Tips:

1.Please MUST first step to install driver file first and then connect the unit hardware to computer later at second step.

DO NOT plug hardware to unit before install driver and computer detect driver.

If customer plug hardware to PC occasionally, please unplug off hardware and uninstall driver. Then follow my first step to install driver file first and then connect hardware box to PC.

CD have video instruction, please follow it and install. Thank you very much in advance.

2.If buyer install in right way and still meet problem about driver can not detect or shows error with software ,then please try another computer with Different System . Do not try same system always .

Sometimes it is your computer system can't compatible.

3.Please must ONLY use our software ,Do not use other software from online or somewhere, it can not supports.

Please disconnect internet, do not update yourself . If locked, buyer need pay cost to send back repair. Do not risk this ,thank you .

In conclusion:

All programming tools above can be used for ECU read and write, but differs in ECU coverage and Read/Write method.

There is NO LIMITS of the car model and year when using BENCH to read/write data.

But if you have chips and gearboxes to read and write, you should have a FLASH. The bad is: disassembling is required. BENCH doesn't cover chips and gearboxes and OBD cannot not work good for gerabox Read/Write.

So, you'd better check the ECU/gearbox/chip before your purchase.

Check each car list on corresponding product page.

Models supported by each module

Module 1

Ford Focus 3

Ford Focus 3: 1.6L Sigma Ti-VCT 85/105/125PS (EMS2204)

Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250)

Virtual reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

Ford Focus 3: 2.0L Duratec GDI Ti-VCT 150/170PS (MED17)

Ford Focus 3 ST: 2.0L Ecoboost GTDI 250PS (MED17)

Reading, writing, checksum correction.

Module 2

Ford Kuga 2, Ford Explorer 2011+

Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100/125PS [FV6A] (MEDG17)

Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150/182PS (MEDG17)

Ford Mondeo 5: 1.5L Ecoboost GTDI AT 150/180PS (MEDG17)

Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17)

Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)

Ford Kuga 2: 2.5L Duratec Ti-VCT 150/171PS

Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS

Ford Explorer 2011-: 3.5L Cyclone V6 Ti-VCT 294PS

Reading, writing, checksum correction.

Module 3

Diesel engines 2.0L, DCM3.5/DCM6.1/SID206

Ford Focus 3: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)

Ford Kuga 1: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)

Ford Kuga 2: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)

Ford Mondeo 4: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)

Virtual reading, writing, checksum correction.

Ford Mondeo 4: 1.8L Lynx, 2.0L DW10C STAGE 4 (SID206)

Ford Mondeo 5: 2.0L DW10F STAGE 5/6 150/180PS (DCM6.1)

Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)

Reading, writing, checksum correction.

Module 4

Petrol engines 1.25-1.6L, Ford Fiesta 2008+, Ford Mondeo 4

Ford Fiesta: 1.25L, 1.4L Sigma Ti-VCT (EMS2102)

Ford Fiesta: 1.6L Sigma Ti-VCT (EMS2101)

Ford Mondeo 4: 1.6L Sigma Ti-VCT 110/125PS (EMS2101)

Reading, writing, checksum correction.

Ford Fiesta: 1.6L Sigma Ti-VCT USA [AE81] (EMS2205)

Writing, checksum correction.

Module 6

Petrol Engines 1.0, 1.6L, Ecoboost T-PROT12

Ford Focus 3: 1.0L Ecoboost GTDI 100/125PS (MED17)

Ford Kuga 2: 1.6L Ecoboost GTDI FWD 150PS (MED17)

Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS (MED17)

Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

Module 7

Ford Transit/Tourneo/Ranger, Land Rover Defender

Ford Transit 2007: 2.2L, 2.4L Diesel 85/100/115/140PS (DCU101-108, DCU201-208)

Reading, writing, checksum correction.

Ford Transit 2012: 2.2L Diesel 100/125/140/155PS (SID208)

Land Rover Defender 2012: 2.2L TD4 (SID208))

Ford Ranger: 3.2L Diesel (SID209)

Writing after unlocking in BSL,checksum correction.

Ford Transit 2012: 2.2L Diesel 100/125/140/155PS (SID208/BSL)

Ford Ranger: 3.2L Diesel (SID209/BSL)

Reading.

Ford Transit: 2.2L Diesel (SID211) [Unlocked]

Writing after unlocking in BSL with Module 53, checksum correction.

Ford Ranger: 2.5L Duratec (EMS2207)

Writing, checksum correction.

Module 12

Honda/Acura CAN-bus

Honda: Honda PGM-FI Generic Read-Only

Honda: Honda AT/CVT/DCT Generic Read-Only

PGM-FI (Keihin SH7058/1MB)

PGM-FI (Keihin SH72543/2MB)

PGM-FI (Keihin SH72546/3.75MB)

PGM-FI (Keihin MPC5566/3MB)

PGM-FI (Keihin TC1782/2.5MB)

AT/CVT/DCT (Keihin 512KB)

AT/CVT/DCT (Keihin 1MB)

PGM-FI (Matsushita SH7058/1MB)

PGM-FI (Matsushita SH72543/2MB)

PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)

PGM-FI (Panasonic TC179X/4MB)

AT/CVT/DCT (Matsushita 512KB) (Test)

Honda: PGM-FI (Continental MPC5554/2MB)

PGM-FI (Hitachi SH7058/1MB) (Test)

PGM-FI (Hitachi SH7059/1.5MB) (Test)

PGM-FI (Hitachi SH72543/2MB)

PGM-FI (Hitachi MPC5554/2MB) (Test)

AT/CVT/DCT (Hitachi SH72531/1280KB)

AT/CVT/DCT (Hitachi SH725x3/2048KB)

Reading, writing, checksum correction.

UDCT (Continental TC1782/2.5MB)

Writing, checksum correction.

Module 20

Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)

Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)

Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU131/411/418)

Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)

Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)

Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)

Reading, writing, checksum correction.

Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)

Writing, checksum correction.

Module 21

Ford USA (automatic transfer for VID area)

Mazda6 3.0L AJ 2003-2005

Escape, Explorer, Mazda CX9 -2009 (PCM150F)

Explorer, Mazda CX9 2010-2011/2012 (M799G)

Focus 2008-2011 (GreenOak/PCM190)

Escape, Mariner, Tribute 2009-2011 (9L8A)

Ford F350 6.0L (BlackOak/PCM122/448KB)

Expedition, Navigator 5.4L (Bosch ME9.8/2048KB)

F-150 5.4L (Bosch MEG9.8.1/2536KB)

Reading, writing, checksum correction

Mustang 2005-2009 (PCM170F)

Reading, writing.

Module 32

Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017

Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)

Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)

Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)

Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)

Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)

Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)

Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS [GV6A] (EMS24XX)

Reading, writing, checksum correction.

Module 33

Ford EcoSport/Fiesta 2015+

2.0L Duratec HE 140PS (IAW 7GFR.HR)

Reading, writing, checksum correction.

1.6L Sigma Ti-VCT 85/105/110/122PS (EMS2211)

1.6L Sigma Ti-VCT USA [C1BA] (EMS2214)

Writing, checksum correction.

Module 56

Ford SID807EVO/EDC17C10/EDC17C70

Ford Focus 3: 1.6L DV6C (SID807EVO)

Ford Mondeo 4: 1.6L DV6C (SID807EVO)

Writing after unlocking,checksum correction.

Ford 1.6L DV6C (SID807EVO/BSL)

Reading.

Ford Focus 3: 1.6L ECOnetic 105PS 2012+ (EDC17C10)

Ford Fiesta: 1.4L, 1.6L DV4/DV6 75/95PS 2010-2011 (EDC17C10)

Ford Fiesta: 1.5L, 1.6L DV5/DV6 70/75/95PS 2012+ (EDC17C10)

Ford Focus 3: 1.5L DV5F 90/105/120PS (EDC17C70)

Ford Fiesta: 1.5L DV5F 90/105/120PS (EDC17C70)

Reading, writing, checksum correction.

Module 62

Ford/Getrag 6DCT450

PowerShift TCM (6DCT450)

PowerShift 6DCT450 Boot (MICRO)

PowerShift 6DCT450 Boot (EEPROM)

PowerShift 6DCT451 TCM GGDS

PowerShift 6DCT451 [XPS6 Gen3] Boot (MICRO)

PowerShift 6DCT451 [XPS6 Gen3] Boot (EEPROM)

Reading, writing.

Module 73

Ford MG1

Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A]

Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A]

Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A]

Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A]

Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A]

Ford Edge: 2.7L Ecoboost (MG1CS018) [K2GA]

Ford F-150: 2.7L Ecoboost (MG1CS018) [JL3A]

Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A]

Ford F350: 6.2L, 7.3L Boss V8 (MG1CS019) [LC3A]

Reading, writing, checksum correction

Module 19

Kia/Hyundai

Kia/Hyundai: 1.4L, 1.6L (M(G)7.9.8)

Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7)

Only writing, checksum correction.

Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)

Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21)

Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)

Reading, writing, checksum correction.

Module 30

Kia/Hyundai SIM2K

2.0L, 2.4L (SIM2K-140)

2.0L, 2.5L (SIM2K-D160)

2.0L, 2.4L (SIM2K-141/142/341)

2.0L (SIM2K-C201)

2.0L, 2.0T (SIM2K-240/241/242/245)

Reading, writing, checksum correction.

Module 48

VAG ME(D)17 UDS

1.4L, 1.8L TSI (MED17.5/MED17.5.2/MED17.5.5)

1.0L, 1.2L, 1.4L TSI (MED17.5.21/MED17.5.25/MED17.1.27)

1.0L, 1.6L MPI (ME17.5.20/ME17.5.24/ME17.5.26)

1.4L TSI, 2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1/17.1.1/17.1.10/17.1.61/17.1.62)

1.4L TSI, 3.6L FSI (MED17.1.6/MED17.1.21)

5.2L FSI Master/Salve (MED17.1.1)

Virtual reading, writing, checksum correction.

Module 51

China

Great Wall/Lifan ME17 (ME17.8.8)

Chery 1.5L/1.6L/2.0L D4G15/E4G16/SQR484 (ME17.8.8)

Chery 2.0L D4G20 (ME17.8.8)

Chery 1.5L/1.5T/2.0T E4G15C/E4T15C/D4T20 (ME17U6)

Chery 1.6T F4J16 (MED17.8.10)

GAC 1.5T/2.0T 4A15M1/4B20M1 (ME17.8.8.1) [Test]

Great Wall/Haval MED17 (MED17.8.10)

Geely ME17 (ME17.8.8.1) reading requires direct connection to the ECUGeely 1.8T MED17 (MED17.8.10/TC1728)

Geely 1.5T MED17 (MED17.8.10/TC1782)

MG MED17 (MED17.8.10)

Chevrolet 1.5L Aveo/Sail 3 (ME17.8.8)

Geely/Great Wall/LuxGen MT80 K-Line

Geely/Great Wall/LuxGen MT80 CAN-bus

Reading, writing, checksum correction.

Module 53

Infineon Tricore BSL

TC1762/TC1766 MICRO (1504KB)

TC1762/TC1766 EEPROM (32KB)

TC1792/TC1796 MICRO (2048KB)

TC1796 MICRO+EXT (4096KB/6144KB)

TC1796 EXT (2048KB/4096KB)

TC1792 EEPROM (64KB)

TC1796 EEPROM (128KB)

TC1738/TC1767 MICRO (2048KB)

TC1738/TC1767 EEPROM (64KB)

TC1797 MICRO (4096KB)

TC1797 EEPROM (64KB)

TC1797 MICRO+EXT (6144KB/8192KB)

TC1797 EXT (2048KB/4096KB)

TC1724/TC1728 MICRO (1536KB)

TC1724/TC1728 EEPROM (64KB)

TC1782/TC1784 MICRO (2560KB)

TC1782/TC1784 EEPROM (128KB)

TC1791/TC1793 MICRO (4096KB)

TC1791/TC1793 EEPROM (192KB)

TC1791/TC1793 MICRO+EXT (6144KB/8192KB)

TC1791/TC1793 EXT (2048KB/4096KB)

Delphi MT86 EEPROM (16KB)

Delphi CRD3.1 EEPROM (32KB)

Bosch, Siemens/Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.

Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, etc.

Module 57

SIMOS 8/10/11/12/PCR2.1

2.8L V6 FSI (SIMOS8.1)

3.2L V6 FSI (SIMOS8.2)

Reading, writing, checksum correction.

3.0L V6 TFSI (SIMOS8.3)

3.0L V6 TFSI (SIMOS8.4)

3.0L V6 TFSI (SIMOS8.5)

Virtual reading, writing, checksum correction.

2.8L V6 FSI (SIMOS8.6)

Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

SIMOS8.6 (EEPROM/UNLOCK/BSL)

Reading, writing (EEPROM reading/writing, ECU unlocking)

1.2L TSI (SIMOS10)

1.2L MPI (SIMOS11)

1.8L TSI (SIMOS12.1/SIMOS12.2)

2.0L TSI (SIMOS12.1/SIMOS12.2) й

Virtual reading, reading, writing, checksum correction.

1.6L TDI (PCR2.1)

Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

PCR2.1 (EEPROM/UNLOCK/BSL)

Reading, writing (EEPROM reading/writing, ECU unlocking).

Module 58

VAG DSG/CVT

DQ200MQB/G2 (0CW)

DQ250MQB (0D9)

Reading, writing, checksum correction

VL381/DL382 (0AW/0CK)

DL501/G2 (0B5)

DQ200 (0AM)

DQ250E/F (02E)

VL300/V30 (01J/0AN)

Writing, checksum correction

DQ200/MQB/G2 Boot (EEPROM)

DQ250E/F/MQB Boot (EEPROM)

DL501/G2 Boot (EEPROM)

VL381 Boot (EEPROM)

DL382 Boot (EEPROM)

Honda UDCT Boot (Continental TC1782/EEPROM)

Reading, writing

Reading, writing

DQ200/MQB/G2 Boot (MICRO)

DQ250E/F/MQB Boot (MICRO)

VL381 Boot (MICRO)

DL501/G2 Boot (MICRO)

DQ500 (0BH/0BT)

VL300/V30 BSL (FLASH)

VL300/V30 BSL (EEPROM)

DQ250C (02E)

DL382 Boot (MICRO)

Honda UDCT Boot (Continental TC1782/MICRO)

Reading, writing, checksum correction

Module 61

Kia/Hyundai CPGDSH/CPEGD

1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS

Reading, writing, checksum correction.

1.4T, 1.6L (CPEGD2.20.3/CPEGD2.20.4/UDS)

- requires direct connection to the ECU

1.0L, 1.2L (CPEGP2.10.1/CPGPSH2.14.1/UDS)

Reading, writing, checksum correction, unlocking.

Module 69

Mercedes-Benz MED17/EDC17

MED17.7.1/17.7.2/17.7.3/17.7.3.1/17.7.5

Virtual reading, writing, checksum correction.

MED17.7.1/17.7.2/17.7.3/17.7.3.1

Writing, checksum correction.

EDC17CP01/CP10 (only ECUs with extrenal FLASH memory)

EDC17CP46/CP57/CP60/C66

Reading, writing, checksum correction.

M156/M272/M273 (ME9.7)

Calibration reading, writing, checksum correction.

Module 71

Bosch MEDC17 Bootloader

(direct connection to the ECU connector, Scanmatik 2 Pro,

a connection cable and a power supply are required)

MEDC17 (TC1762/1766/1792/1796) FLASH

MEDC17 (TC1724/1728/1767/1782/1784/1797) FLASH

MEDC17 (TC1791/1793) FLASH

Reading, writing, checksum correction.

MEDC17 (TC1762/1766/1792/1796) EEPROM

MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM

MEDC17 (TC1791/1793) EEPROM

Reading, writing.

MEDC17 BSL PASSWORD

Reading.

Module 76

Kia/Hyundai Gearbox

Kia/Hyundai: MG7.9.8/MEG17.9.12 Gearbox (ST10F275/TCU)

Reading, writing

Kia/Hyundai: TC14 Gearbox (MPC562/TCU)

Kia/Hyundai: TC60/TC80/ME(D)G17.9.8/13 Gearbox (SH72549/TCU)

Kia/Hyundai: SIM2K-24x/341 Gearbox (TC1766/TCU)

Kia/Hyundai: SIM2K-24x Gearbox (TC1738/TCU)

Kia/Hyundai: SIM2K-341 Gearbox (TC1738/TCU)

Kia/Hyundai: SIM2K-143 Gearbox (TC1738/TCU)

Kia/Hyundai: CPTSH2.08.2 Gearbox (SH72544/TCU)

Reading, writing, checksum correction
