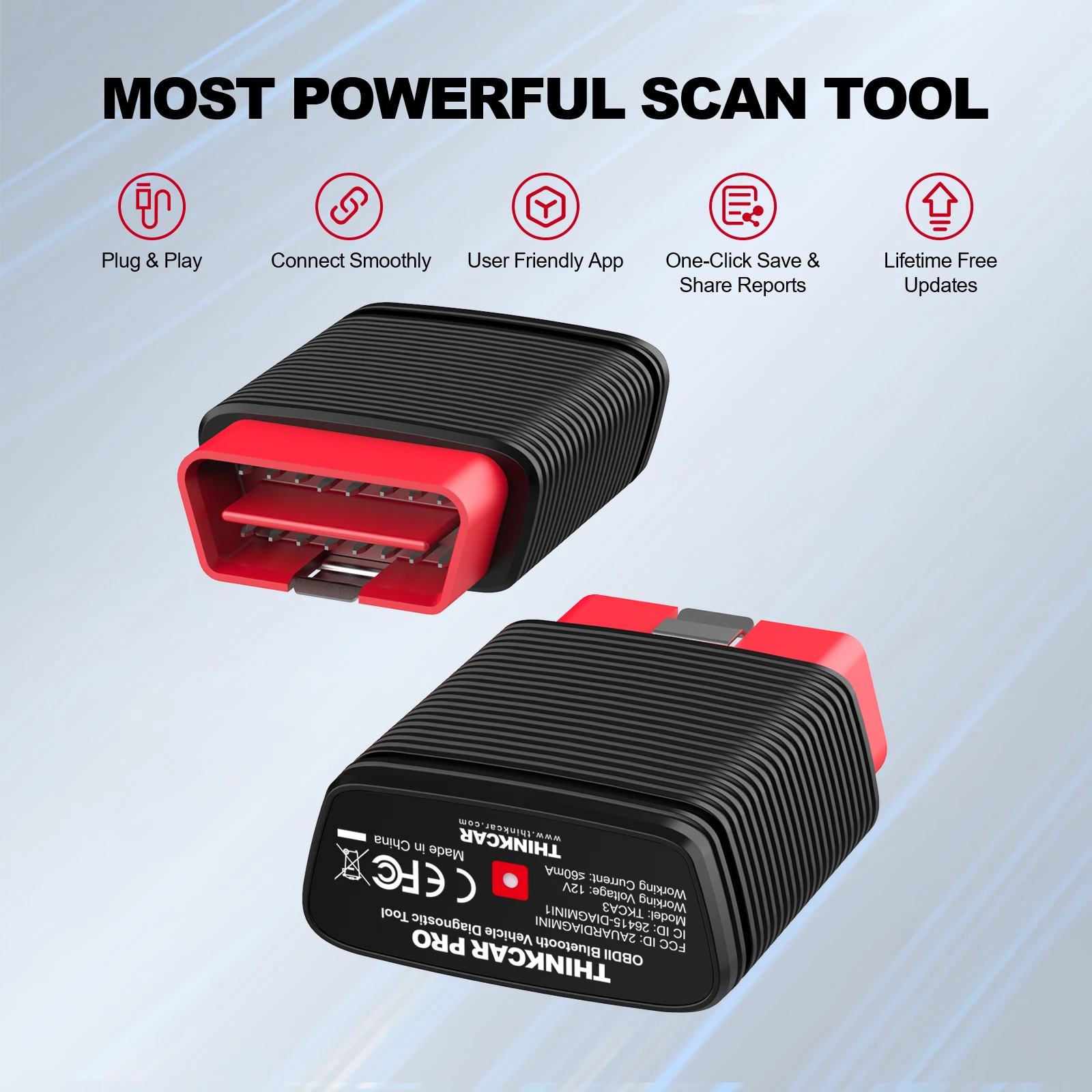

best car inspection equipment THINKCAR Pro Bluetooth IOS Android Car Intelligent Diagnostic Tool OIL IMMO SAS Reset OBD2 Scanner Auto Code Reader PK AP200 auto inspection equipment Code Readers & Scanning Tools

Brand Name:	THINKCAR
Origin:	CN(Origin)
Hardware Version:	THINKCAR Pro Car Scanner
Special Features:	Bluetooth
Software Version:	2021 Newest Version
Item Type:	Code Readers & Scan Tools
Certification:	CE
Certification:	FCC
Certification:	RoHS
Language:	English
Language:	French
Language:	German
Language:	Italian
Language:	Japanese
Language:	Polish
Language:	Portuguese
Language:	Russian
Language:	Spanish
Software Update:	Yes
Item name:	THINKCAR Pro
OBD Diagnostic Tool Function:	Support reading system fault codes and clear codes
5 reset Softwares Free One Year:	Oil,immo,Ele. throttle Rirn,Injector,SAS
Supported Car Models:	Cover Over 115 Major Vehicle Manufacturers
Supported Operating System:	For IOS 9.0 and Android 5.0 System
Support 11 Languages:	English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Turkish,Traditional Chinese
Feature 1:	Intelligent diagnosis
Feature 2:	Diagnose report
Feature 3:	Print function (share first and then open with browser)
Feature 4:	Automatically read VIN
Feature 5:	Identify the car model
Feature 6:	Automatic diagnosis
Feature 7:	Diagnosis function record playback
Working Voltage:	12V
Working Current:	<60mA
Warranty:	1 Year
Car list check:	https://www.mythinkcar.com/coverage/checklist

THINKCAR Prouse in Thinkdiag APP. Please download Thinkdiag APP in Google play

Why Do You Need Thinkcar Pro?

Lifetime Free：Full OBD2 functions and full systems diagnosis for all car softwares
1 Year Free: 5 maintenance resets Free 1 Year for All Car(OIL/Throttle /Injector/IMMO/SAS)
Optional: After 1 year,Only $29.95/year for total 5 resets for all cars

Vehicle Diagnostic Report
One-click Auto VIN Scan&Print Report

Supported models:

compatible with all models supporting OBD II protocol after 1996

Supporting agreement:

ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)

5 Maintenance RESET Functions Free 1Year

This OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:

1. Oil Lamp Reset

Service : allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. SAS Reset service: helps clear the fault

steering angle sensor memories and plays an important role in the steering angle sensor calibration.

3. IMMO Reset: the unique car key programming and

read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

4. Injector Coding Reset: Leaking injectors and some dead injectors

can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically

5. Elec. Throttle Rlrn Service: Throttle Adaptation

Throttle Adaptation The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

Full System Diagnoses:

With superior all systems diagnoses,
this multipurpose OBD2 scanner can be used to read all available systems’ ECU information to facilitate the vehicle diagnosis.

The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.

All Car Full OBD2 Functions Lifetime Free

Mode 1:Read live data stream
Mode 2:Read freeze frame data
Mode 3:Read DTCs(diagnostic trouble codes)
Mode 4:Clear dtcs
Mode 5:Oxygen sensor monitoring
Mode 6:System monitoring
Mode 7:Read pending DTCs
Mode 8:Control operation of on-board system
Mode 9:Read vehicle information
Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

THINKCAR Pro can be detect almost all vehicles in America, Europe, and Asia Pacific regions with OBD port. Please click here to check the Vehicle Coverage.

Examples are as follows:

【European and American area】

Ford Europe, Mercedes-Benz commercial vehicles, MINI, West, Audi, GMSA, Fiat, Opel, GAZ, Peugeot, Volkswagen, Porsche, Citroen, Skoda, Rover, Land Rover, Volvo, VAZ, Renault, Elves, Mercedes-Benz, Jaguar, Dacia, Lancia, BMW, Romeo, Saab, Ford, Chrysler, GM.

【Asia-pacific region】

Thailand Isuzu, Acura, Daewoo, Jianghuai cars (GM), Ssangyong, Infiniti, Proton, Honda, Mazda, Perodua, Jiangling Automobile, Mahindra (MAHINDRA), Isuzu, Suzuki, Byd auto, Chery cars, Toyota, Nissan, Kia, The Car, The Great Wall in cars, Daihatsu, Changan automobile, Geely automobile, Xiamen Jinlong, Zhongxing automobile, Hafei automobile, New Kay, Gonow automobile, Changhe automobile, Hyundai, Liuzhou Wuling, Subaru, Xiali, Australia ford, Mitsubishi, TATA, Zhongtai automobile, Horton, MARUTI, Lexus.

Support 11 Languages

English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Turkish,Traditional Chinese

Special functions

Intelligent diagnosis
Diagnose report
Print function (share first and then open with browser)
Automatically read VIN
Identify the car model
Automatic diagnosis
DTCs Lookup
Diagnosis function record playback

Vehicle Diagnostic Report

One-click Auto VIN Scan&Print Report

How to use THINKCAR Pro ?

1.Download Thinkdiag APP

1) Download and install the APP”Thinkdiag” in Google Play or your smartphone and sign up for a new account And log in.

Compatible with Android 5.0 or above(but not support Android 12)/ ios 9.0 or above to use this device.

How to Activate Thinkcar pro

1) Activate the device in APK ”Thinkdiag”, binding serial number for the first time;
2) Plug the THINKCAR Pro dongle into the vehicle’s 16 pin OBD2 Data Link Connector and then turn on your vehicle.
3) Tap Me/Setting button of your device to bluetooth pair the THINKCAR Pro with your device
4) Start to diagnose your car.

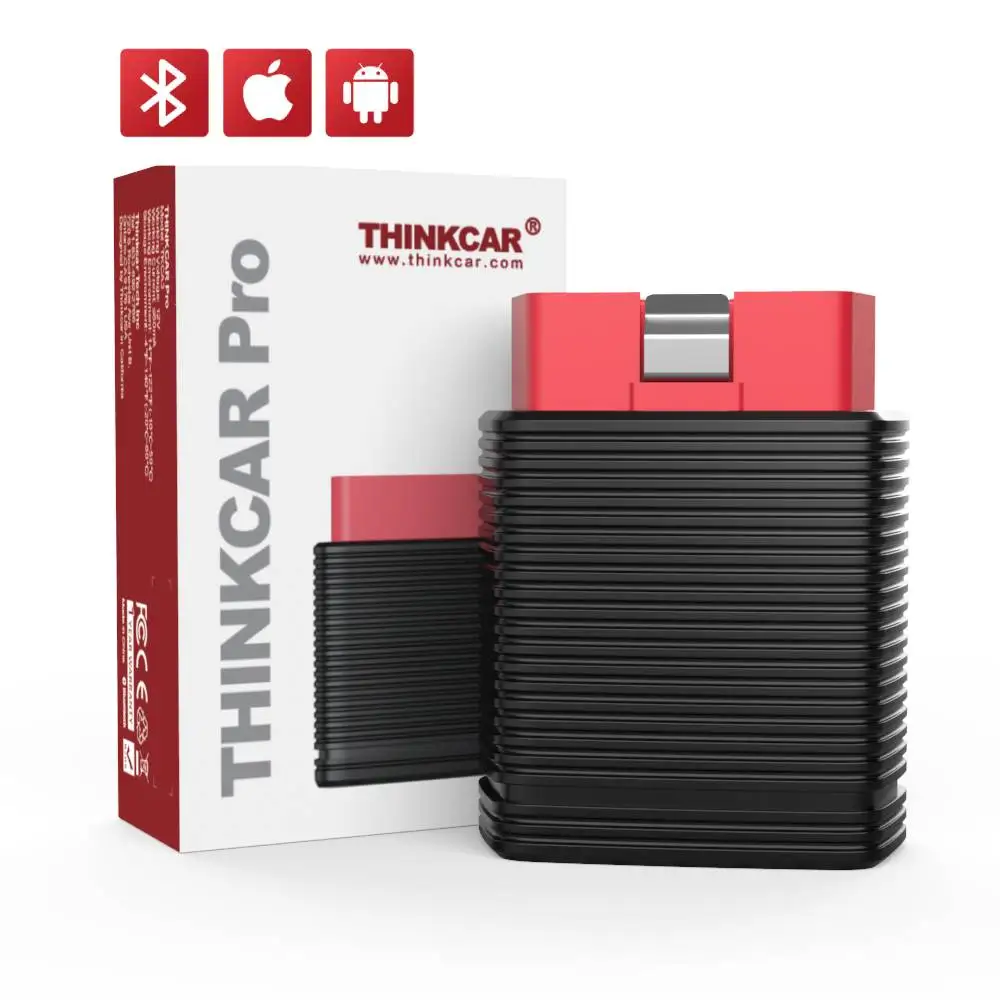

Package List:

1 * Thinkcar Pro OBD2 Scanner
1 * Instruction manual (multilingual)
