Latest Kingston KC600 Disco SSD 256GB 512GB 1T 2T 2.5 Inch Internal Hard Solid Disk SATA III TLC Laptop Desktop High Performance 2 terabyte ssd internal hard drive SSDs

Brand Name:	Kingston
Transport Protocol:	AHCI
Interface Type:	SATA
Interface Type:	SATAII
Interface Type:	SATAIII
Origin:	CN(Origin)
Controller:	SM2259
Cooling Fin:	No
RGB:	No
Size:	2.5"
Bus Type:	SATA III
Application:	Desktop
Application:	Laptop
Model Number:	KC600
Nand Flash Type:	TLC
Certification:	CE
Max Sequential Read:	550Mbps
Max Sequential Write:	520Mbps
Package:	Yes
Type:	Internal
Style:	SSD
Capacity:	256GB/512GB/1024GB/2048GB
NAND:	3D TLC
Interface:	SATA Rev. 3.0 (6Gb/s) with backwards capability to SATA Rev 2.0 (3Gb/s)
Encrypted:	XTS-AES 256-bit encryption
256GB Sequential Read/Write:	up to 550/500MB/s
512GB/1024GB/2048GB Sequential Read/Write:	up to 550/520MB/s
Maximum 4K Read/Write:	up to 90,000/80,000 IOPS
Power Consumption:	0.06W Idle / 0.2W Avg / 1.3W (MAX) Read / 3.2W (MAX) Write
Dimensions:	100.1mm x 69.85mm x 7mm
Vibration operating:	2.17G Peak (7-800Hz)
Vibration non-operating:	20G Peak (10-2000Hz)
Operating temperature:	0°C~70°C
Storage temperature:	-40°C~85°C
Life expectancy:	1 millions hours MTBF

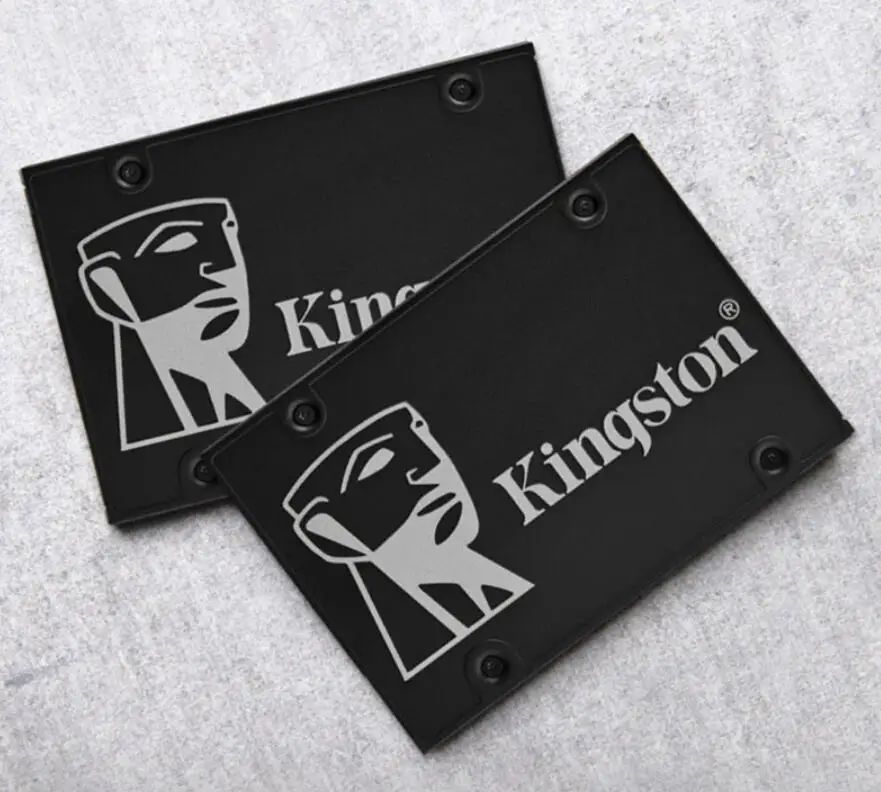

KC600 KC600 SSD Hardware-based self-encrypting drive with 3D TLC NAND

Kingston’s KC600 is a full capacity SSD designed to provide remarkable performance and optimized to provide functional system responsiveness with incredible boot, loading, and transfer times. It comes in both 2.5” form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilizes the latest 3D TLC NAND technology while supporting a fullsecurity suite that includes AES 256-bit hardware encryption, TCG Opal, and eDrive. It features read/write speeds up to 550/520MB/s to efficiently store your data up to 2TB. It’s available in a bundle kit which provides everything you need for a smooth and easy desktop and notebook installation and upgrade.

· Remarkable performance

· Features the latest 3D TLC NAND technology

· Supports a full-security suite (TCG Opal, AES 256-bit, eDrive)

· Available in range of full capacities

Excellent performance, improve system efficiency

With the high efficiency of reading and writing data, KC600 can bring you excellent system responsiveness, faster startup, loading and transmission speed will significantly improve work efficiency!

FEATURES / BENEFITS

Remarkable Performance: Using the latest 3D TLC NAND technology, it enables read/write speeds up to 550/520MB/s.

Full-security suite: Protect and secure your data with Kingston’s self-encrypting drive.

Easy Installation/Upgrade: KC600 is available in an upgrade bundle kit that has everything you need to easily install your drive.

Multiple capacities: KC600 is available in a range of full capacities from 256GB to 2TB.

Features the latest 3D TLC NAND technology

Breaking through the limitations of planar NAND flash memory through 3D NAND technology, KC600 can be used in a smaller space.

It accommodates higher storage capacity in the room, and reduces energy consumption while bringing about a significant increase in performance.

*The components and firmware used in the SSD may change due to different product batches.

Supports a full-security suite (TCG Opal 2.0, AES 256-bit, eDrive)

Can be widely used in many different equipment

It adopts a common 2.5-inch form factor and is equipped with a backward compatible SATA Rev 3.0 interface,

It is not only suitable for ordinary desktop and notebook computers, but also can be used with mobile hard disk boxes.

Stable, durable and quiet, environmentally friendly

Using 3D NAND flash memory chips, no moving parts greatly reduces the risk of failure. It power consumption and low heat generation, quiet work and anti-shock and anti-vibration properties.

Kingston reliable quality

Selected materials and strict production testing

SPECIFICATIONS

Form Factor: 2.5”

Interface: SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s)

Capacities: 256GB, 512GB, 1024GB, 2048GB

Controller: SM2259

NAND: 3D TLC

Encrypted: XTS-AES 256-bit encryption

Sequential Read/Write: 256GB — up to 550/500MB/s
512GB–2048GB — up to 550/520MB/s

Maximum 4K Read/Write: up to 90,000/80,000 IOPS

Power Consumption: 0.06W Idle / 0.2W Avg / 1.3W (MAX) Read / 3.2W (MAX) Write

Dimensions: 100.1mm x 69.85mm x 7mm

Weight: 40g

Operating temperature: 0°C~70°C

Storage temperature: -40°C~85°C

Viberation operating: 2.17G Peak (7-800Hz)

Viberation non-operating: 20G Peak (10-2000Hz)

Life expectancy: 1 millions hours MTBF

Warranty/support: Limited 5-year warranty with free technical support

Total Bytes Written (TBW): 256GB — 150TB
512GB — 300TB
1024GB — 600TB
2048GB — 1200TB

The cryptographic functionalities, mentioned in the present section, are implemented in the firmware of the product.

The cryptographic functions of the firmware can only be changed during the manufacturing process and cannot be

changed by a regular user. The product is designed for installation by the user by following the step-by-step instruction

from the installation user guide, supplied with the product, and, thereby, can be used without further substantial

support of the supplier.

This SSD is designed for use in desktop and notebook computer workloads, and is not intended for Server environments.

1. Based on “out-of-box performance” using a SATA Rev 3.0 motherboard. Speed may vary due to host hardware, software,

and usage. IOMETER Random 4K Read/Write is based on 8GB partition.

2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available

for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For

more information, go to Kingston’s Flash Memory Guide at kingston.com/flashguide.

3. Limited warranty based on 5 years or “SSD Life Remaining” which can be found using the Kingston SSD Manager

(Kingston.com/SSDManager). A new, unused product will show a wear indicator value of one hundred (100), whereas

a product that has reached its endurance limit of program erase cycles will show a wear indicator value of one (1). See

Kingston.com/wa for details.

4. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).
