best ps5 internal ssd Kingston NV1 NVMe PCIe Disco SSD 500GB 1TB 2TB Internal Solid State Drive Hard Disk M.2 2280 NVMe M2 PCIe Gen 3.0 x 4 500gb ssd internal SSDs

Brand Name:	Kingston
Origin:	CN(Origin)
Cooling Fin:	No
Bus Type:	PCIe 3.0x4
Application:	Desktop
Application:	Laptop
Model Number:	NV1 NVMe PCIe SSD
Nand Flash Type:	TLC
Transport Protocol:	NVME
Interface Type:	M.2 2280
Controller:	PCIe
RGB:	No
Size:	M.2 2280
Package:	Yes
Type:	Internal
Style:	SSD
Certification:	CE
Form Factor:	M.2 2280
Interface:	NVM PCIe Gen 3.0 x 4 Lanes
Capacities:	500GB/1TB/2TB
500GB/1TB/2TB Sequential Read/Write:	2100/1700MB/s
500GB Endurance:	120TBW
1TB Endurance:	240TBW
2TB Endurance:	480TBW
500GB Power Consumption:	5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
1TB Power Consumption:	5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
2TB Power Consumption:	5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
Storage Temperature:	-40°C~85°C
Operating Temperature:	0°C~70°C
Dimensions:	22mm x 80mm x 2.1mm
Vibration Operating:	2.17G (7-800 Hz)
Vibration Non-operating:	20G (20-1000Hz)

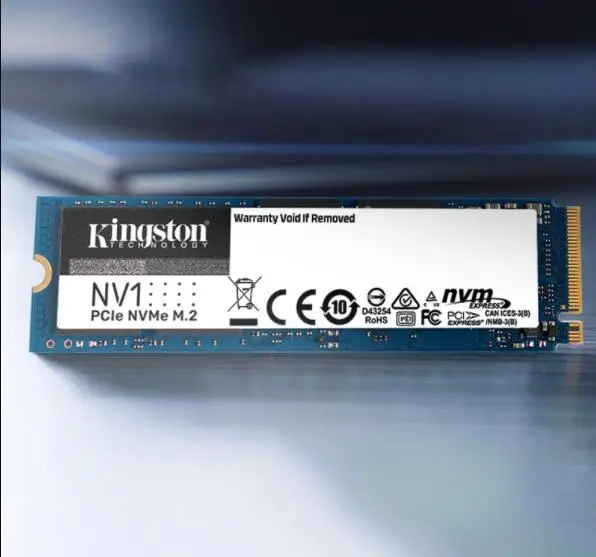

NV1 NVMe PCIe SSD

Efficient performance for thinner notebooks and systems

Kingston’s NV1 NVMe™ PCIe SSD is a substantial storage solution that offers read/write speeds up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design makes NV1 ideal for thin notebooks and systems with limited space.

Available in capacities from 500GB – 2TB2 to give you all the space you need for applications, documents, photos, videos, and more.

Cost-effective
NVMe PCIe

Offers read/write speeds up to 2,100/1,700MB/s

Kingston reliable quality

Selected particles, rigorous production

Using 3D NAND flash memory chips, no moving parts greatly reduces the risk of failure.

Low power consumption and heat generation, low working noise, shock resistance and vibration resistance.

Ideal for systems with limited space

Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs.

Multiple Capacities

Available in a range of capacities up to 2TB to meet your data storage requirements.

Comprehensive data

Encryption protection

As a self-encrypting hard drive, NV 1 supports a complete security suite (TCG Opal 2.0, AES 256-bit, eDrive), and provides you with powerful data security features.

Specifications

Form Factor: M.2 2280

Interface: NVMe PCIe Gen 3.0 x 4 Lanes

Capacities: 250GB, 500GB, 1TB, 2TB

Sequential Read/Write: 500GB, 1TB, 2TB – 2100/1700MB/s

Endurance: 500GB – 120TBW

                  1000GB – 240TBW

                  2000GB – 480TBW

Power Consumption: 500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write

                                 1000GB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write

                                  2000GB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write

Storage Temperature: -40°C~85°C

Operating Temperature: 0°C~70°C

Dimensions: 22mm x 80mm x 2.1mm

Weight: 7g (All capacities)

Vibration Operating: 2.17G (7-800 Hz)

Vibration Non-operating: 20G (20-1000Hz)

Warranty/Support: Limited 3-year warranty with free technical support

This SSD is designed for use in desktop and notebook computer workloads and is not intended for Server environments.

1. Based on “out-of-box performance” using a PCIe 3.0 motherboard. Speed may vary due to host hardware, software, and usage.

2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.

3. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).

4. Limited warranty based on 3 years or “Percentage Used” which can be found using the Kingston SSD Manager (Kingston.com/SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches its warranty limit will show a Percentage Used value of greater than or equal to one hundred (100). See Kingston.com/wa for details.
