Name: JILONG OPM-22 OPM build-in LED With 7 Wavelengths Power Meter ✅ Fiber Optic Power Meter -70~+6dbm with 10mw VFL fiber fast connector
Brand: MMO Dropship
SKU: 1005003657908391
Price: 75.2 VND
Availability: InStock
Rating: 4.9 (72 reviews)

Code: TD-1005003657908391 6 orders

Free Shipping

$ 75.2

Color:

OPM-22

OPM-22V with VFL

Note

Quantity:

Other people want this. 17 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	komshine
Origin:	CN(Origin)
Model Number:	OPM-22
Certification:	NONE

JILONG OPM-22 OPM build-in LED With 7 Wavelengths Power Meter, Fiber Optic Power Meter -70~+6dbm with 10mw VFL for OPM-22V

No Lithium-ion battery included, no USB port for charging

PRODUCT DESCRIPTION：

OPM-22/22V optical power meter, high-precision tester; 6 Wavelengths test, measurement error <0.2dB; Accurately measure network line sequence and judge signal transmission; Equipped with a high-brightness LED small flashlight, which is convenient for construction in a dark environment; With VFL function, strong and stable light source (22V only); User self-calibration function, accurate and efficient measurement; Pocket design, exquisite appearance, easy to carry.

PRODUCT FEATURES:

Accurate measurement ±0.2 dB

Continuous use 60h (only in optical power meter mode)

VFL with 10mW (Only for OPM-22V)

Automatic wavelength memory,6 wavelengths 850/1310/1490/1550/1625nm

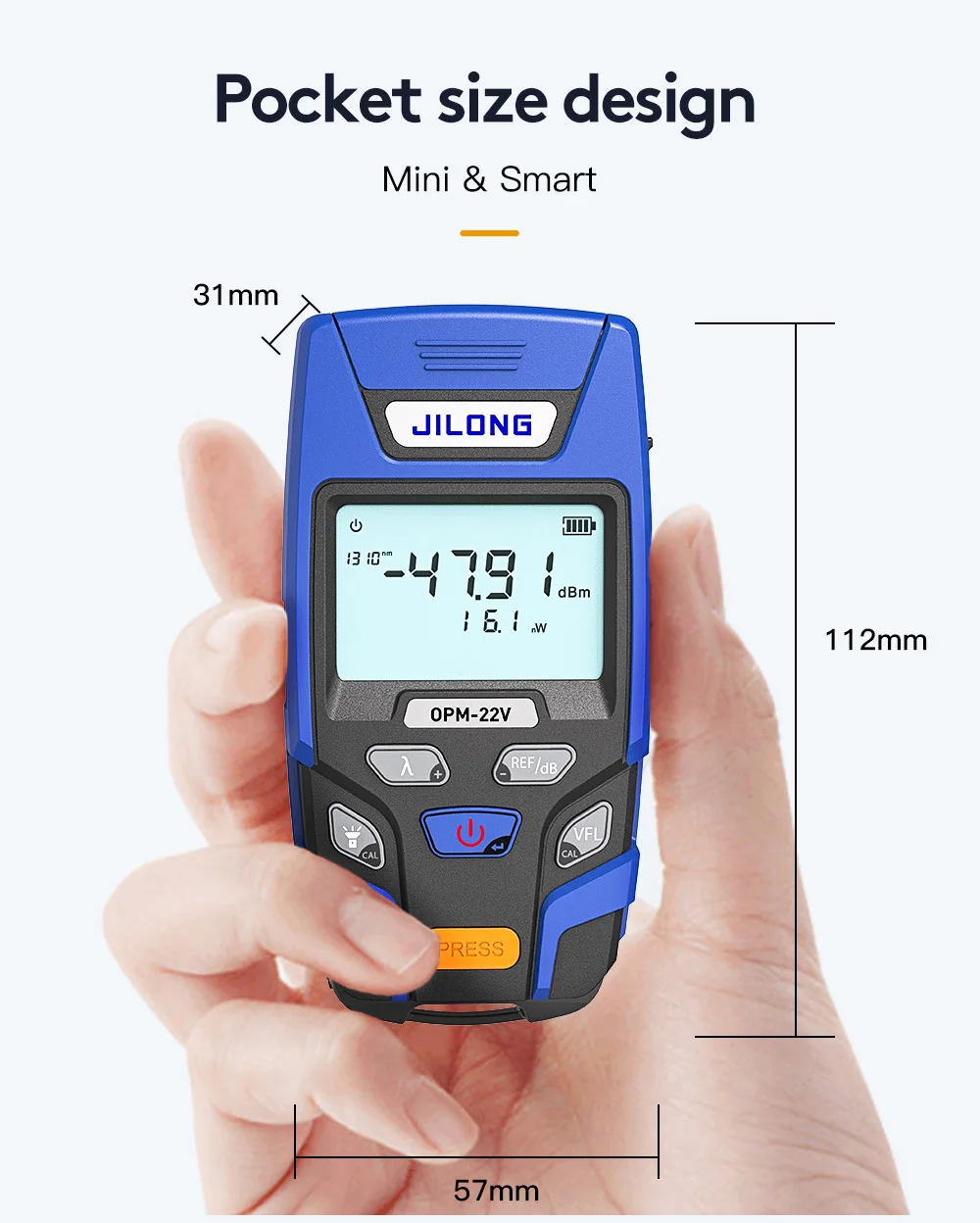

Pocket size

Network test, judge signal transmission

Universal adaptor for FC/SC/ST

With LED lights for dark environment

PRODUCT PARAMETER:

Model

OPM-22

OPM-22V

VFL

— —

10mw

Network test

Interface RJ-4

Wavelength

800 ~ 1700 (nm)

Detector type

InGaAs

Connector

2.5mm Universal connector

Power measurement range

-70 ~ +10 dBm

Uncertainty

≤ ± 0.25 dB

Linearity

≤ ± 0.1 dB

Standard wavelength

850/ 1300/ 1310/ 1490/ 1550/ 1625 (nm)

Display resolution

0.05 dpi

Operating temperature

-10 ~ +60 (℃)

Storage temperature

-25 ~ +70 (℃)

Auto-off time

10 min

Operating hours

Battery power: 20 hours (only the optical power meter works)

Rechargeable: 60 hours (only the optical power meter works)

LED

Support

Power

AAA 1.5V batteries x 2

Dimensions

112 x 57 x 31 mm

Weight

120 g (Including batteries)

JILONG OPM-22 OPM build-in LED With 7 Wavelengths Power Meter, Fiber Optic Power Meter -70~+6dbm with 10mw VFL fiber fast connector
