Intel I350 Chip PCIE X4 RJ45 Quad 4 Port Industrial Network Card PoE Vision Frame Grabber NICs Gigabit Ethernet Lan 1000Mbps usb wifi adapter Network Cards

Code: TD-1005003912549727
Free Shipping
$ 285.09 $ 294.59
Quantity:
Other people want this. 30 people have this in their carts right now.
Brand Name:  DIEWU
Transmission Rate:  10/100/1000Mbps
Certification:  NONE
Origin:  CN(Origin)
Kind:  Internal
Type:  Wired
Application:  Desktop
Adapter Socket:  PCI-e
Interface Type:  PCI Express
Package:  Yes
Applicable Network Type:  Gigabit Ethernet
Products Status:  Stock
Application:  Server
Type:  Wired
Kind:  External
Transmission Rate:  10Gbps
Interface Type:  PCI EXPRESS
Brand Name:  OEM
Chipset:  I350AM4
Color:  BLACK
Interface:  PCI Express
Warranty:  1 Year
Package:  Brown Box
Keywords:  Server Adapter 1G
PO:  ST7246
OEM/ODM:  Avilable
Port:  4 PORTS
Name:  POE 4 PORTS

Product Description

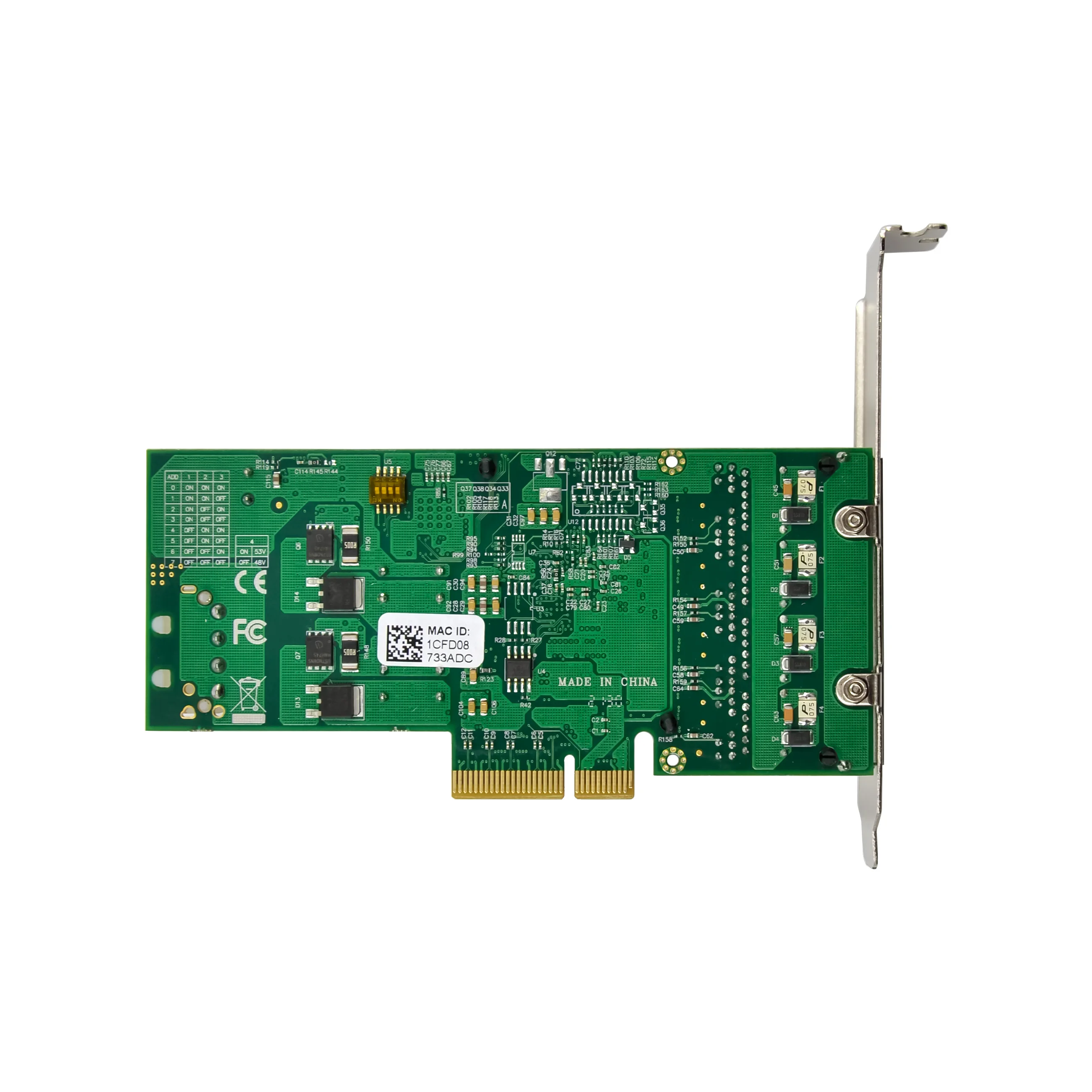

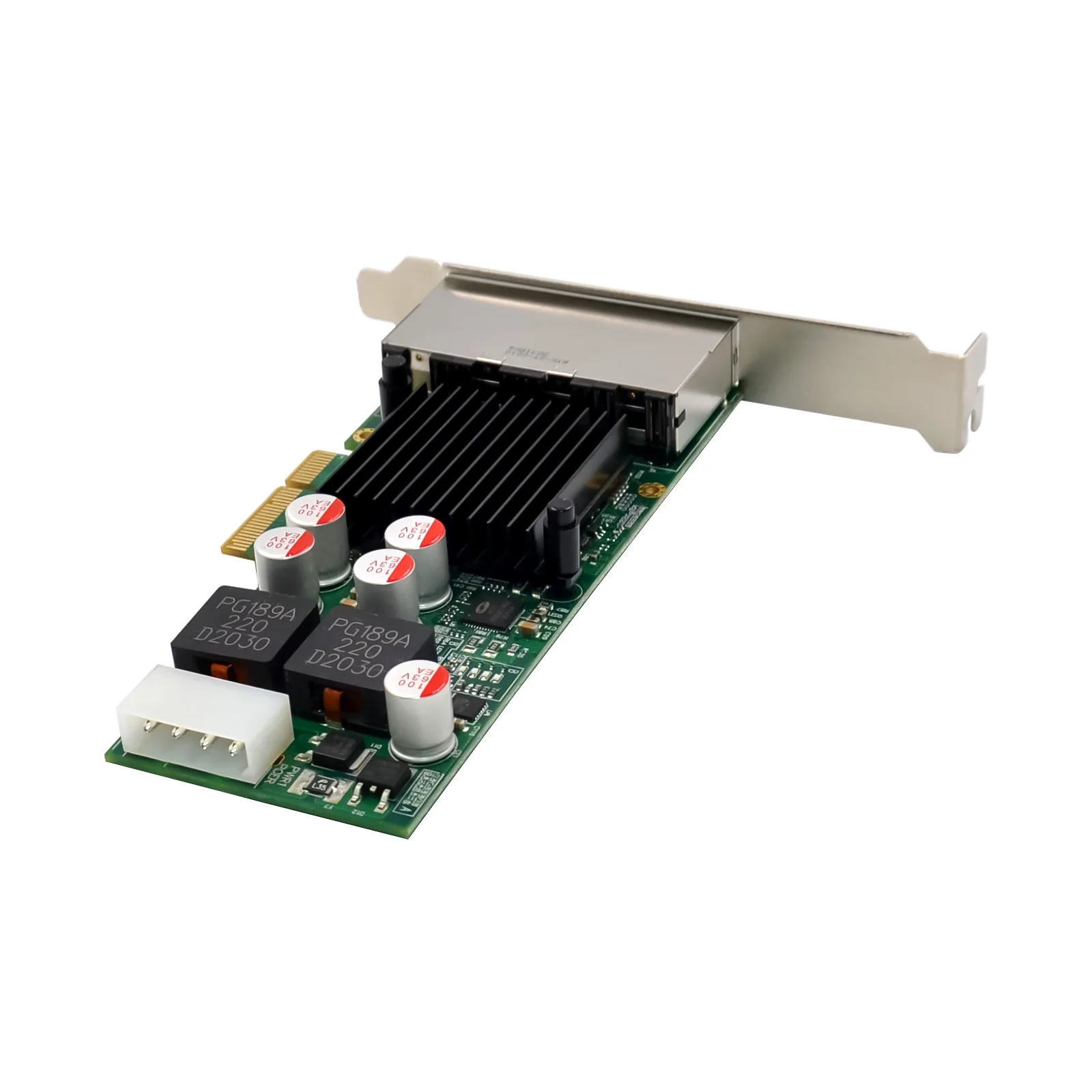

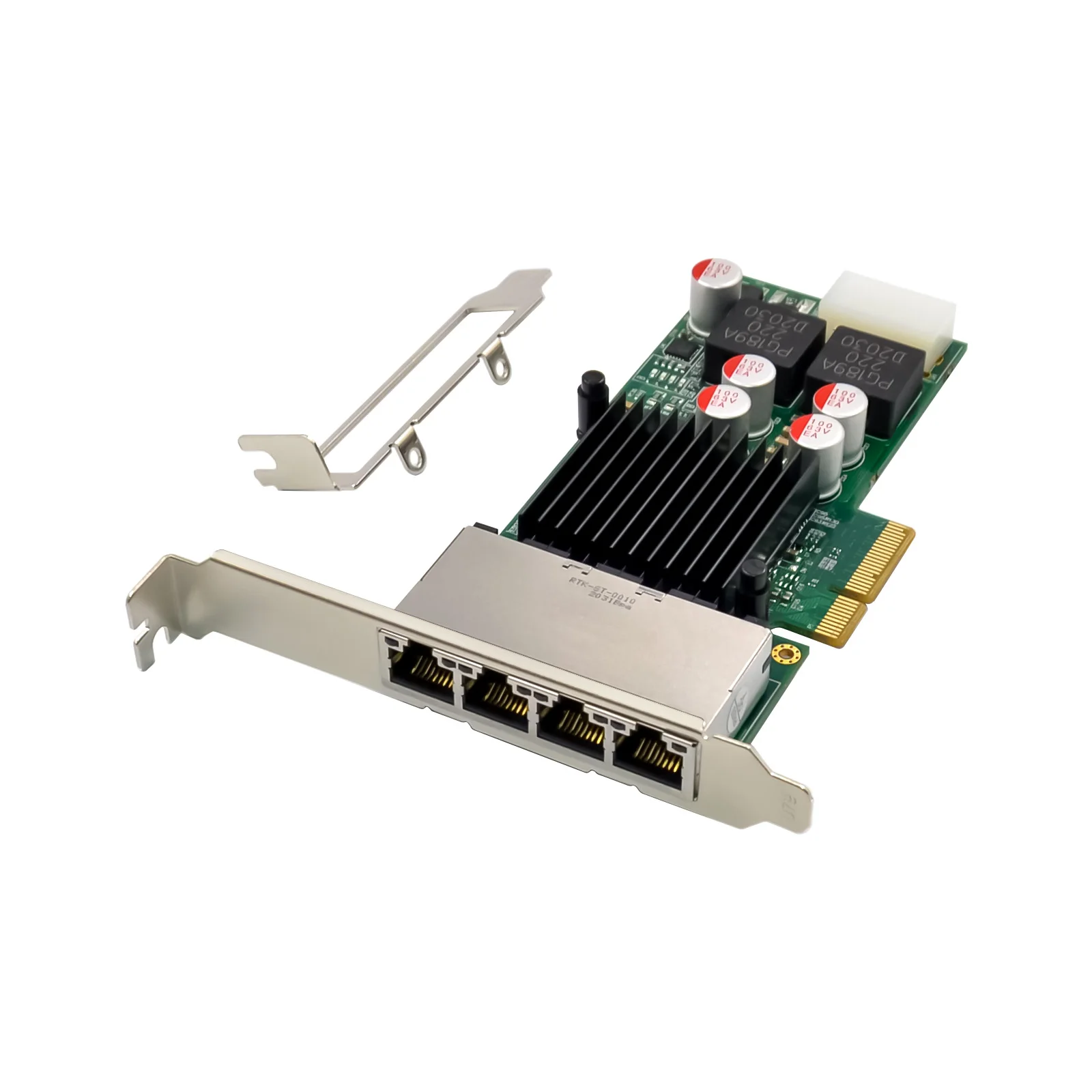

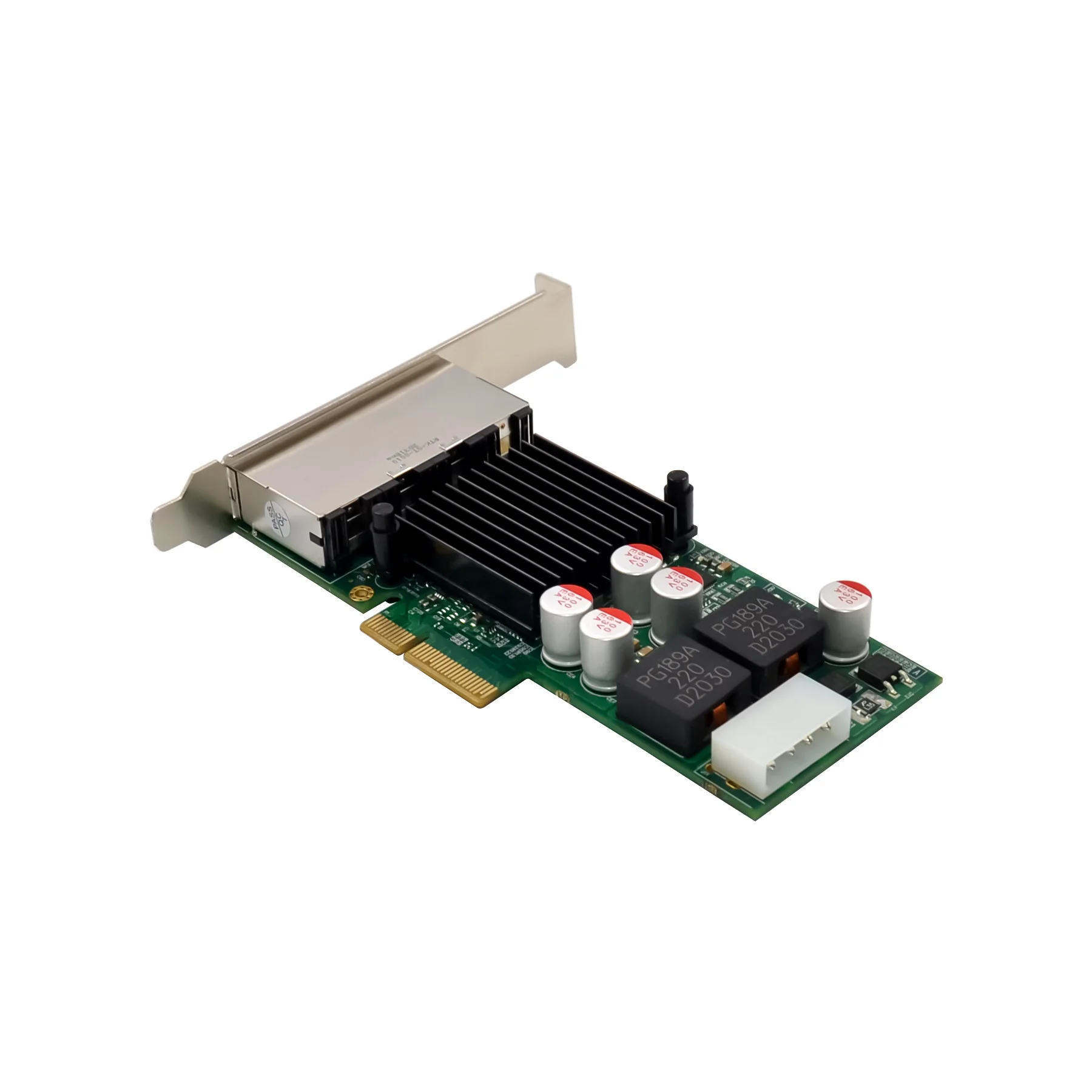

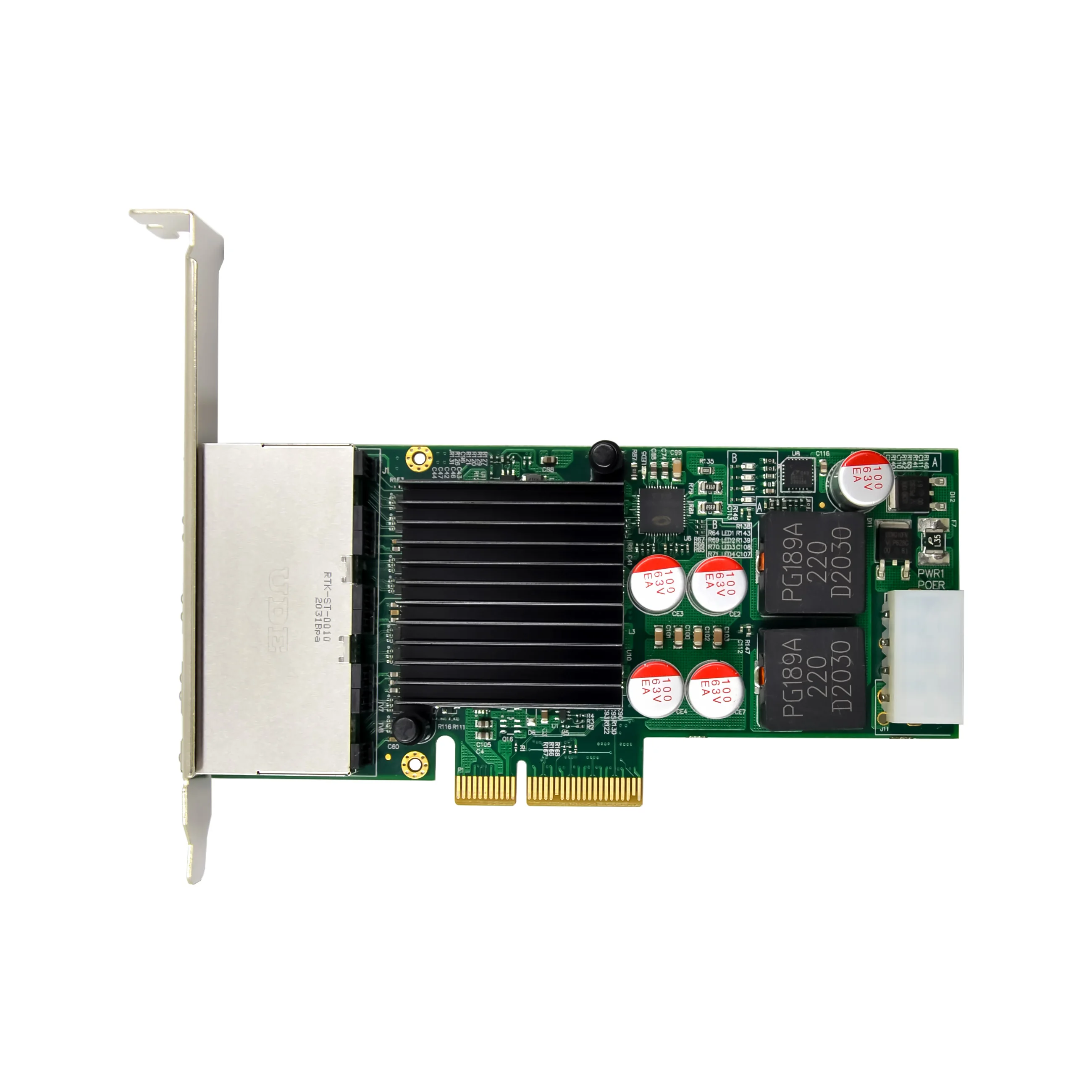

I350AM4 Chip Quad RJ45 PoE Gigabit Ethernet Server Converged Network Adapter

PCIe Intel Gigabit POE+ Network adapter specially designed and it adopts Intel a high performance Gigabit network Chipset By providing unparalleled features of virtualization, flexible features, and proven reliable performance, it solves the high requirements of the generation data center, it has 1Gbps RJ45 port which can setup a long-distance link with a file server or a remote workstation. It also supports IEEE802.3af,IEEE802.3at Protocols, which supports the maximum power supply of 30W,can achieve remote equipment power supply.

Product Feature.

* Adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems, with Power
over Ethernet capability
* Intel I350-T4 chipset supports reliable and advanced network connectivity
* Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support
* Supports IEEE 802.3at PoE+ standard, with up to 30W power output per port (maximum)
* Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
* Supports PXE network boot
* Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and
reduce power consumption
* Supports IEEE standard 802.1Q for VLAN
* Advanced Configuration and Power Interface (ACPI) power management states and wake-up capability
* Advanced Power Management (APM) wake-up functionality
* Supports 12V mini-fit 6-pin power connector input
* Powered device (PD) auto detection and classification
* Fits both standard height and low profile system chassis with the included full size and spare low profile brackets

Specification.

Chipset: Intel I350AM4 Network transfer rate: 10M / 100M / 1G PCI Express specification: PCI Express 2.1 (5.0 GT/s) Bus connector: x4 Lane PCI Express Industry Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1Q VLANs, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus Cable length: 1000BASE-T: 100m for CAT 5e, CAT 6 or CAT 6A 100BASE-T: 100m for CAT 5e, CAT 6 or CAT 6A 10BASE-T: 100m for CAT 5e, CAT 6 or CAT 6 Power over Ethernet: Support up to 30 Watts (Max) power output per port (52V DC)

System Requirements.

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10
Available PCI Express x4/x8/x16 slot

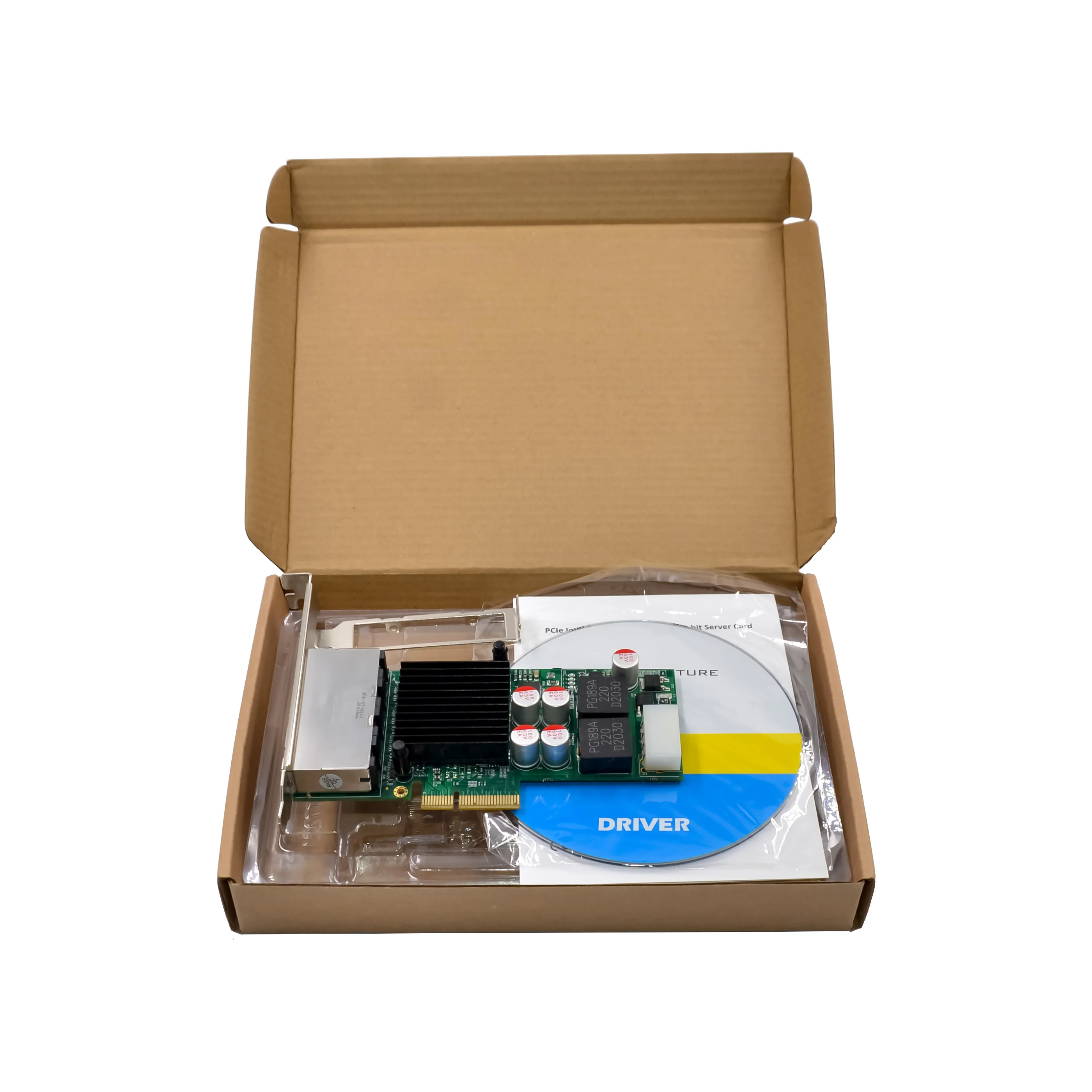

Package Content:
1* Poe network card
1* Driver Disk
