hot stapler plastic repair OLED T12 75W Mini Electric Soldering Iron Adjustable Temperature Portable Solder Welding Station K Tip w/ power supply not SH72 best soldering iron for electronics Welding Equipment

Brand Name:	OSSIEAO
Origin:	CN(Origin)
Certification:	NONE
Output Power:	75W
Model Number:	T12 75W Mini Portable OLED Soldering Iron Set
Input Voltagle:	AC 110V~240V
Output Temperature:	220-400 Celsius Degree
package listing:	just like the photo when you chose the color
Note:	include power supply
if you chose with 2 pcs tips:	please left message the tip you need
if not left message the tip:	we will send random tips
if you want US plug:	you can left message in your order
power supply:	original is EU plug
display:	OLED display
Power Jack:	DC5.5*2.1 (DC5521)
power supply cable lenght:	output line 0.9 meter

Please read the description before order!

Please left message in your order the tip you want (

like the following photo

)

if you chose with 1 pcs tips or with 2 pcs tips and so on!

We will send that for you as your request!

if you not left message the tip in your order,we will send you random tips like our description

Each oled soldering iron station i will test before shipment,make sure it can work (the display won't show error and it will heat up) with our store 24V 3A power supply

New arrival!

Click into the following photo to have a see!

Please read the description before order!

Note:

This is T12 soldering station,not sh72 soldering station,can not use sh72 tip,only can use T12 tip,if you order that,please check about that!

if choose the With 2 pcs T12 tip, you can left message in your order the tip you want!We will send that for you!

If you receive the product have any problem,you can contact with me first ,we will solve for you in our best!

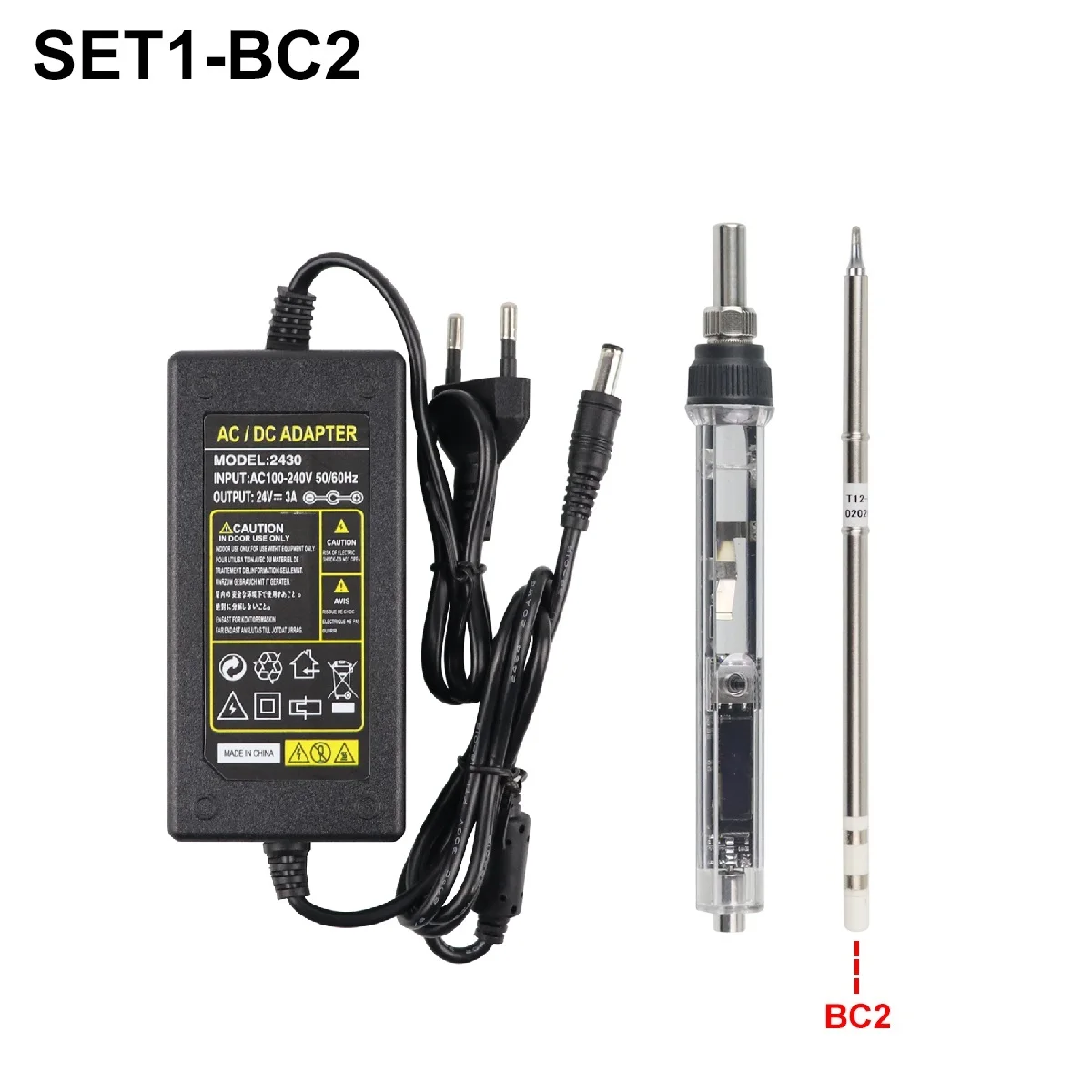

If you choose SET1-BC2,The standard tip is T12-BC2 tip

Note  :   to use with this power supply,when installing t12 iron tip, please loosen (remove) the fixing nut at first, then insert the iron tip, finally fix the nut for iron tip!If not do that,the station or the tip can not work!

If you want to change other tip.Please left message the tips you want in your order when you place the order,You can chose the types in our following photo as you need

(not include BCM2 or BCM3)

,

if you not left message for me,we will send random tips for you!Hope you can understand!

The types are below(

Total 29 pcs choose

):

T12-K,

T12-B,T12-B2,

T12-BL,T12-BC1,

T12-BC1.5,T12-BC2,T12-BC3,

T12-C1,

T12-C4,

T12-CF4

,

T12-D12,T12-D16,

T12-D24,T12-D4,T12-D52

,

T12-DL32,T12-J02,T12-JL02,

T12-KU,

T12-KR,

T12-KL,

T12-I,

T12-IL,

T12-ILS,

T12-BCF1,T12-BCF2,

T12-BCF3

,T12-D08

1. Knob and display

2. Menu instructions

Press the knob to enter menu, it will shows 7 options:













ACT: calibration

(

Note: Before calibration, the value after calibration must be set to 0



)

HSL: brightness

brightness adjustable range is 2-100 , 2 is darkest, 100 is the brightest

DMH: sleep

when screen is "DMH ON 5" ,



It means that if the operator does not use the soldering iron for 5 seconds(

automatically detect the use status of the soldering iron



), the soldering iron will stop heating, and it will start heating again after picking it up.



It means that the soldering iron will always be in working condition, and the automatic detection function is turned off.

LED: always on display

It means that after 5 seconds of no key operation, the screen will be off, and when the key is operated again, the screen will light up again.

when screen is "LED OFF", It means the screen will stay on

LVF: power

This option indicates whether the power supply is stable. If the power supply is unstable, you can adjust the value appropriately. If the main menu shows insufficient power, it is recommended to replace the power supply

LAG: language

IMA: Screen display direction

Can switch left-hand or right-hand operation display

RTN: return

Return to main interface

The Package listing as what you chose:

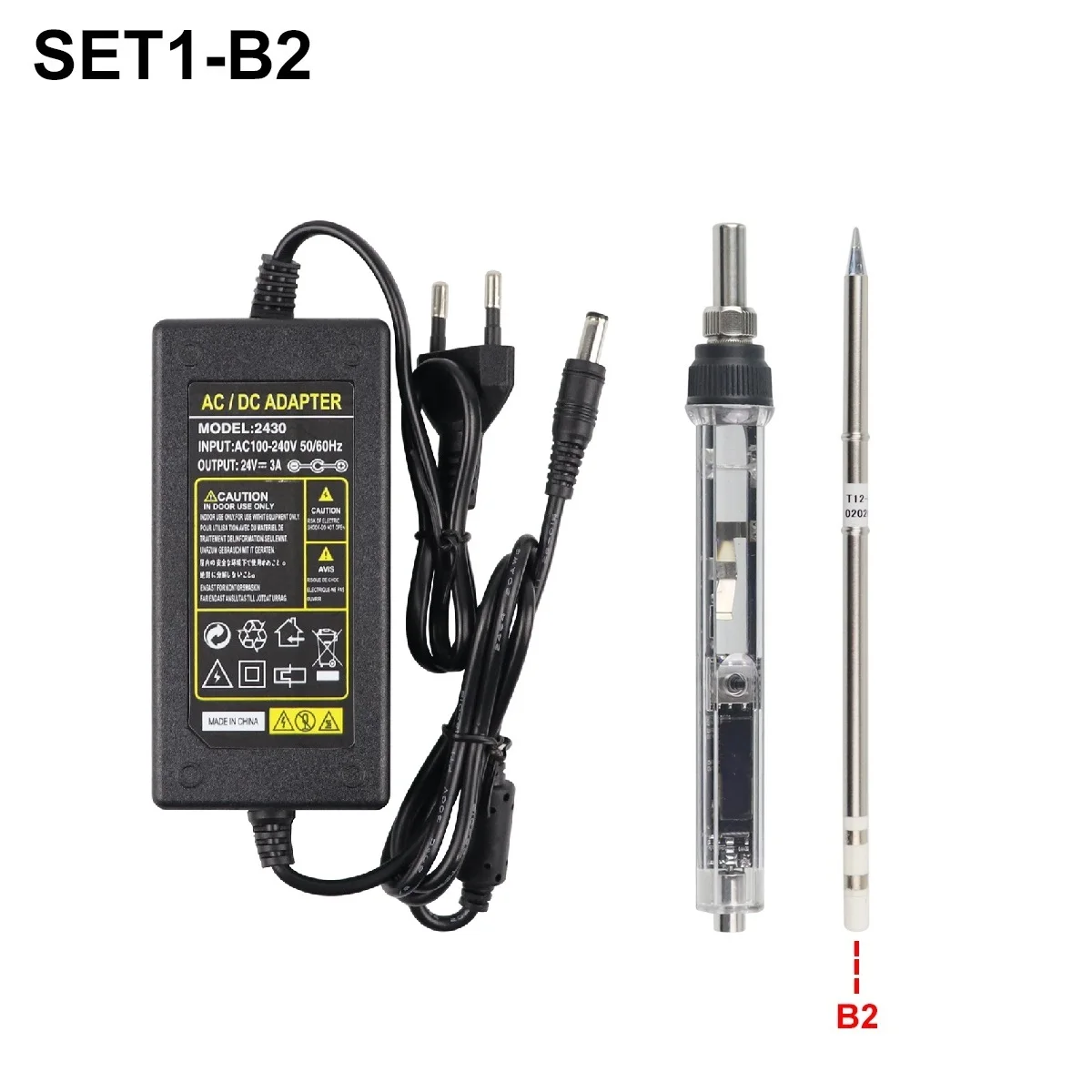

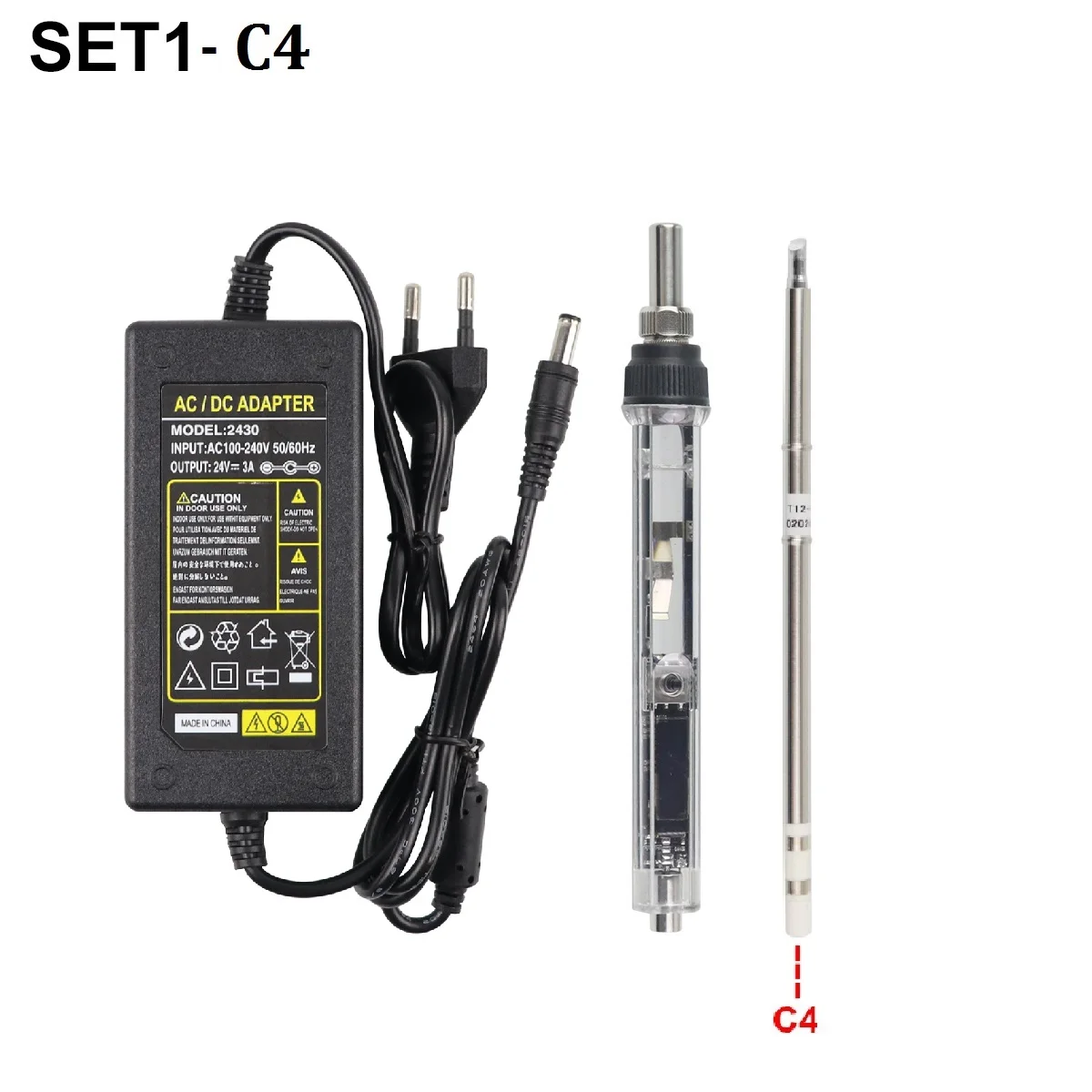

SET 1 Package Included:

1X Solder Iron station

1X Soldering Iron Tip (k or bc2,or b2,or I)

1X Power supply

With 2 pcs t12 tips Package Included:

1X Solder Iron station

2X Soldering Iron Tip

1X Power supply

With 3 pcs t12 tips Package Included:

1X Solder Iron station

3X Soldering Iron Tip

1X Power supply

The Package listing as what you chose:

If you want to change other tips,you can left message in your order the tips you want!
