arc welders T12 OLED 75W 12-24V 220-400℃ Adjustable Soldering Iron Station DC5521 T12-K KU D24 BC2 C4 I Tips Set of Welding Solder Tools inverter welder Welding Equipment

Brand Name:	OSSIEAO
Origin:	CN(Origin)
Output Power:	72W
Input Voltagle:	DC 12-24V
Temperature Stability:	+/-2%
Certification:	NONE
Model Number:	T12 72W Mini Portable Digital Soldering Iron Set
Temperature Adjustment:	Support
Power Jack:	DC5.5*2.5 (DC5521)
Soldering Iron Tip Model:	Standard tip is like what you chose
Pay attention:	the tips is T12 Tip,not suitable for SH72 tips
Net Weight:	43g
Note:	The Min Station not include power supply!
If you receive the product have problem:	you can contact with before open dispute or left feedback
If you want to change other tip:	you can left message in your order the tip you want

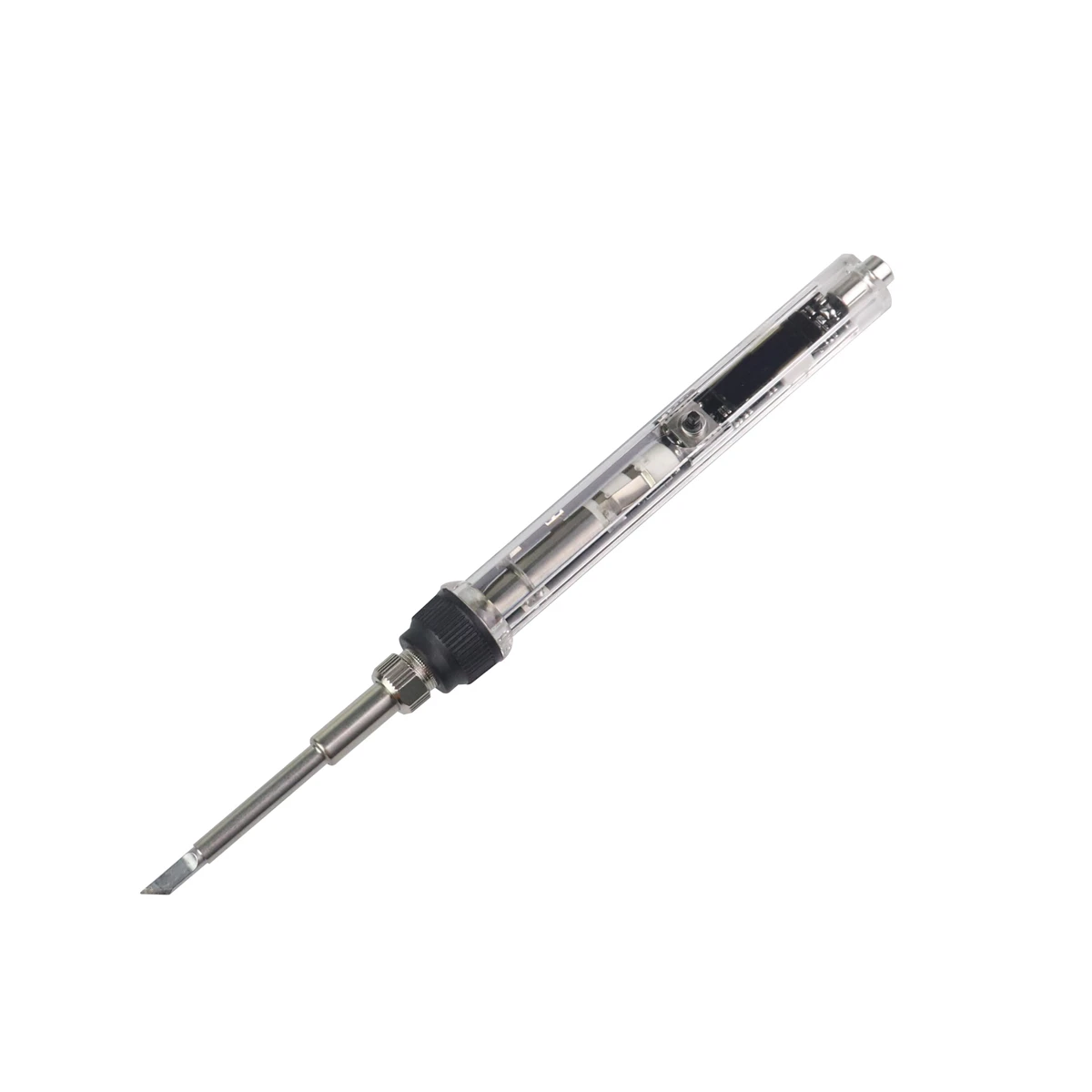

T12 Mini Electric Iron Adjustable Temperature + Tip DC 12-24V 72W Digital Display Soldering Iron DIY Handle Kit

New arrival!

Click into the following photo to have a see!

Please read the description before order!

Each oled soldering iron station i will test before shipment,make sure it can work (the display won't show error and it will heat up) with our store 24V 3A power supply,if the product you receive the display can not work or not heat up,please change other power supply to try or try our store power supply!

Some customers have reported that the screen is not bright. If this OLED soldering station uses a poor quality power supply, this soldering station will not work properly. We recommend that you use a better quality power supply or test it with another power supply. You can also use us Recommend this 24V 3A power supply

This product

we suggest 24V 3A,if 1A power supply,the product can not get enough power to work

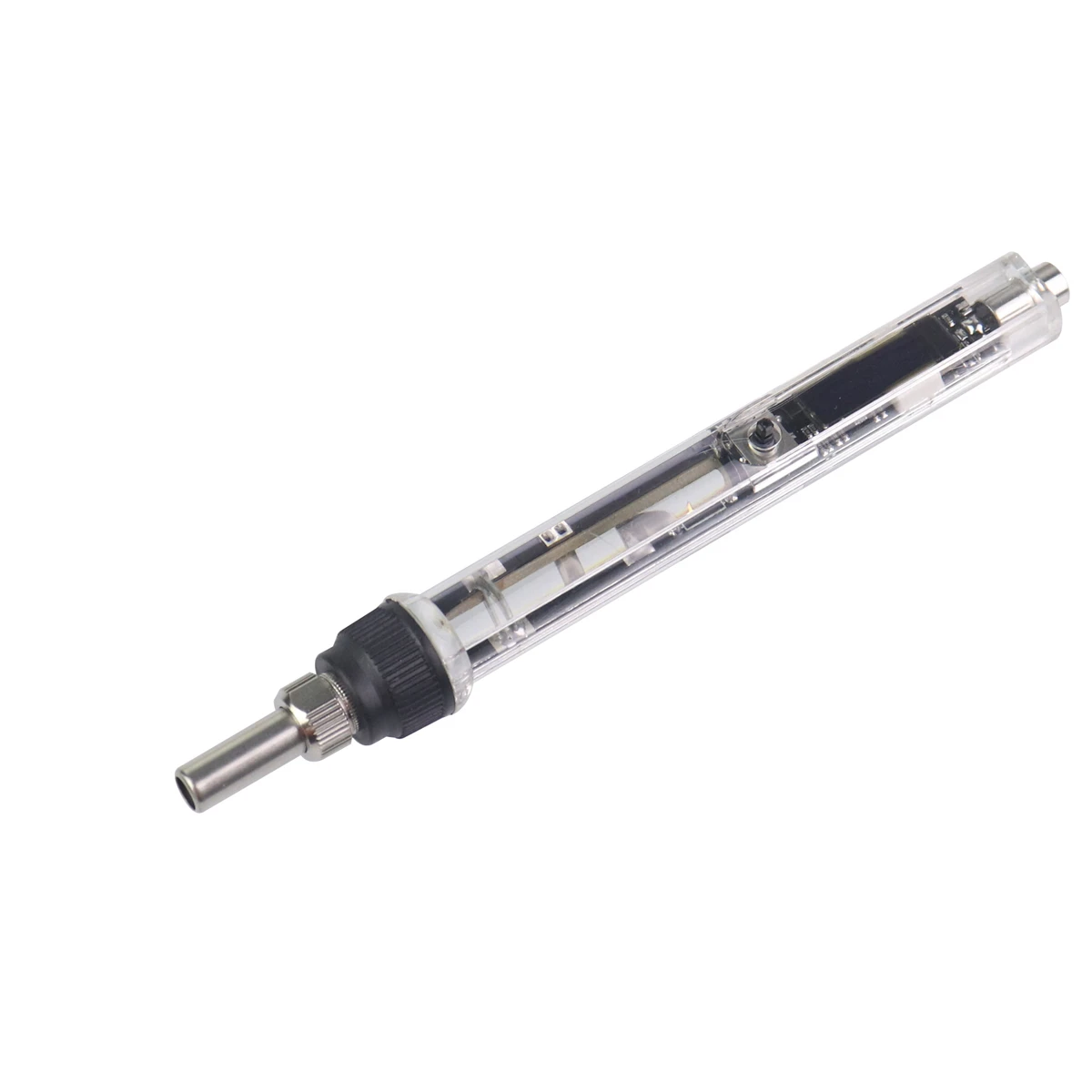

If you order Controller Only,the product is just the t12 mini station,not include the tip

Note:

This is T12 soldering station,not sh72 soldering station,can not use sh72 tip,only can use T12 tip,if you order that,please check about that!

The new arrival display is OLED display

Question: if i choose with bc1, can i change the bc1 to bcf3?

This product not include power supply!if need 24v eu power supply,you can order in the following link:

https://www.aliexpress.com/item/1005003398121971.html?spm=5261.ProductManageOnline.0.0.15744edfrsUMX1

If you want to change other tip,Please left message the tips you want in your order when you place the order,You can chose the types in our following photo as you need

(not include BCM2 or BCM3)

The types are below(

Total 29 pcs choose

):

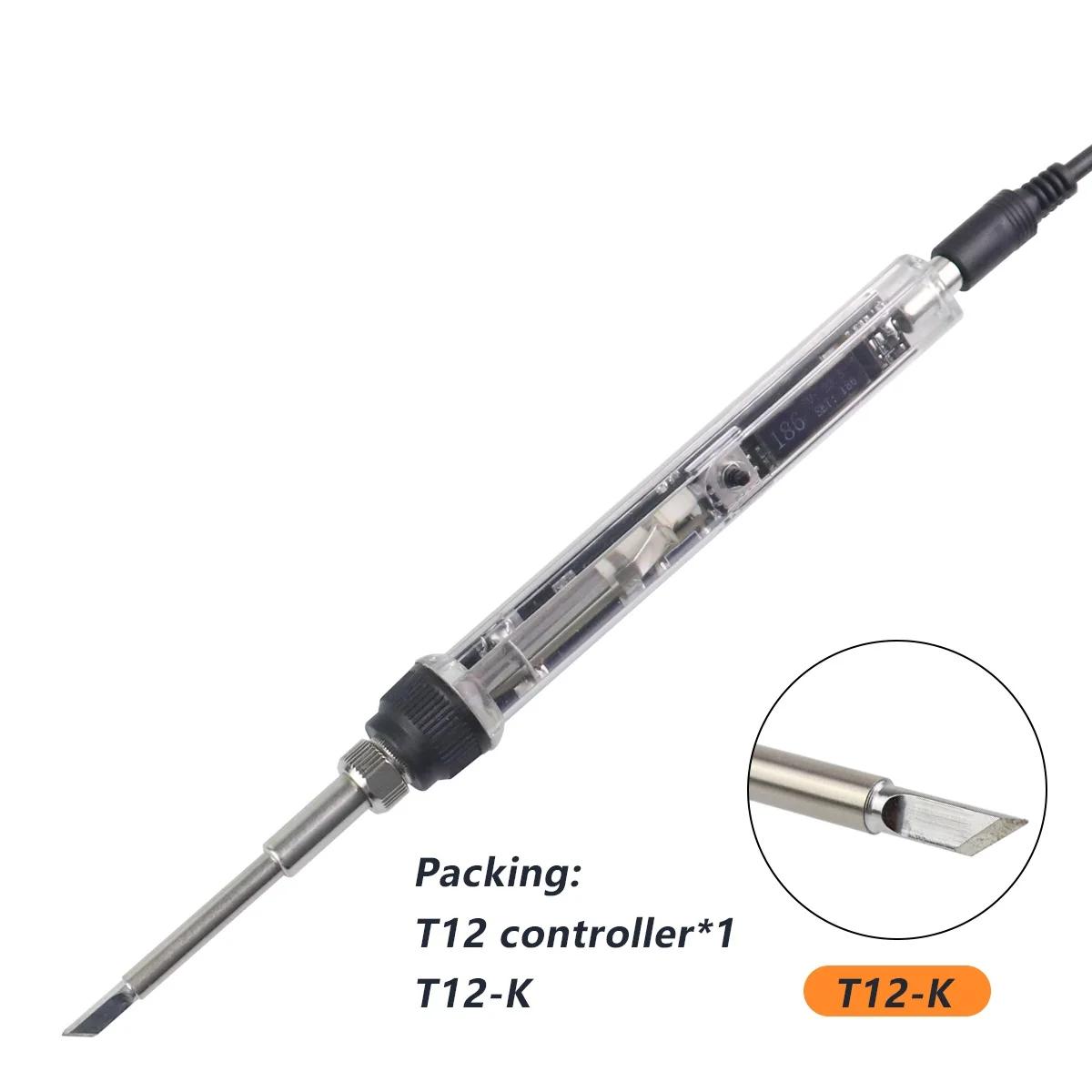

T12-K,

T12-B,T12-B2,

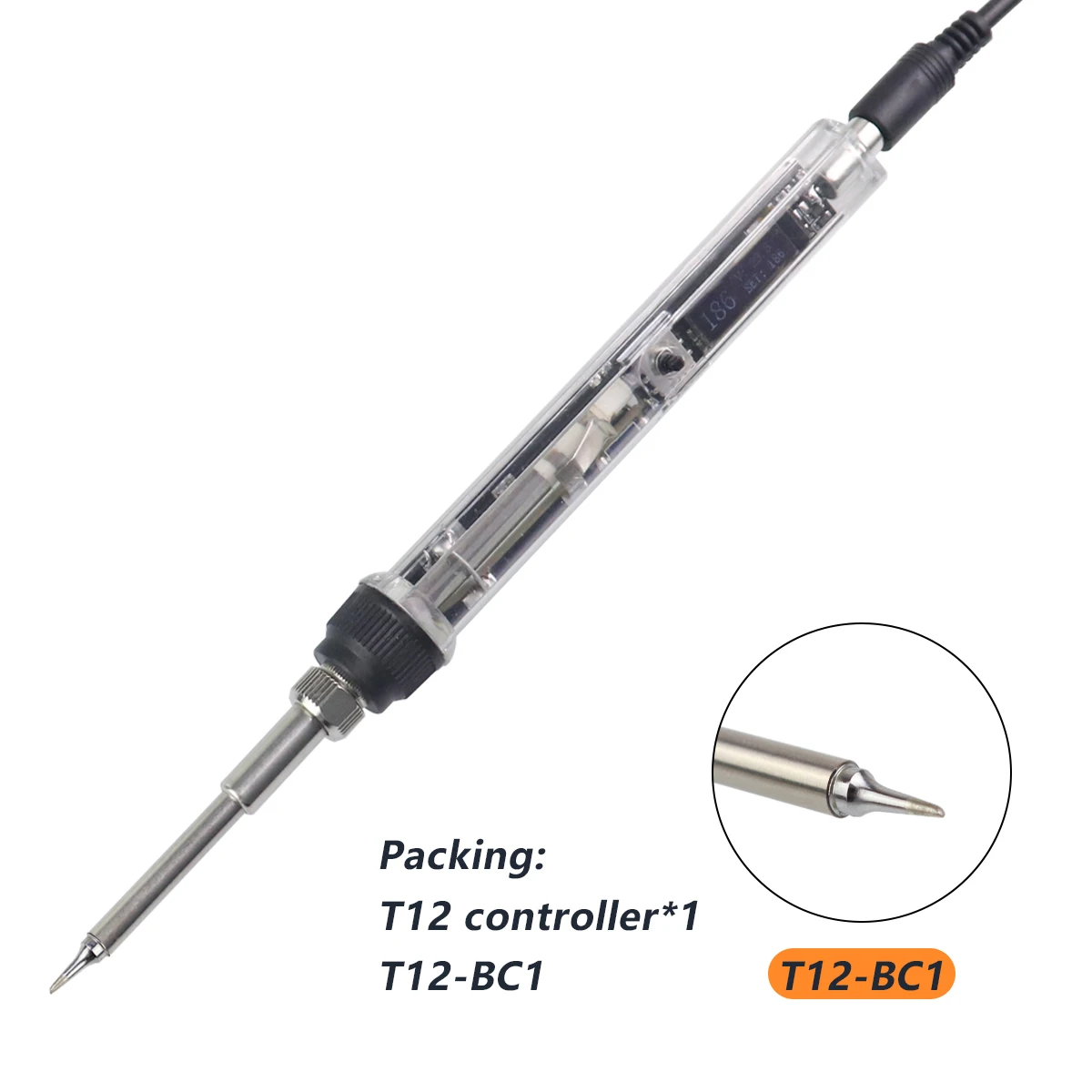

T12-BL,T12-BC1,

T12-BC1.5,T12-BC2,T12-BC3,

T12-C1,

T12-C4,

T12-CF4

,

T12-D12,T12-D16,

T12-D24,T12-D4,T12-D52

,

T12-DL32,T12-J02,T12-JL02,

T12-KU,

T12-KR,

T12-KL,

T12-I,

T12-IL,

T12-ILS,

T12-BCF1,T12-BCF2,

T12-BCF3

,T12-D08

1. Knob and display

2. Menu instructions:

Press the knob to enter menu, it will shows 7 options:

ACT: calibration

(

Note: Before calibration, the value after calibration must be set to 0

)

HSL: brightness

brightness adjustable range is 2-100 , 2 is darkest, 100 is the brightest

DMH: sleep

when screen is "DMH ON 5" ,

It means that if the operator does not use the soldering iron for 5 seconds(

automatically detect the use status of the soldering iron

), the soldering iron will stop heating, and it will start heating again after picking it up.

It means that the soldering iron will always be in working condition, and the automatic detection function is turned off.

LED: always on display

It means that after 5 seconds of no key operation, the screen will be off, and when the key is operated again, the screen will light up again.

when screen is "LED OFF", It means the screen will stay on

LVF: power

This option indicates whether the power supply is stable. If the power supply is unstable, you can adjust the value appropriately. If the main menu shows insufficient power, it is recommended to replace the power supply

LAG: language

IMA: Screen display direction

Can switch left-hand or right-hand operation display

RTN: return

Return to main interface

The Package listing as what you chose:
