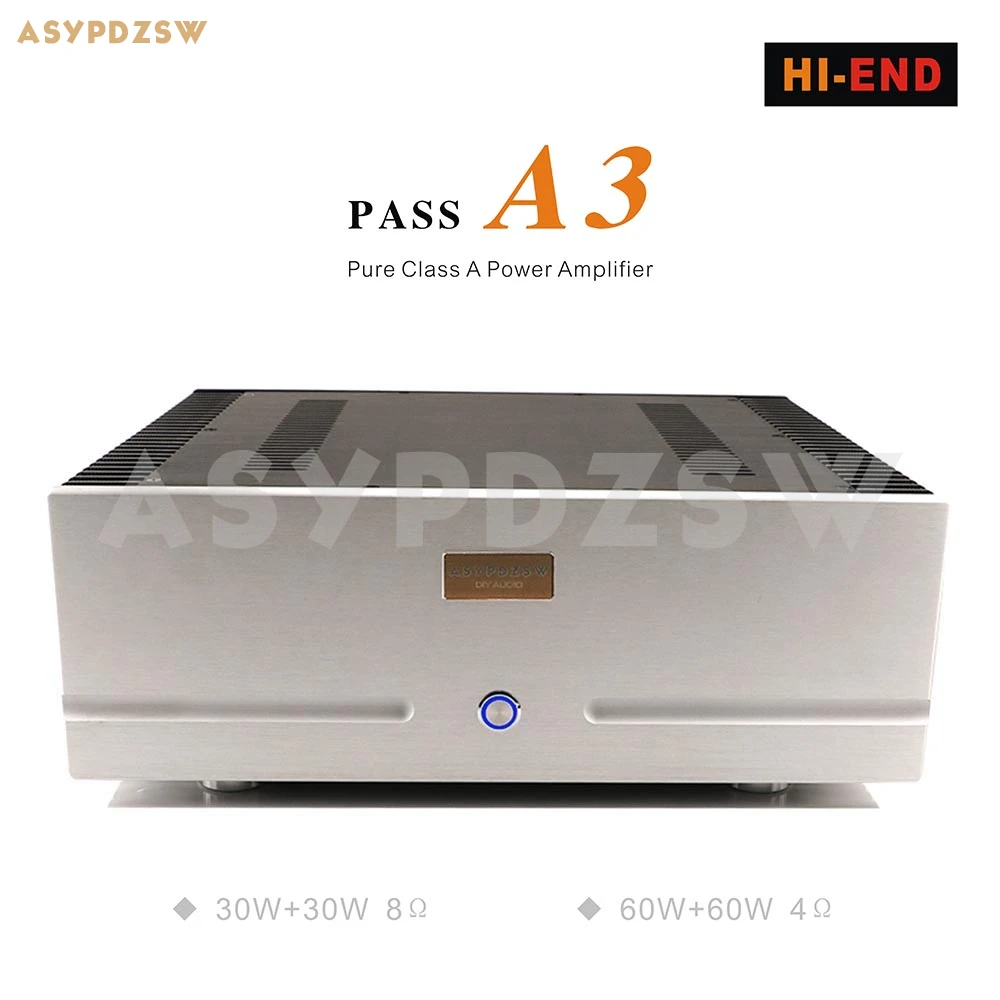

HI-END PASS A3 Pure Class A power amplifier Support XLR /RCA Input 30--60W 4--8 ohm inverting amplifier Audio Amplifier Boards

HI-END PASS A3 Pure Class A power amplifier Support XLR /RCA Input 30--60W 4--8 ohm inverting amplifier Audio Amplifier Boards

Name: HI-END PASS A3 Pure Class A power amplifier Support XLR /RCA Input 30--60W 4--8 ohm inverting amplifier
Brand: MMO Dropship
SKU: 1005002623691784
Price: 919.77 VND
Availability: InStock
Rating: 4.9 (94 reviews)

Code: TD-1005002623691784 10 orders

Free Shipping

$ 919.77 $ 997.38

Voltage (V):

AC 115V IN

AC 230V IN

Note

Quantity:

Other people want this. 20 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	ASYPDZSW
Certification:	NONE
Origin:	CN(Origin)
Maximum Power Per Channel:	60W
Model Number:	PASS A3
Package:	Yes
Channels:	2 (2.0)

Introduction:

Since the launch of HI-END PASS A3, it has been loved by more audiophiles. It is a truly powerful Class A power amplifier. It is matched with a very fierce Nichicon 24X10000uF Schottky CRC rectifier power supply board, with clean filtering, strong low frequency, inferior medium and high frequency, and full of air. When the working hours enter the best time of the Class A amplifier, its sound will make you more charming. You can hardly find anything to fault.

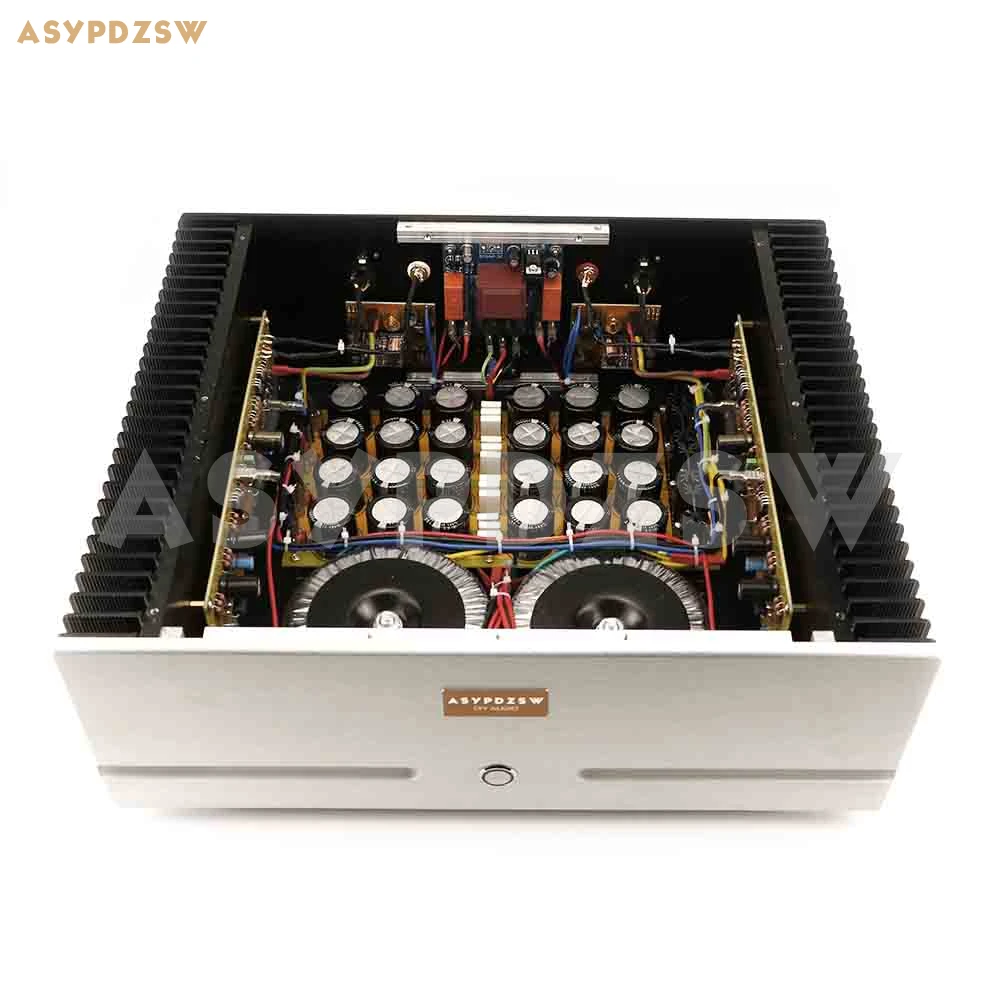

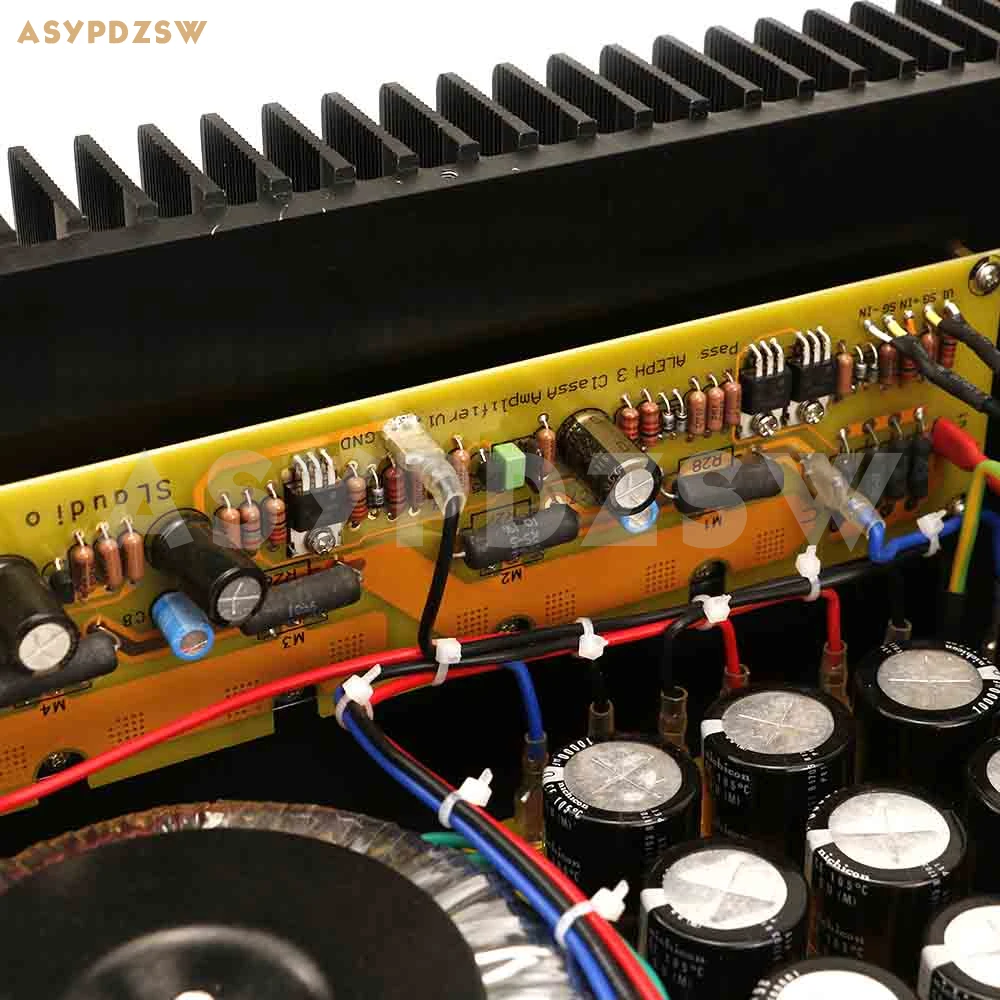

Using Audiophile components, taking photos in real objects, the materials used are very clear, all resistors are US DALE, IRFP240 FET output tube and differential tube IRF9610 is precisely matched to make the midpoint output voltage as low as 50mV. wiring and materials are very important, this is not only the reliable quality, but also the foundation of good sound!

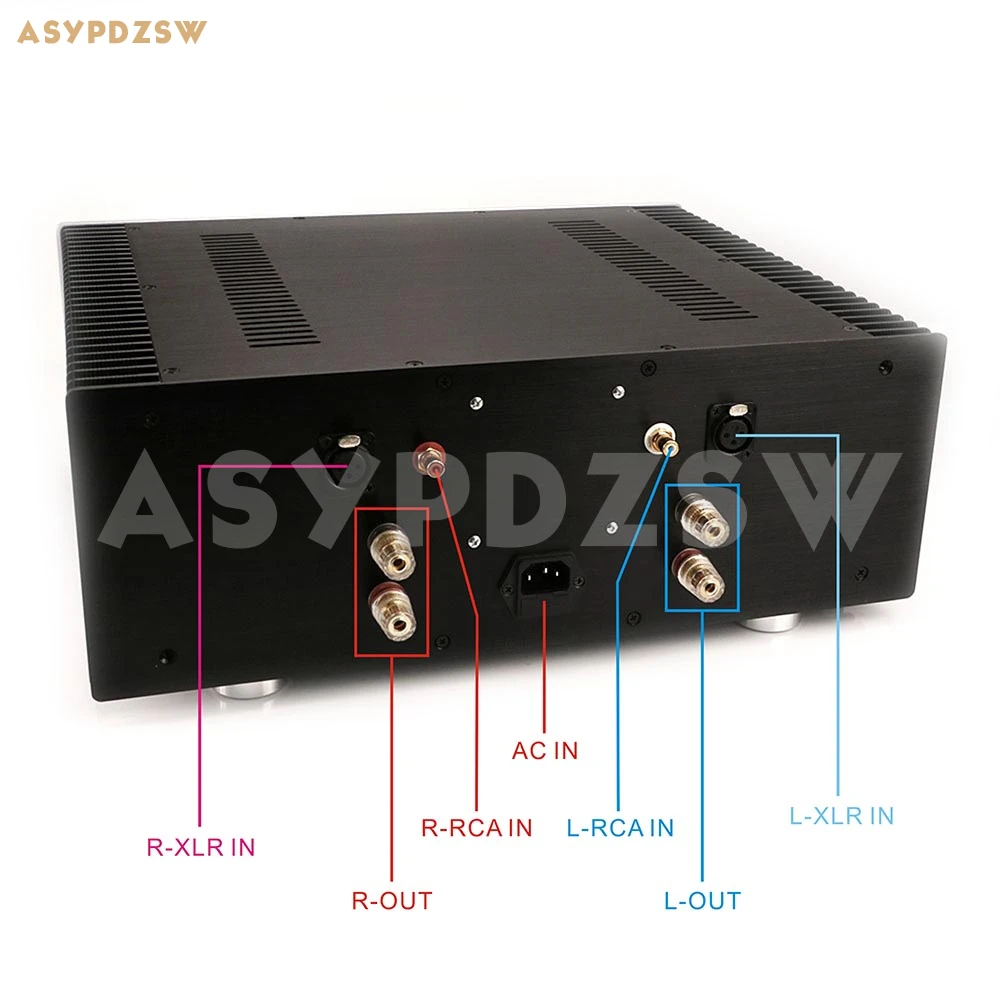

The input signal supports XLR balanced input or RCA single-ended input. When using RCA single-ended input, XLR balanced input cannot be used. When using XLR balanced input, RCA single-ended input cannot be used. (NOTE: RCA and XLR inputs cannot be used at the same time)

The all-aluminum chassis has a large heat sink + all-aluminum machine feet, so there is no need to worry about using it with caution because of the high temperature when Class A is working.

Sound style: sweet and honest, music taste is good, transparent, low frequency elasticity is very good, human voice is more poisonous than 1969.

Use 300W+300W OFC pure copper to customize the dual transformer independent power supply design. CMC 816 RCA+ gold-plated crystal terminal.

JP Canare with shielded signal wire + UK PRYSMIAN speaker output wire, the input signal is free from any interference, and the output wire bears high current. Everything is very easy.

● Size: 430mm * 150mm * 361mm

● Input voltage: AC 115V / 230V

(Optional)

● Power: 30 Watts (8 ohm) 60 Watts (4 ohm)

● Distortion rate: 1 KHz 1% at rated output, 0.003% 5 watts into 8 ohm

● Input impedance: 36K ohm balance, 18K ohm single end

● Output noise: <300uV, Unweighted 20-20kHz

● Dynamic range: 140dB

● Gain: 26 dB

● Signal input support: XLR Balanced input or RCA Single-ended input

● Weight: about 19.5KG

Package includes:

HI-END PASS A3 Pure Class A power amplifier X1

NOTE: We do not provide any connection cables.
