GROW GM63F Fast Speed Cheap USB/RS232 Interface 1D/2D CMOS Barcode Scanner Reader Module

GROW GM63F Fast Speed Cheap USB/RS232 Interface 1D/2D CMOS Barcode Scanner Reader Module

Name: GROW GM63F Fast Speed Cheap USB/RS232 Interface 1D/2D CMOS Barcode Scanner Reader Module
Brand: MMO Dropship
SKU: 3256802046767912
Price: 45.44 VND
Availability: InStock
Rating: 4.9 (95 reviews)

Code: TD-3256802046767912 6 orders

Free Shipping

$ 45.44 $ 46.2

Quantity:

Other people want this. 11 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	grow
Type:	Barcode Scanner
Optical Resolution:	640*480
Scan Element Type:	CMOS
Certification:	CE
Scan Breadth:	A4
Scan Speed:	5mil
Interface Type:	USB, RS232
Origin:	CN(Origin)
Model Number:	GM63F
Product Type:	Bar Code Scanner
Contrast:	25%
Viewing Angle:	Inclination 60°, Elevation 46°

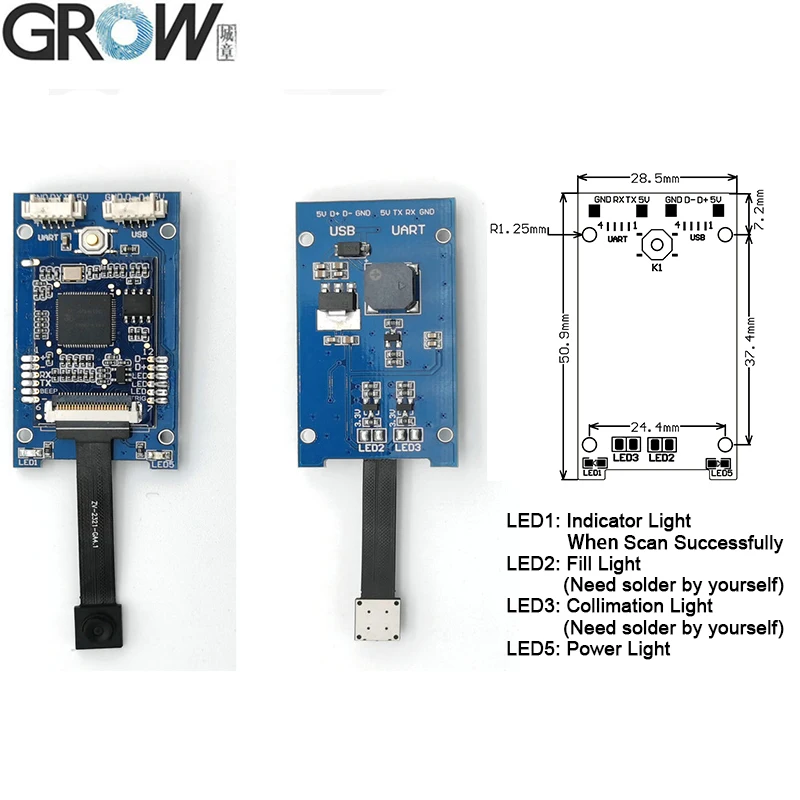

Dimension:	50.9*28.5mm
Operating Current:	DC5V≤180mA
Operating Temperature:	-20℃~+50℃
Storage Temperature:	-40℃~+70℃
Operating Humidity:	5%~95% (Non-Condensing)
Environmental Light:	50~10000LUX
Scanning angle:	Intersection angle 360°, Elevation ± 55°, Deflection angle ± 55°

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Model

GM63F

Type

Barcode Scanner

Decoding Ability

2D:QR Code, Data Matrix, PDF417,

1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Code 11,Codabar, Interleaved 2 of 5, Standard 25,MSI-Plessey, GS1 Databar, Industrial 25, Matrix 2 of 5

Interface

USB2.0 \ UART

Resolution

One Dimensional Code:5mil

Contrast

≥25%

Operating Voltage

Operating Current

180mA

Weight

10g

Size

50.9*28.5mm

Scan Angle

0-360°, Pitch:±55°or greater, Yaw:±55°or greater

Scanning angle Inclination angle

Inclination 60°, Elevation angle46°

Reading Distance

30 - 150mm

Operating Temperature

-20 degrees to 50 degrees

Storage Temperature

-40 degrees to 70 degrees

Temperature Humidity

5% to 95% Relative humidity, Non-condensing

Light Levels

50-10000LUX

·Provide User Manual

You can download the GM63F user manual from this website link:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

Operation Video on Youtube:

https://youtu.be/FpOuBYop07c
