Freeboss FB-U58 UHF 2*200 Adjustable Frequency Metal handheld LCD Screen Smart Option ECHO and EQ effec Microphone System for DJ lavalier microphone Microphones

Brand Name:	FREEBOSS
Style:	Handheld Microphone
Transducer:	Dynamic Microphone
Use:	Karaoke Microphone
Certification:	NONE
Set Type:	Transmitter Sets
Origin:	CN(Origin)
Polar Patterns:	Cardioid
Communication:	wireless
Package:	Yes
Model Number:	FB-U58

FB-U58

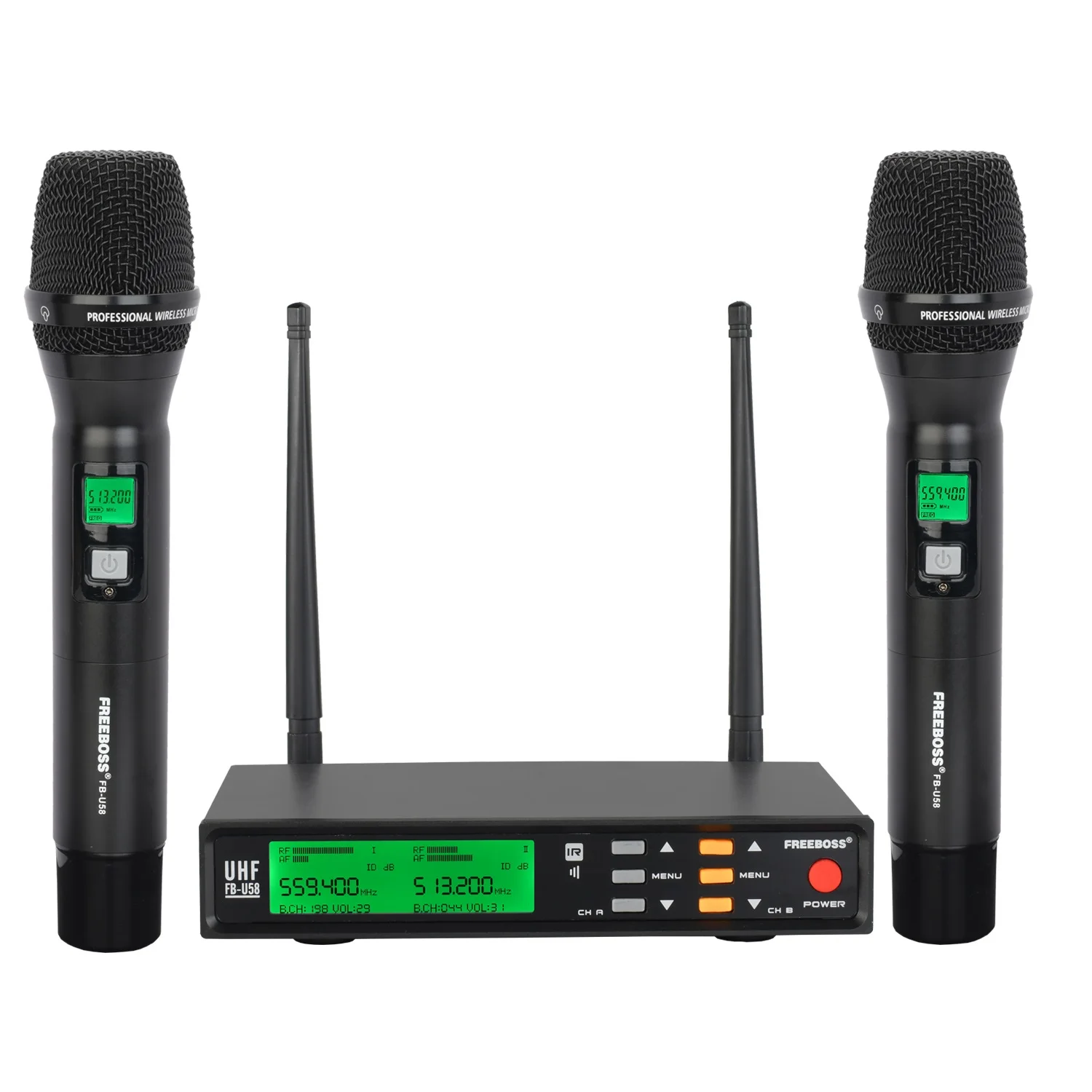

Freeboss FB-U58 UHF 2*200 Adjustable Frequency Metal handheld LCD Screen Smart Option Professional Microphone System for DJ

Key Point:

1) UHF Band Adjustable Frequency.

200 Selectable frequencies

on each channel

2)

Metal Box Receiver:

A.

16 Echo

adjustable function

B.

31 EQ

adjustable function

C.

Auto scan

available channel

D. Manually select channel

E.

Smart option(Infrared SYNC

)

3)

Transmitter:

A.

2 pcs Metal handhled microphones

B.

Mute function

4) Two XLR individual outputs and one 1/4"" Mixed output.

5) Range: up to 98 Feet ( over 30 meters ), Suit for karaoke, speaking, party, church, etc.

6) battery: 2 * 2 * 1.5V AA (not included in the package.)

1.    Working Range:

Over 30 meters (98 feet) without obstacle

2. Receiver:

1) Receiver frequency set up.

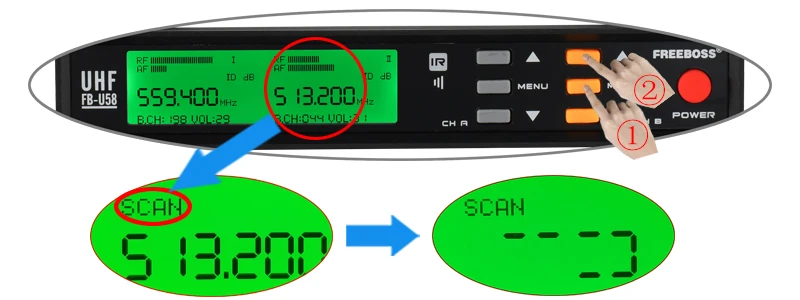

A. Automatic  Selection

a. press "MENU" for one time enter the SCAN

b. press "UP" to automatic select frequency.

B. Manual Adjustment

a. Press "MENU" 2 times and enter manul selection status.

b.  Press "UP" or "DOWN" to set up the frequency.

2) Receiver volum set up2) Receiver volum set up

Press "UP" or "DOWN" to set the volum.

3)   16 Echo Adjustable Function3)   16 Echo Adjustable Function

A. Press "MENU" 4 times and enter "ECHO" Status.

B. Press "UP" or "DOWN" to select effection

4).   31 EQ adjustable function

A. Press "MENU" 5 times and enter "EQ" states.

B.  Press "UP" or "DOWN" to select effection

4)   Receiver back panel function:

A.  Mic A and Mic B XLR socket:

a)  Need XLR cable:(not included in the package)

b). From the socket,

1) you can link the receiver to audio mixer

2) then you can controld the microphone A  or microphone B separately.

B. Mix out socket:

a)  Need 6.35mm plug cable.(included in the package)

b) From the socket,

1)  you can link the receiver to amplifer/speaker,etc.

2) you only can control the microphone A and B together.

3. Power adapter:

1) EU PLUG

2) US PLUG

3) PLUG adapter

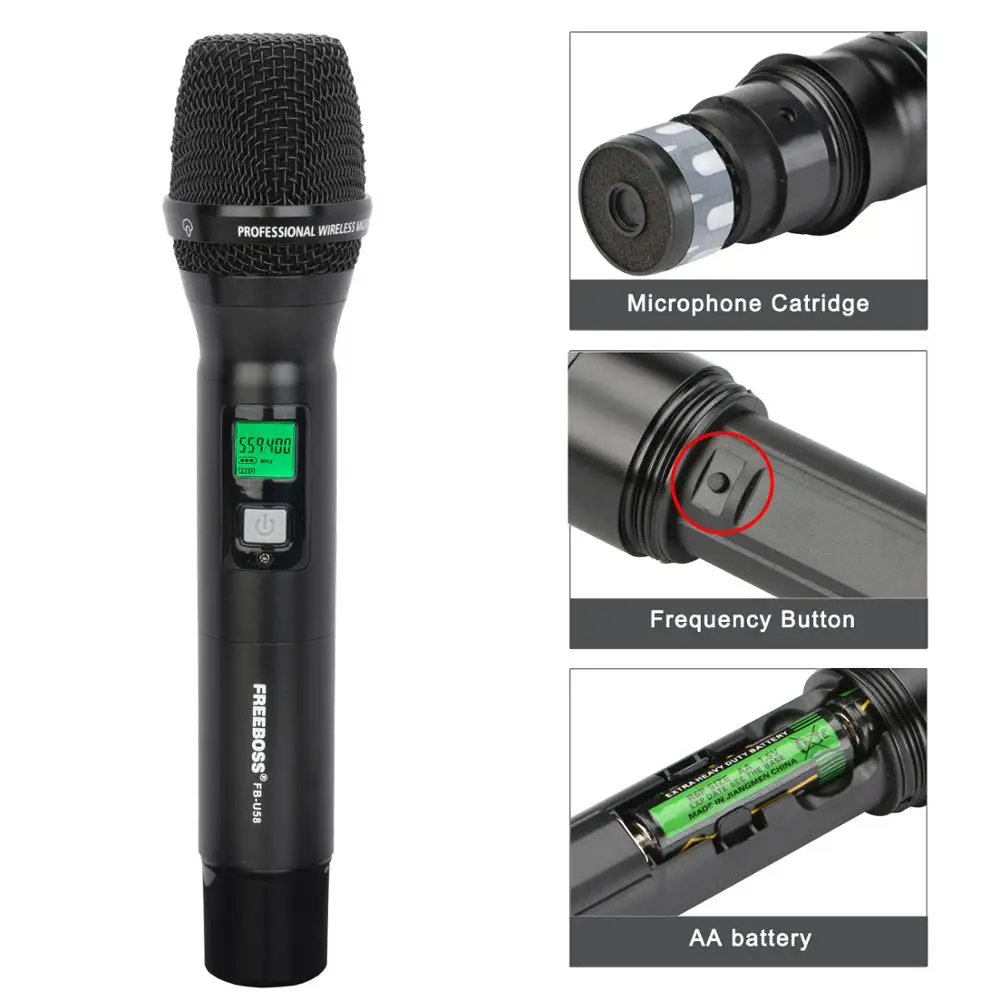

4. Transmitter

Capsule: Dynamic

Transmitting power:<=10dbm

Frequency stabilization:+-0.005%

Battery :  2 * 1.5V AA Battery

Material:

Metal handheld, Comfort and smooth handling experience with elegant appearance

.

Cartridge:

1) Type: Moving coil

2) Polar pattern: Cardioid

1)  MUTE function

Press and release the button to mute or unmute

2). Transmitter frequency adjust

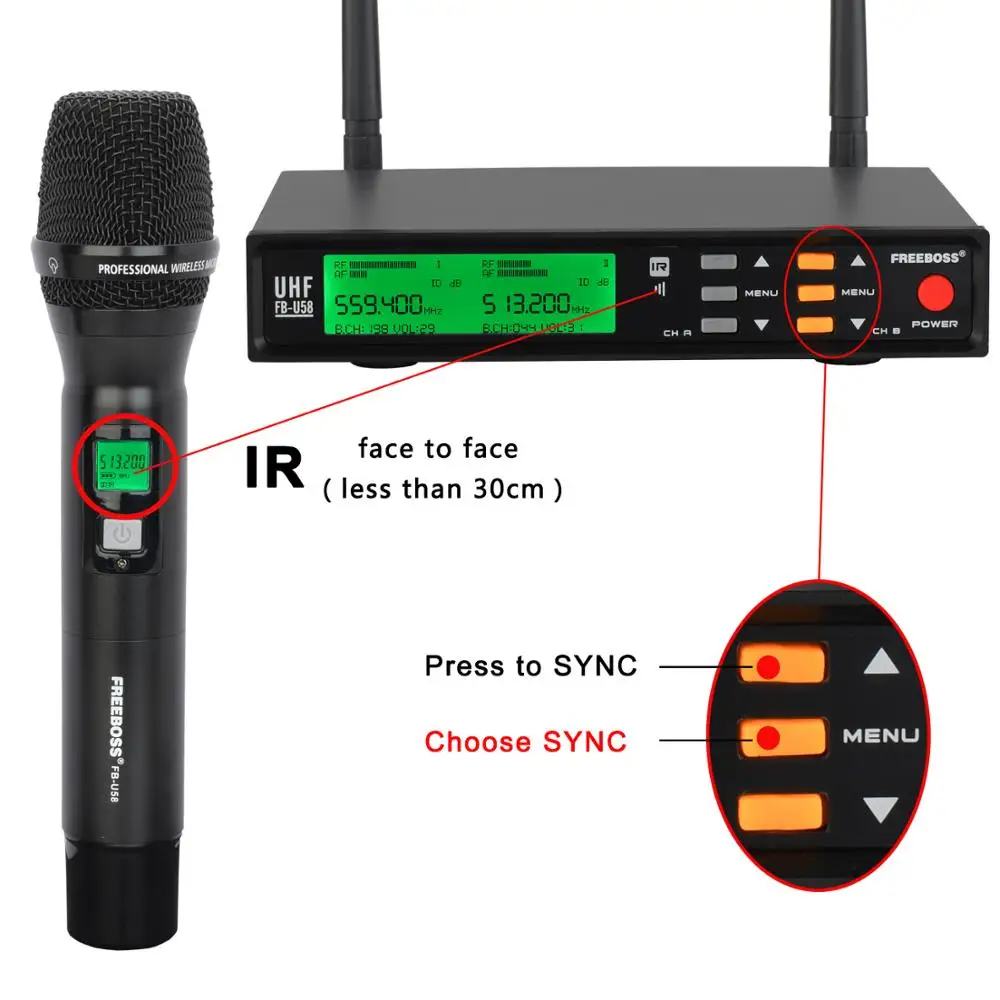

A Infrared automatic set up

a) Press receiver "MENU" 3 times and enter "SYNC" Status

b) Expose the Transmitter scree to the IR of the receiver. the distance not over 30cm.

c) Press receiver "UP" to IR matched.

B. Manual adjust frequency to complete the matching

a). open the battery cover of transmitter

b). press "Frequency Setting", Set the transmitter frequency same as the receiver.

5. Application

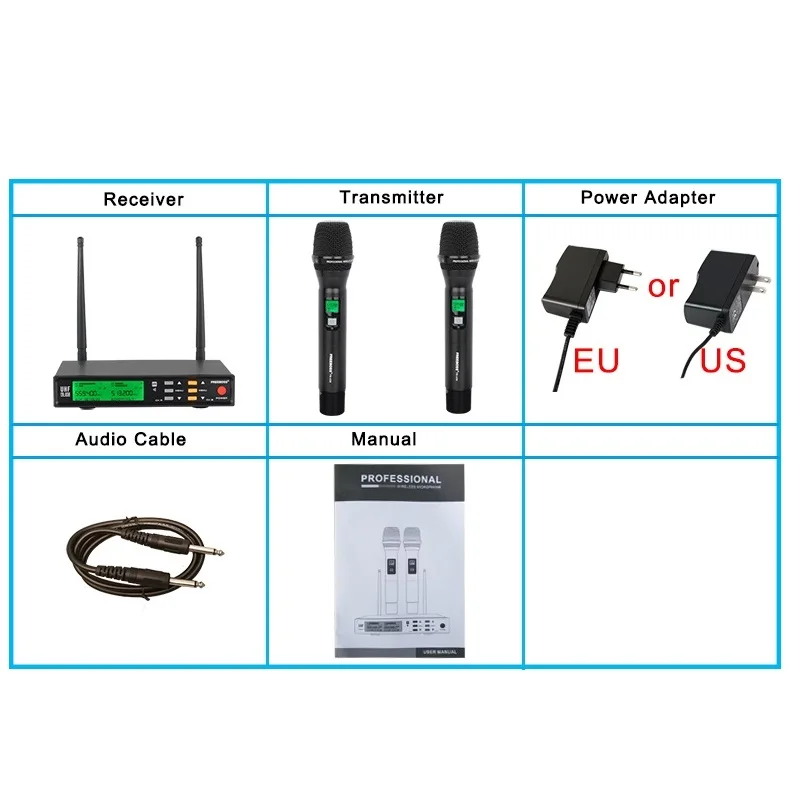

6. Packing Picture:

1) Handheld Microphone      2 pcs

2) Receiver                            1 pc

3) Audio cabel                      1 pc

4) Power adapter                 1 pc

5) Owner's manual              1 pc

7. Troubleshooting:

Problem:  No Sound; RF light(s) not glowing.

Solution:  Make sure the transmitter POWER switch is ON and the receiver is plugged

into a power source.

Check battery

Check receiver squelch setting

Check receiver antenna connection(s)

Make sure antennas are in line of sight of transmitter

Problem:  No sound; RF lights glowing.

Solution:  Turn up receiver audio VOLUME control.

Check for proper connection between receiver and audio mixer unit.

Problem:  Received signal is noisy or contains extraneous sounds with transmitter on.

Solution:  Check battery.

Remove local sources of RF interference.

If using a guitar or other instrument, check connection. Two transmitters may be operating

on the same frequency. Locate and turn one off.

Signal may be too weak, Reposition antennas. If possible, move them closer to transmitter.

Problem:  Noise from receiver with transmitter off

Solution:  Adjust receiver squelch control.

Remove local sources or RF interference.

Reposition receiver or antennas.

Problem: Momentary loss of sound as transmitter is moved around performing area.

Solution: Reposition receiver and perform another “walkthrough” test and observe the RF indications.

If audio dropouts persist, mark these “dead sopts” in performing area and avoid them during

performance.

8. Parameter:

work frequency: 500-700MHz

modulation mode: broadband FM

channels: 200

channel frequency: 300KHz

Frequency stability: .0.005%

dynamic bound:100dB

max excursion: 45KHz

frequency response: 60Hz-18KHz(3dB)

S/N: > 105dB

T.H.D. ≤0.5%

working environment temperature: -10°C--+50°C

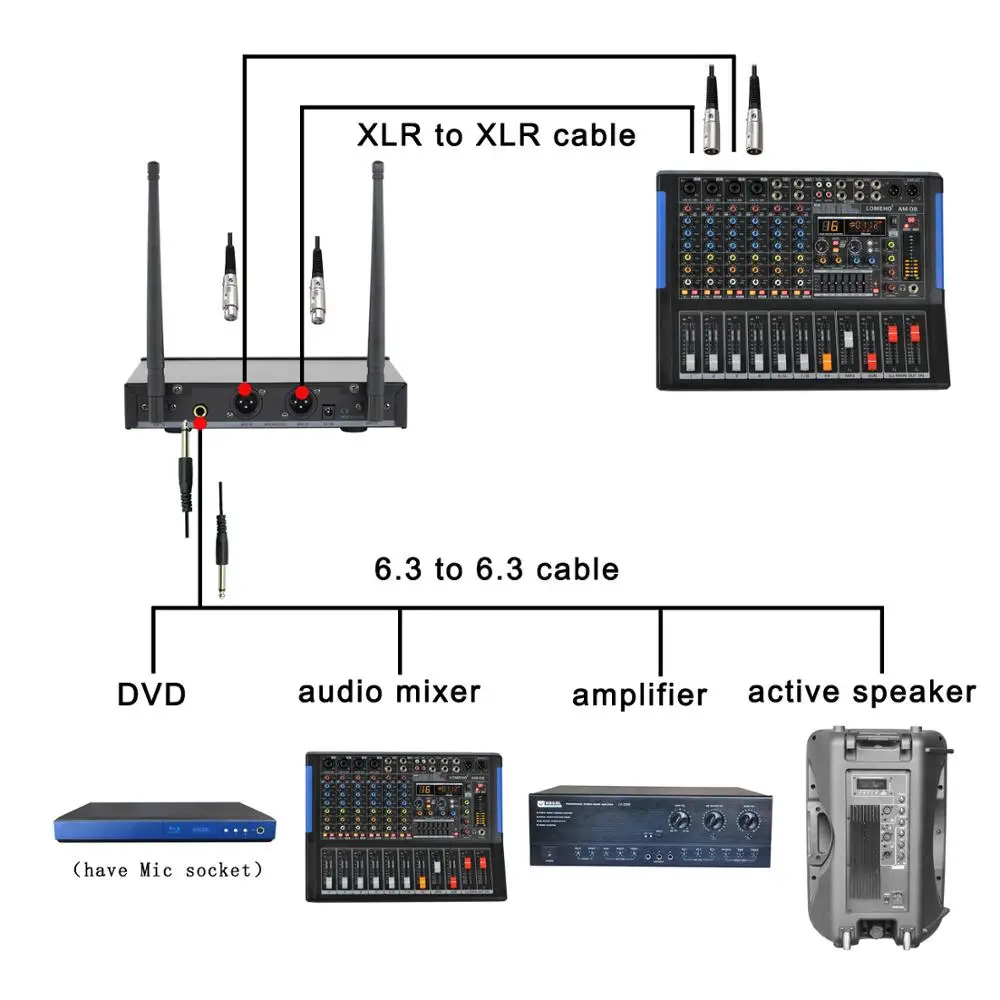

HOW TO USE Wireless Microphone:

1) 6.35 plug cable to audio mixer (there is one piece cable in the package)

2) 6.35 plug cable to audio mixer (there is one piece cable in the package)

3) 6.35 plug cable to amplifier (there is one piece cable in the package)

4) 6.35 plug cable to amplifier (there is one piece cable in the package)

5) 6.35 plug cable to amplifier speaker (there is one piece cable in the package)
