condenser microphone Freeboss FB-U10H2 Dual Way Digital UHF Wireless Microphone with 2 Lapel 2 Headset microphone (2 Bodypack Transmitter) usb microphone Microphones

Brand Name:	FREEBOSS
Style:	Handheld Microphone
Transducer:	Dynamic Microphone
Use:	Karaoke Microphone
Set Type:	Transmitter Sets
Origin:	CN(Origin)
Polar Patterns:	Cardioid
Certification:	NONE
Package:	Yes
Communication:	wireless
Model Number:	FB-U10H2

FB-U10H2

UHF Wireless Microphone Dual Way Digital UHF Wireless Microphone with 2 Lapel 2 Headset microphone (2 Bodypack Transmitter)

1. Key Point:

1) UHF Band Fixed Frequency(515.40MHz,524.40MHz)

2) Transmitter: 2 Pcs Bodypack+2 Pcs Lapel +2Pcs Headset

3) Receiver: Metal Box,ON/OFF Knob,Individual Volume Knob, AF/RF Indicator

4) Special digital launch receiving circuit, strongly improve S/N ratio, high fidelity reduction pick up sound.

5) Digital transmit receive encryption,stop all external signal interference.

6) Set special arbitrary selection of 8 kinds effect sound output,suitable for all kinds occasions and performance activities.

(0: standard  1: Boost  2: Treble  3: Pop  4: Rock  5: Classic  6: Jazz  7: Dance  8: R&B)

7) Two XLR individual outputs and one 1/4"" Mixed output.

8) Range: 30-50 meters , Suit for karaoke, speaking, party, etc.

9) battery: 4*AA

8 Kinds effect

Packing List:

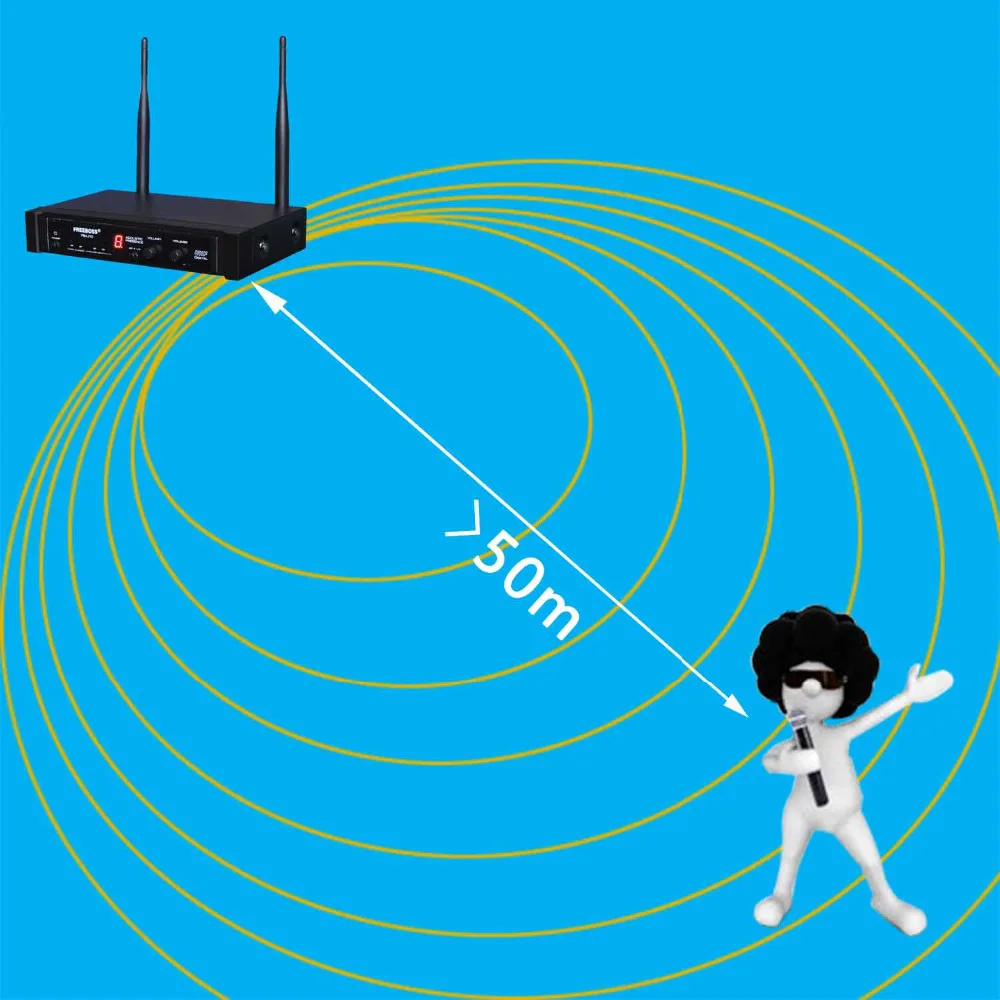

Working Range:

2. Product Description:

Stability: 0.005% (-10-50)

Deviation: 40KHz

S/N: 96db

Distortion:0.5%@1KHz

Frequency Response: 30Hz-20KHz

3. Receiver :

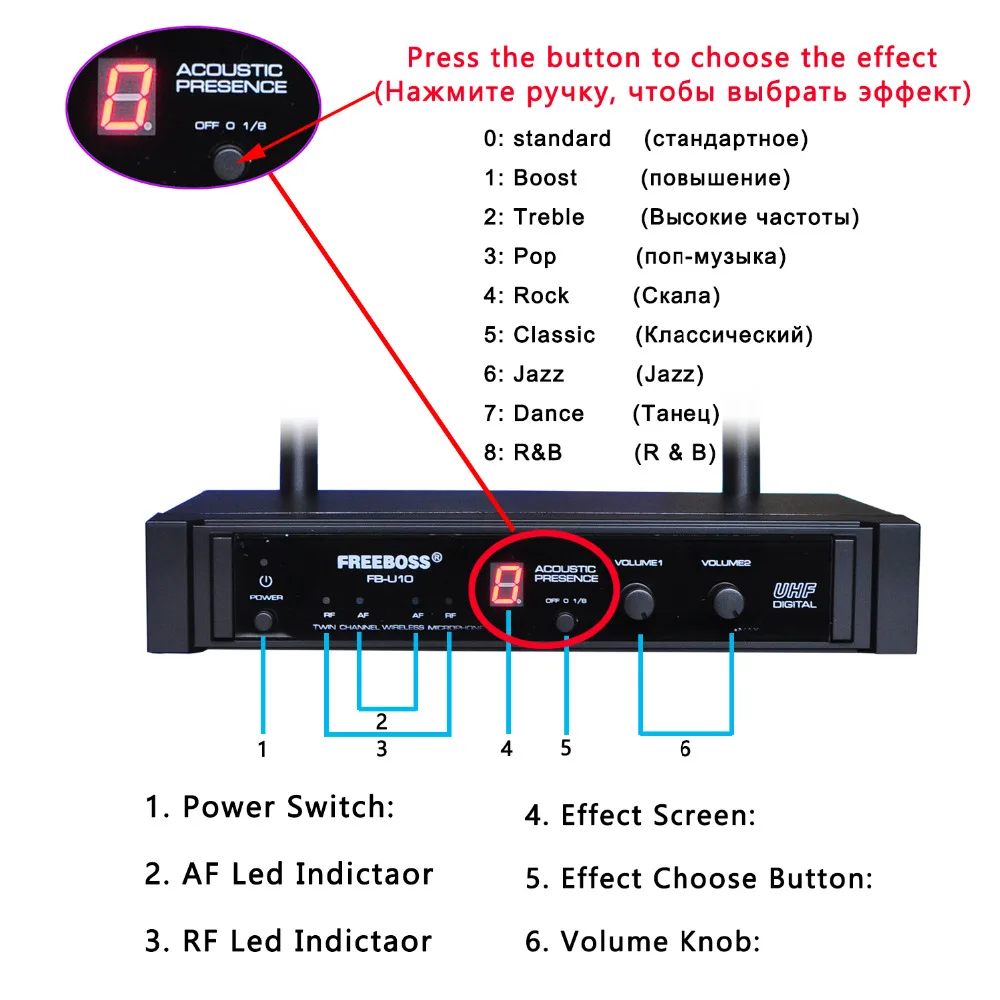

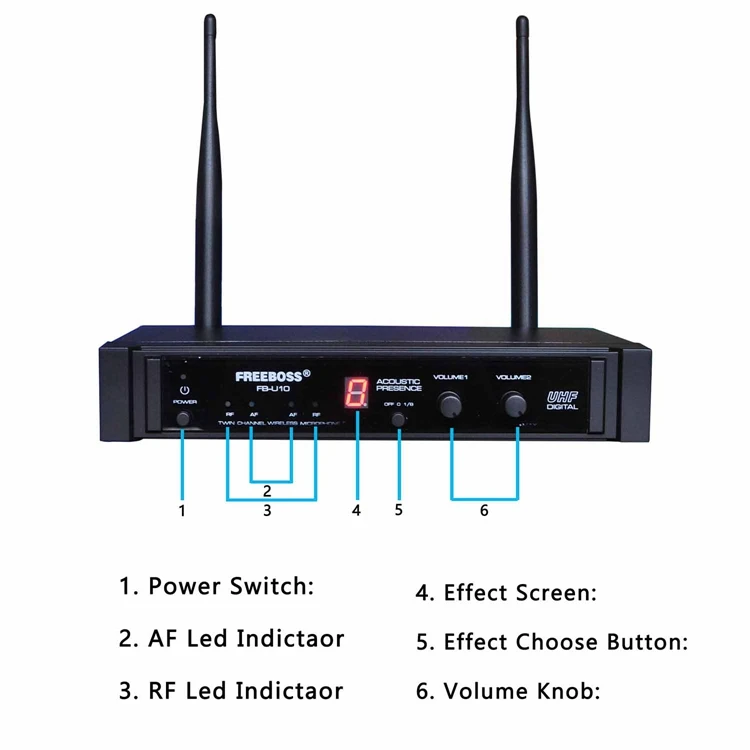

Receiver front panel function:

1.) Power Switch:

A)  Link the power adapter to receiver power socket,then link the power adapter to 220V power.

B)  Press the receiver power button,power indicator is on,the receiver is on "working" status.

2.) AF Led Indictaor

when RF indicator is on, microphone A/B power is on

A) Microphone A/B pick up the sound, the AF light is on

B) no sound is picked up, the AF light is off.

3.) RF Led Indictaor

when the receiver is on "working" status,

A) Microphone A/B no power, left/right RF light is off

B) Microphone A/B is on, left/right RF light is on

4.) Effect Screen:

Display the number of the present effect.

5.) Effect Choose Button:

Press the button, the number will change from 0 to 8. You can choose the effect according to the number. (0: standard  1: Boost 2: Treble 3: Pop 4: Rock 5: Classic 6: Jazz 7: Dance 8: R&B)

6.) Volume Knob:

clockwise: volumn from low to high

anticlockwise: volumn from high to low.

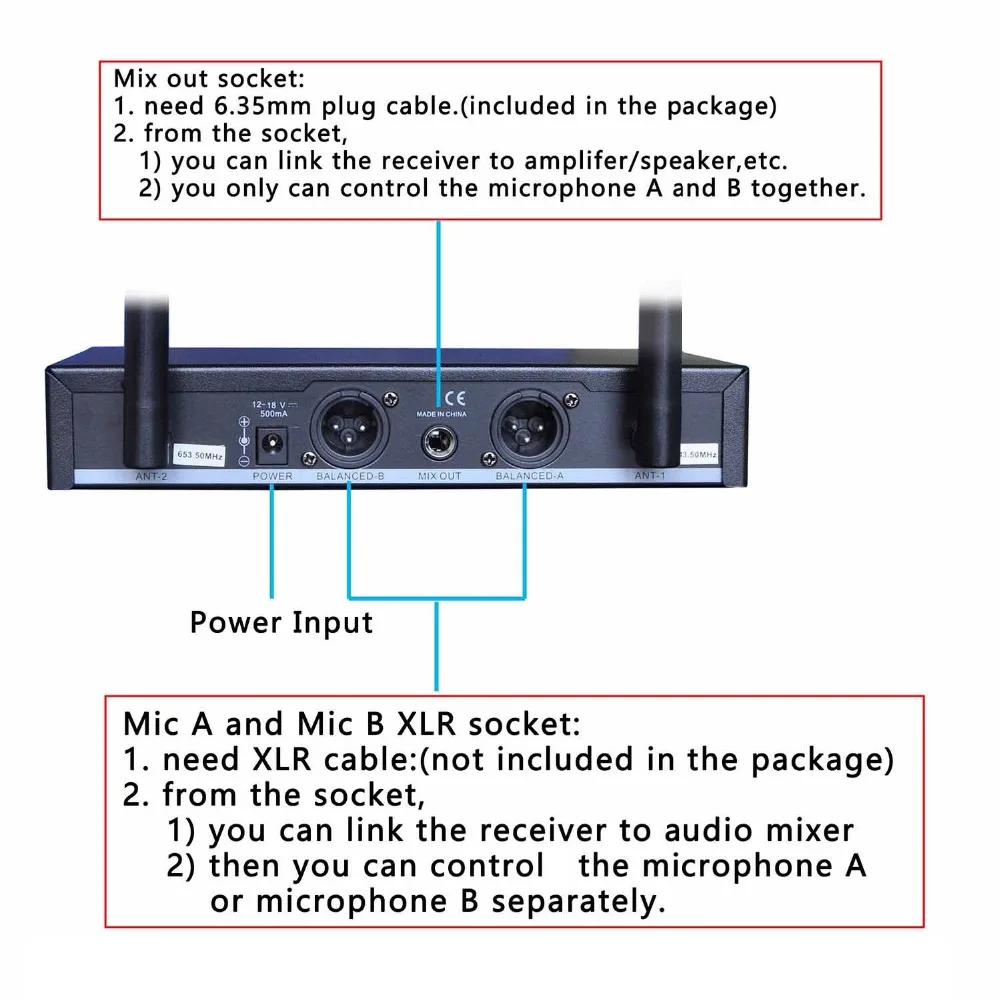

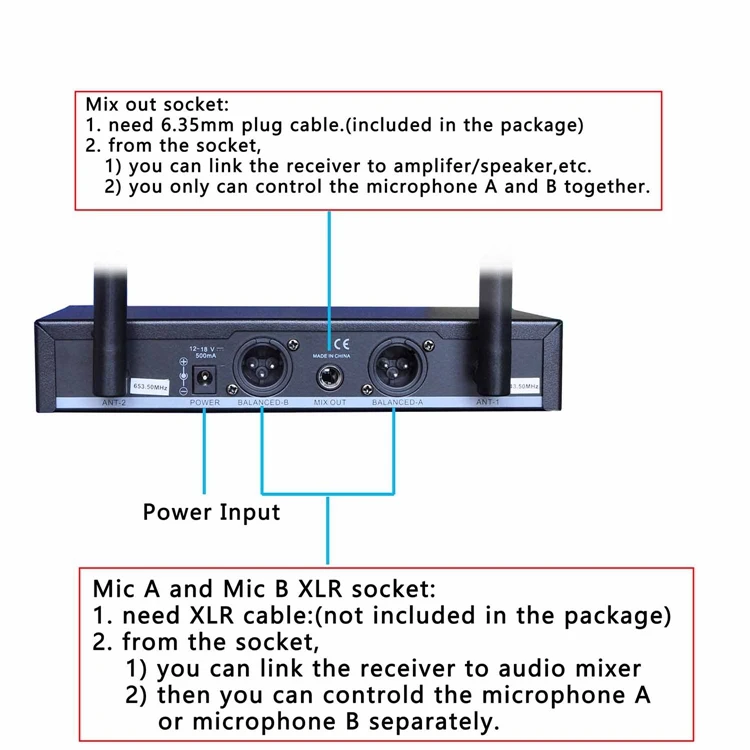

Receiver back panel function:

1) Mic A and Mic B XLR socket:

A.) Need XLR cable:(not included in the package)

B.) From the socket,

a) you can link the receiver to audio mixer

b) then you can controld the microphone A  or microphone B separately.b) then you can controld the microphone A  or microphone B separately.

2)Mix out socket:

A.) Need 6.35mm plug cable.

(included in the package)

B.) From the socket,

a) you can link the receiver to amplifer/speaker,etc.

b) you only can control the microphone A and B together

.

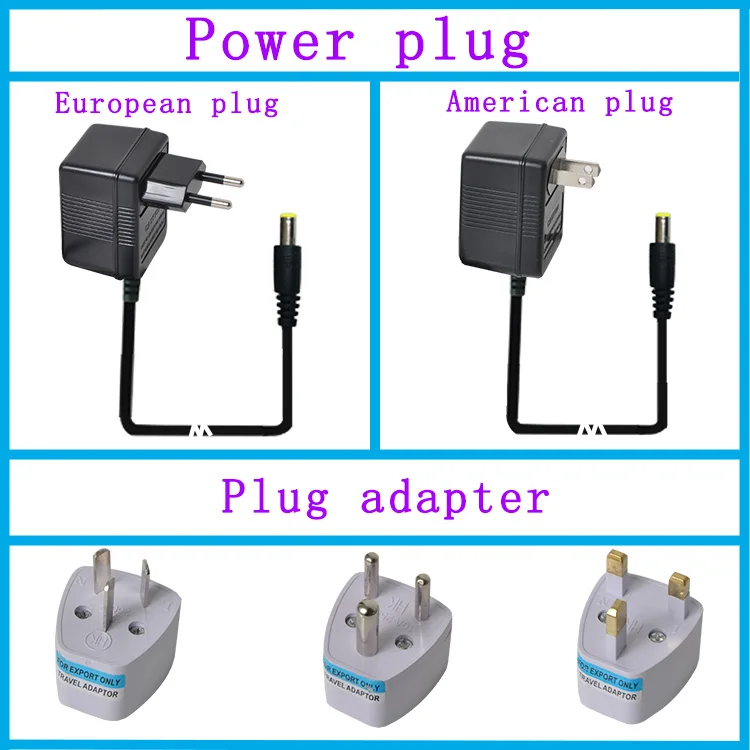

Power adapter:

1) EU PLUG

2) US PLUG

3) PLUG adapter

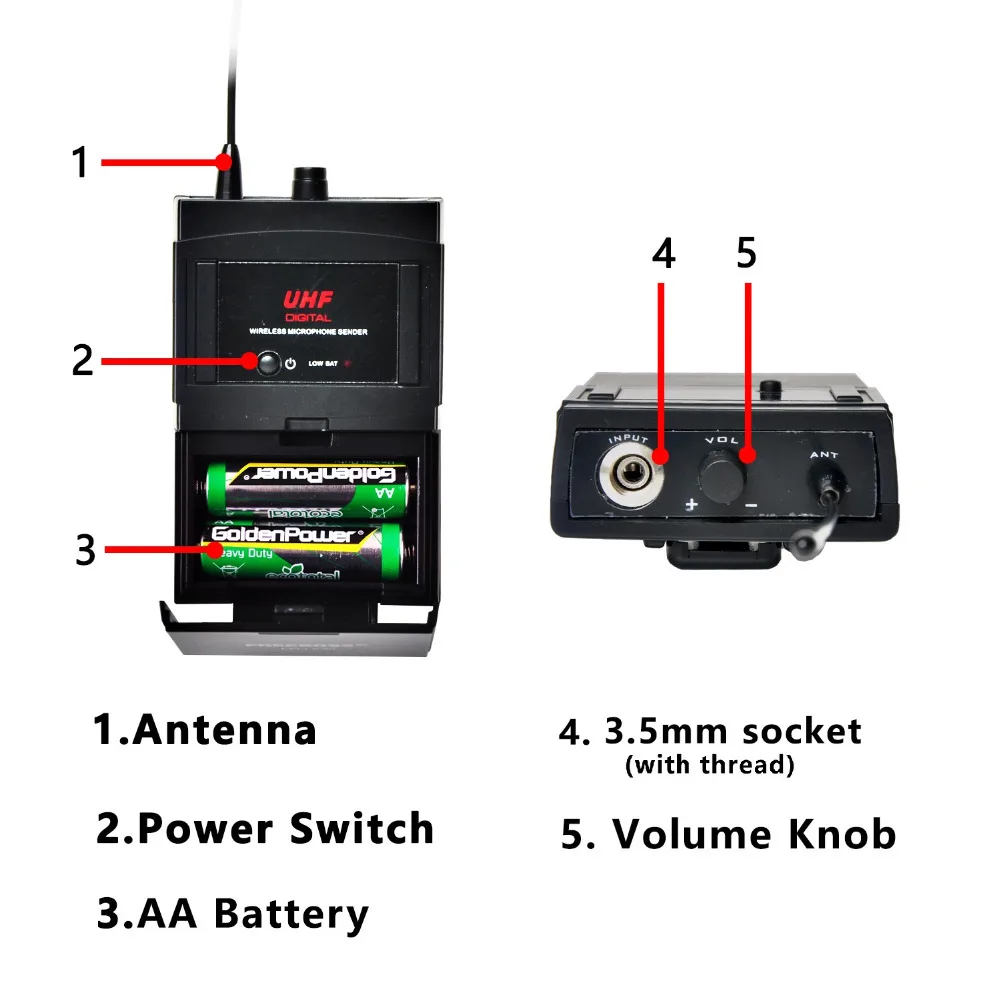

4. Transmitter:

Capsule: Professional Audio Dynamic Capsul

Transmitting power:<=10dbm

Frequency stabilization:+-0.005%

Battery Two-pieces battery of 1.5

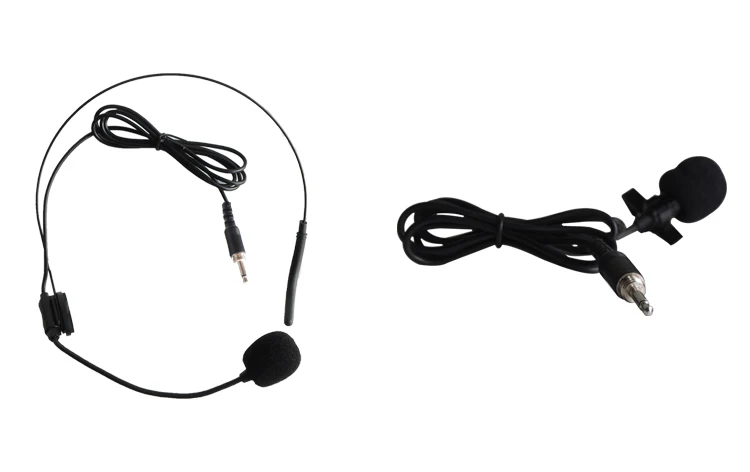

Include:

2 pcs body-pack

2 pcs headset microphone

2 pcs lavalier microphone

5. Application:

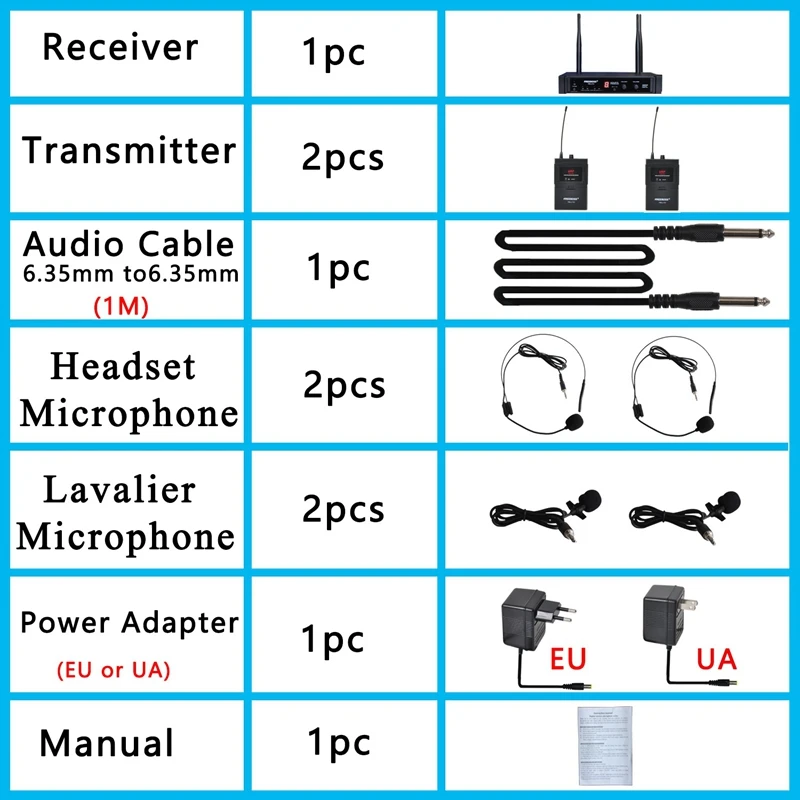

6.Packing Pictures:

1)Lapel Microphone          2pcs

2)Headset Microphone     2pcs

3)Bodypack transmiter     2pcs

4)Receiver                       1pc

5)Audio  cabel                  1pc

6)Power adapter              1pc

7 )Owner's manual           1pc

Please Note:

Please confirm the frequency is ok for you.

If you need other frequency, please tell us before you order.

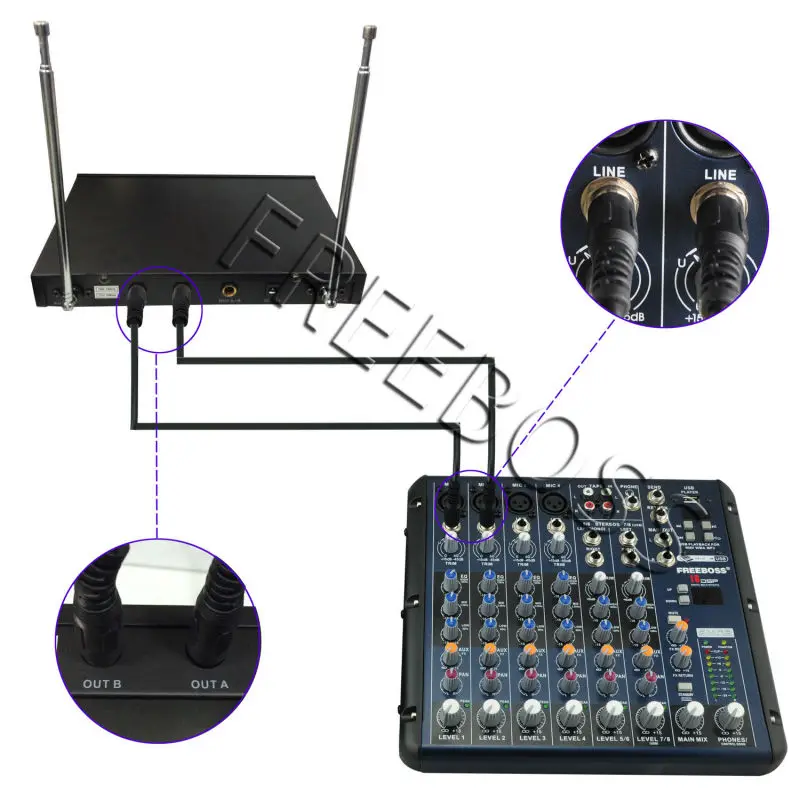

HOW TO USE Wireless Microphone:

1) 6.35 plug cable to audio mixer (there is one piece cable in the package)

2) 6.35 plug cable to audio mixer (there is one piece cable in the package)

3) 6.35 plug cable to amplifier (there is one piece cable in the package)

4) 6.35 plug cable to amplifier (there is one piece cable in the package)

5) 6.35 plug cable to amplifier speaker (there is one piece cable in the package)
