fast scanner LV3000H 1D 2D Scanner Using in Production Line Conveyor Datamatrix Aztec OCR MRZ QR Reader receipt scanner Scanners

Code: TD-1005002068742859
Free Shipping
$ 209.58
Color:
USB
RS232
Note

Quantity:
Other people want this. 17 people have this in their carts right now.
Brand Name:  RAKINDA
Type:  Barcode Scanner
Optical Resolution:  1280*800
Scan Element Type:  CMOS
Certification:  CE
Certification:  FCC
Certification:  RoHS
Scan Breadth:  A4
Scan Speed:  300scans/second
Interface Type:  USB, RS232
Origin:  CN(Origin)
Model Number:  LV3000H
Colour Depth:  32 Bit
Product Type:  Bar Code Scanner
Novelty:  New
Scanning Light Source:  LED
Time to market:  Sep-08
Scan Rate:  up to 300 scans/sec
Decode Rate:  200 decodes/sec (default)
Symbologies:  1D/2D
Precisio:  >/=5mil
Reading Mode:  Sensor,Auto,Continuous,Command
Light:  LED Light
Weight:  75g
Size:  41.5*49.5*24.5mm

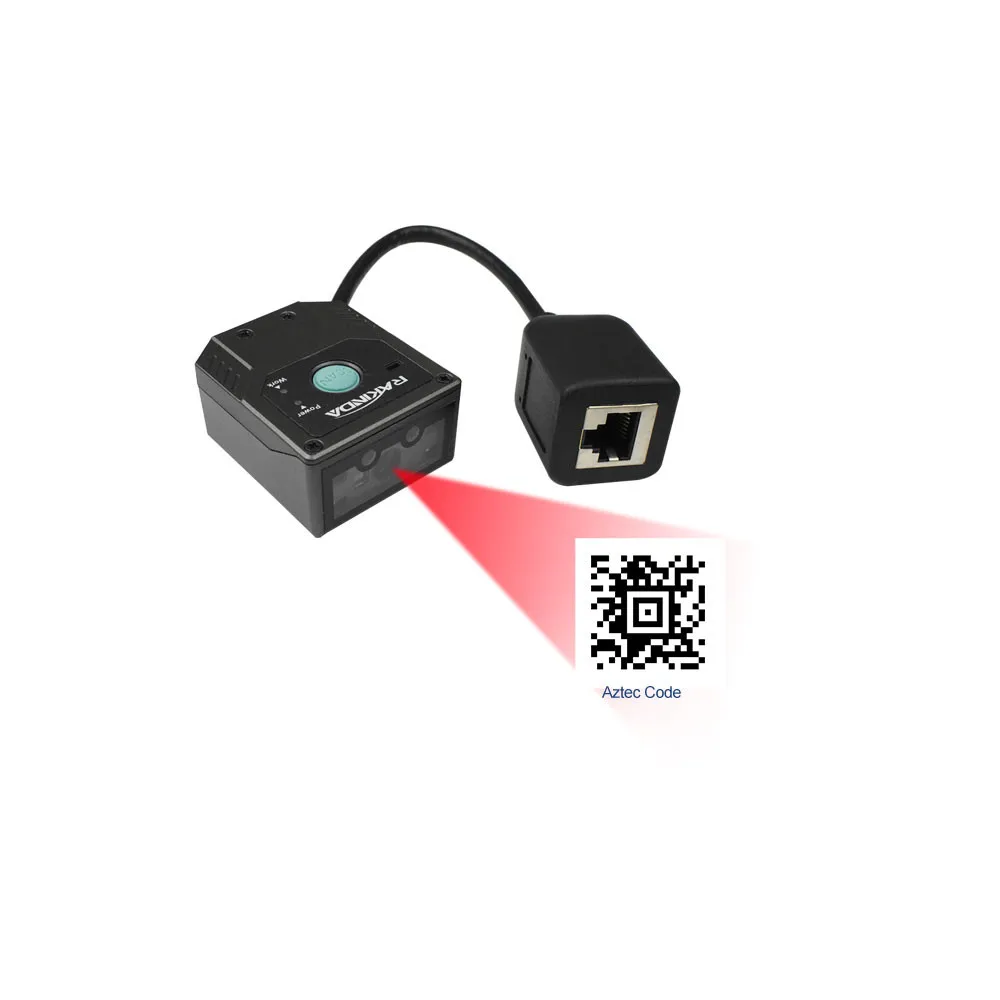

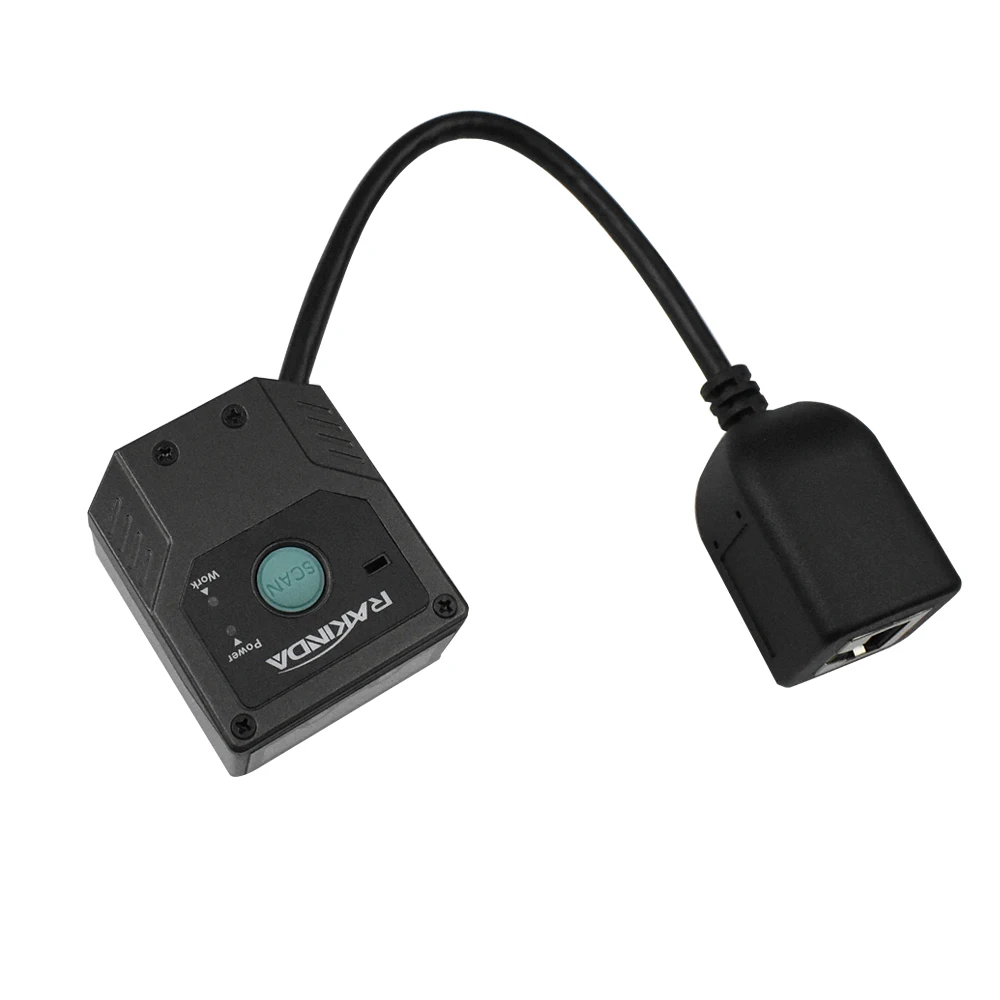

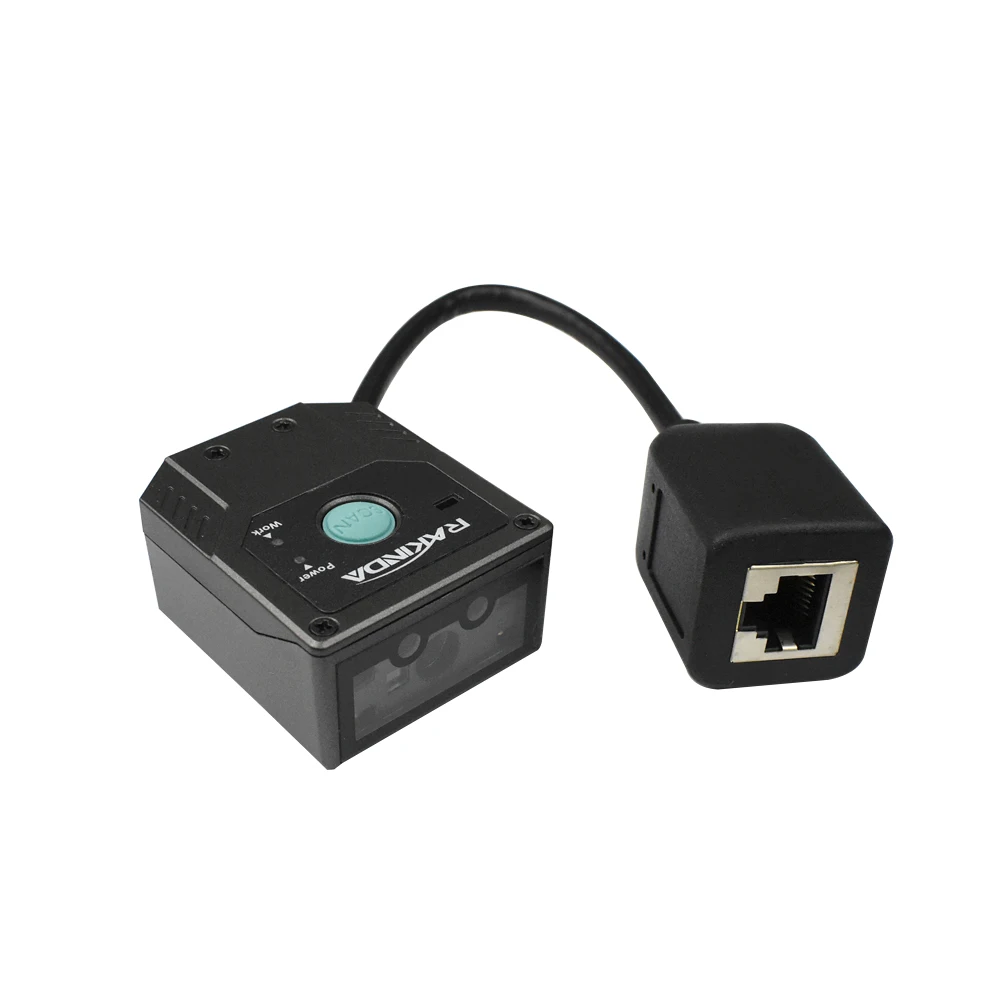

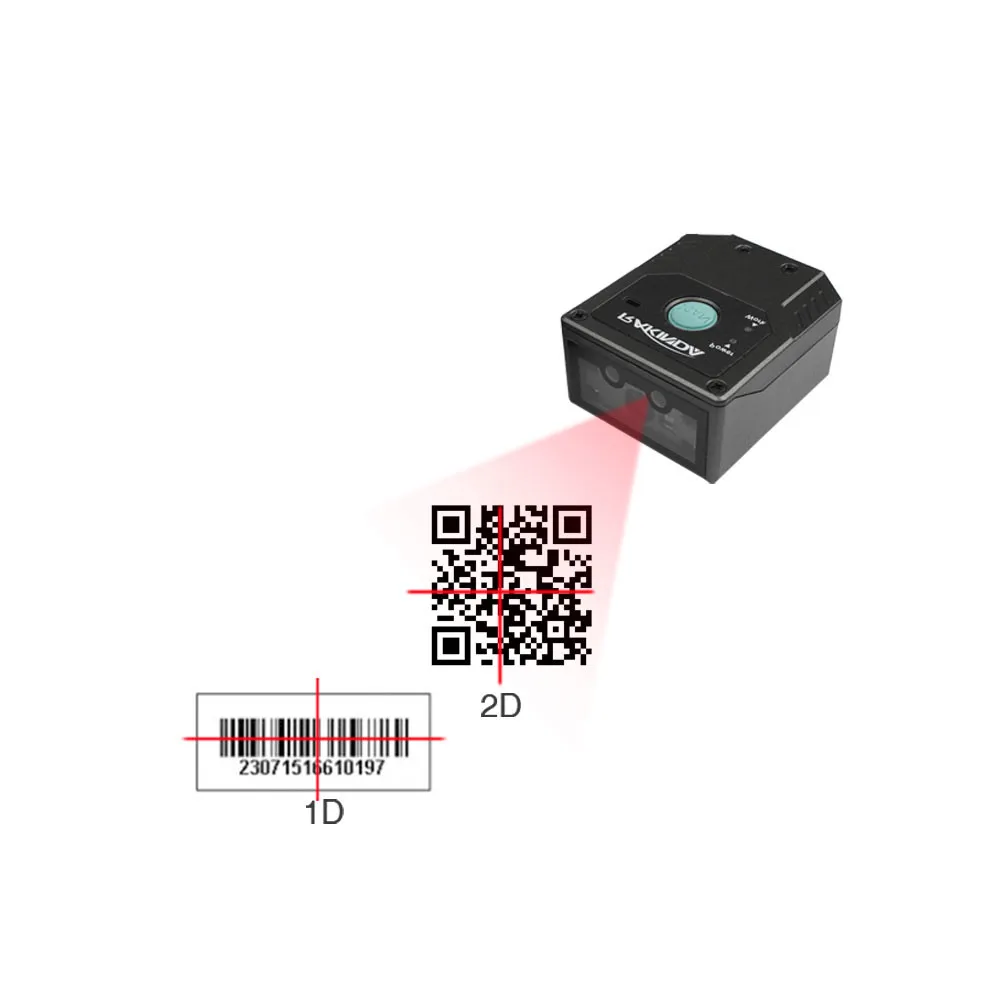

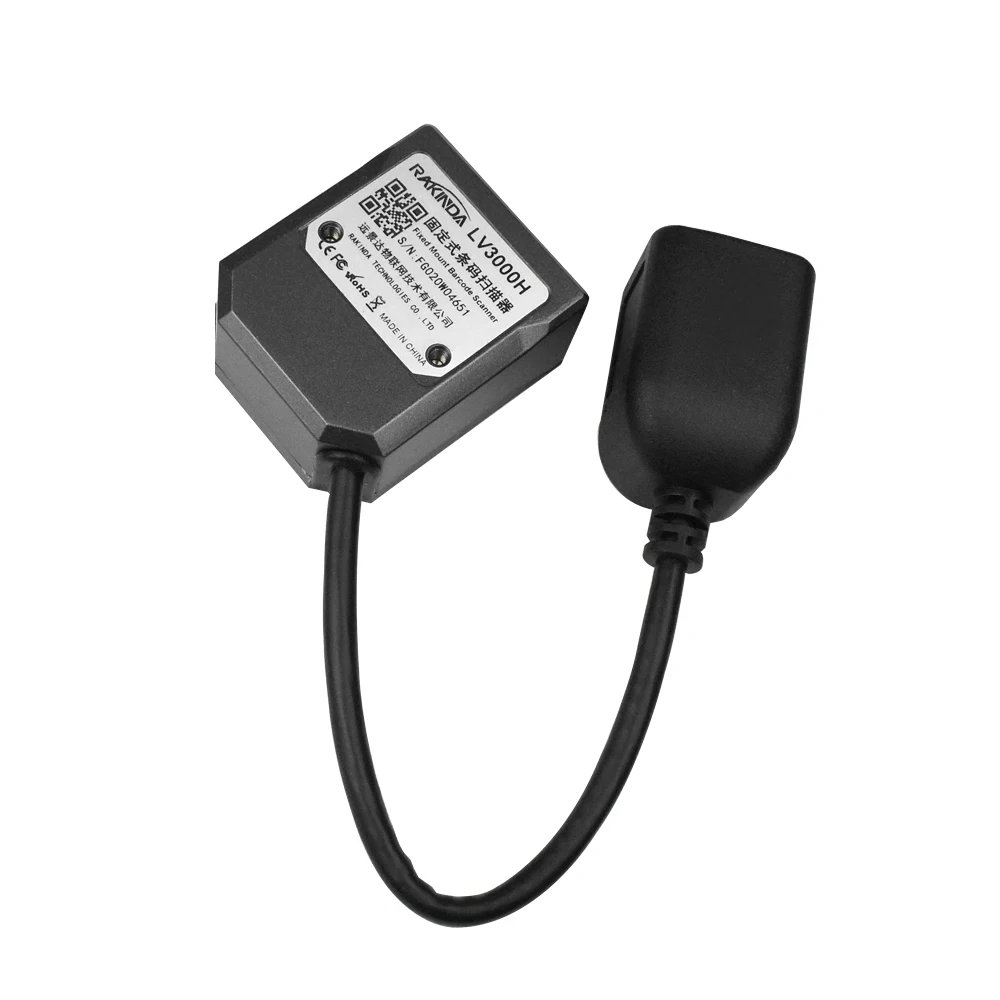

1D 2D OCR MRZ Fixed Mount Barcode Scanner Scanning Paper Barcode for Kiosk,Vending Machine,Production Line


Product Features:


1. IR/Light Triggers Dual Trigger Mode


2. lP54-sealed Housing


3. Clear Aiming Mode


4. 1.5m Drop Resistance


5.Unmatched Reading Performance


6.Automatic Exposure Control (AEC)


Application Fields:


Self-service Kiosk Terminal, Payment machine, Smart Locker, Vending Machine, O2O applications, etc.

Performance

Image Sensor

1280*800 CMOS

Illumination Aiming

White LED

L

aser

D

iode or

G

ree LED

Symbologies

2D

PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.

1D

EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.

Resolution

>=3 mil

Typical Depth of Foeld

EAN-13

55-360mm(13mil)

Code 39

70-180mm(5mil)

PDF417

55-160mm(6.7mil)

Data Matrix

50-170mm(10mil)

QR Code

40-210mm(15mil)

Scan Mode

Sense mode, Continuous mode, Level mode, Pulse mode

Scan Angle

Roll:360d, Pitch:±55°, Skew:±55°

Field of View

Horizontal 51°, Vertical 32°

Min Symbol Contrast

25%

Mechanical Electric

Interface

RS-232, USB

Dimensions

63(W)*45(D)*28(H)

Weigh

75g

Notification

Beep, LED indicator

Rated Power Consumption

1622mW(typical)

Operating Voltage

5VDC±-5%

Current SVDC

Operating

276.8mA(typical), 322.7mA(max.)

Standby

83.3mA

Environmental

Operating Temperature

-20℃ to 60℃(-4℉ to140℉)

Storage Temperature

-40℃ to 70℃ (-40℉ to 158℉)

Humidity

5% to 95% (non-condensing)

ESD

± 14kV (air discharge), ±8kV (direct discharge)

Drop

1.5m

Sealing

IP68

Certifications

FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC

Environmental

Cable

USB

Used to connect to a host device

RS-232

Used to connect to a host device

Power Adapter

DC5V adapter to power with RS-232 cable

Rakinda Technologies Co.,Ltd (The predecessor is Longview Tech Enterprise Co., Limited ) has been established since 2000, which has 6 branches in total, which are in Guangzhou, Shenzhen, Xiamen, Suzhou, Chengdu, Beijing and HongKong. "Rakinda" and "SCANMAX" are our two independent brands. Rakinda is also a leading worldwide Internet of Things solution provider, which is specialized in 1D/2D barcode identification technology (Embedded/Fixed Mount/Handheld/Desktop Barcode Scanner, Android PDA, Mobile POS, etc.) , radio frequency identification (UHF) technology and face recognition technology almost 20 years . We are oriented by customer demands , focus on development and innovation of intelligent systems and strive to provide most competitive IoT application solutions and services. Promoting people's lifestyle to be more intelligent is our infinite pursuit.

FAQ

Q: Can I get some samples? Are they free?

A: We support 1pc sample order. Samples should be paid.

Q: Can I get extra cables for the scanners?

A: Yes you can. We will provide according to your request.

Q: How can I buy?

A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.

Q: What is your payment method?

A: We accept online credit card, TT, Paypal, Western Union.

Q: Can I visit your factory:

A: Yes, you are warmly welcome.

Q: How long is your warranty time:

A: 1 Year.

Q: Where can we download the user manual of the scanners?

A: We will send by email after you get samples.

Q: What's the lead time?

A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

Q: Can you provide OEM service?

A: Yes. We need further discuss about details.

Q: How do you ship the scanners usually?

A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
