best document scanner Rakinda LV3000Uplus 1D 2D Fixed Mount RS232 Barcode Reader IP68 Industrial QR Code Scanner Reader flatbed scanner Scanners

best document scanner Rakinda LV3000Uplus 1D 2D Fixed Mount RS232 Barcode Reader IP68 Industrial QR Code Scanner Reader flatbed scanner Scanners

Name: best document scanner Rakinda LV3000Uplus 1D 2D Fixed Mount RS232 Barcode Reader IP68 Industrial QR Code Scanner Reader flatbed scanner
Brand: MMO Dropship
SKU: 4000165855675
Price: 369 VND
Availability: InStock
Rating: 4.9 (93 reviews)

Code: TD-4000165855675

Free Shipping

$ 369

Quantity:

Other people want this. 14 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	RAKINDA
Scan Speed:	300 Scans/sec
Type:	Barcode Scanner
Scan Element Type:	CMOS
Optical Resolution:	960*640
Interface Type:	RS232
Scan Breadth:	A4
Model Number:	LV3000Uplus
Colour Depth:	32 Bit
Product Type:	Bar Code Scanner
Resolution:	>3mil
Power Consumption:	1.75W
Operating Voltage:	DC 5 V
Dimensions(mm):	63(W)45(D)28(H)
Weight:	75g
Operating Temperature:	-20°C - +60°C
Storage Temperature:	-40°C - +70°C
Light Source:	LED 400nm to 750nm
IP Rating:	IP68

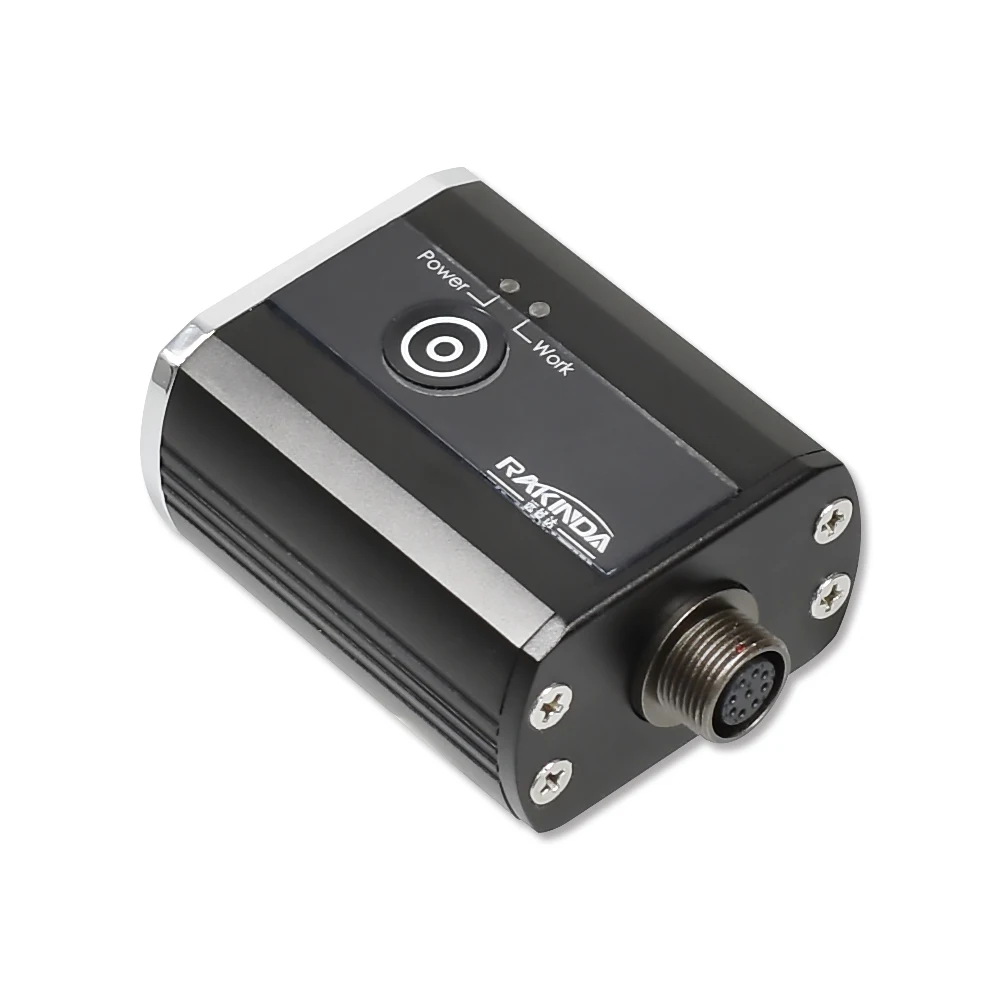

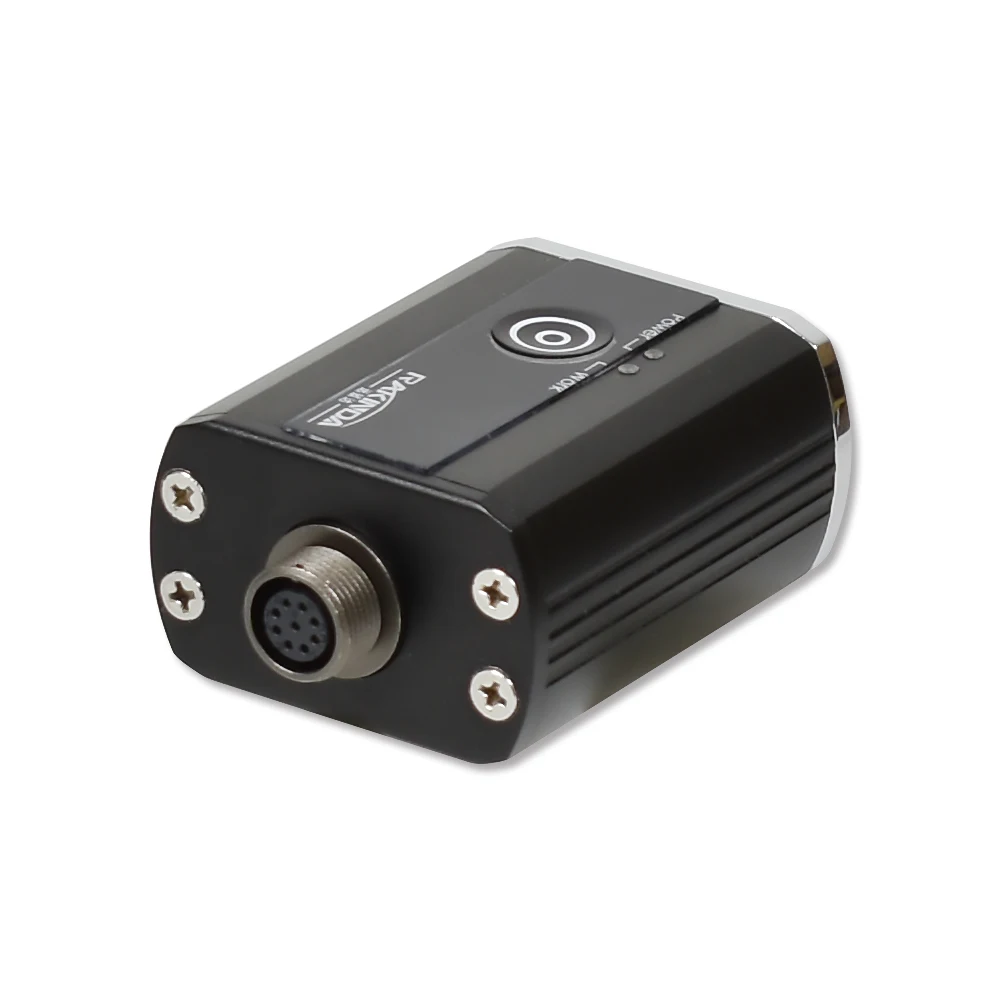

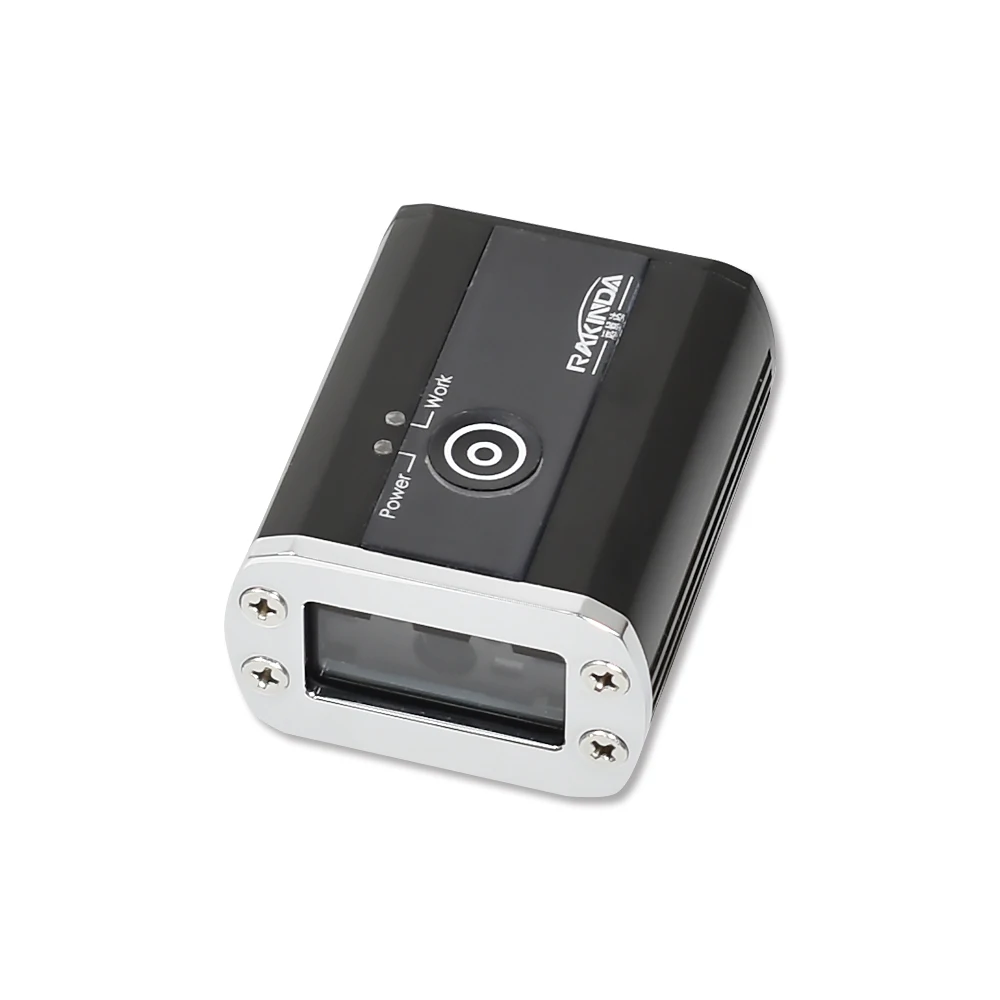

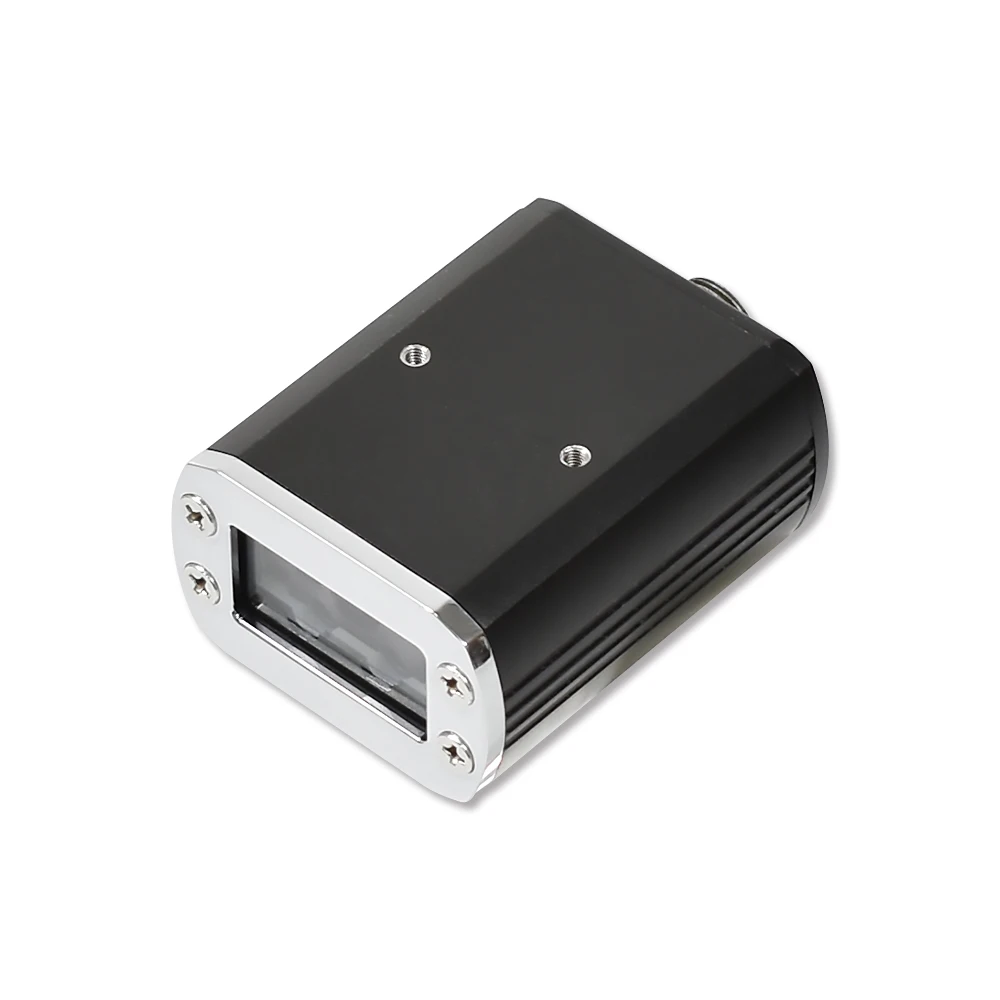

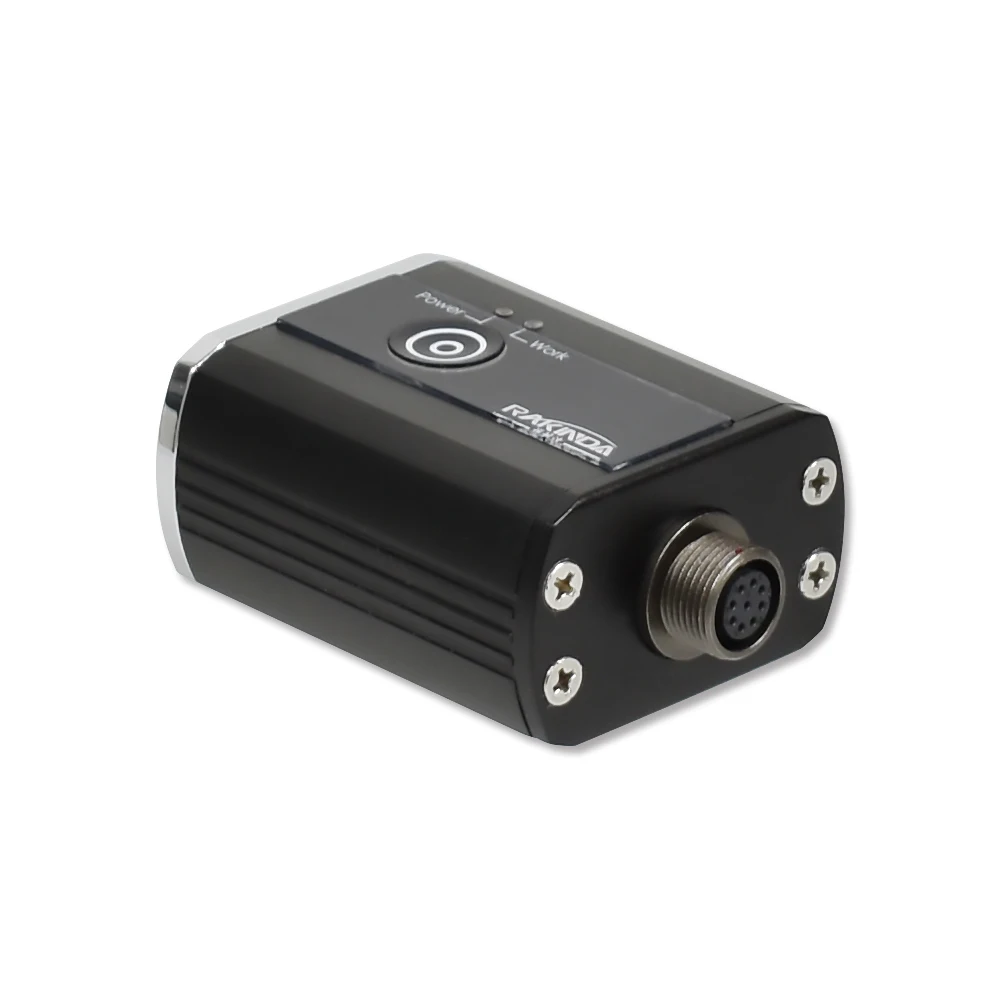

Rakinda LV3000Uplus 1D 2D Fixed Mount RS232 Barcode Reader IP68 Industrial QR Code Scanner Reader

Product Description

LV3000U PLUS Fixed Mount 2D Scanner is environmentally sealed to an IP65 rating to prevent dust, moisture

from entering it.

Features:

1. IR/Light Triggers

The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

2. Automatic Exposure Control (AEC)

The sensors in the LV3000UPLUS automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.

3. IP65-sealed Housing

The LV3000U PLUS is environmentally sealed to an IP65 rating to prevent dust, moisture

from entering it.

4. Unmatched Reading Performance

The LV3000U PLUS is capable of reading 1D as well as high-volume 2D barcodes on the

with

film.

5. Highly Visible Laser Aimer

The LV3000U PLUS provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring

accurate aim.

6. 1.5m Drop Resistance

The scanner withstands multiple 1.5m drops

(for six sides, three drops per side).

Barcode Scanner Parameters:

Performance

Image Sensor

1280*800 CMOS

Illumination Aiming

White LED laser diode or

LED

Symbologies

PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One,

EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.

Resolution

>=3 mil

Typical Depth of Foeld

EAN-13

55-360mm(13mil)

Code 39

70-180mm(5mil)

PDF417

55-160mm(6.7mil)

Data Matrix

50-170mm(10mil)

QR Code

40-210mm(15mil)

Scan Mode

Sense mode, Continuous mode, Level mode, Pulse mode

Scan Angle

Field of View

Min Symbol Contrast

25%

Mechanical Electric

Interface

RS-232, USB

Dimensions

63(W)*45(D)*28(H)

Weigh

75g

Notification

Beep, LED indicator

Rated Power Consumption

1622mW(typical)

Operating Voltage

Current SVDC

Operating

276.8mA(typical), 322.7mA(max.)

Standby

83.3mA

Environmental

Operating Temperature

℉

Storage Temperature

℃

℉

Humidity

5% to 95% (non-condensing)

ESD

± 14kV (air discharge), ±8kV (direct discharge)

Drop

1.5m

Sealing

IP65

Certifications

FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC

Environmental

Cable

USB

Used to connect the LV3000U to a host device.

RS-232

Used to connect the LV3000U to a host device.

Power Adapter

DC5V adapter to power the LV3000U with RS-232 cable

Application Fields:

best document scanner Rakinda LV3000Uplus 1D 2D Fixed Mount RS232 Barcode Reader IP68 Industrial QR Code Scanner Reader flatbed scanner
